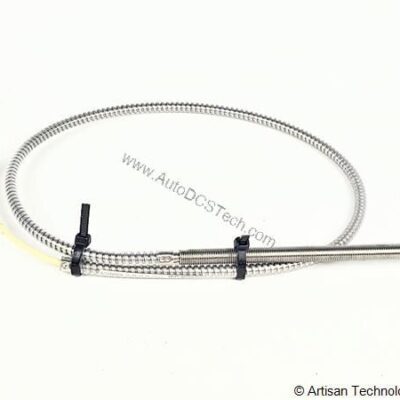

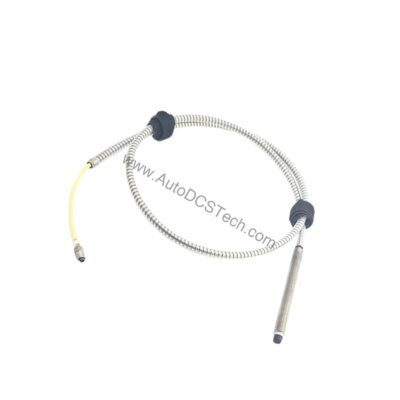

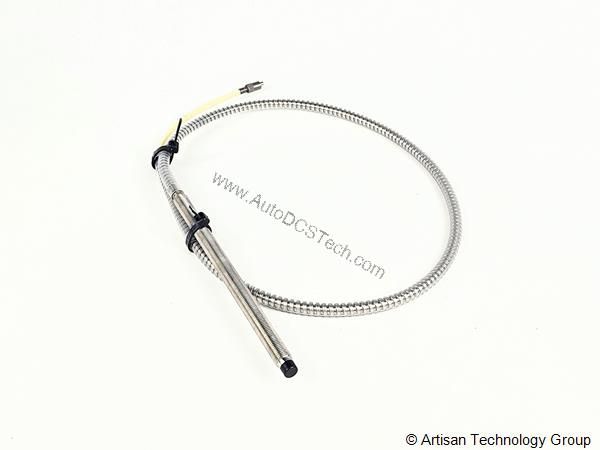

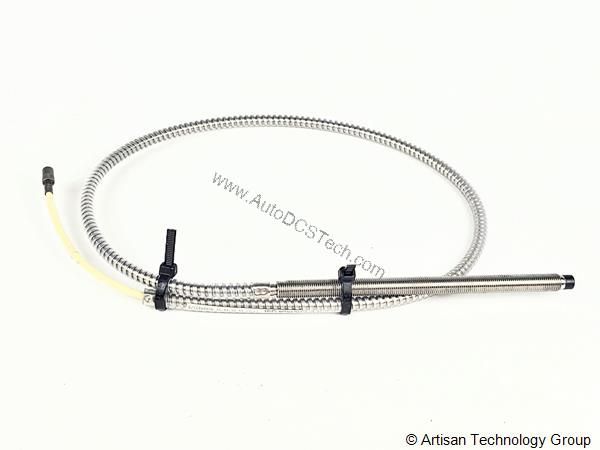

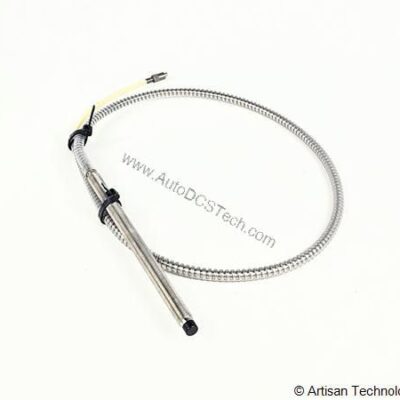

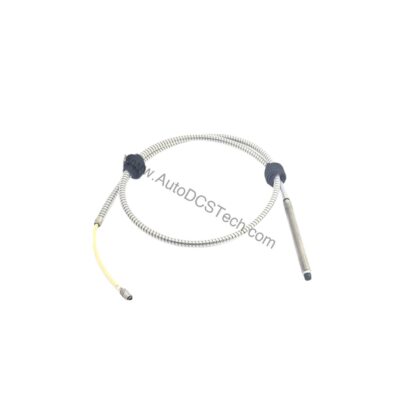

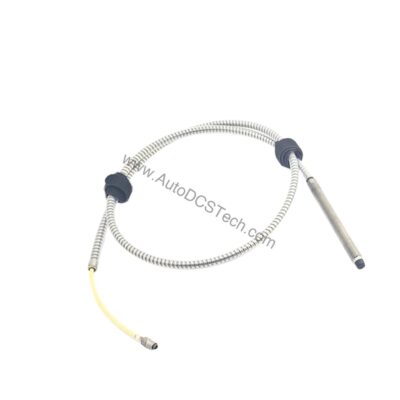

Bently Nevada 21505-00-40-05-02 8 mm Proximity Probe for Vibration Monitoring

Technical Specifications Breakdown

Key parameters for the 21505-00-40-05-02 are listed below for quick reference:

Industry Applications for Vibration Monitoring

Steam Turbine Shaft Vibration

In power generation, steam turbines operate at high speeds where even minor shaft displacement can lead to rubs or bearing damage. The 21505-00-40-05-02 provides a calibrated range of 80 mils (2.0 mm) with a scale factor of 200 mV/mil, enabling precise monitoring of radial vibration. Its stainless steel armor resists corrosion from steam and lube oil, ensuring long-term reliability in harsh environments.

Centrifugal Compressor Protection

Centrifugal compressors in oil and gas facilities are prone to surge and imbalance. The probe's frequency response up to 10 kHz (600,000 cpm) captures high-frequency vibration components indicative of incipient failure. The miniature coaxial connector simplifies integration with existing Bently Nevada monitoring systems, reducing installation time.

Pump Condition Monitoring

For large industrial pumps, continuous vibration monitoring prevents unplanned outages. The 21505-00-40-05-02 operates reliably in temperatures from -30°F to +350°F, covering most pump environments. Its linearity within 0.8 mils (0.02 mm) of a 200 mV/mil straight line ensures accurate trend data for predictive maintenance programs.

Installation & Setup Guidance

When installing the 21505-00-40-05-02, ensure the probe face is clean and free of debris. The 3/8-24 threaded case allows secure mounting in standard probe holders. Maintain a minimum gap of 10 mils (0.25 mm) from the target surface to begin the calibrated range. Use the supplied miniature male coaxial connector for a reliable signal connection. Route the stainless steel armored lead away from high-EMI sources to preserve signal integrity. For optimal performance, calibrate the probe as a system with the proximitor to achieve ±4% scale factor accuracy.

Maintenance & Reliability

Periodically inspect the probe tip and cable for physical damage or contamination. The stainless steel armor provides mechanical protection, but avoid sharp bends that could stress the internal wiring. The probe is resistant to air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK, and DMF, making it suitable for demanding industrial environments. No routine recalibration is required unless the probe is replaced or the system configuration changes.

Failure Mode Analysis & Prevention: The 21505-00-40-05-02 in Rotating Machinery Protection

Industrial rotating machinery has evolved from simple mechanical assemblies to complex, high-speed systems where unplanned downtime can cost millions. The Bently Nevada 21505-00-40-05-02 8 mm proximity probe is a critical component in the 7200 series transducer systems, designed to detect shaft vibration and position with precision. By converting physical displacement into an electrical signal, this probe enables early detection of bearing wear, imbalance, or misalignment before catastrophic failure occurs.

Compatibility & Integration

The 21505-00-40-05-02 is part of the Bently Nevada 7200 Proximity Transducer System. It is compatible with standard 7200 series proximitors and extension cables. The 0.5 metre total length (20 inches) with a 4.0 inch overall case length and 0.0 inch unthreaded section provides flexibility for tight installations. The miniature male coaxial connector ensures a secure, low-noise connection. Always verify compatibility with your existing monitoring hardware before ordering.

Selection Guide & Purchasing Advice

When selecting a proximity probe, consider the target material, environmental conditions, and required cable length. AutoDCSTech stocks this probe as new and original in factory packing, backed by a 12-month warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering to ensure timely delivery for your maintenance schedule.
