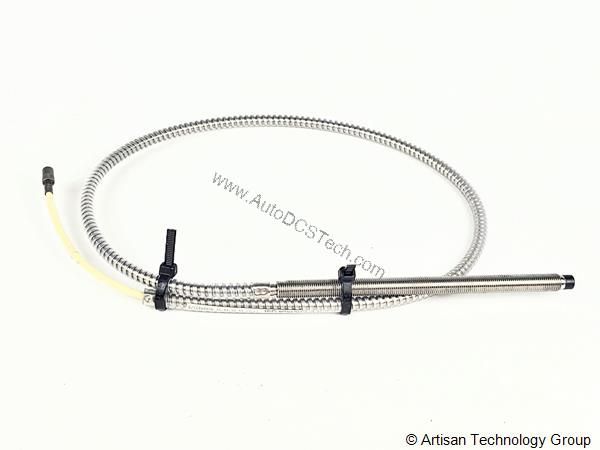

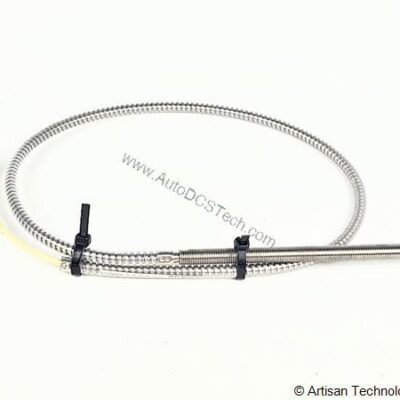

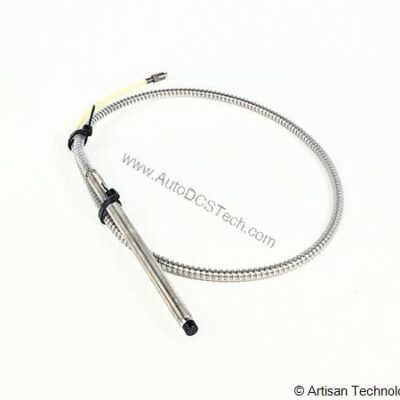

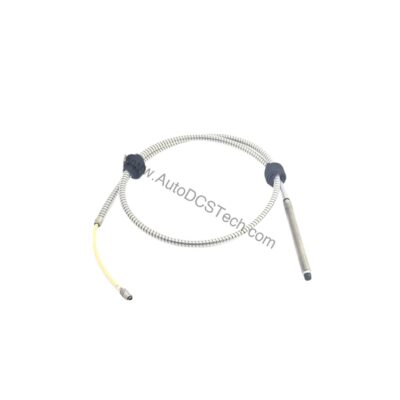

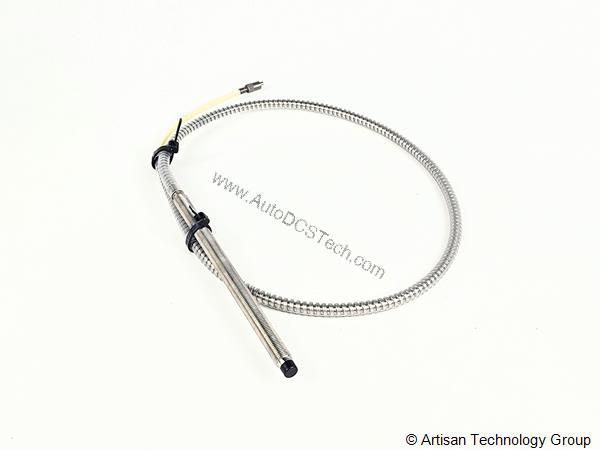

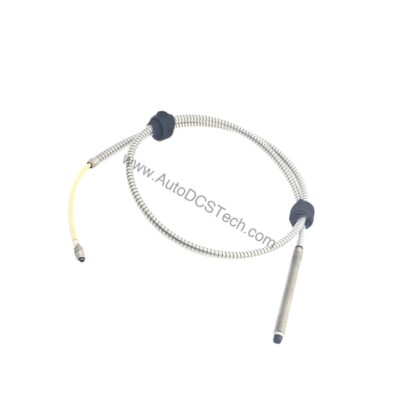

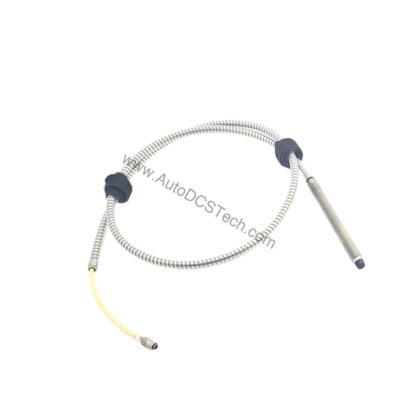

Bently Nevada 21505-24-40-10-02 8 mm Proximity Probe for Vibration Monitoring

Technical Specifications Breakdown

Key parameters for the 21505-24-40-10-02 are listed below for quick reference:

Industry Applications and Cost Impact

Turbomachinery Protection

In steam turbines, gas compressors, and centrifugal pumps, the 21505-24-40-10-02 provides continuous shaft vibration monitoring. Its 0 to 10 kHz frequency response captures both low-speed and high-speed events. Early detection of vibration anomalies reduces repair costs by up to 30% compared to reactive maintenance.

Oil & Gas Refinery Operations

With corrosion resistance to sulfuric acid (10%), MEK, and DMF, this probe withstands harsh chemical environments common in refineries. The stainless steel lead armor prevents cable damage, minimizing replacement expenses and production losses.

Power Generation

For generators and exciter systems, the probe's 200 mV/mil scale factor delivers consistent output for trending analysis. The ±4% system accuracy ensures reliable data, reducing false alarms and unnecessary shutdowns.

Installation and Setup Guidance

Mount the 21505-24-40-10-02 using the 3/8-24 thread into a standard mounting bracket. Ensure the probe face is positioned to achieve the initial gap of approximately 10 mils (0.25 mm) for optimal linear range. Connect the miniature male coaxial connector to the extension cable, securing with the locking nut. Verify power supply is within -17.5 Vdc to -26 Vdc at 12 mA maximum. Calibrate the system using the specified scale factor of 200 mV/mil for accurate displacement readings.

Maintenance and Reliability

Inspect the probe and cable assembly periodically for physical damage or contamination. The stainless steel armor protects against abrasion, but verify connector integrity. Operating the probe within its temperature limits (-30°F to +350°F for the probe) ensures long-term stability. The noncondensing humidity tolerance up to 95% allows use in humid environments without performance degradation.

Cost-Effective Vibration Monitoring with the Bently Nevada 21505-24-40-10-02

Industrial rotating machinery requires precise, reliable vibration monitoring to prevent costly unplanned downtime. The Bently Nevada 21505-24-40-10-02 is an 8 mm proximity probe designed for the 7200 Proximity Transducer System, offering a calibrated range of 80 mils (2.0 mm) with a scale factor of 200 mV/mil (7.87 V/mm). This probe provides accurate shaft displacement measurements, enabling early detection of issues like imbalance, misalignment, or bearing wear. By integrating this component into your condition monitoring strategy, you reduce maintenance costs and extend equipment life.

Selection Guide and Purchasing Advice

When selecting a replacement or spare probe, confirm the total length option (1.0 metre) and connector type (miniature male coaxial). The 21505-24-40-10-02 is available new and in original factory packing from AutoDCSTech. Each unit includes a 12-month factory warranty. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting and Common Issues

If output readings drift or become noisy, first check the power supply voltage and connector tightness. Verify the probe gap is within the calibrated range (10 to 80 mils). For scale factor errors, recalibrate the system using the ±4% tolerance. If the probe has been exposed to corrosive chemicals beyond the listed resistance, inspect for tip damage. Always refer to the Bently Nevada 7200 system manual for detailed diagnostic procedures.
