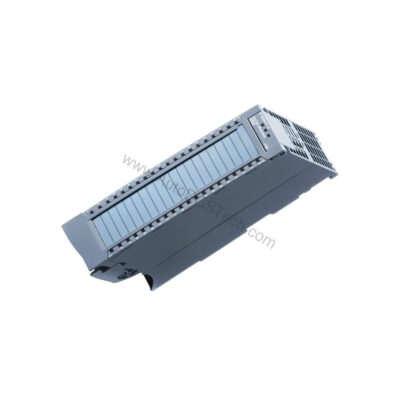

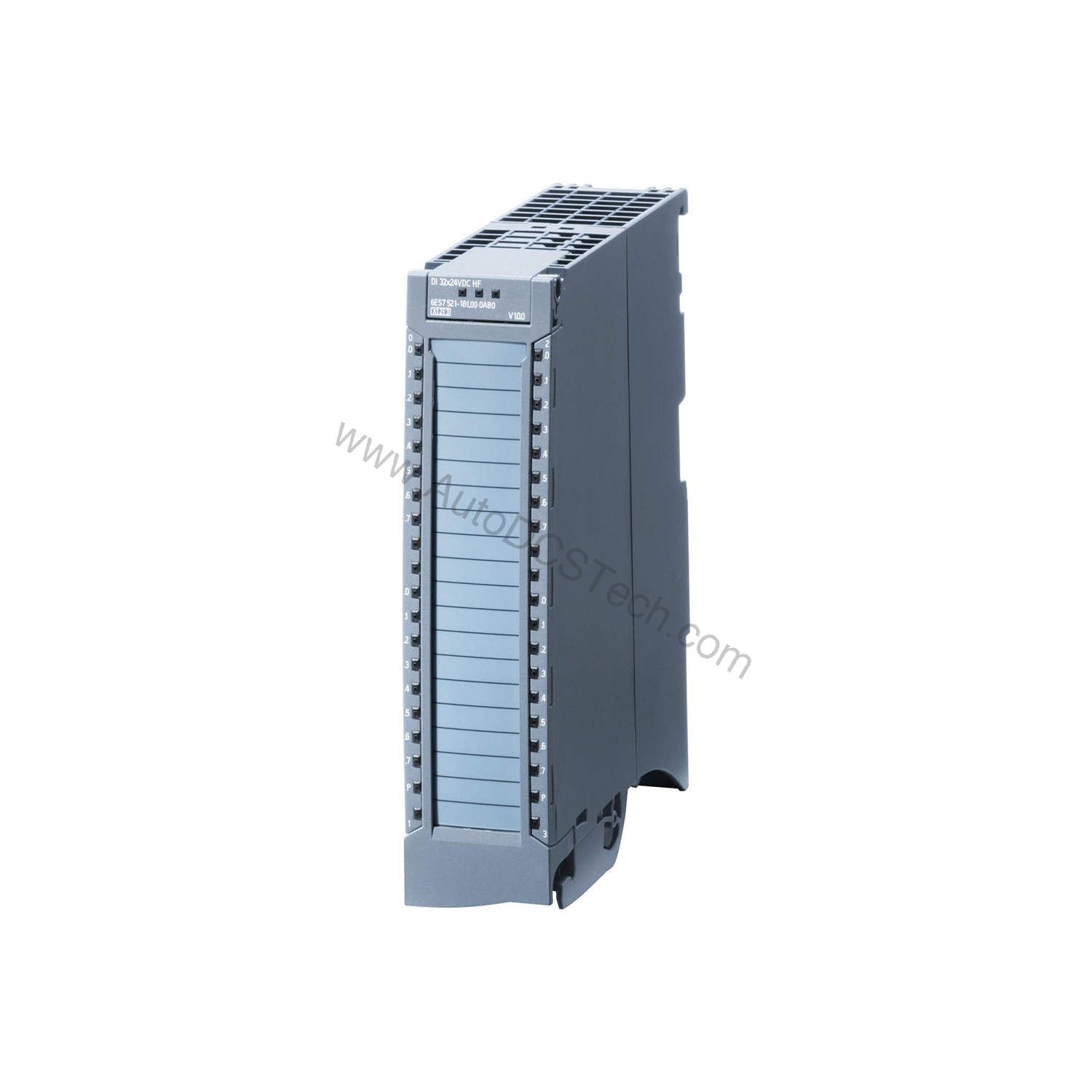

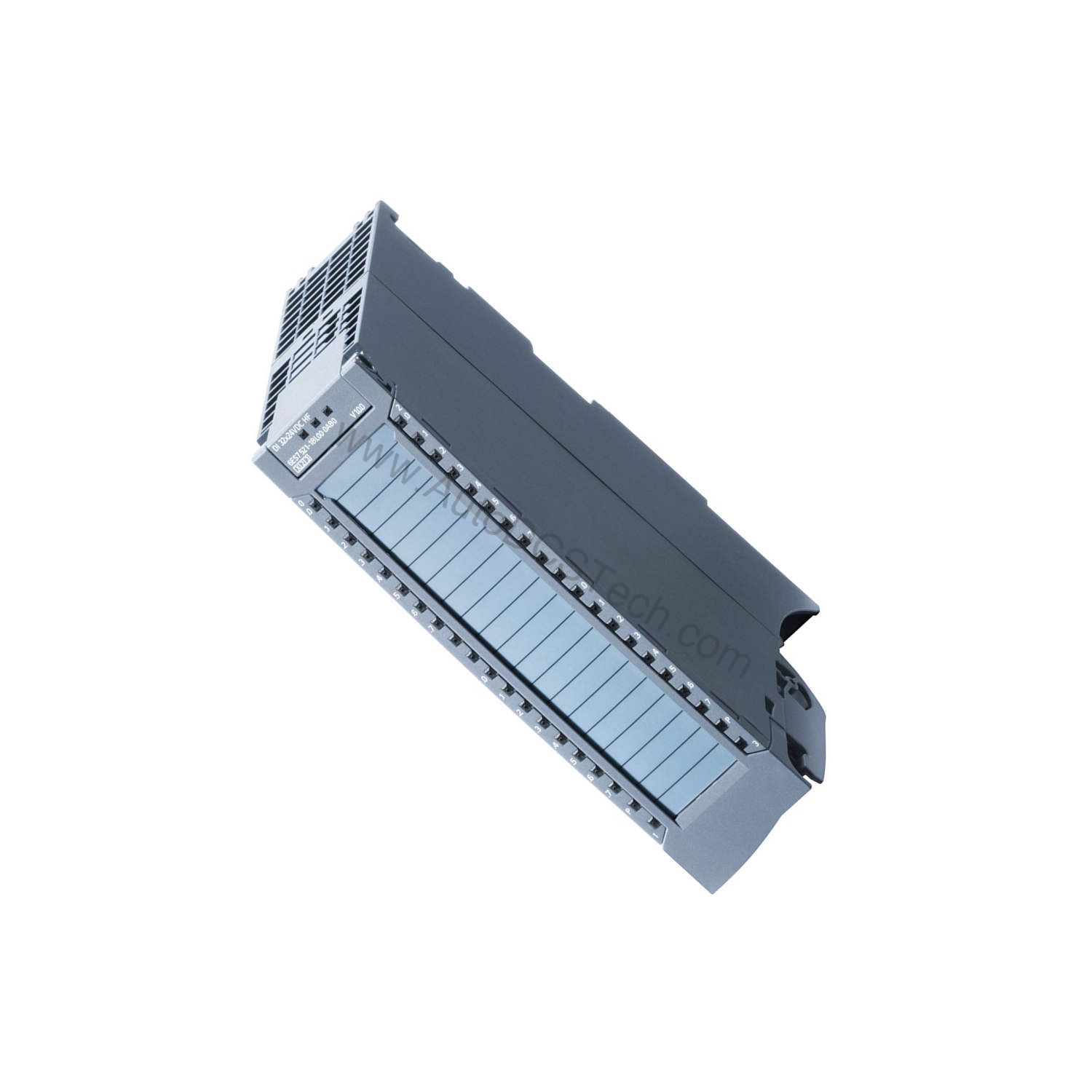

6ES7521-1BL00-0AB0 32 Ch 24V DC Digital Input Module

Introduction to the 6ES7521-1BL00-0AB0

When your control system demands reliable signal acquisition, the 6ES7521-1BL00-0AB0 from Siemens delivers. This SIMATIC S7-1500 digital input module offers 32 channels in groups of 16, with two inputs usable as counters. It is engineered for applications where precision and speed matter.

Key Features and Technical Specifications

• Input voltage: Rated 24 V DC, permissible range 19.2 to 28.8 V DC.
• Input type: Type 3 per IEC 61131, suitable for source/sink (P-reading) inputs.
• Input delay: Parameterizable from 0.05 ms to 20 ms.
• Counter function: Up to 2 inputs can operate as counters with a maximum counting frequency of 6 kHz (FS04 and FW V2.2.1 or higher).
• Diagnostics: Includes diagnostic alarm, hardware interrupt, supply voltage monitoring, and wire-break detection (to I < 350 µA).
• Isolation: Channels isolated in groups of 16; tested with 707 V DC (type test).
• Power loss: Typically 4.2 W.
• Dimensions: 35 mm width, 147 mm height, 129 mm depth; weight approx. 260 g.

Applications and Use Cases

This module suits factory automation, process control, and machine building. Use it for high-speed counting, position monitoring, or general digital input sensing. The module also supports prioritized startup for critical processes.

Installation and Setup

Mount the module on a standard S7-1500 rail. Connect the front connector (screw or push-in, ordered separately) to field wiring. Ensure supply voltage is within 19.2 to 28.8 V DC. Configure parameters via STEP 7 TIA Portal (V13 SP1 or higher) or STEP 7 V5.5 SP3. Set input delays and counter modes as needed.

Maintenance and Reliability

With no moving parts, the module requires minimal maintenance. Periodically inspect wiring and connectors for tightness. Operate within ambient temperature limits: -30 to 60 °C horizontal, -30 to 40 °C vertical (from FS05). For altitudes above 2000 m, consult the manual for derating. Regular checks of supply voltage and wire integrity help prevent downtime.

Compatibility and Integration

The 6ES7521-1BL00-0AB0 integrates with SIMATIC S7-1500 controllers. It supports PROFIBUS (GSD V1.0/V5.1) and PROFINET (GSD V2.3) for network communication. Firmware update is possible, and I&M data (I&M0 to I&M3) is supported.

Troubleshooting Common Issues

If inputs do not respond, check supply voltage and wiring. Use the LED indicators: RUN (green), ERROR (red), PWR (green), channel status (green), and diagnostics (red). For wire-break alarms, verify current is above 350 µA. Ensure the front connector is properly seated. For counter issues, confirm firmware is V2.2.1 or higher.

Product Support and Availability

The 6ES7521-1BL00-0AB0 is available from AutoDCSTech. Contact us for current stock and lead times. Our team can assist with technical questions and ordering.

Comparison with Similar Modules

Compared to standard digital input modules, the 6ES7521-1BL00-0AB0 offers advanced features like isochronous mode and counter capability. While a basic 32-channel module may only provide simple on/off detection, this module adds diagnostics and high-speed counting, reducing the need for separate counter cards.
