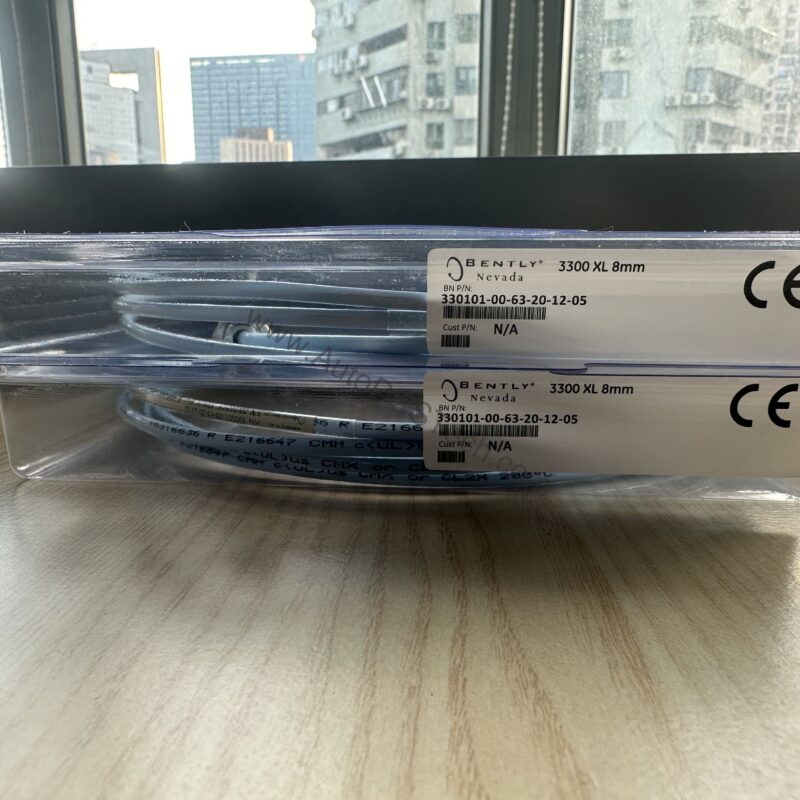

Bently Nevada 330101-00-63-20-12-05 3300 XL 8 mm Probe without Armor

Failure Mode Analysis & Prevention with the Bently Nevada 330101-00-63-20-12-05

Unplanned downtime from bearing wear or shaft instability often originates in undetected vibration. The Bently Nevada 330101-00-63-20-12-05 3300 XL 8 mm Probe directly addresses this risk by providing precise, reliable proximity sensing for critical rotating equipment. This probe, without armor and featuring a 3/8-24 UNF thread, is engineered for permanent installation in harsh environments.

Technical Specifications Breakdown

Key parameters for the 330101-00-63-20-12-05 are listed below for quick reference:

Industry Applications

Steam Turbine Vibration Monitoring – In power generation, shaft vibration above 2 mm (80 mils) can indicate impending failure. The 330101-00-63-20-12-05 provides a linear output from 0.25 to 2.3 mm (10 to 90 mils), enabling early detection of imbalance or misalignment. Its FluidLoc cable prevents oil leakage along the cable interior, a common failure point in turbine lube oil systems.

Compressor Health Assessment – Reciprocating and centrifugal compressors in oil & gas applications benefit from the probe’s robust TipLoc and CableLoc designs. The patented CableLoc provides 330 N (75 lbf) pull strength, reducing cable breakage during installation or maintenance. The 8 mm probe’s thicker PPS encapsulation offers superior resistance to physical abuse compared to smaller probes.

Pump Reliability Programs – For critical pumps, the probe’s standard temperature range of -52°C to +177°C (-62°F to +350°F) covers most operating conditions. The incremental scale factor of 7.87 V/mm (200 mV/mil) ± 5% ensures consistent readings across multiple machines, simplifying trend analysis.

Installation & Setup Guidance

Mount the 330101-00-63-20-12-05 using the 3/8-24 UNF thread into a properly tapped hole. Ensure the probe tip is clean and free of debris. For radial vibration measurements, set the gap voltage to -9 Vdc (approximately 1.27 mm or 50 mils) per the manufacturer’s recommendation. Use field wiring of 0.2 to 1.5 mm² (16 to 24 AWG) with a 3-conductor shielded triad cable. The maximum field wiring length between the 3300 XL Proximitor Sensor and the monitor is 305 meters (1,000 feet). Refer to the frequency response graphs for signal rolloff at high frequencies when using longer wiring.

Maintenance & Reliability

Inspect the probe cable and connector periodically for signs of wear or damage. The Viton® O-ring seal maintains differential pressure between the probe tip and case; avoid exposing the probe to temperatures below -34°C (-30°F) to prevent premature seal failure. The probe’s relative humidity tolerance is less than a 3% change in Average Scale Factor (ASF) when tested at 93% humidity per IEC 68-2-3 for up to 56 days. For extended temperature range applications, the probe tip can operate up to +218°C (+425°F), while the cable and connector handle up to +260°C (+500°F).

Compatibility & Integration

The 330101-00-63-20-12-05 is part of the 3300 XL system and is compatible with 3300 XL Proximitor Sensors and monitors. The miniature coaxial ClickLoc connector ensures a secure, quick connection. The probe is approved for use in hazardous areas with CSA, ATEX, and IECEx certifications. Always verify system compatibility with your existing Bently Nevada monitoring equipment.

Selection Guide & Purchasing Advice

When selecting a replacement or new probe, confirm the thread size (3/8-24 UNF), overall case length (6.3 in), and total cable length (2.0 meters). The 330101-00-63-20-12-05 is available from AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering. For applications requiring a probe without armor, this model is an choice for permanent installation in clean environments.
