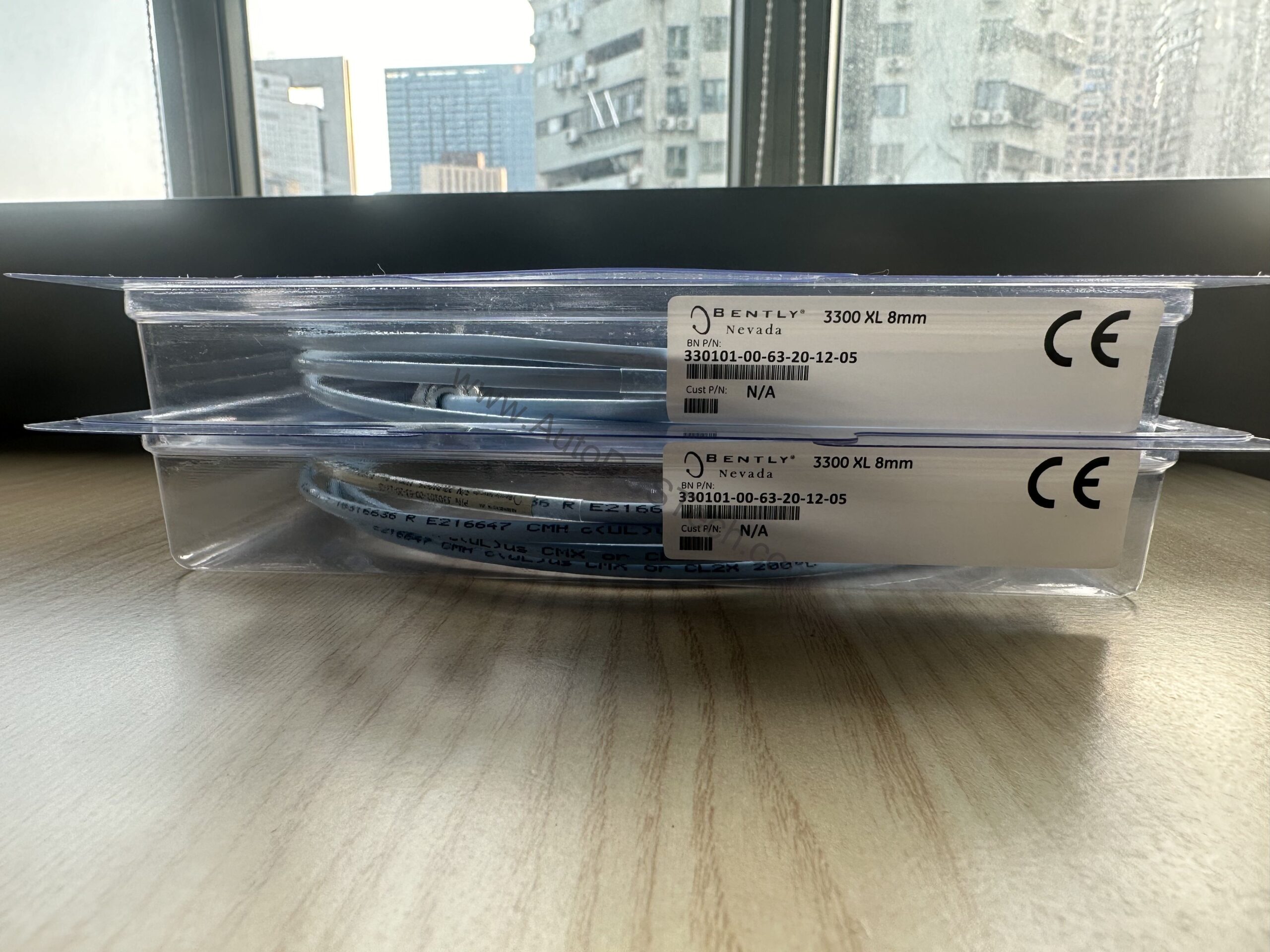

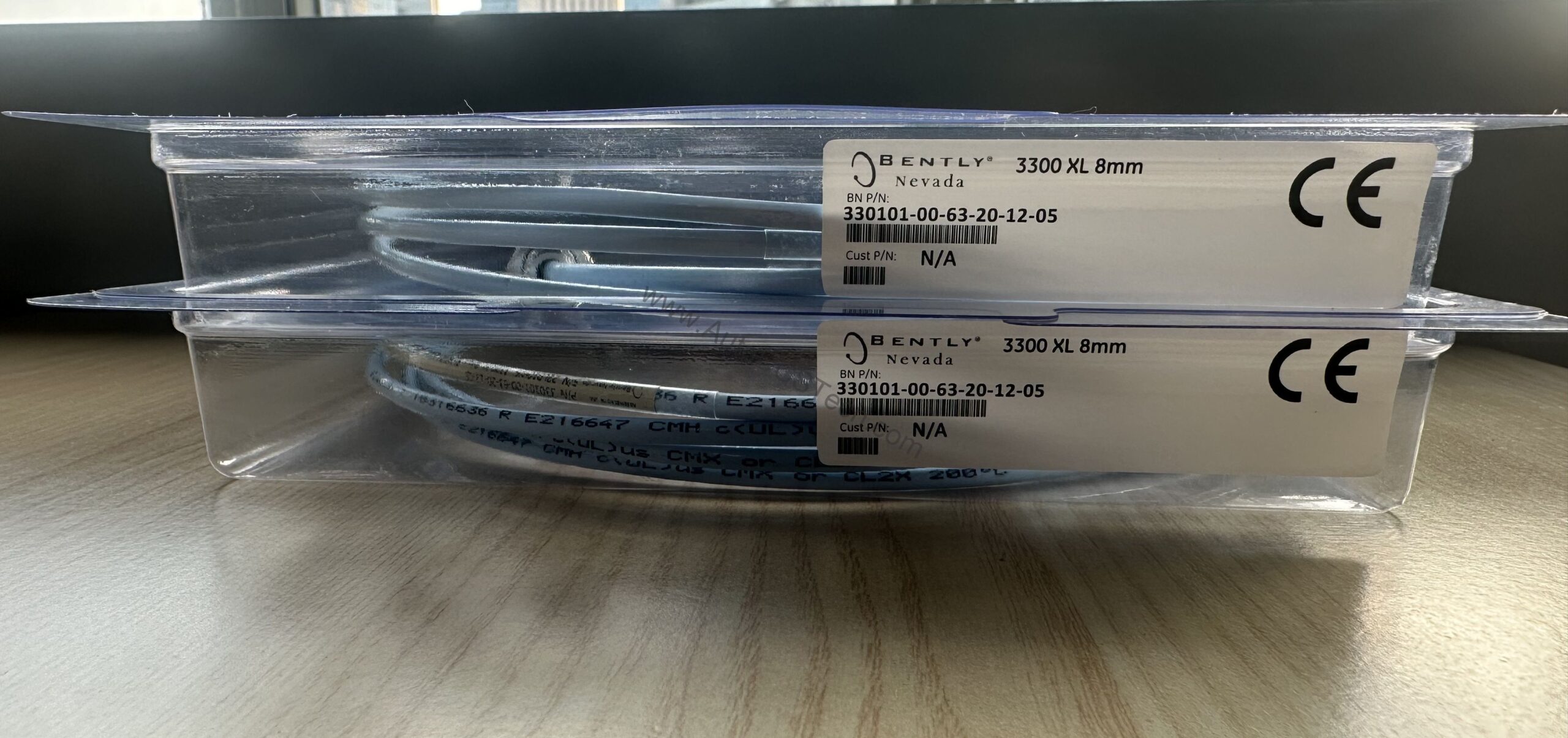

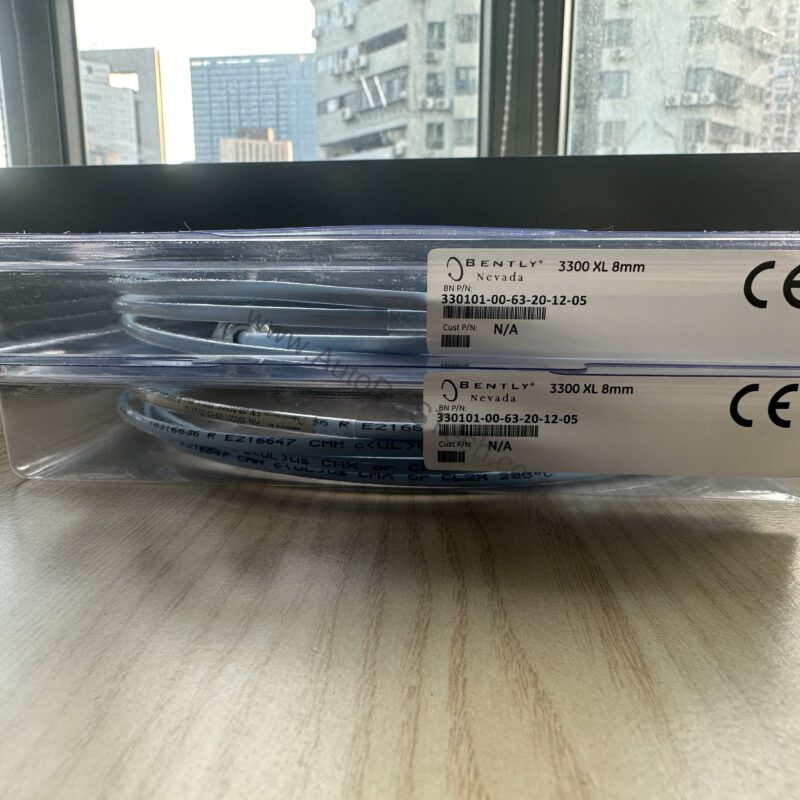

Bently Nevada 330101-00-63-20-12-CN 3300 XL 8 mm Probe, 3/8-24 UNF Thread

Technical Specifications Breakdown

Key parameters for the 330101-00-63-20-12-CN are listed below for quick reference:

Real-World Applications

Steam Turbine Bearing Monitoring: In power generation, steam turbine bearings operate at high temperatures and speeds. The 3300 XL 8 mm probe reliably measures shaft vibration within its linear range of 2 mm (80 mils), starting at approximately 0.25 mm (10 mils) from the target. The standard probe temperature range of -52°C to +177°C covers typical turbine operating conditions.

Compressor Health Assessment: Centrifugal compressors in oil and gas facilities require continuous vibration monitoring. The probe's Incremental Scale Factor (ISF) of 7.87 V/mm (200 mV/mil) ± 5% for standard 5 or 1 meter systems provides accurate, repeatable measurements for trend analysis and early fault detection.

Installation and Setup Guidance

Mount the probe using the 3/8-24 UNF thread into a suitable mounting hole, ensuring the probe tip is positioned at the recommended gap setting of -9 Vdc (approximately 1.27 mm or 50 mils) from the target surface for radial vibration measurement. Use field wiring of 0.2 to 1.5 mm² (16 to 24 AWG), preferably 3-conductor shielded triad cable, with a maximum length of 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor. Ensure the probe tip is clean and free of debris before installation.

Maintenance and Reliability

Inspect the probe and cable periodically for physical damage, especially at the connector and probe tip. Avoid exposing the probe to temperatures below -34°C (-30°F), as this may cause premature failure of the pressure seal. The probe's relative humidity performance shows less than a 3% change in Average Scale Factor (ASF) when tested in 93% humidity per IEC standard 68 2 3 for up to 56 days, ensuring stable operation in humid environments.

Preventing Unplanned Downtime with Precision Vibration Monitoring

Industrial rotating machinery faces constant stress from imbalance, misalignment, and bearing wear. Without accurate, reliable vibration measurement, minor issues escalate into catastrophic failures, causing costly production halts. The Bently Nevada 330101-00-63-20-12-CN 3300 XL 8 mm Probe delivers the precise, rugged sensing needed to detect early warning signs and protect critical assets. This probe is engineered for demanding environments where accuracy and durability are non-negotiable.

Engineered for Harsh Industrial Environments

This probe is built to withstand extreme conditions. The probe tip material is Polyphenylene sulfide (PPS), providing chemical resistance and mechanical strength. The case is made from AISI 303 or 304 stainless steel (SST), ensuring corrosion resistance in wet or corrosive atmospheres. The patented TipLoc molding method creates a robust bond between the probe tip and body, while the CableLoc design delivers 330 N (75 lbf) pull strength for secure cable retention.

Compatibility and Integration

This probe is designed for use with Bently Nevada 3300 XL extension cables and Proximitor sensors. The miniature coaxial ClickLoc connector ensures a secure, quick connection. The 2.0 meter (6.6 feet) total length option provides flexibility in routing to the sensor. The probe's nominal DC resistance (RPROBE) is 8.73 ± 0.50 Ω for the 5.0 meter length, ensuring proper signal integrity.

Selection Guide and Purchasing Advice

When selecting a vibration probe, consider the machine's operating temperature, required linear range, and cable length. The Bently Nevada 330101-00-63-20-12-CN is suitable for most industrial rotating machinery. For applications requiring extended temperature range, contact AutoDCSTech for options. Please verify current lifecycle status and availability with AutoDCSTech before ordering. As a trusted industrial automation parts supplier, AutoDCSTech offers genuine Bently Nevada products with expert support.
