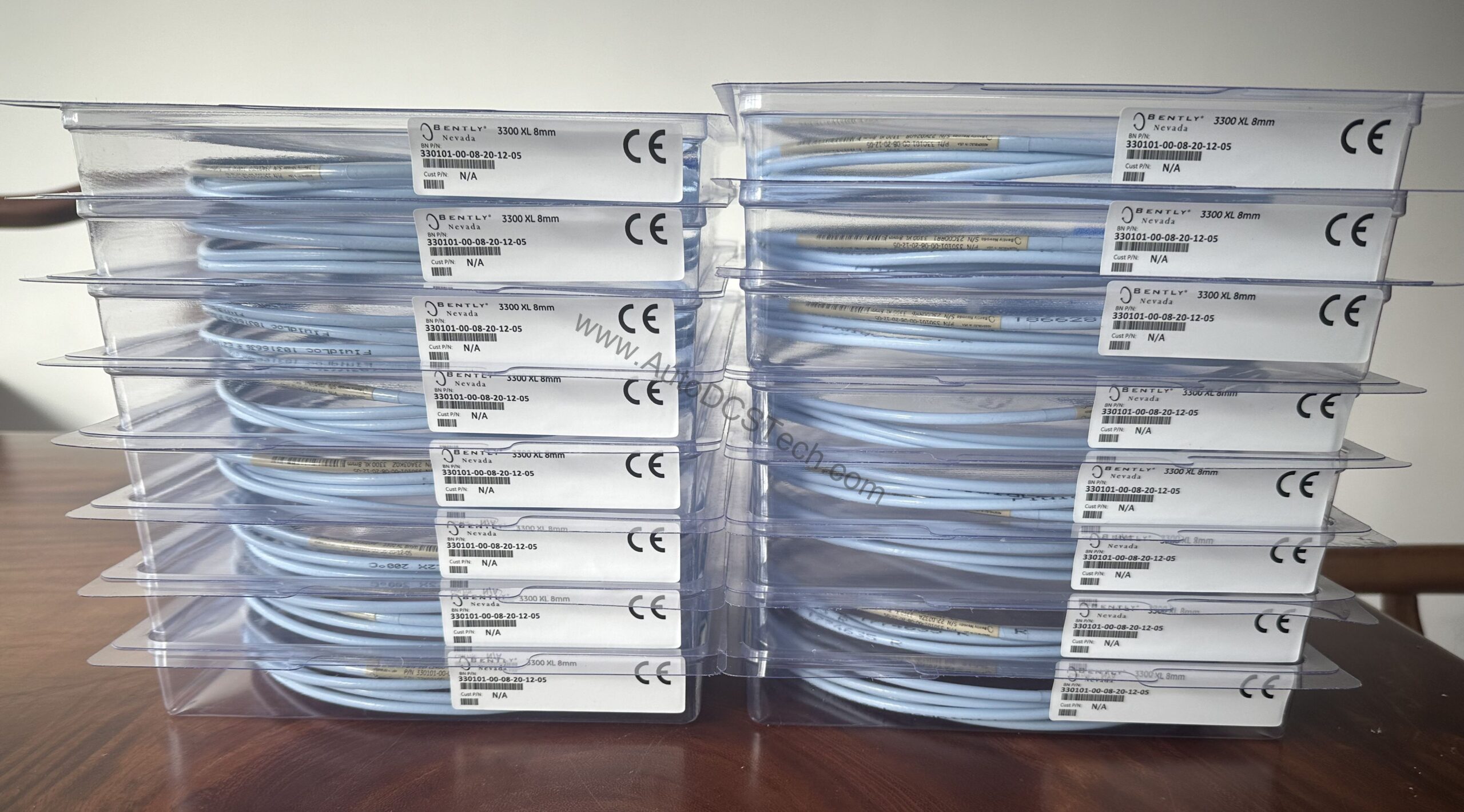

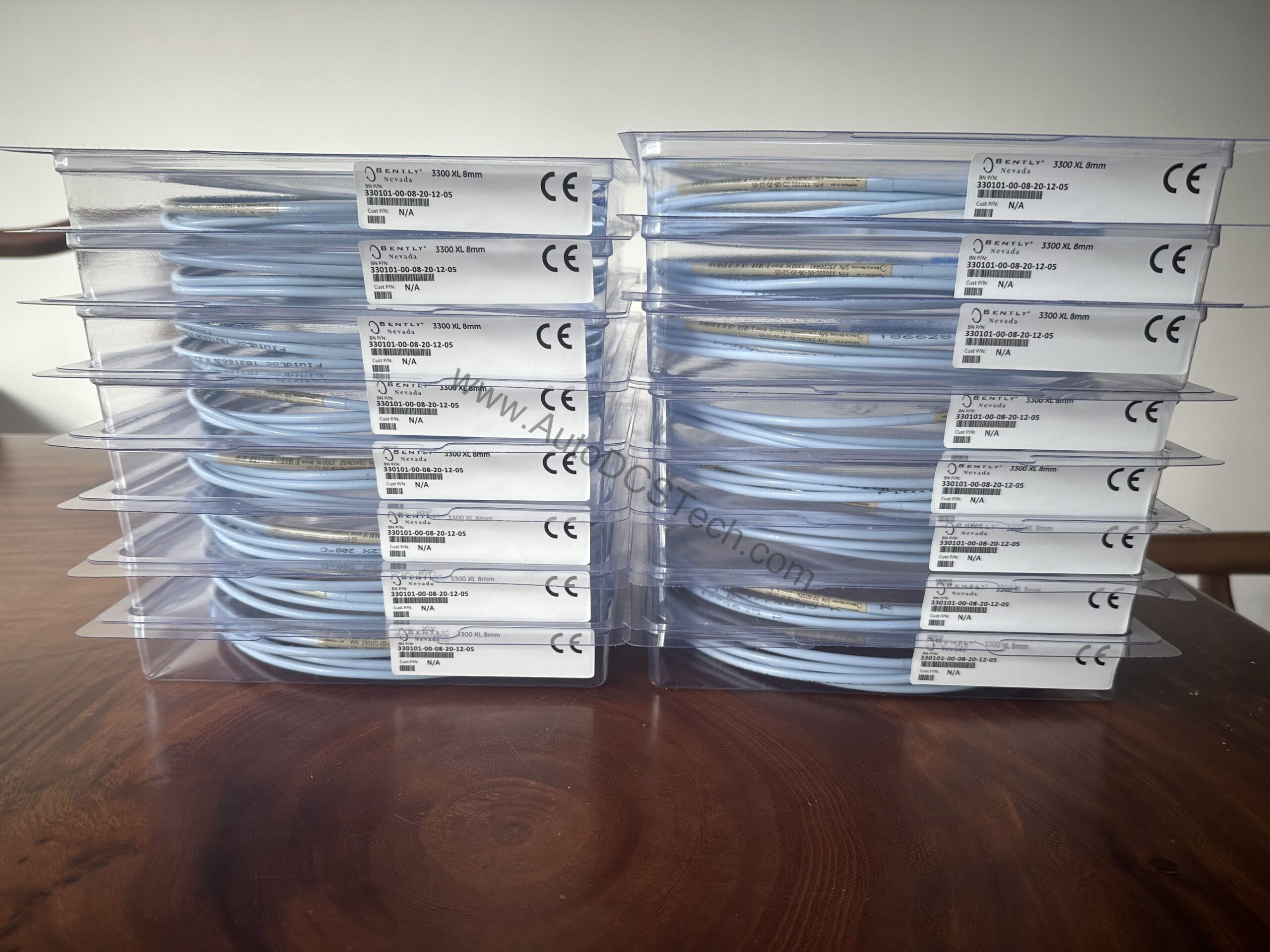

Bently Nevada 330101-12-40-10-02-00 3300 XL 8 mm Probe

Robust Vibration Monitoring for Critical Machinery

When protecting your rotating assets, the Bently Nevada 330101-12-40-10-02-00 3300 XL 8 mm Probe delivers the precision and durability your operations demand. This probe, featuring a 3/8-24 UNF thread and designed without armor, is engineered for reliable, non-contact vibration and position measurement in harsh industrial environments. Its robust construction minimizes downtime and provides accurate data for predictive maintenance.

Technical Specifications Breakdown

Key parameters for the 330101-12-40-10-02-00 are listed below for quick reference:

Industry Applications: Preventing Unplanned Downtime

Its 2 mm linear range and precise 7.87 V/mm scale factor allow early detection of shaft vibration and position changes. By integrating this probe into your condition monitoring system, you can identify bearing wear, imbalance, or misalignment before they cause catastrophic failure, reducing maintenance costs and extending equipment life.

Installation and Setup Guidance

For optimal performance, mount the probe with the recommended gap setting of -9 Vdc (approximately 1.27 mm or 50 mils) from the target. Use field wiring of 0.2 to 1.5 mm² (16 to 24 AWG) with a 3-conductor shielded triad cable. The maximum field wiring length between the 3300 XL Proximitor Sensor and the monitor is 305 meters (1,000 feet). Ensure the probe tip is clean and the mounting surface is stable to maintain accurate readings.

Maintenance and Reliability

The probe's stainless steel case and PPS tip provide resistance to harsh environments. The patented TipLoc and CableLoc designs enhance mechanical strength, with a pull strength of 330 N (75 lbf). Standard probes operate from -52°C to +177°C. For extended temperature ranges, the probe tip can withstand up to +218°C. Regularly inspect the cable and connector for damage, especially in high-vibration areas.

Selection Guide and Purchasing Advice

When selecting a replacement or new probe, verify the thread size (3/8-24 UNF), total length (1.0 meter), and connector type (miniature coaxial ClickLoc). Contact AutoDCSTech for availability and to confirm compatibility with your existing monitoring system. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
