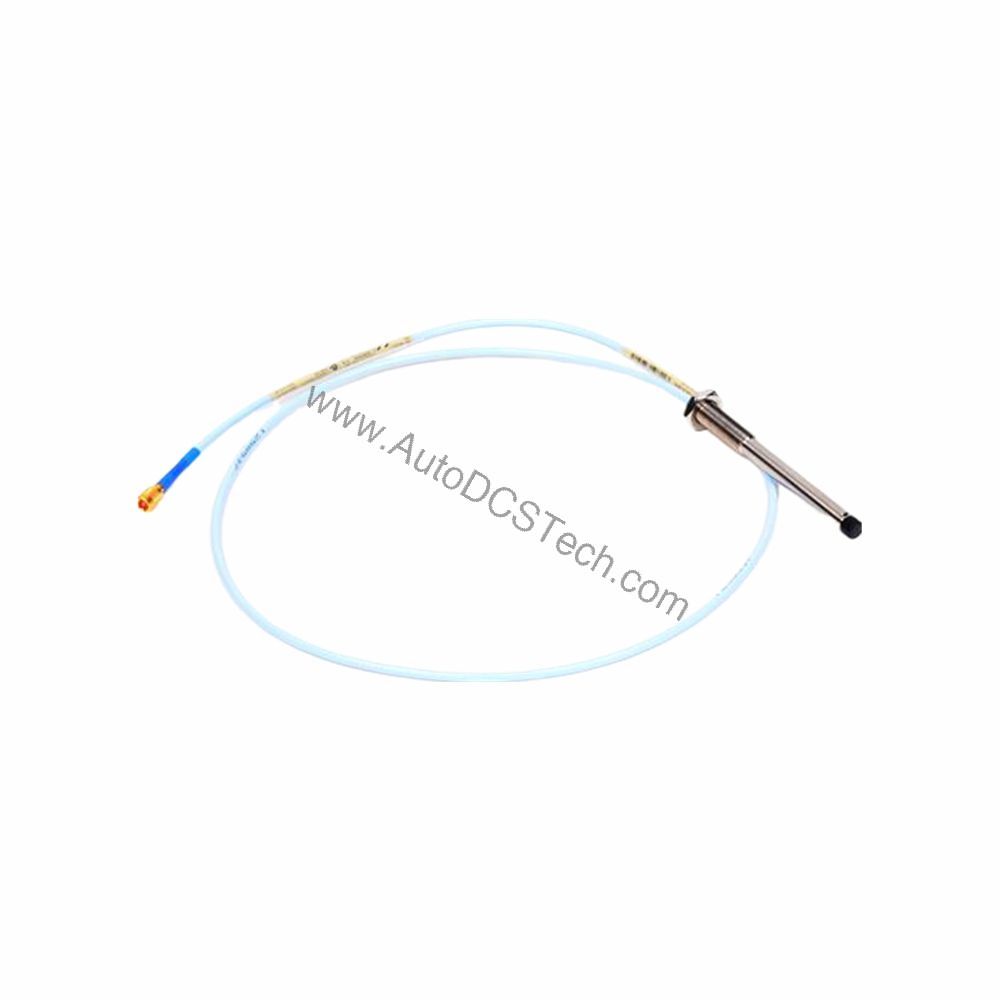

Bently Nevada 330103-01-08-10-02-00 3300 XL 8 mm Proximity Probe

Technical Specifications Breakdown

Key parameters for the 330103-01-08-10-02-00 are listed below for quick reference:

Industry Applications and Cost Benefits

Turbine and Compressor Protection

In power generation and oil & gas, the 330103-01-08-10-02-00 monitors shaft radial vibration and thrust position. Early detection of abnormal vibration prevents blade rubs, bearing failures, and unplanned outages. The cost of a single turbine overhaul far exceeds the investment in reliable proximity probes.

Pump and Motor Reliability

For critical pumps and electric motors, continuous vibration monitoring with this probe reduces secondary damage. The 2 mm linear range and -9 Vdc recommended gap setting provide consistent readings, allowing predictive maintenance scheduling rather than costly emergency repairs.

Process Efficiency Optimization

Accurate displacement data helps optimize machine clearances and balance, directly improving energy efficiency. The probe's PPS tip and stainless steel case withstand harsh environments, reducing replacement frequency and lifecycle costs.

Installation and Setup Guidance

Proper installation maximizes probe life and measurement accuracy. Use the M10x1 thread with a maximum thread engagement of 15 mm. For field wiring, use 0.2 to 1.5 mm² (16 to 24 AWG) three-conductor shielded triad cable with tinned ends. Maximum cable length between the Proximitor Sensor and monitor is 305 meters (1,000 feet). Ensure the probe tip is clean and the target surface is smooth. The recommended gap for radial vibration is -9 Vdc, corresponding to approximately 1.25 mm (50 mils) from the target.

Maintenance and Reliability

Inspect probe cables and connectors periodically for wear or damage. The probe is designed to seal differential pressure between tip and case using a Viton O-ring; avoid exposing the probe to temperatures below -34°C (-30°F) to prevent premature pressure seal failure. The probe's relative humidity tolerance is , with less than 3% change in Average Scale Factor after 56 days at 93% humidity per IEC 68-2-3. This reliability minimizes unscheduled maintenance and associated costs.

Cost-Effective Vibration Monitoring with the Bently Nevada 330103-01-08-10-02-00

Industrial rotating machinery failures cause costly unplanned downtime. The Bently Nevada 330103-01-08-10-02-00 3300 XL 8 mm Proximity Probe offers a proven solution for continuous vibration monitoring, helping you avoid catastrophic failures and optimize maintenance budgets. This metric probe delivers reliable, accurate displacement measurements for critical assets like turbines, compressors, and pumps.

Compatibility and Integration

The 330103-01-08-10-02-00 integrates with Bently Nevada 3300 XL Proximitor Sensors and monitoring systems. For hazardous area installations, the probe is approved for intrinsic safety (Class I, Zone 0: AEx/Ex ia IIC T5...T1 Ga) when used with approved zener barriers or galvanic isolators per drawing 141092. Non-incendive installations (Class I, Zone 2: AEx/Ex nA IIC T5…T1 Gc) are also supported. This flexibility reduces installation complexity and cost across different plant zones.

Selection Guide and Purchasing Advice

When selecting a replacement or new probe, verify the total length, thread size, and connector type match your existing system. The 330103-01-08-10-02-00 is a metric probe with 1.0 meter cable and miniature coaxial ClickLoc connector. For lifecycle status and availability, please verify with AutoDCSTech before ordering. AutoDCSTech offers competitive pricing and fast shipping on genuine Bently Nevada parts, helping you control procurement costs.
