Introduction: Evolution of Process Control

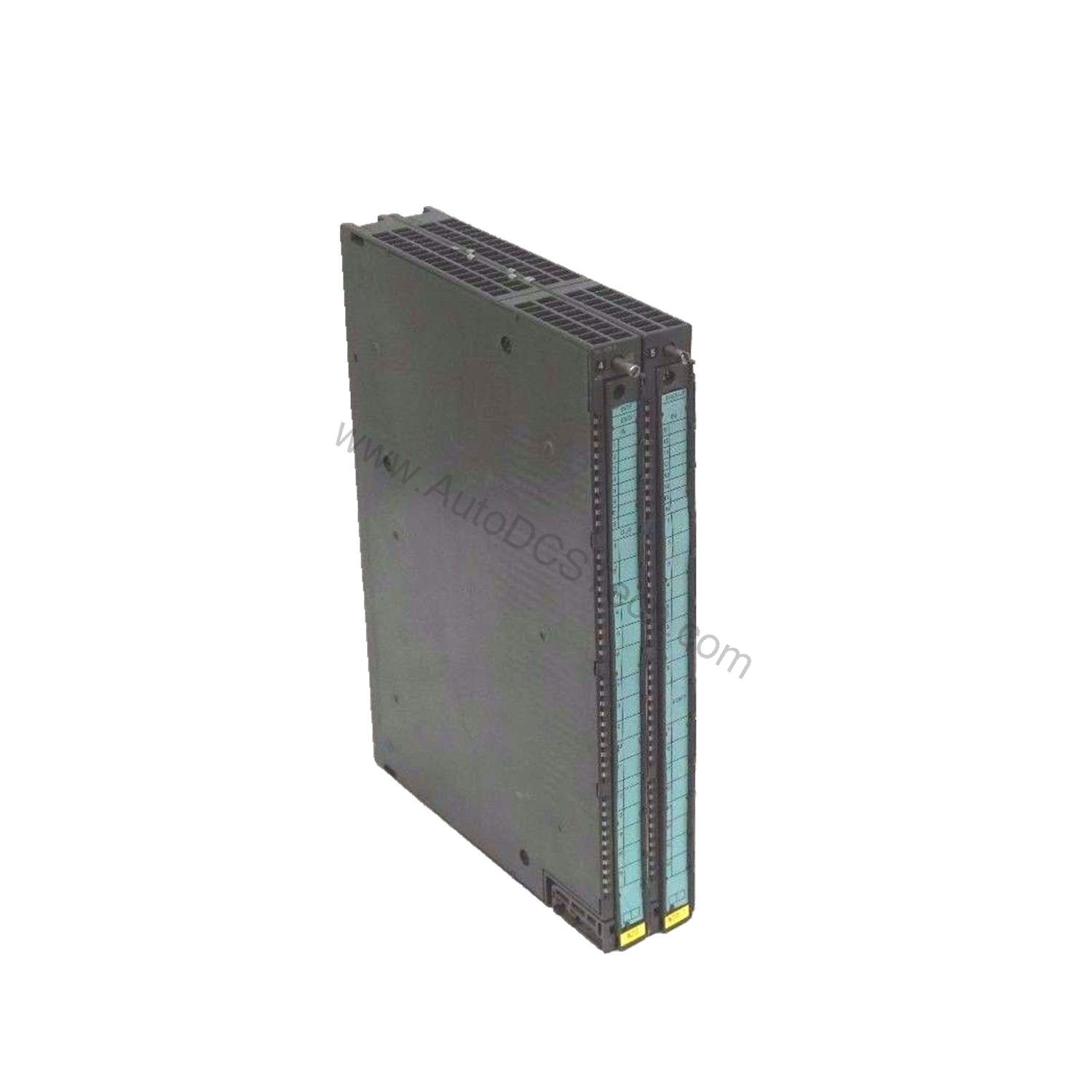

Industrial automation has evolved from simple relay logic to sophisticated closed-loop control systems. The Siemens 6ES7455-1VS00-0AE0 represents this advancement, integrating analog input, digital I/O, and control functions into a single module for the SIMATIC S7-400 platform.
This control module is engineered for applications requiring precise step and pulse control, making it a versatile choice for temperature, pressure, and flow regulation.
Key Features & Technical Specifications
The 6ES7455-1VS00-0AE0 offers a comprehensive set of features that enhance process control capabilities:
- 16 analog inputs supporting thermocouples, 2-wire, and 4-wire connections (8 with Pt100)
- 16 digital inputs and 32 digital outputs for flexible I/O configuration
- Supply voltage rated at 24 V DC, with permissible range from 20.4 V to 28.8 V
- Power loss: typ. 10.7 W, max. 16.2 W
- Digital outputs with short-circuit protection (electronic) and inductive shutdown voltage limitation to L+ (-1.5 V)
- Analog input ranges include voltage (0 to +10 V, -1.75 V to +11.75 V, -80 mV to +80 mV), current (0 to 20 mA, 0 to 23.5 mA, -3.5 mA to +23.5 mA, 4 to 20 mA), thermocouples (Types B, J, K, R, S), and Pt100 resistance thermometer
- Resolution with overrange: max. 14 bit (12 or 14 bit, parameterizable)
- Isolation tested with 500 V DC; potential separation between channels and backplane bus via optocoupler
These specifications ensure accurate and reliable operation in demanding industrial environments.
Installation and Setup

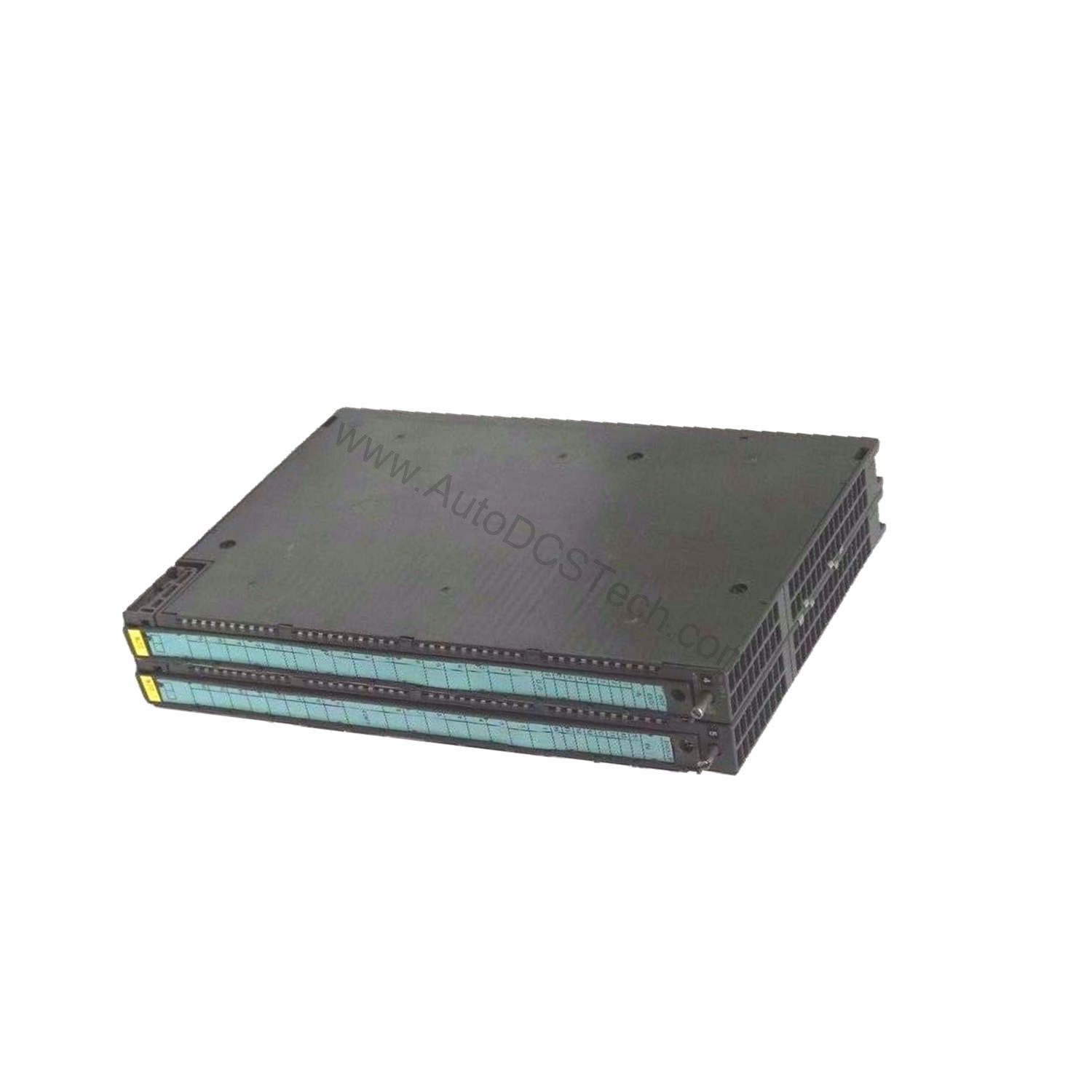

Proper installation is critical for optimal performance. The 6ES7455-1VS00-0AE0 requires a 2x 48-pin front connector (not included). Mount the module securely in the S7-400 rack, ensuring adequate ventilation.
For analog inputs, use shielded cables for thermocouples and low-level signals, with maximum cable length of 200 m (50 m for 80 mV and thermocouple ranges). Digital I/O cables can run up to 1000 m shielded or 600 m unshielded.
Configure the module using the SIMATIC S7-400 engineering software, setting parameters such as input ranges, resolution, and temperature compensation (internal or external with Pt100).
Maintenance and Reliability
Regular inspection ensures long-term reliability. Check the module's status LEDs and diagnostic information periodically. Keep the front connector clean and securely fastened.
Given the module's electronic short-circuit protection, it is resilient to output faults, reducing downtime. However, always follow the manufacturer's manual for maintenance procedures.
Performance and Accuracy
The module delivers high measurement accuracy, with basic error limits at 25 °C of ±0.4% to ±0.6% for voltage, current, and resistance thermometer inputs. Operational error limits across the full temperature range are ±0.6% to ±1%.
For digital outputs, the rated output current for signal "1" is 0.1 A, with a permissible range from 5 mA to 150 mA (0 to 60 °C). The switching frequency reaches up to 100 Hz with resistive or lamp loads, and 0.5 Hz with inductive loads.
Compatibility and Integration
The 6ES7455-1VS00-0AE0 is designed for the SIMATIC S7-400 system, integrating with other S7-400 modules. It supports up to 16 closed-loop controllers, making it suitable for multi-loop applications.
Substitute values are parameterizable, allowing safe behavior during signal loss. The module's potential separation via optocoupler ensures robust isolation between channels and the backplane bus.
Common Issues and Troubleshooting
If you encounter inaccurate readings, verify that the input range and sensor type are correctly configured. For thermocouple measurements, ensure proper cold-junction compensation (internal or external Pt100).
Check the supply voltage is within 20.4 V to 28.8 V DC. If outputs fail, inspect the load resistance (240 Ω to 4 kΩ) and output current limits. For persistent issues, consult the official Siemens documentation.
Support and Availability
The Siemens 6ES7455-1VS00-0AE0 is available from AutoDCSTech. Contact us to verify current lifecycle status and availability before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7455-1VS00-0AE0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
