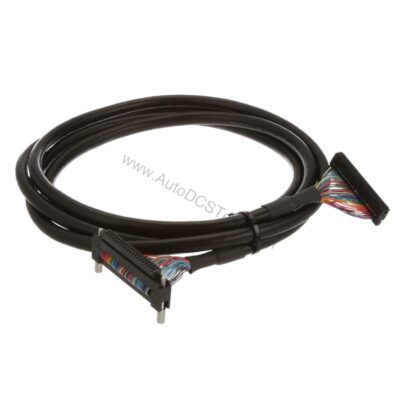

Introduction to the 6ES7468-3AH50-0AA0 IM Cable
When a SIMATIC S7-400 system requires a dependable link between an IM 460-1 and an IM 461-1, the 6ES7468-3AH50-0AA0 delivers a precise 0.75-meter cable engineered for P bus transmission. This Siemens interface module cable ensures that data flows without interruption, reducing the risk of communication faults that can halt production. For engineers managing a S7-400 rack, this cable is a straightforward solution that maintains signal integrity over a short distance.
By using a purpose-built cable, you avoid the pitfalls of generic wiring, which often introduces impedance mismatches and intermittent failures. This component is a small but critical investment in system reliability.
Key Features and Technical Specifications
The 6ES7468-3AH50-0AA0 is classified as an IM cable, specifically designed for the SIMATIC S7-400 family. Its primary role is to transmit the P bus between interface modules, ensuring that I/O data reaches the CPU without delay. The cable length is exactly 0.75 meters, a specification that must be matched to your rack layout to avoid tension or loose routing.
- Product type: IM cable for SIMATIC S7-400
- Cable length: 0.75 m
- Weight: approx. 300 g
- Compatible with: IM 460-1 and IM 461-1 (P bus transmission)
One distinctive aspect is the cable's lightweight design at 300 g, which simplifies handling during installation and reduces strain on mounting points. The 0.75 m length is a deliberate choice for short-distance connections, offering a balance between reach and signal quality. For longer runs, you would need a different cable variant, but for typical rack-to-rack links, this length is optimal.
Installation and Setup Guide
Installing the 6ES7468-3AH50-0AA0 is straightforward, but attention to detail ensures optimal performance. First, verify that the cable length matches the distance between your IM 460-1 and IM 461-1 modules; the 0.75 m length is fixed, so plan your rack layout accordingly. Avoid bending the cable sharply or routing it near high-voltage lines, as this can introduce noise into the P bus.
Secure the connectors firmly on both ends, ensuring a positive lock to prevent accidental disconnection. After installation, power up the system and check the status indicators on the interface modules to confirm that the P bus is active. If the link fails, reseat the cable and inspect for any physical damage. Following these steps helps maintain the integrity of your S7-400 communication.
Maintenance and Reliability Tips
Routine inspection of the 6ES7468-3AH50-0AA0 is essential to ensure long-term reliability. Periodically check the cable for signs of wear, such as cuts, kinks, or frayed ends, especially in environments with vibration or heat. The lightweight 300 g construction reduces stress on connectors, but environmental factors can still cause degradation over time.
Keep the cable away from oil, solvents, and extreme temperatures, as these can damage the insulation and affect signal transmission. If you notice intermittent faults in your S7-400 system, inspect the cable first, as it is a common failure point. Replacing a worn cable proactively is far cheaper than diagnosing a mysterious communication error during a production run.
Cost-Benefit Analysis of Using the 6ES7468-3AH50-0AA0
Investing in a genuine Siemens cable like the 6ES7468-3AH50-0AA0 reduces downtime caused by loose or faulty connections. A failed IM cable can trigger a system fault, halting production and incurring significant labor costs for troubleshooting. By using a cable that matches the exact specifications of your S7-400 system, you minimize the risk of such events.
Moreover, the 0.75 m length means you are not paying for unnecessary cable, and the lightweight construction reduces shipping costs if you order spares. Over the lifecycle of a plant, the reliability of this cable translates to fewer replacement cycles, offering a lower total cost of ownership compared to generic alternatives that may need frequent replacement.
Compatibility and Integration
The 6ES7468-3AH50-0AA0 is designed specifically for the SIMATIC S7-400 platform, working with IM 460-1 and IM 461-1 modules. It transmits the P bus, which carries I/O data, ensuring that remote I/O racks communicate with the CPU. This cable is not intended for other bus types, so verify your system configuration before ordering.
For systems that require C bus transmission, note that this cable does not support it; you would need a different variant. Always confirm the cable length and bus type against your system documentation to avoid compatibility issues. When in doubt, consult the official Siemens manual or contact AutoDCSTech for guidance.
Troubleshooting Common Issues
If the P bus link fails, the first step is to check the physical connection of the 6ES7468-3AH50-0AA0. Loose connectors are a common cause, so reseat both ends and ensure they click into place. Next, inspect the cable for any visible damage, such as cuts or crushed areas, which can break the internal conductors.
Another issue is incorrect routing that places the cable near electromagnetic interference sources, such as motor drives or power supplies. Relocate the cable if necessary, maintaining a safe distance from such equipment. If problems persist, test with a known-good cable to isolate the issue. Remember that this cable is passive, so faults are usually mechanical rather than electronic.
Product Support and Availability
The 6ES7468-3AH50-0AA0 is available through AutoDCSTech, your trusted supplier for industrial automation parts. We stock this cable and can ship it promptly to minimize your downtime. Contact our team for pricing and availability, and we will help you keep your S7-400 system running efficiently.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7468-3AH50-0AA0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
