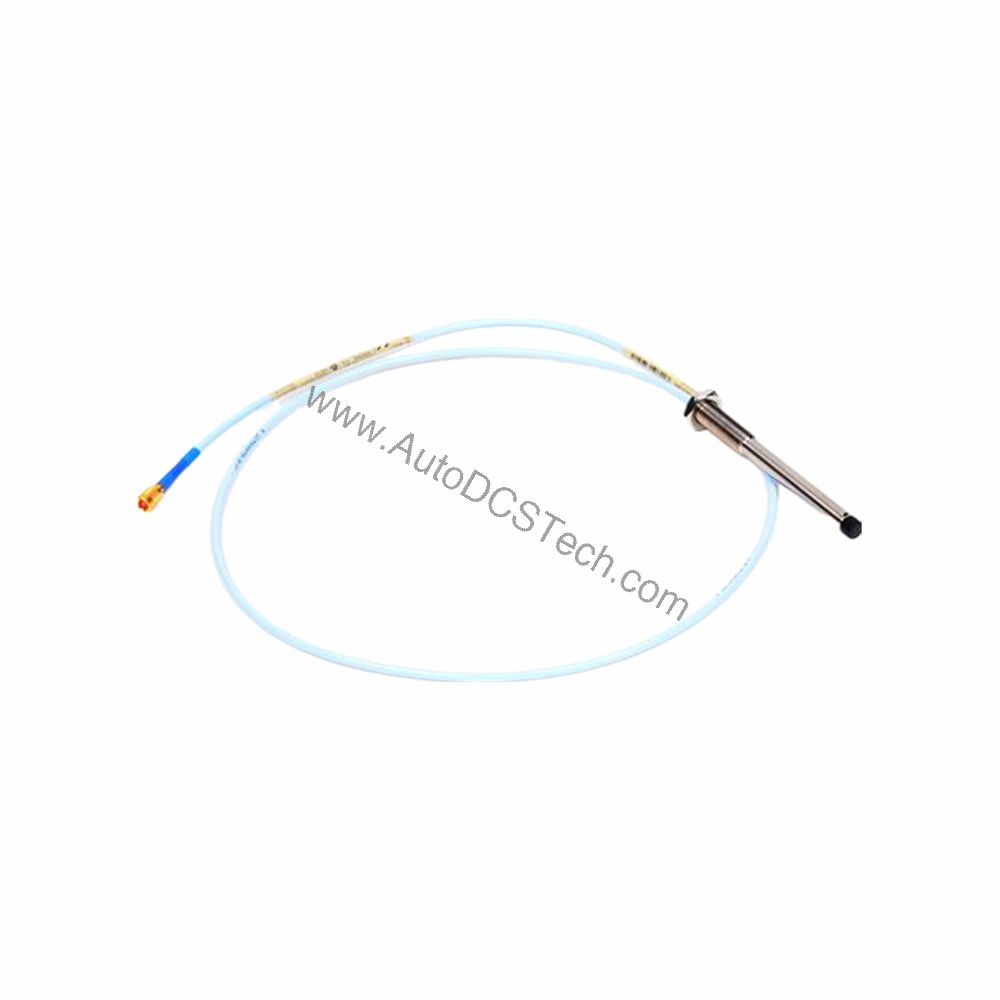

Bently Nevada 330103-02-08-10-02-05 3300 XL 8 mm Proximity Probe

Technical Specifications Breakdown

Key parameters for the 330103-02-08-10-02-05 are listed below for quick reference:

Industry Applications and Cost Impact

Steam Turbine Shaft Monitoring

In power generation, a single steam turbine outage can cost over $500,000 per day. The 330103-02-08-10-02-05 provides continuous radial vibration measurement with a linear range of 2 mm (80 mils), enabling early detection of shaft misalignment or bearing wear. This proactive monitoring extends equipment life and avoids emergency repairs.

Compressor Protection in Oil & Gas

Centrifugal compressors in refineries operate at high speeds and pressures. The probe's PPS tip and stainless steel case withstand harsh environments, while the CSA, ATEX, and IECEx approvals ensure safe operation in hazardous areas. By catching vibration anomalies early, you prevent seal failures and unplanned shutdowns.

Pump Condition Monitoring

For large industrial pumps, the recommended gap setting of -9 Vdc (approximately 1.27 mm) provides a reliable baseline for trend analysis. The probe's 1.0 meter cable and ClickLoc connector simplify installation, reducing labor costs and setup time.

Installation and Setup Guidance

Mount the 330103-02-08-10-02-05 with the M10 x 1 thread into a drilled and tapped hole. Maximum thread engagement is 15 mm. Use a 3-conductor shielded triad cable with tinned field wiring (0.2 to 1.5 mm² / 16 to 24 AWG). Maximum field wiring length between the Proximitor Sensor and monitor is 305 meters (1,000 feet). For high-frequency applications, refer to the frequency response graphs for signal rolloff at longer lengths.

Maintenance and Reliability

Inspect the probe cable and connector periodically for damage. The probe operates reliably from -52°C to +177°C (-62°F to +350°F) in standard configuration. Avoid exposing the probe to temperatures below -34°C (-30°F) to prevent premature pressure seal failure. The probe's relative humidity tolerance ensures less than a 3% change in Average Scale Factor (ASF) after 56 days at 93% humidity per IEC 68-2-3.

Cost-Effective Vibration Monitoring with the Bently Nevada 330103-02-08-10-02-05

When unplanned downtime hits rotating machinery, every minute of lost production cuts into your bottom line. The Bently Nevada 330103-02-08-10-02-05 3300 XL 8 mm Proximity Probe delivers the precise, reliable shaft displacement data you need to avoid catastrophic failures and optimize maintenance intervals. This probe is engineered for long-term value, reducing total cost of ownership through robust construction and proven performance.

Compatibility and Integration

The 330103-02-08-10-02-05 is designed for use with Bently Nevada 3300 XL Proximitor Sensors and monitoring systems. When installed with intrinsically safe zener barriers per drawing 141092 or galvanic isolators, the probe meets Class I, Zone 0: AEx/Ex ia IIC T5...T1 Ga requirements. For non-incendive installations per drawing 140979, it meets Class I, Zone 2: AEx/Ex nA IIC T5...T1 Gc.

Selection Guide and Purchasing Advice

Choosing the correct probe length and connector type is critical for accurate readings. The 330103-02-08-10-02-05 with its 1.0 meter cable and ClickLoc connector suits most standard installations. For custom pressure testing or extended temperature range requirements, contact AutoDCSTech to discuss options.

Troubleshooting and Common Issues

If you observe erratic readings, first verify the probe gap is set to the recommended -9 Vdc. Check the cable and connector for damage or moisture ingress. Ensure the target material is compatible and the probe tip is clean. For persistent issues, confirm that the field wiring length does not exceed 305 meters and that the Proximitor Sensor is properly calibrated.
