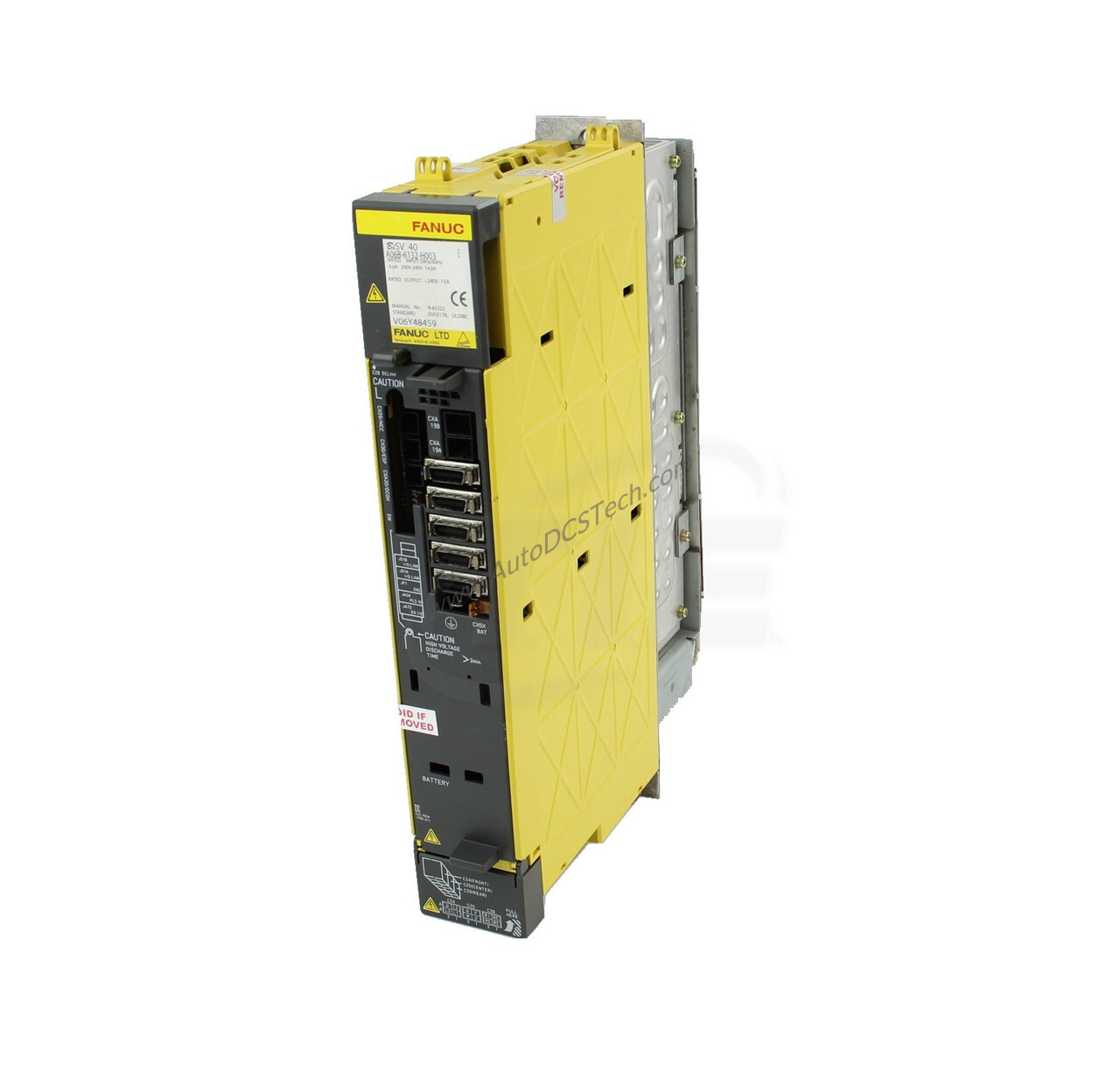

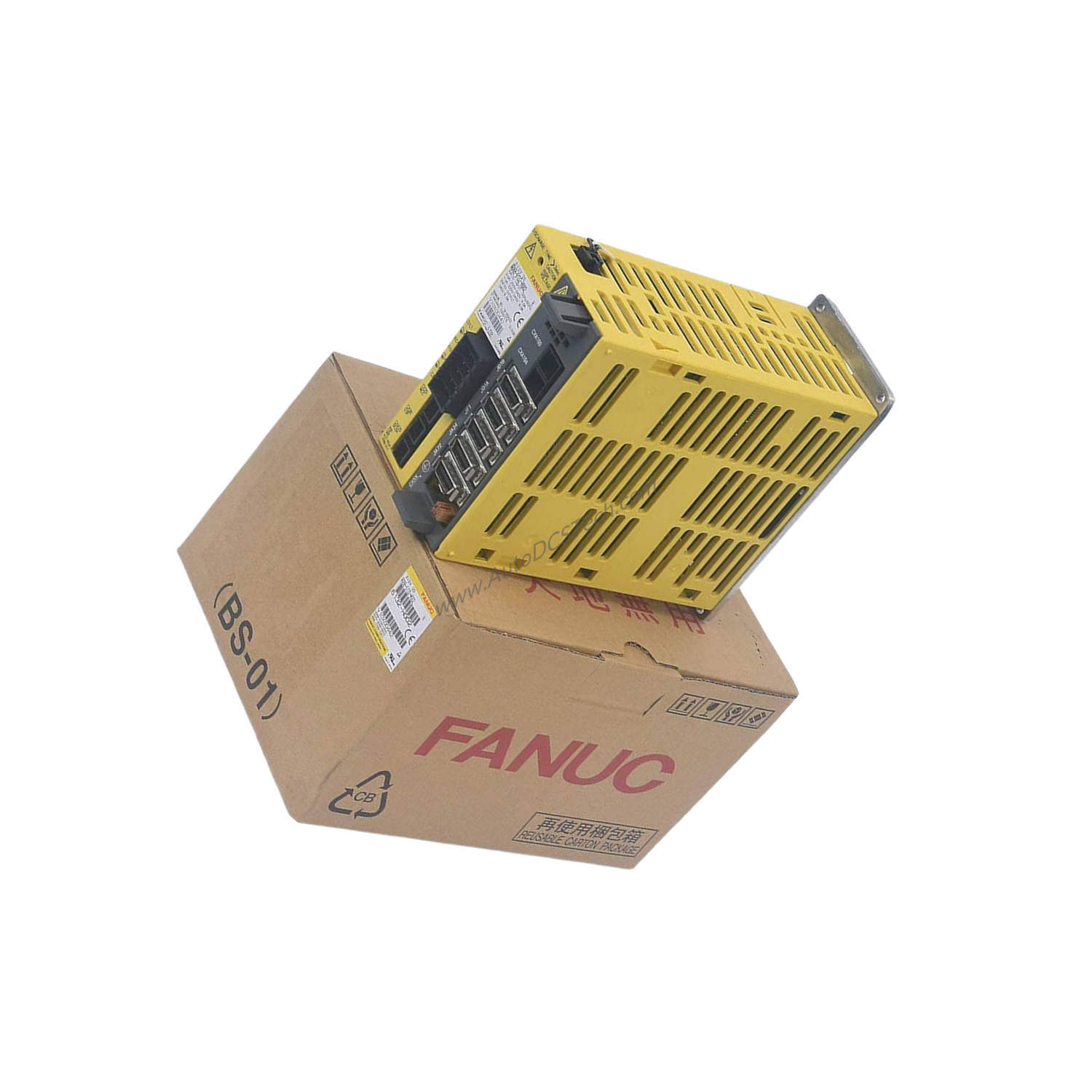

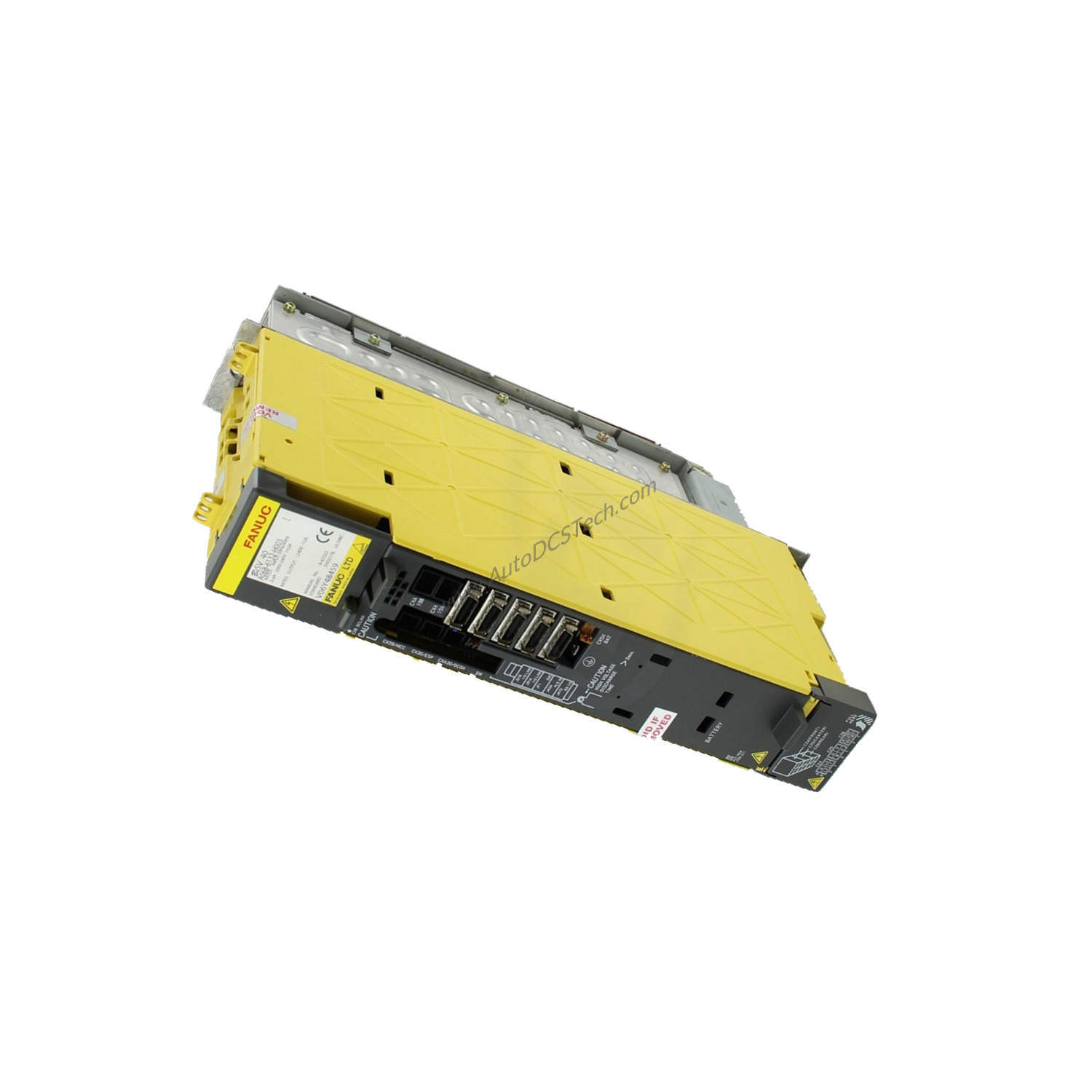

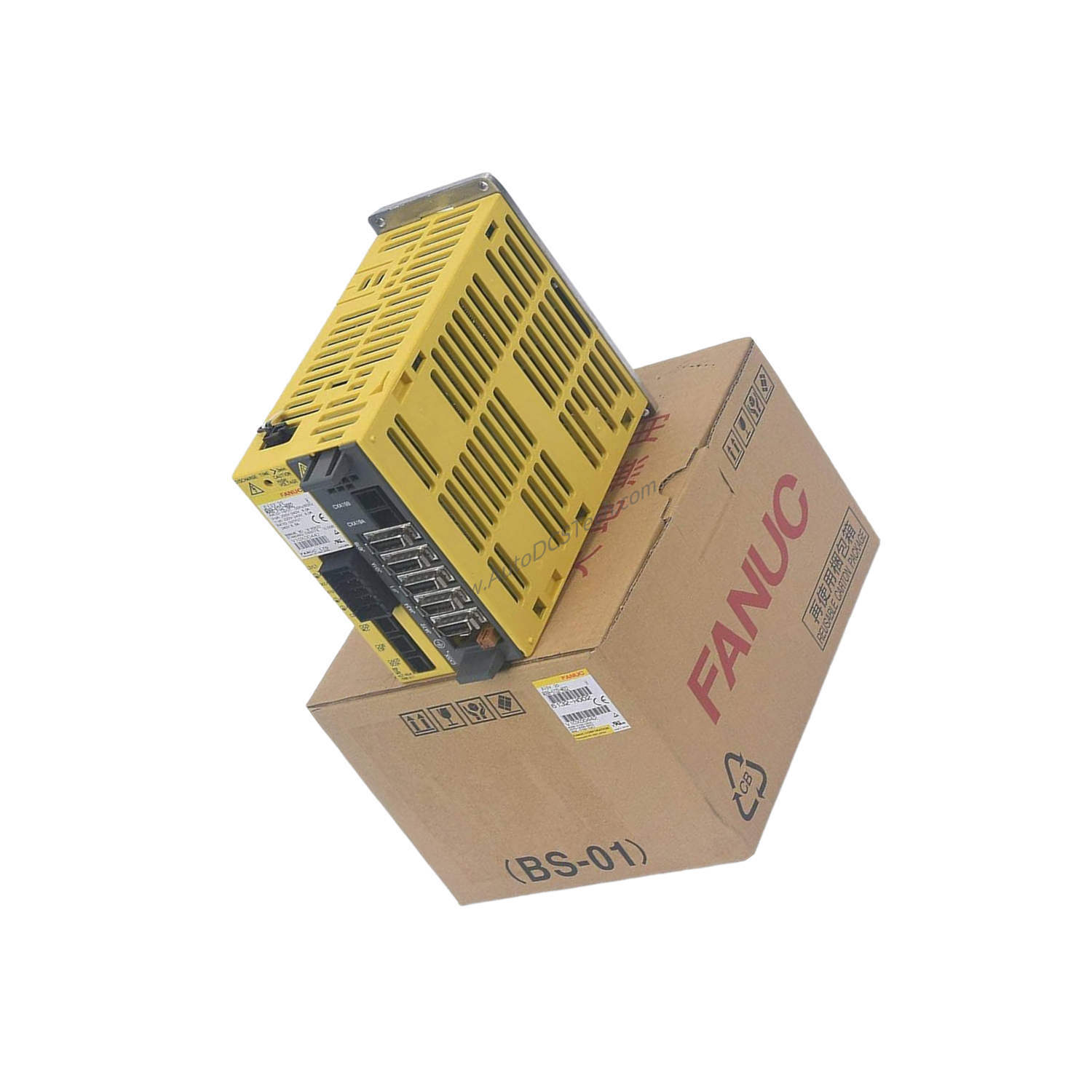

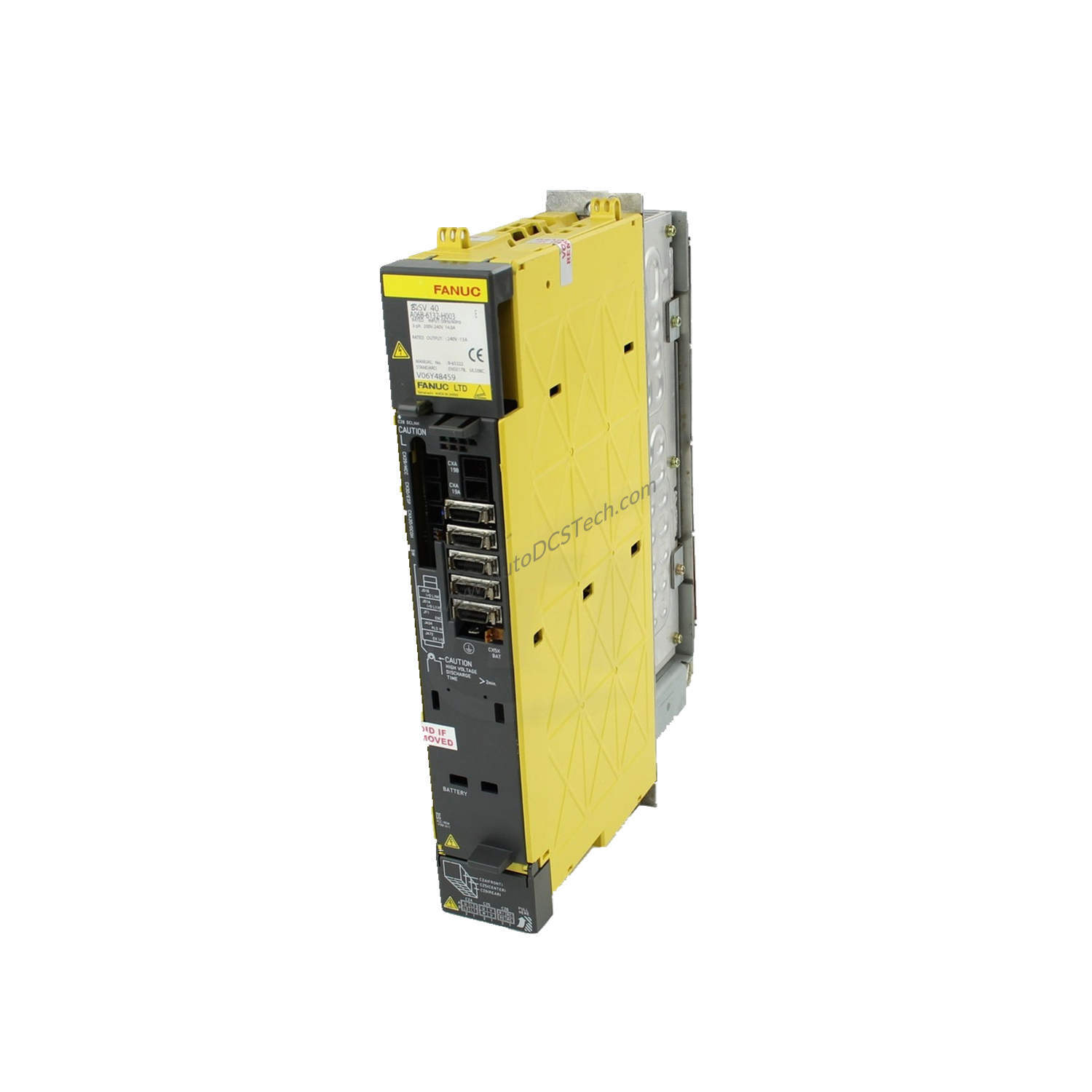

What Is the FANUC A06B-6132-H002?
When your motion control system demands precise torque and speed regulation, the FANUC A06B-6132-H002 servo amplifier module delivers consistent performance. This module from the A06B product line converts incoming AC power into controlled current for servo motors. It supports both 1-phase and 3-phase input connections, making it adaptable to various factory floor configurations.
Technical Specifications Breakdown
The A06B-6132-H002 operates with a voltage class of 200V and accepts a rated input voltage of 200 to 240 VAC at 50/60 Hz. Its input current rating is 8.0 A, and it provides a maximum output voltage of 240 VAC. The rated output current of 6.8 A ensures reliable power delivery for medium-duty servo applications.
Environmental resilience is built in. The module functions within an ambient operational temperature range of 0 to 55°C and can be stored between -20 and 60°C. It handles humidity normally up to 90% RH without condensation and withstands operational vibration below 0.5G. These specs make it suitable for demanding industrial environments.
Industry Applications
In CNC machining centers, the A06B-6132-H002 drives axis servo motors with the precision required for tight tolerances. Its 6.8 A output supports rapid acceleration and deceleration cycles common in high-production environments. For robotic pick-and-place systems, the module’s stable voltage regulation reduces position errors during repetitive movements.
Installation & Setup Guidance
Mount the A06B-6132-H002 in a clean, dry cabinet with adequate airflow to maintain its 0-55°C operating range. Ensure the input power source matches the 200-240 VAC requirement and that the frequency is set to 50 or 60 Hz. Connect the 1-phase or 3-phase supply according to the terminal markings. Verify that the total load current does not exceed 6.8 A to avoid overcurrent conditions.
Maintenance & Reliability
Regularly inspect the module for dust accumulation on heat sinks and cooling fans. Clean the enclosure with a dry, low-pressure air stream to maintain thermal performance. Check that ambient humidity stays below 90% RH and that condensation does not form. Periodically verify input voltage and current levels against the 8.0 A rating to prevent premature wear.
Buying Guide & Selection Advice
Before ordering the A06B-6132-H002, confirm that your servo motor’s current requirements fall within the 6.8 A rated output. Verify the input voltage configuration—200-240 VAC, 1-phase or 3-phase—matches your facility’s supply. SpareTechPLC stocks this module and can assist with compatibility checks for your specific FANUC system.
Frequently Asked Questions
Q: What is the rated output current of the A06B-6132-H002?
A: The rated output current is 6.8 A.
Q: Can this module operate on single-phase power?
A: Yes, it supports both 1-phase and 3-phase input connections at 200-240 VAC.
Q: What is the storage temperature range?
A: The ambient storage temperature range is -20 to 60°C.
Q: Does the module require special cooling?
A: It operates within 0 to 55°C ambient temperature; ensure adequate airflow in the enclosure.
Q: What is the input current rating?
A: The input current rating is 8.0 A.
