Product Overview

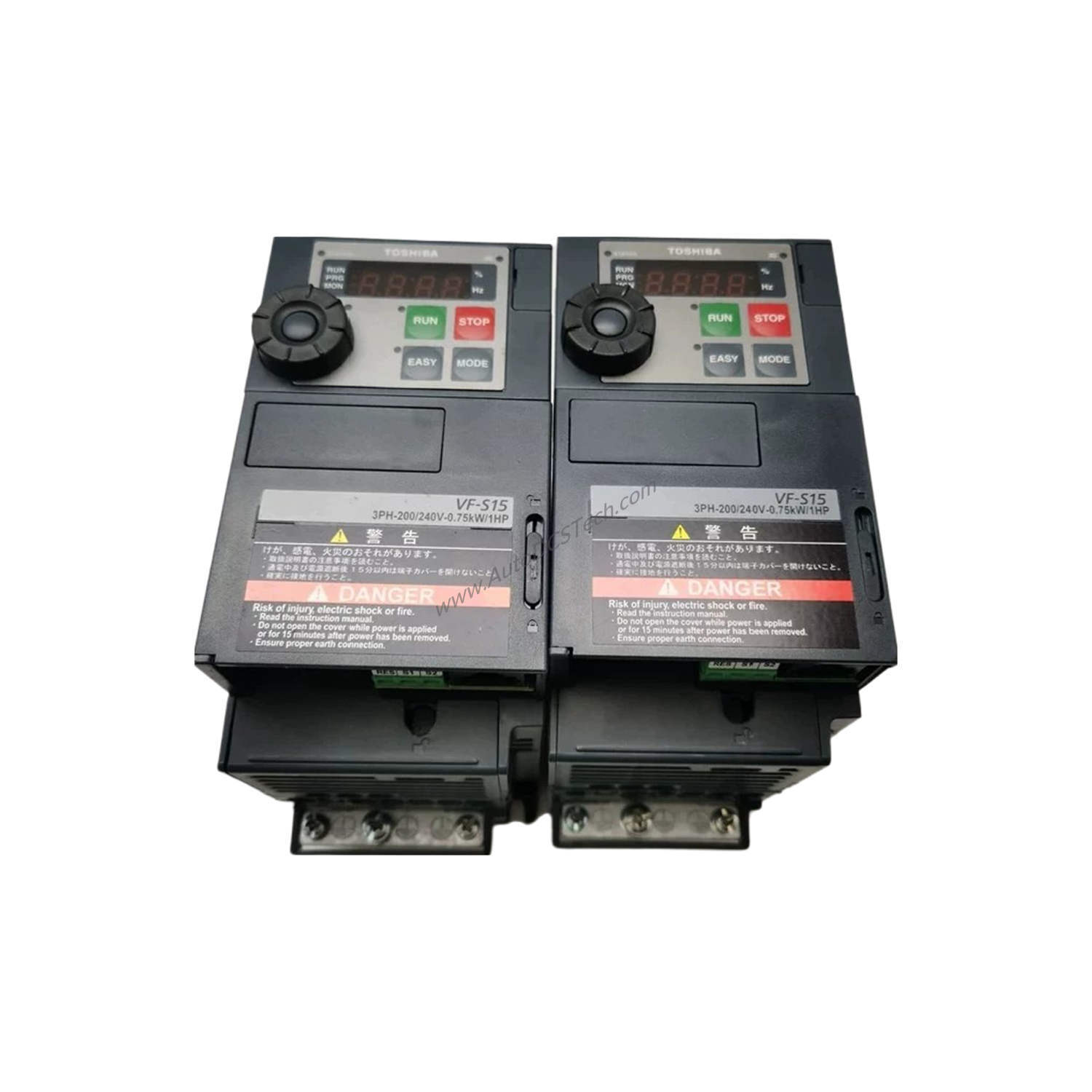

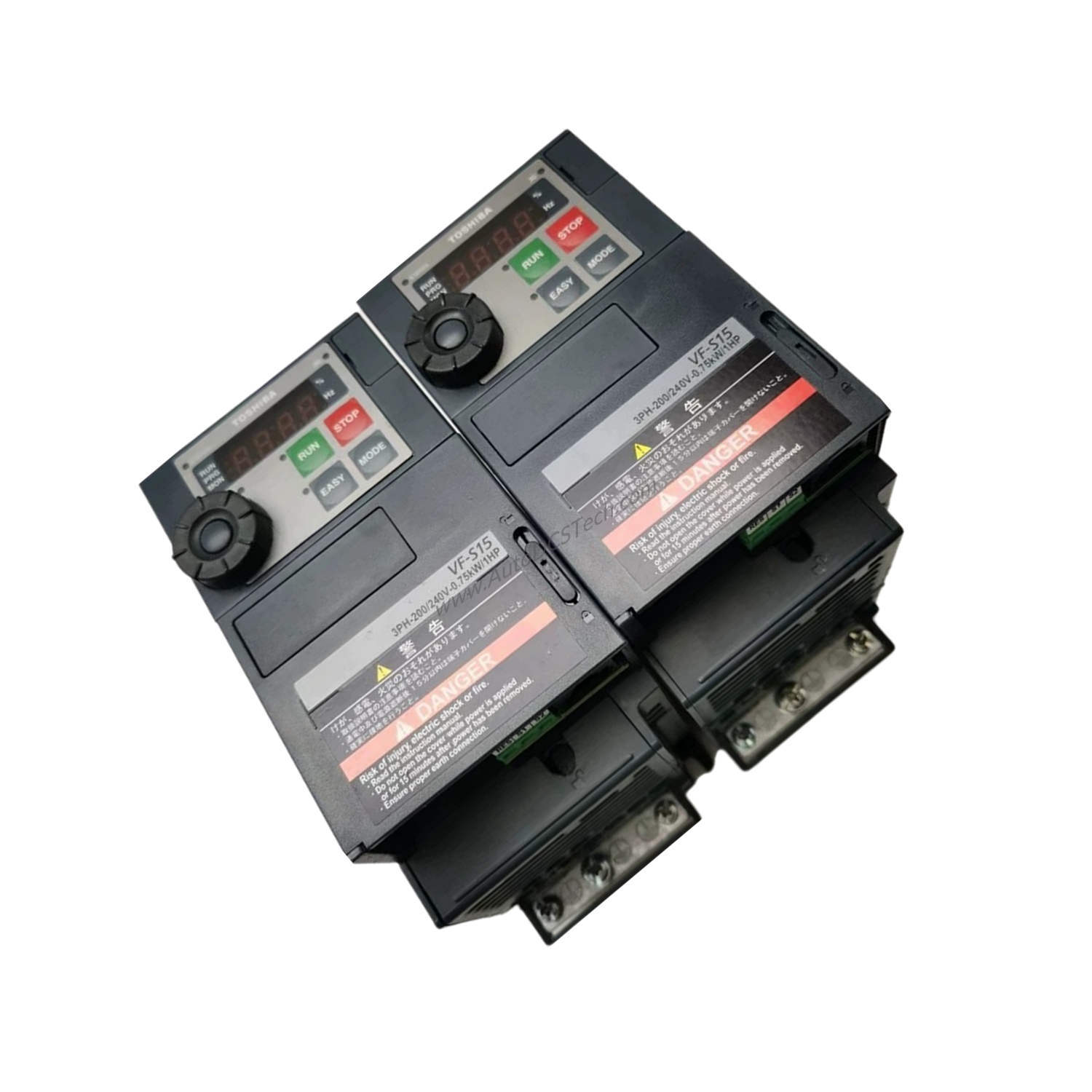

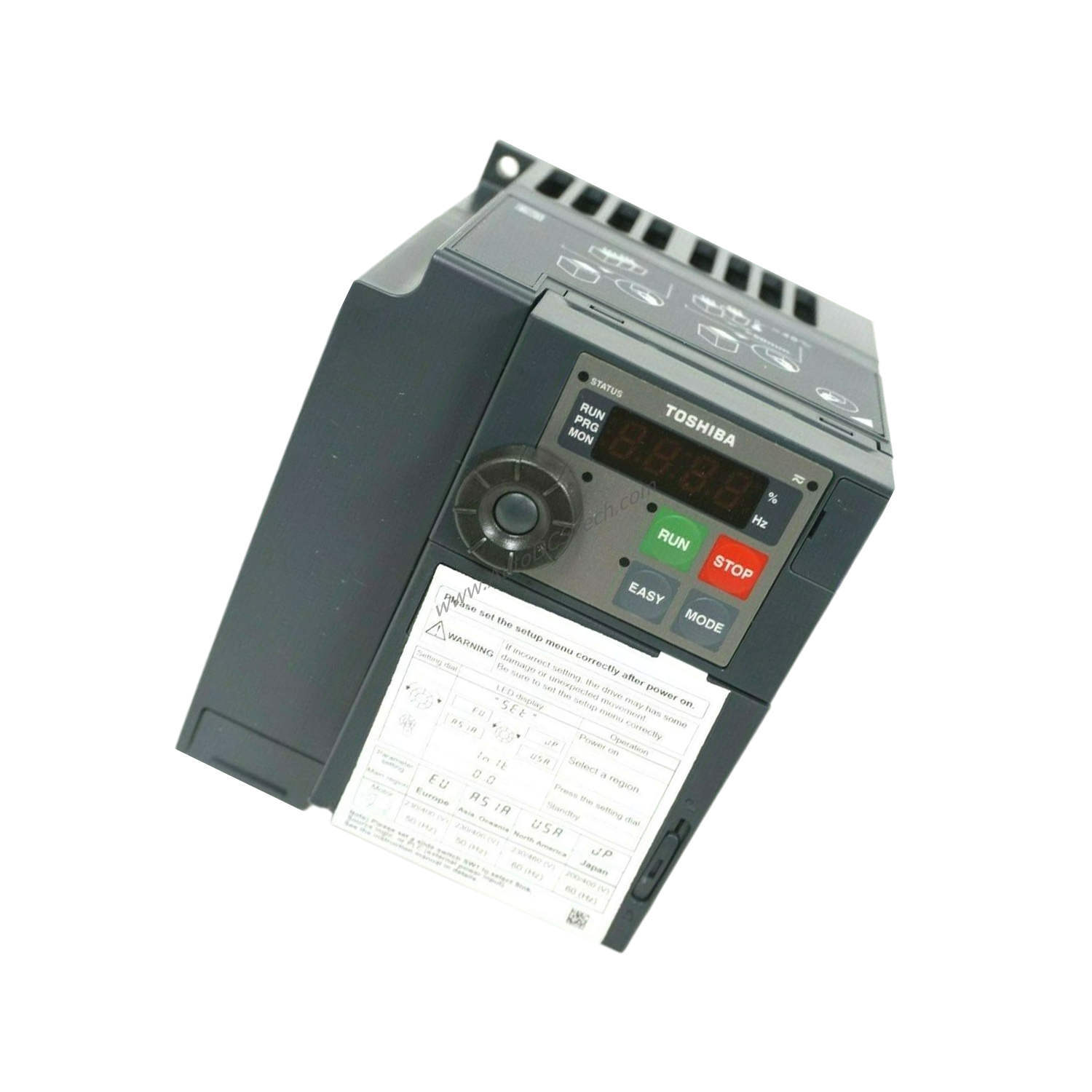

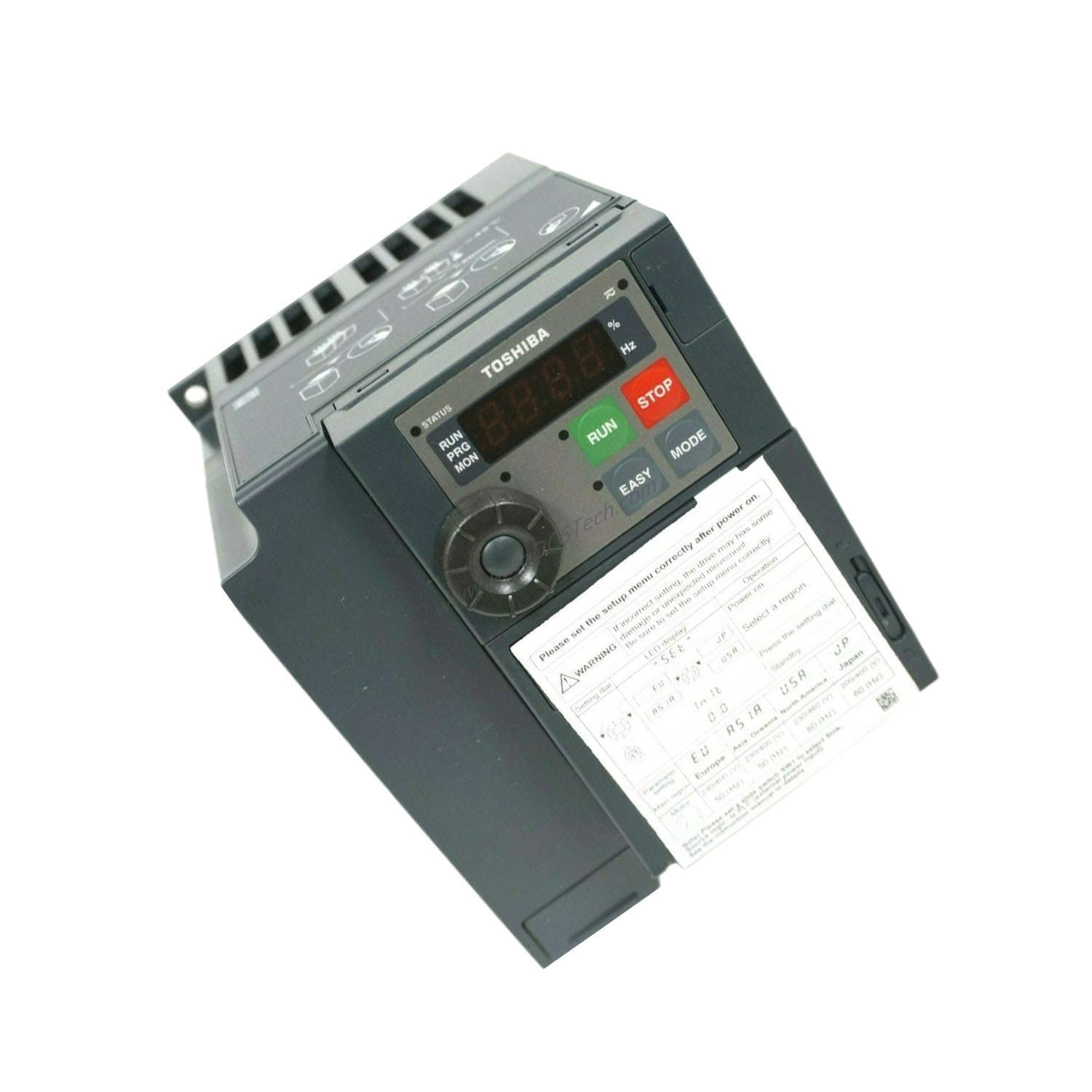

When industrial processes demand precise motor speed control, the FANUC VFS15-4055PL-W1 delivers reliable performance. This AC drive, part of the Toshiba S15 series, is a variable frequency drive (VFD) designed for three-phase motors. It provides sinusoidal PWM control for smooth operation across a wide frequency range. With a robust 7.5 HP rating, it suits many manufacturing and processing applications.
Technical Specifications
The VFS15-4055PL-W1 operates on a three-phase 460 VAC supply. It supports a frequency range from 0.1 to 500.0 Hz, with a default setting of 0.5 to 60 Hz and a maximum adjustable frequency from 30 to 500 Hz. The drive delivers 14.3 full load amps, ensuring adequate current for 7.5 HP motors. A built-in high-attenuation EMC filter reduces electromagnetic interference, simplifying compliance with industrial standards.
Industry Applications
This VFD excels in applications requiring variable speed control, such as conveyors, pumps, and fans. For example, in a material handling system, the VFS15-4055PL-W1 adjusts motor speed to match load demands, improving energy efficiency and reducing mechanical wear. Its wide frequency range also supports specialized machinery needing precise speed regulation.
Installation & Setup Guidance
Mount the drive in a clean, dry location with adequate ventilation. Ensure the supply voltage matches the 460 VAC rating. Connect the motor leads to the output terminals, following the wiring diagram provided in the manual. Use the built-in operation panel for initial configuration, setting parameters like frequency limits and acceleration times. Verify all connections before powering up.
Maintenance & Reliability
Regular inspection of the cooling fan and heat sink helps prevent overheating. Check for dust accumulation and clean with a soft brush if needed. Monitor input voltage stability to avoid damage. The built-in EMC filter reduces external noise, enhancing long-term reliability. Periodic testing of output current and voltage ensures the drive operates within specifications.
Buying Guide
Before purchasing the VFS15-4055PL-W1, confirm your motor's horsepower and voltage requirements. This drive is compatible with three-phase 460 VAC motors up to 7.5 HP. Verify the enclosure type and ambient temperature rating for your environment. SpareTechPLC offers this model with fast shipping and expert support. Contact us for current availability and pricing.
Frequently Asked Questions
Q: What is the input voltage requirement for the VFS15-4055PL-W1?
A: The drive requires a three-phase 460 VAC input supply.
Q: What is the horsepower rating of this drive?
A: It is rated for 7.5 HP.
Q: Does the VFS15-4055PL-W1 include an EMC filter?
A: Yes, it has a built-in high-attenuation EMC filter.
Q: What is the frequency range of this VFD?
A: It operates from 0.1 to 500.0 Hz, with a default setting of 0.5 to 60 Hz.
Q: What is the full load amp rating?
A: The drive delivers 14.3 full load amps.
