Product Overview

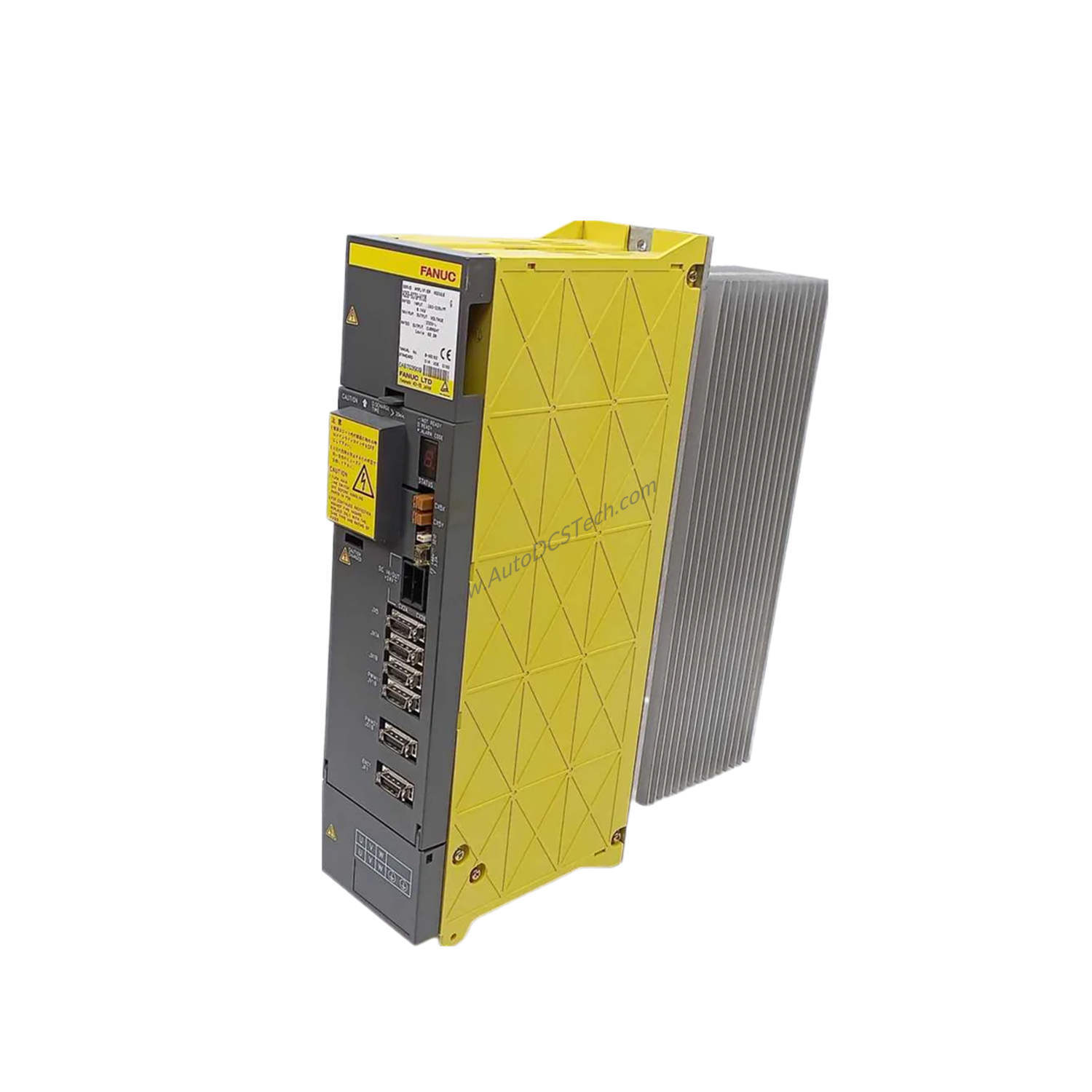

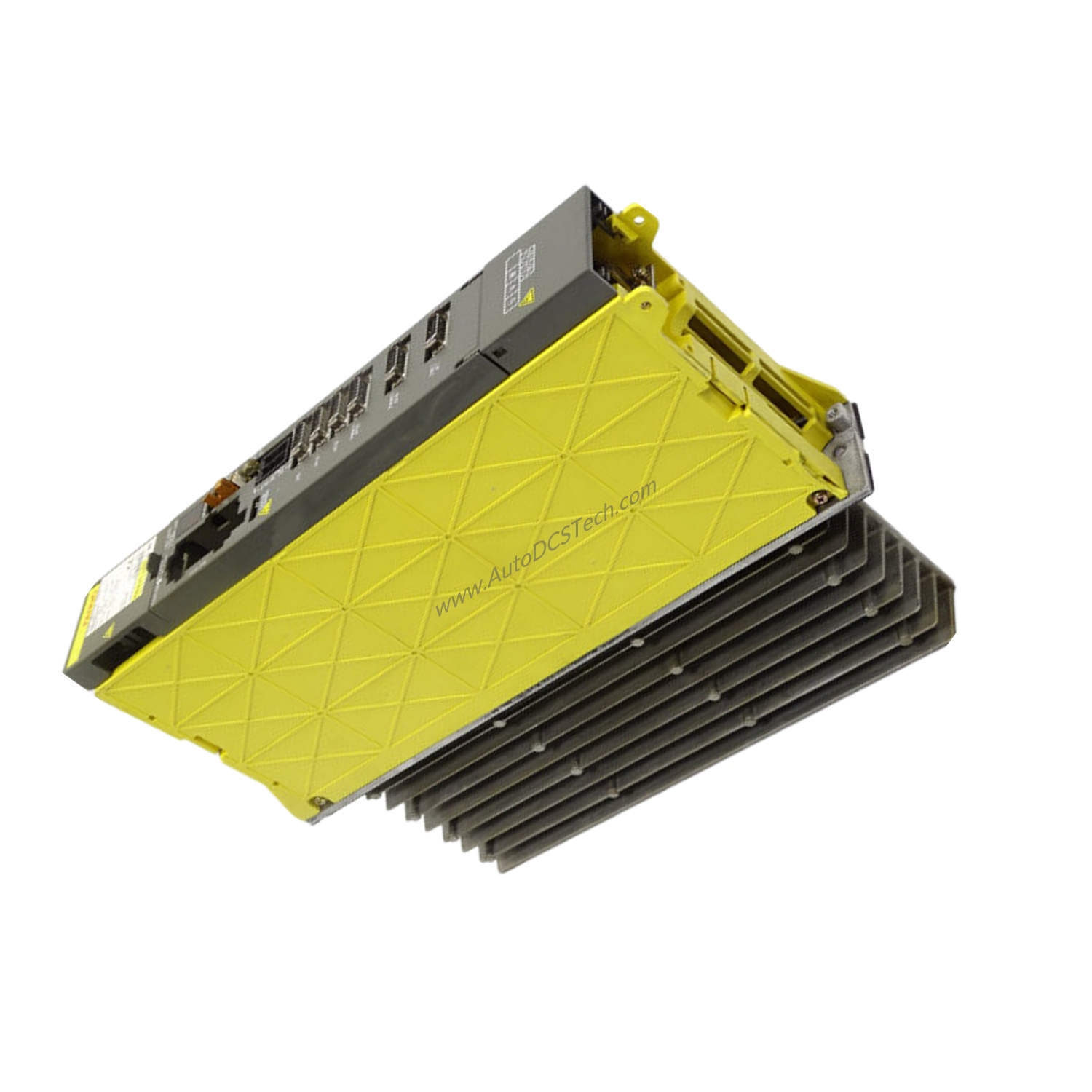

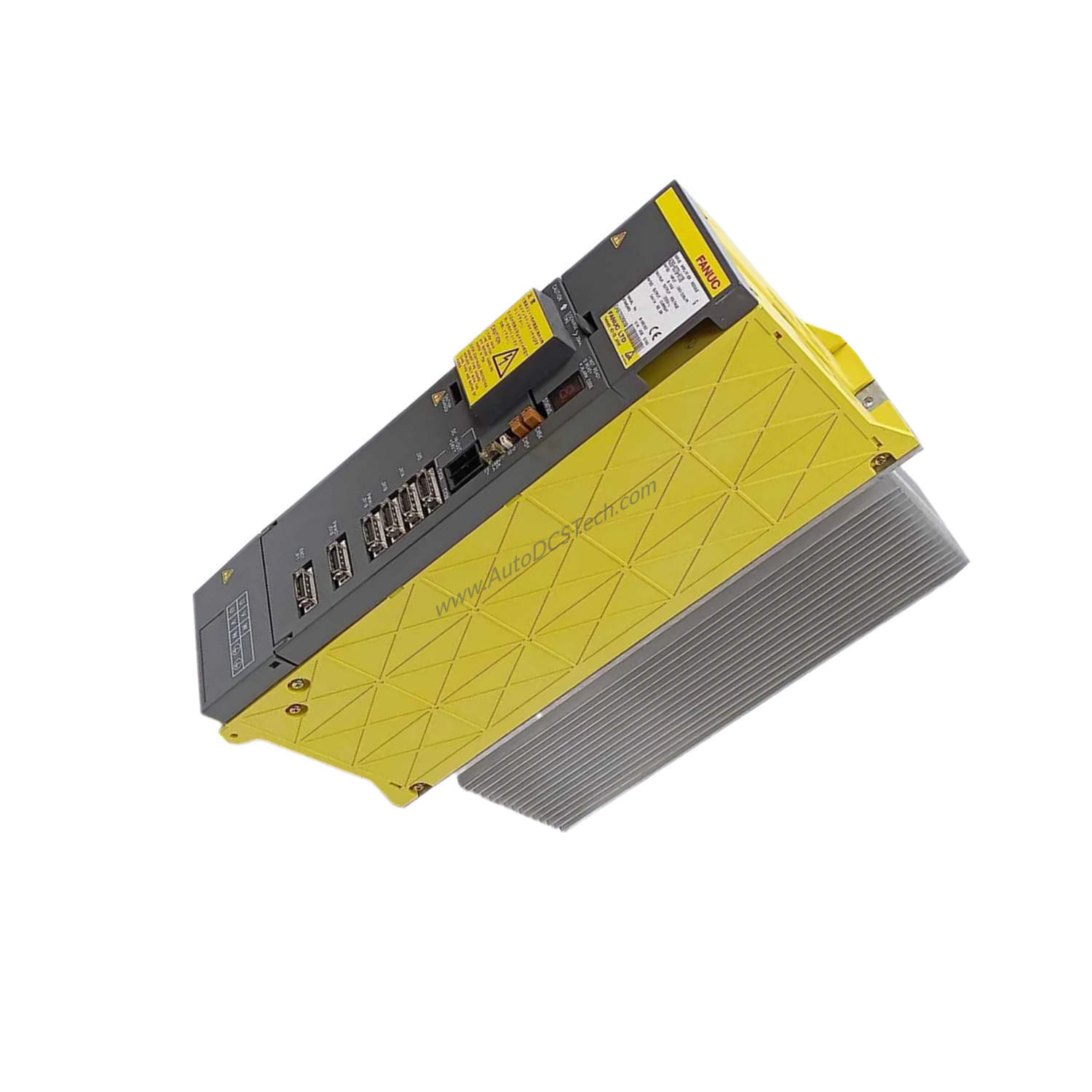

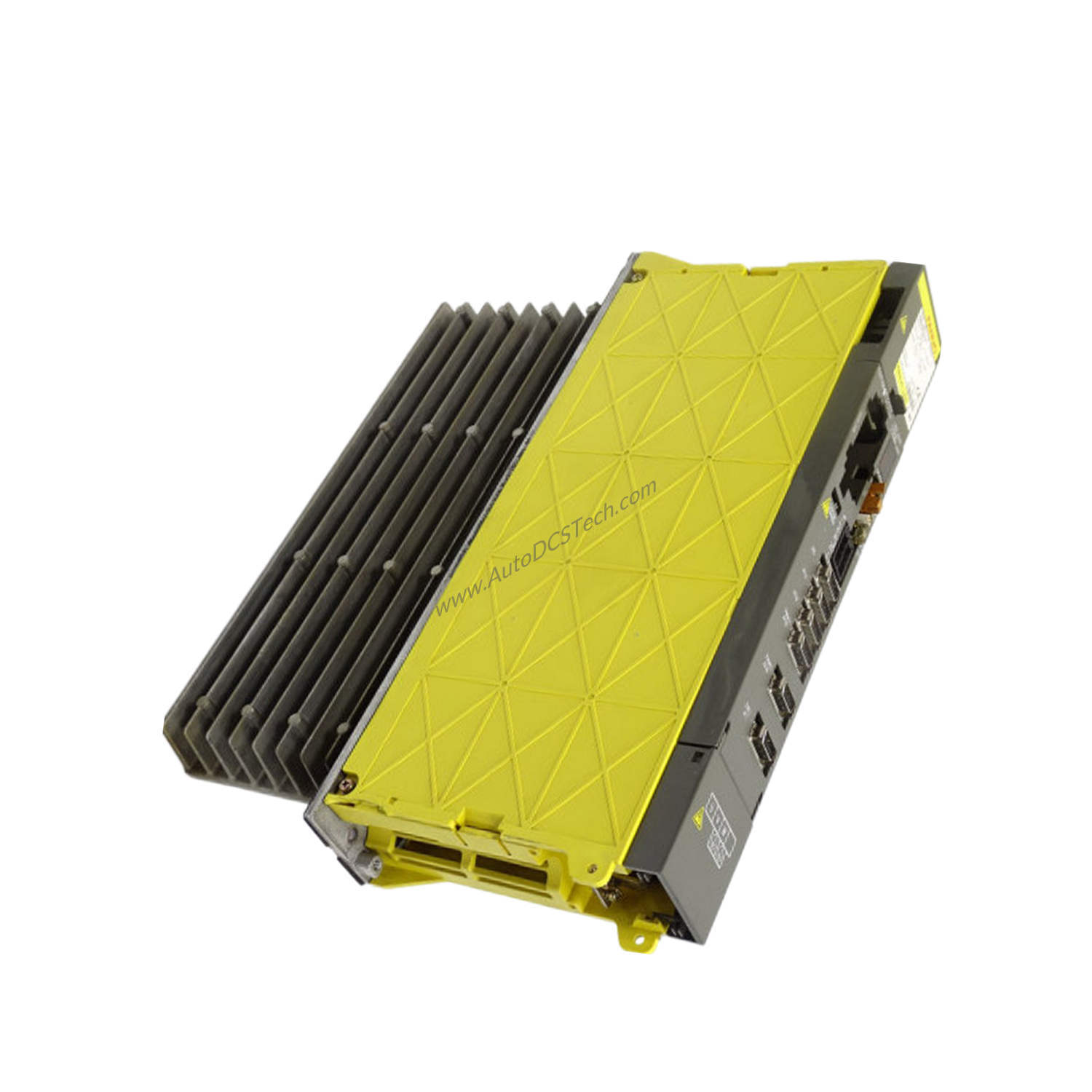

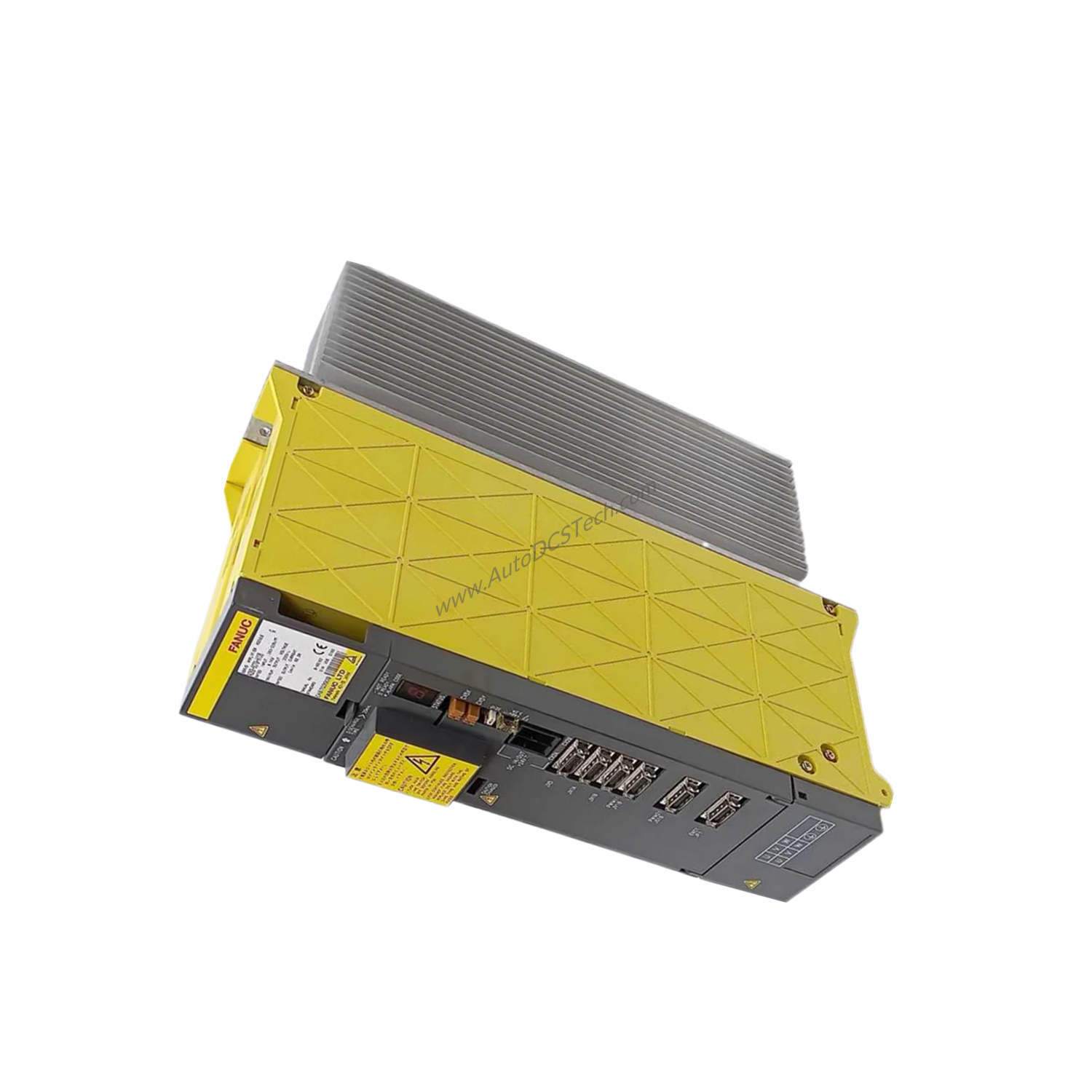

When CNC systems face demanding motion control tasks, the FANUC A06B-6079-H207 dual-axis servo amplifier delivers reliable performance. This servo amplifier from the A06B product line integrates seamlessly into CNC applications, providing precise control for two axes simultaneously. Engineered for industrial environments, it operates within a temperature range of 0°C to 55°C and uses air cooling to maintain efficiency during continuous use.
Technical Specifications Breakdown
The A06B-6079-H207 offers several key specifications that ensure robust operation:
- Rated Current: 12.5 to 18.7 A – This range supports various motor sizes and load demands, allowing flexibility in system design.
- Frequency: 50/60 Hz – Compatible with global power standards, making it suitable for international installations.
- Control Type: PWM Interface – Pulse-width modulation enables smooth and accurate speed and torque control, critical for high-precision machining.
- Protection Features: Overload, Overcurrent, Overvoltage Protection – These safeguards prevent damage from electrical faults, reducing downtime and repair costs.
- Mounting: Vertical/Wall-mounted – Space-saving design that simplifies integration into existing cabinets or panels.
Industry Applications
This dual-axis servo amplifier excels in CNC machining centers, milling machines, and lathes where coordinated motion of two axes is required. For example, in a CNC milling operation, the A06B-6079-H207 drives both the X and Y axes simultaneously, ensuring precise contouring and surface finish. The robust protection features also make it ideal for high-duty-cycle applications where overload risks are higher.
Installation & Setup Guidance
Mount the A06B-6079-H207 vertically on a clean, flat surface using the provided mounting holes. Ensure adequate airflow around the unit for air cooling. Connect the power supply and motor cables according to the wiring diagram, verifying that the input voltage matches the amplifier's rating. After installation, perform a functional test to confirm proper communication with the CNC controller.
Maintenance & Reliability
Regular inspection of the cooling fan and air intakes prevents overheating. Check all electrical connections for tightness every six months. The built-in overload and overvoltage protection reduce the risk of unexpected failures, extending the service life of both the amplifier and connected motors. Operating within the specified temperature range (0°C to 55°C) ensures consistent performance.
Selection Guide & Purchasing Advice
Before ordering, verify that the A06B-6079-H207 matches your CNC system's voltage and current requirements. Confirm compatibility with your existing controller and motor feedback devices. For current availability and lifecycle status, please contact SpareTechPLC. Our team can assist with replacement options if needed.
Frequently Asked Questions
What is the rated current range of the A06B-6079-H207?
The rated current range is 12.5 to 18.7 A, suitable for a variety of servo motor sizes.
Can this amplifier be used in a single-axis application?
Yes, although it is a dual-axis drive, you can use one axis and leave the other unused if your application requires only one axis.
What cooling method does the A06B-6079-H207 use?
It uses air cooling, so ensure proper ventilation around the unit during installation.
What protection features are included?
The amplifier includes overload, overcurrent, and overvoltage protection to safeguard against electrical faults.
Is the A06B-6079-H207 compatible with all FANUC CNC controllers?
It is designed for FANUC CNC systems, but always verify compatibility with your specific controller model before purchasing.
