Product Overview

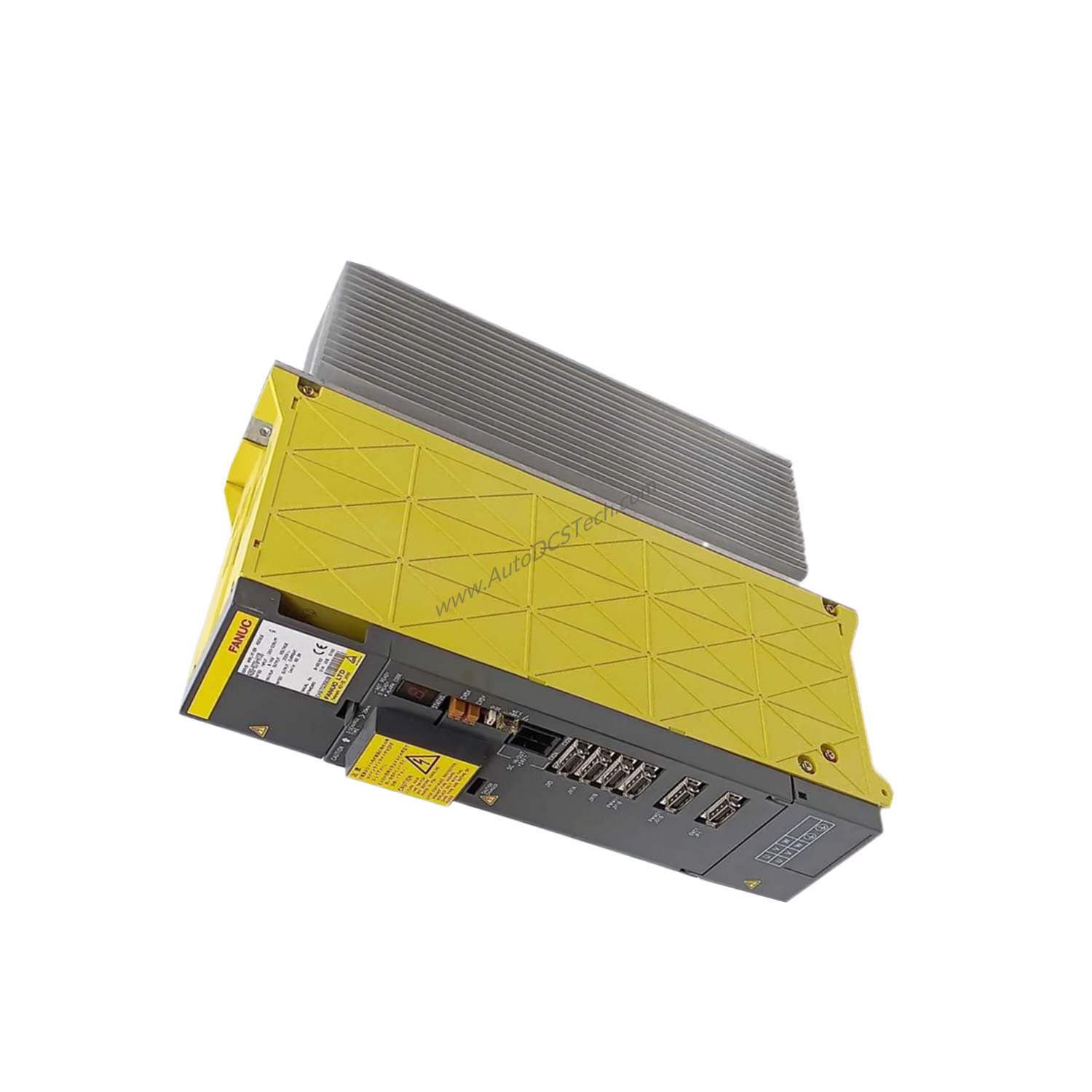

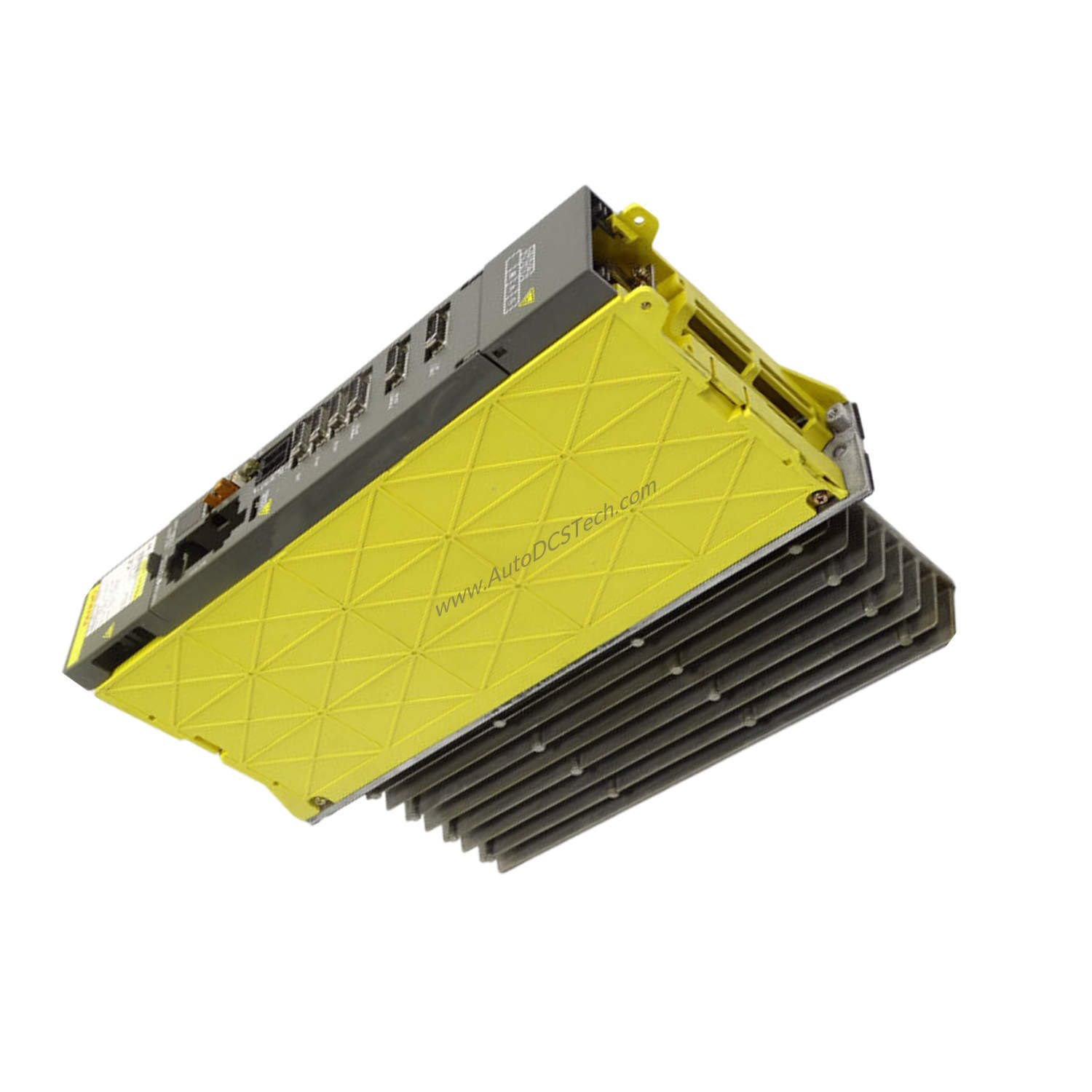

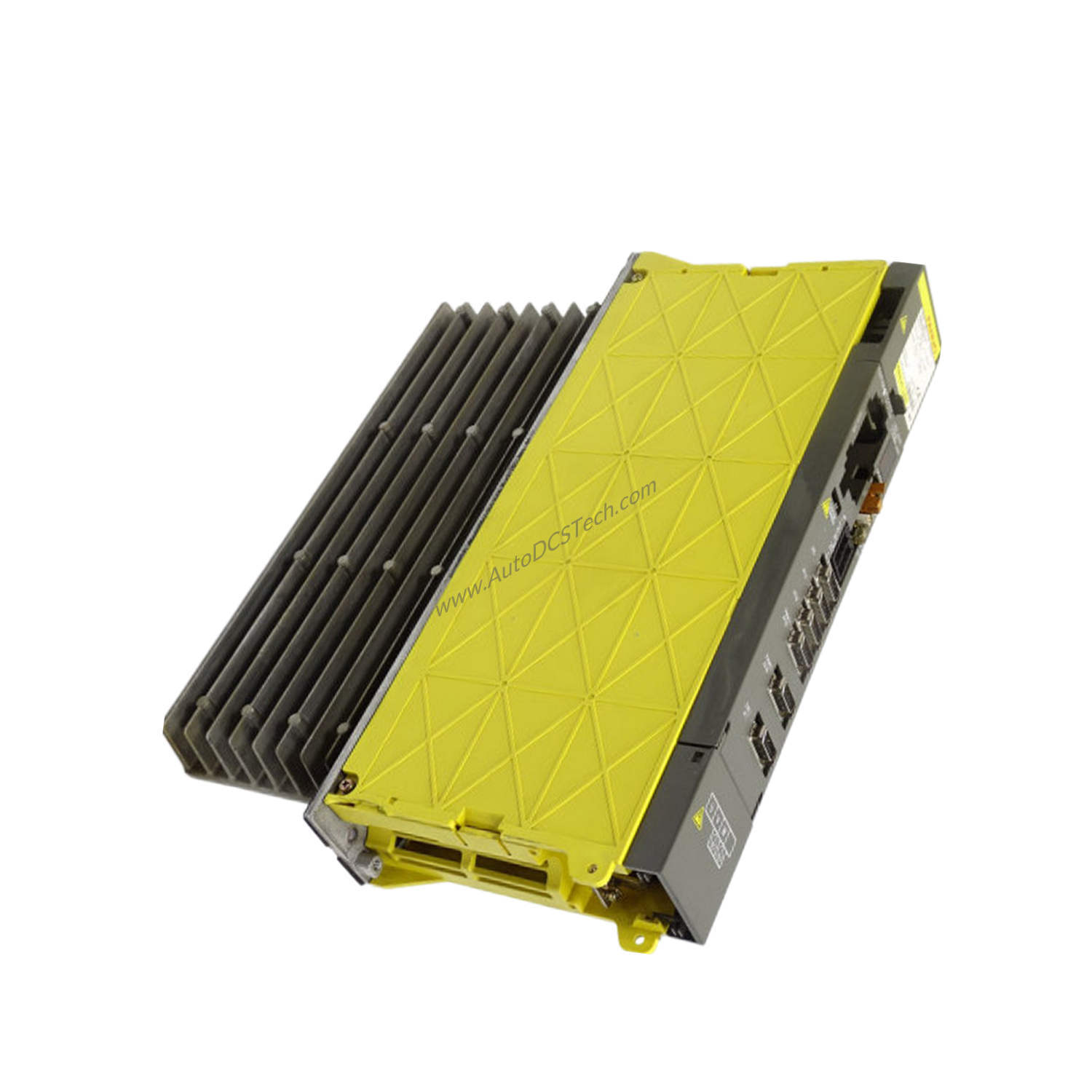

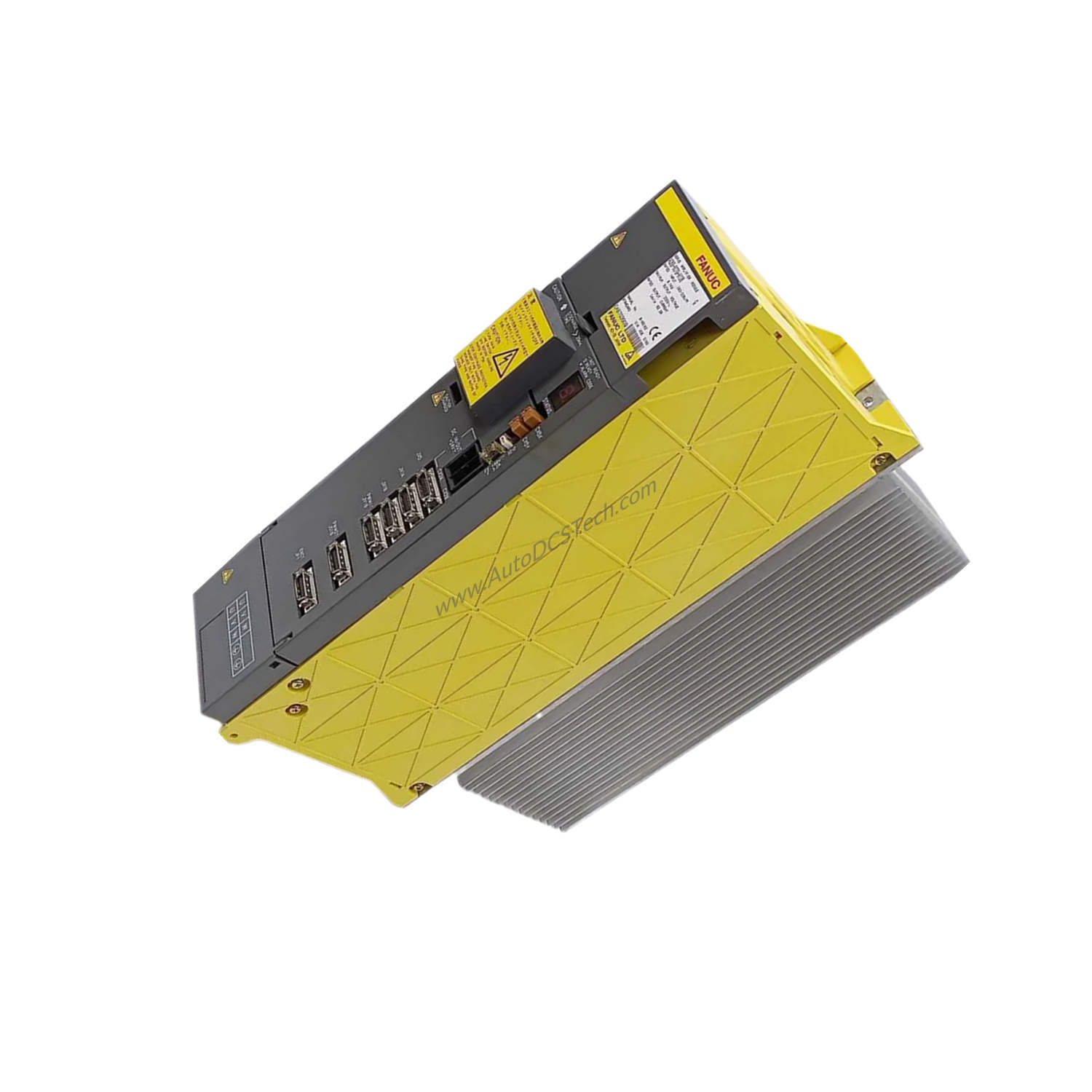

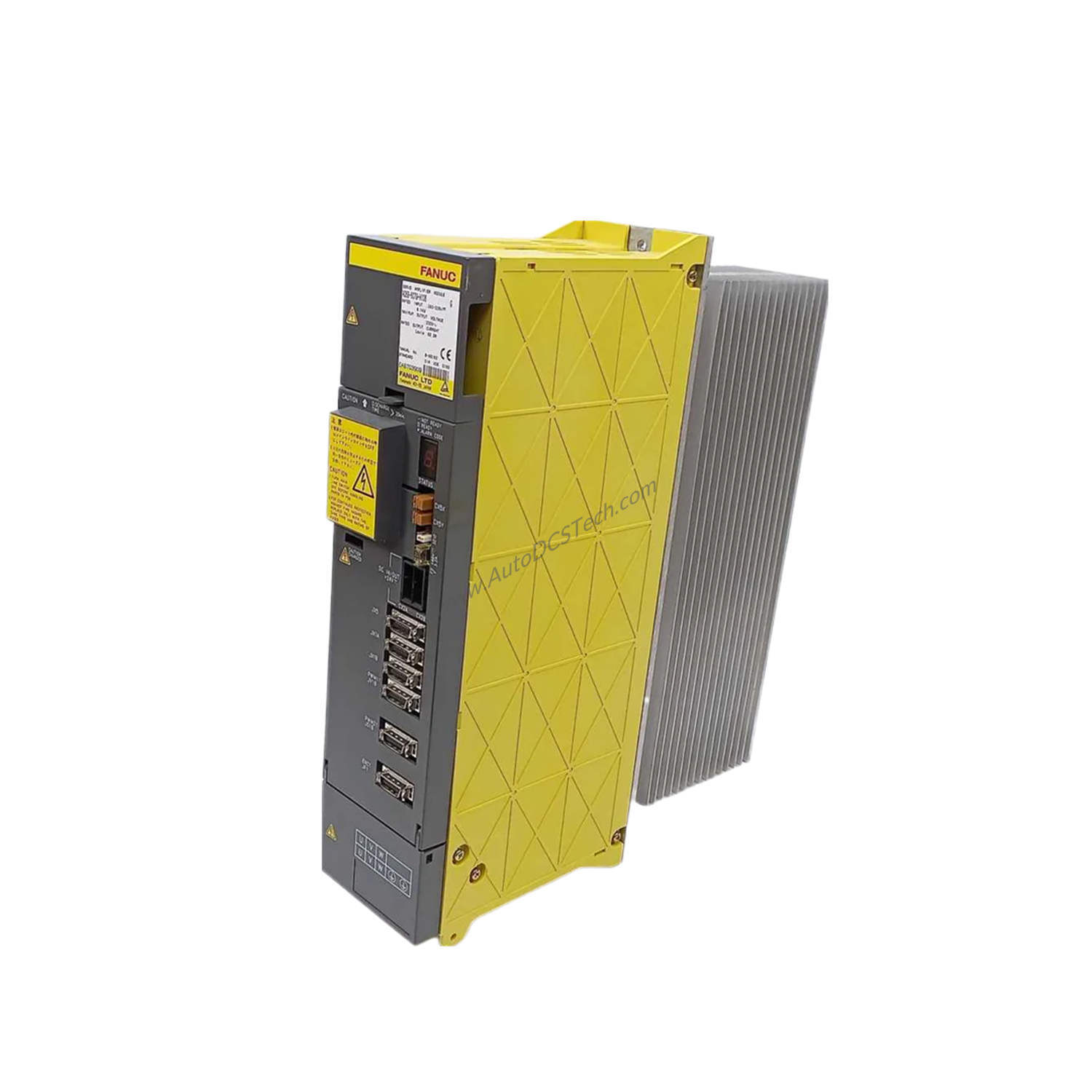

When precision motion control is critical in CNC machining, the FANUC A06B-6079-H206 delivers reliable dual-axis servo amplification. This unit operates on a 230 V AC supply and handles a rated current of 12.5 A. Its robust protection features guard against overload, overcurrent, and overvoltage conditions, ensuring safe and consistent performance.
Technical Specifications Breakdown
The A06B-6079-H206 excels in demanding environments. Key parameters include:
- Input Voltage: 230 V AC
- Rated Current: 12.5 A
- Frequency: 50/60 Hz
- Operating Temperature: 0°C to 55°C
- Cooling Method: Air Cooled
- Mounting: Vertical/Wall-mounted
- Weight: 15.00 lbs (6.80 kg)
These specs make it suitable for continuous operation in factory settings.
Industry Applications
This servo amplifier is designed for CNC systems requiring dual-axis control. Common applications include:
- CNC Milling Machines: Provides precise position, speed, and torque control for simultaneous axis movements.
- CNC Lathes: Manages dual-axis coordination for turning and facing operations.
- Automated Assembly Lines: Integrates with robotic cells for synchronized motion.
Installation & Setup Guidance
Mount the A06B-6079-H206 vertically on a wall or panel using the provided mounting points. Ensure adequate airflow around the unit for air cooling. Connect the 230 V AC supply to the designated input terminals, observing correct phase and neutral wiring. Use properly rated cables for the 12.5 A current. Verify all connections before powering on.
Maintenance & Reliability
Inspect the unit periodically for dust accumulation on cooling vents. Clean with a dry, low-pressure air stream. Check for loose connections or signs of overheating. The built-in protection features minimize downtime by automatically responding to fault conditions. Regular inspection helps extend service life.
Compatibility & Integration
The A06B-6079-H206 integrates seamlessly with FANUC CNC controllers and servo motors. It supports position, speed, and torque control modes, making it versatile for various automation architectures. Confirm compatibility with your specific controller model before ordering.
Selection Guide & Purchasing Advice
Before purchasing, verify that your system requires a dual-axis servo amplifier with 230 V AC input and 12.5 A rating. The A06B-6079-H206 is a reliable choice for new installations or as a replacement. SpareTechPLC stocks this unit and can assist with availability and lifecycle status.
Frequently Asked Questions
Q1: What is the input voltage requirement for the A06B-6079-H206?
A: It requires 230 V AC input.
Q2: How many axes does this servo amplifier control?
A: It controls two axes (dual-axis drive).
Q3: What protection features are included?
A: Overload, overcurrent, and overvoltage protection.
Q4: What is the operating temperature range?
A: 0°C to 55°C.
Q5: Is this unit air cooled?
A: Yes, it uses air cooling.
