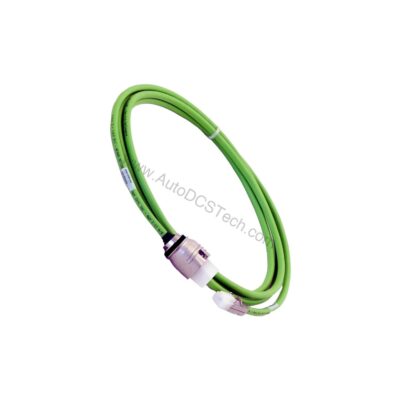

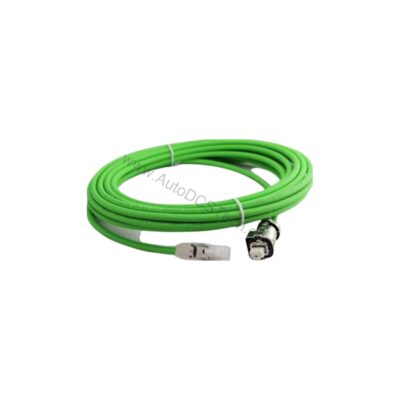

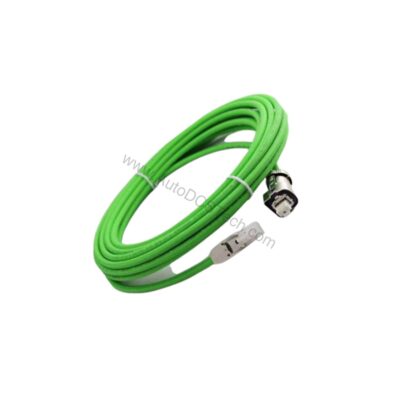

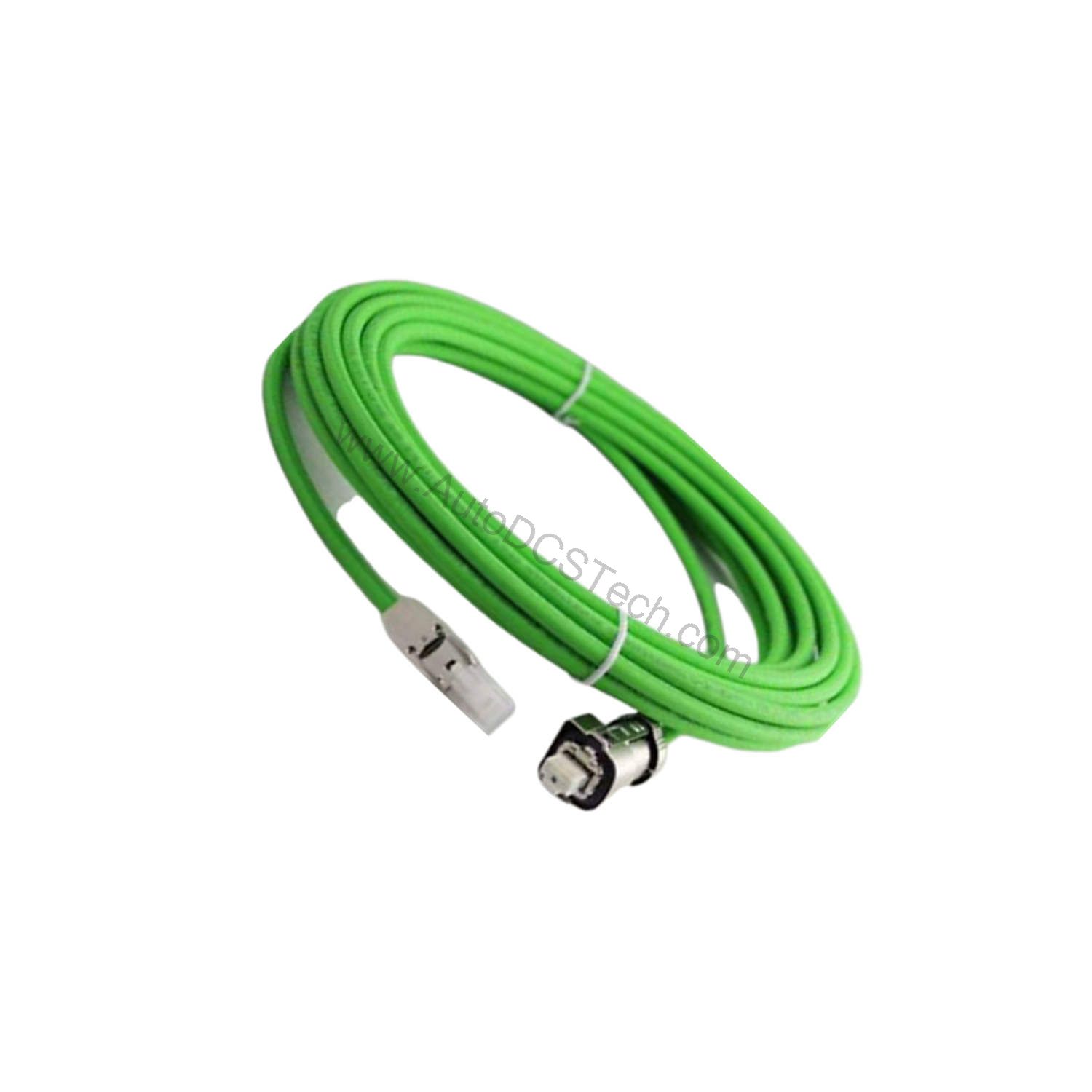

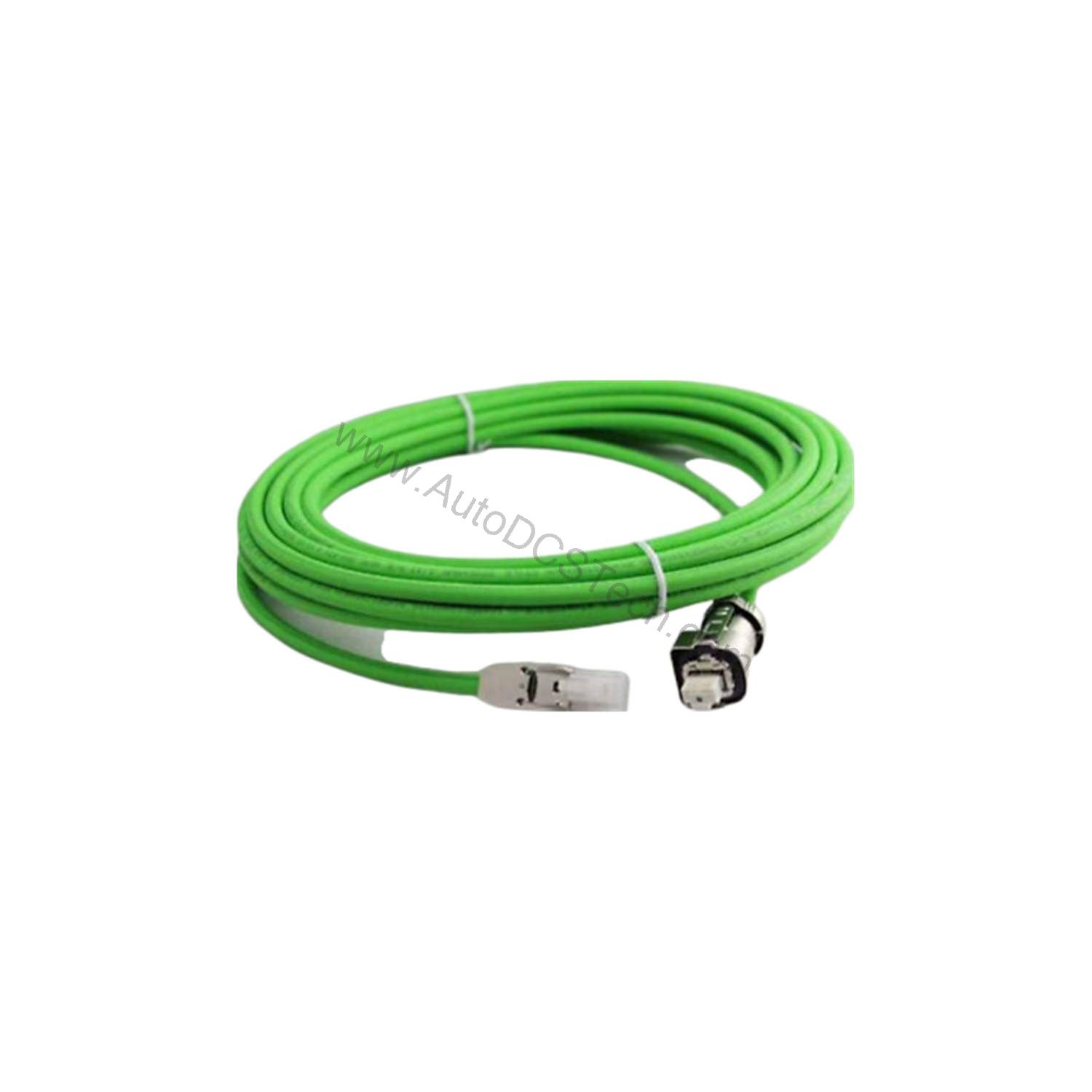

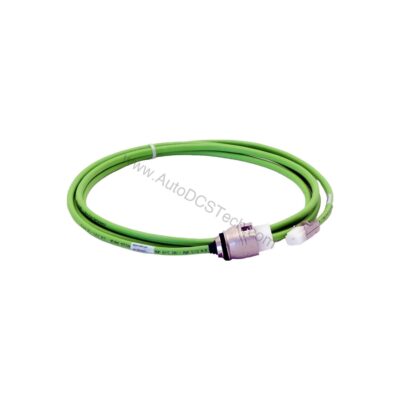

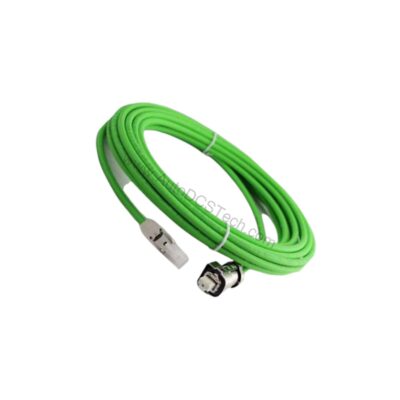

Introduction: The 6FX8002-2DC10-1BE0 Signal Cable
When signal integrity is critical in motion control, the 6FX8002-2DC10-1BE0 from Siemens delivers reliable DRIVE-CLiQ connectivity. This pre-assembled cable is engineered for SINAMICS S120 Motor Modules and SINUMERIK 840D sl systems, ensuring robust communication between drive components.
Key Features and Technical Specifications
This cable features a pre-assembled type 6FX8002-2DC10 with a 24 V plug, RJ45 connector rated IP20 on the module side, and IP67 on the motor side. It is part of the MOTION-CONNECT 800PLUS series, approved for lengths up to 75 meters. The cable diameter (Dmax) is 7.1 mm, and the length tolerance is +0 +10 +4 +0. With a net weight of 2.163 lb, it offers a durable solution for demanding industrial environments.
- Connector Type: RJ45 with 24 V plug for DRIVE-CLiQ.
- Protection Rating: IP20 on module side, IP67 on motor side.
- Maximum Length: Approved up to 75 meters.
- Cable Diameter: Dmax = 7.1 mm.
- Length Tolerance: +0 +10 +4 +0.
- Net Weight: 2.163 lb.
Applications and Use Cases
In high-speed machining centers, the 6FX8002-2DC10-1BE0 ensures precise encoder feedback and control signals between the motor module and the motor. Similarly, in automated assembly lines, this cable maintains signal integrity over extended runs, reducing the risk of communication errors. For retrofit projects, the IP67 motor-side connector provides robust protection against coolant and dust, enhancing system reliability.
Installation and Setup
When installing the 6FX8002-2DC10-1BE0, ensure the RJ45 connector is securely seated on the module side and the IP67 connector is properly threaded on the motor side. Avoid bending the cable beyond its specified diameter to maintain signal quality. Verify that the total cable length does not exceed 75 meters to comply with MOTION-CONNECT 800PLUS approvals.
Maintenance and Reliability
Regularly inspect the cable for signs of wear, especially near connectors where flexing occurs. Because the cable is pre-assembled, there are no user-serviceable parts; replace the entire cable if damage is detected. The IP67 rating on the motor side minimizes ingress of contaminants, extending service life in harsh environments.
Compatibility and Integration
The 6FX8002-2DC10-1BE0 is designed for use with Siemens SINAMICS S120 Motor Modules and SINUMERIK 840D sl controllers. It is part of the MOTION-CONNECT 800PLUS family, ensuring compatibility with DRIVE-CLiQ interfaces. For other systems, verify connector and protocol compatibility before ordering.
Troubleshooting Common Issues
If communication errors occur, first check the cable connections for looseness or damage. Ensure the cable length is within the 75-meter limit, as longer runs may cause signal degradation. Confirm that the IP67 connector is properly tightened to maintain environmental protection. If issues persist, consult the official Siemens documentation or contact AutoDCSTech for support.
Product Support and Availability
The 6FX8002-2DC10-1BE0 is an active product (PM300) and available through AutoDCSTech. Contact our team for current lead times and ordering assistance.
Availability & Condition at AutoDCSTech
| Part Number | 6FX8002-2DC10-1BE0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
