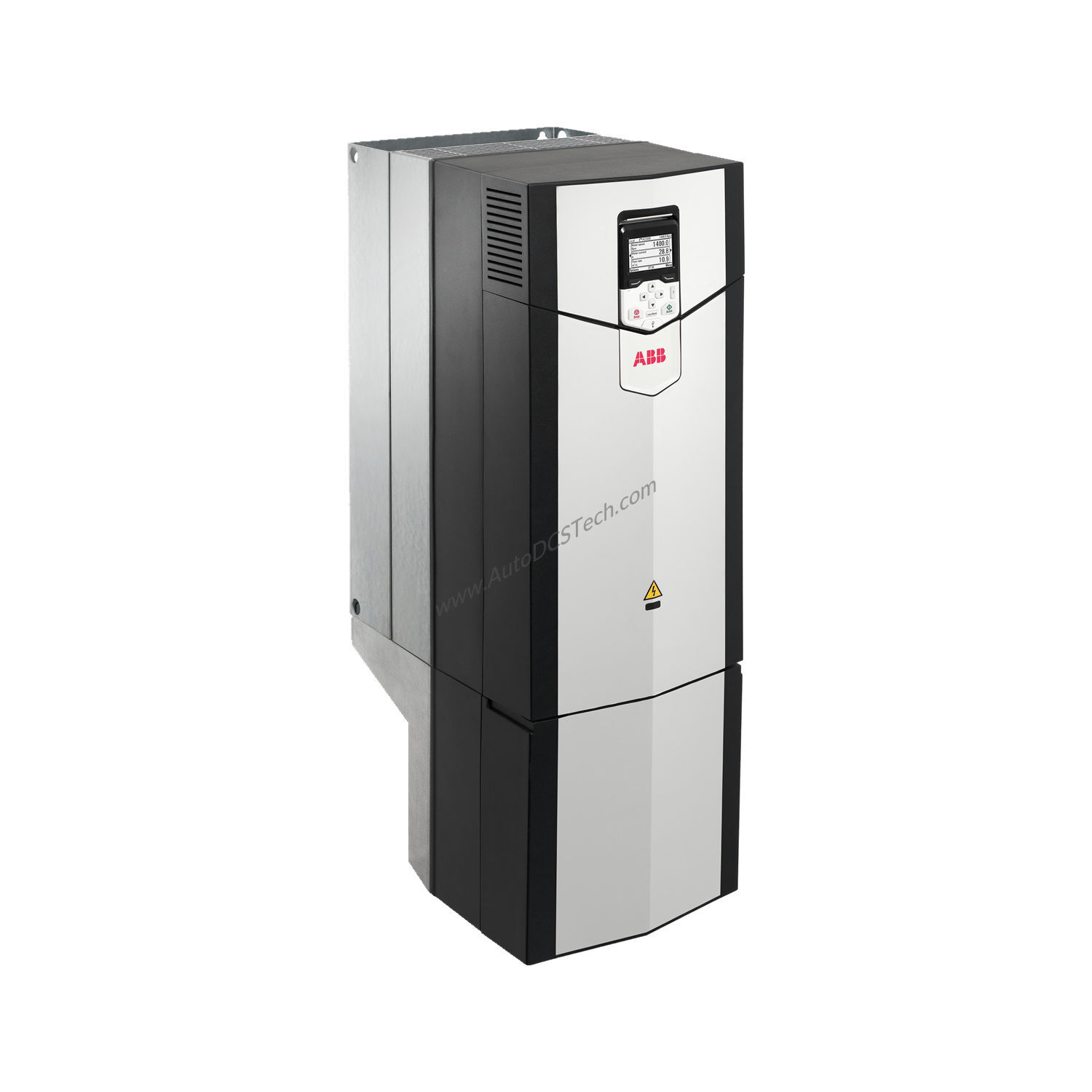

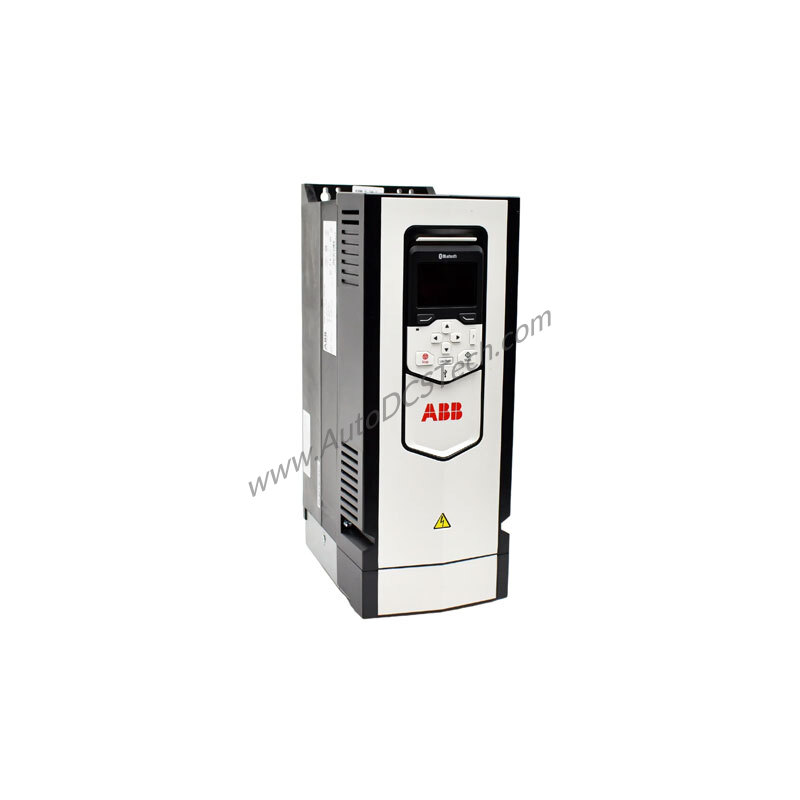

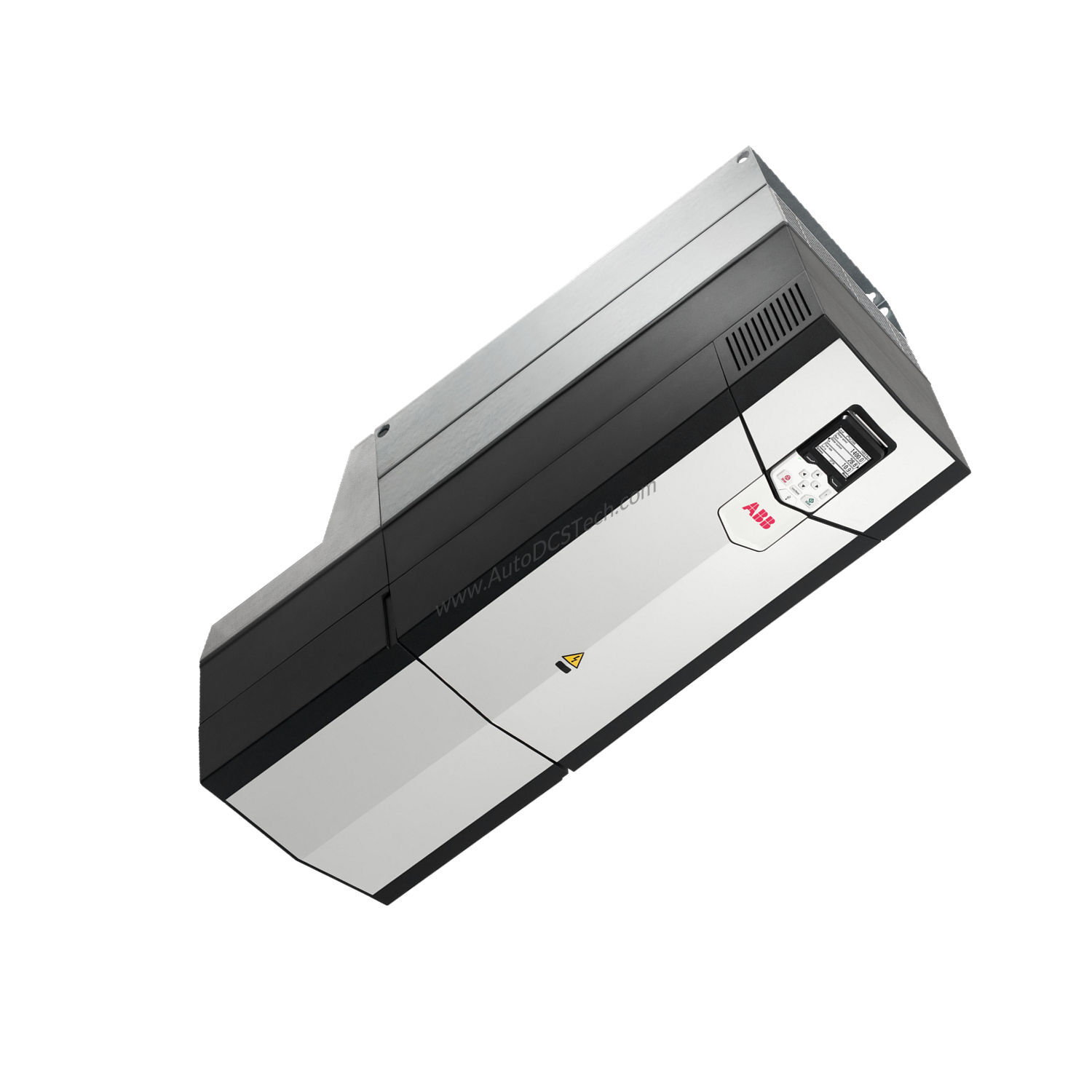

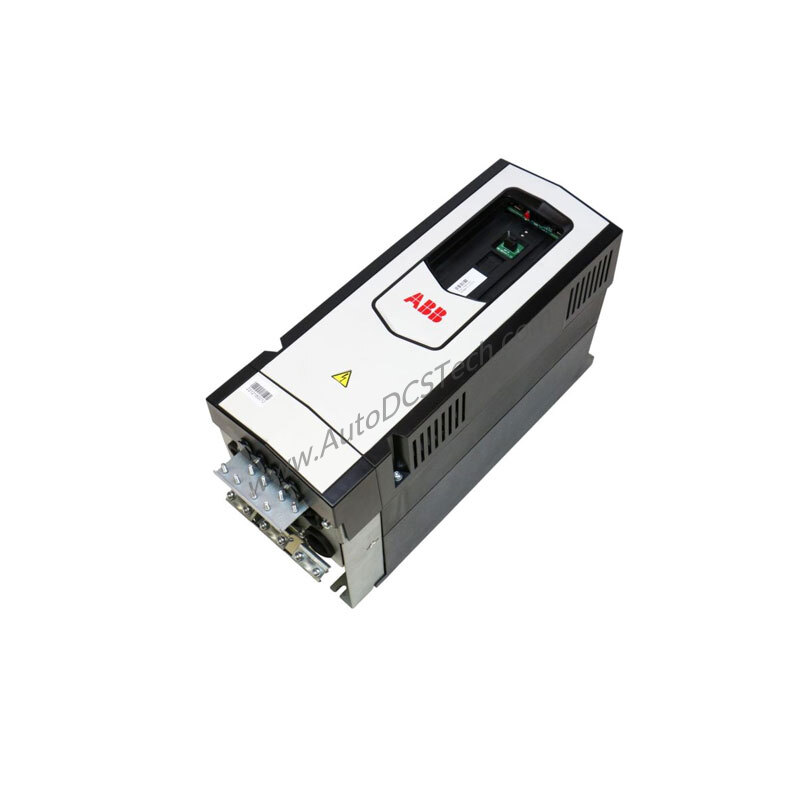

ABB ACS880-01-156A-5 Wall-Mounted Single Drive for Industrial Efficiency

Technical Specifications Breakdown

Understanding key parameters helps you evaluate total cost of ownership. The ACS880-01-156A-5 operates on a 3-phase input voltage of 380...500 V with a frequency range of 47.5...63 Hz, ensuring compatibility with global power grids. Its output current varies by duty cycle: 156 A for normal use, 148 A for light-overload, and 124 A for heavy-duty use. This flexibility allows you to match the drive to your application's actual load, avoiding oversizing and reducing upfront capital expenditure. The drive consumes 1840 W of power and achieves IE2 efficiency, directly lowering electricity bills. Standby loss is only 54 W, minimizing idle energy costs. With an IP21 degree of protection and NEMA Type 1 enclosure, it suits clean indoor environments without expensive additional enclosures.

Industry Applications

In material handling, the ACS880-01-156A-5 controls conveyors with precise torque management, reducing belt wear and unplanned downtime. For pump and fan applications, its built-in brake chopper and harmonic filter improve energy efficiency by up to 30% compared to traditional starters, delivering rapid ROI. By integrating this drive, facilities in oil and gas, mining, and water treatment can achieve lower operational costs and extended equipment life.

Installation & Setup Guidance

Mount the ACS880-01-156A-5 directly on a wall using the provided frame size R7 chassis. Ensure adequate clearance for airflow; the drive weighs 53.0 kg and measures 880 mm high, 284 mm wide, and 365 mm deep. Connect the 3-phase power supply to the input terminals, and wire the motor to the output. The control unit includes 2 analog inputs, 2 analog outputs, and 6 digital inputs with 2 digital outputs, simplifying integration with existing PLCs. Use the USB or RS-485 interface for initial configuration via ABB's software. For cabinet installations, verify that ambient temperature does not exceed 40 °C to maintain full rated performance.

Maintenance & Reliability

Routine inspection of the cooling fan and air filters prevents overheating and extends drive life. The lithium coin batteries (CR2032, 220 mAh, 3 V) retain parameter settings during power loss, reducing reprogramming costs after outages. Operating humidity should stay between 5% and 95% RH. With a sound level of 67 dB(A), the drive operates quietly, improving workplace comfort. Regular firmware updates via the communication ports ensure compatibility with evolving network standards, protecting your investment.

What Is the ABB ACS880-01-156A-5?

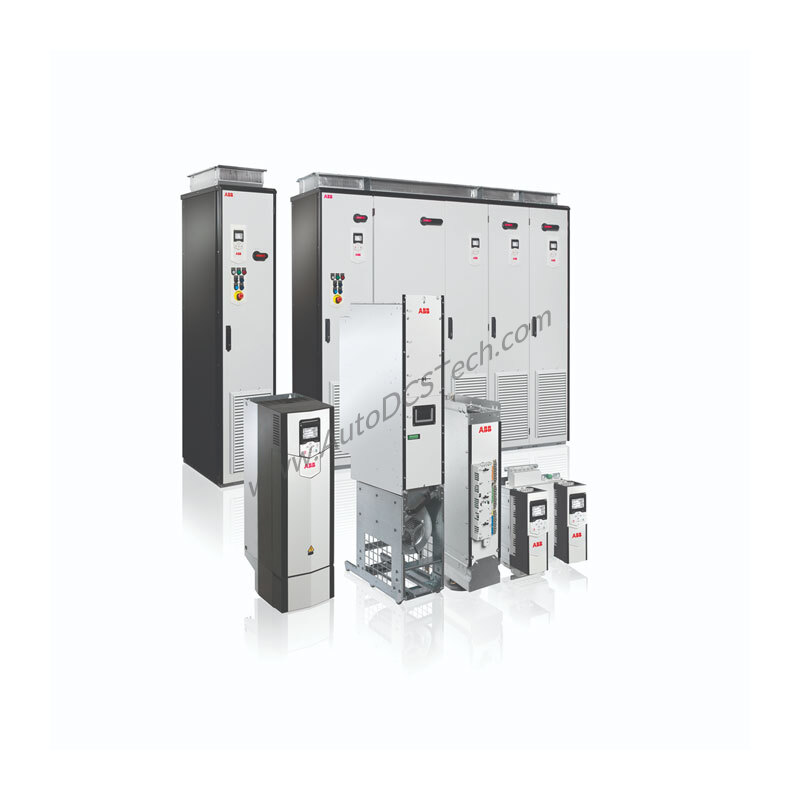

When industrial operations demand precise motor control with minimal energy waste, the ABB ACS880-01-156A-5 delivers a compact, wall-mounted solution. This LV AC industrial single drive provides 90 kW output power at 500 V (IEC) and 125 Hp at 460 V (UL), with a continuous output current of 156 A. Its built-in choke for harmonic filtering reduces electrical noise, lowering the risk of equipment damage and cutting long-term maintenance costs. Part of the ACS880 family, this drive is engineered for easy installation and commissioning, making it a cost-effective choice for modern factories.

Compatibility & Integration

The ACS880-01-156A-5 supports multiple communication protocols including CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, and PROFIsafe. It also accommodates other bus systems, making it easy to integrate into existing automation architectures. The single RS-485 port and USB connection allow direct PC link for diagnostics and tuning. This broad compatibility reduces integration costs and simplifies system upgrades.
