Product Overview

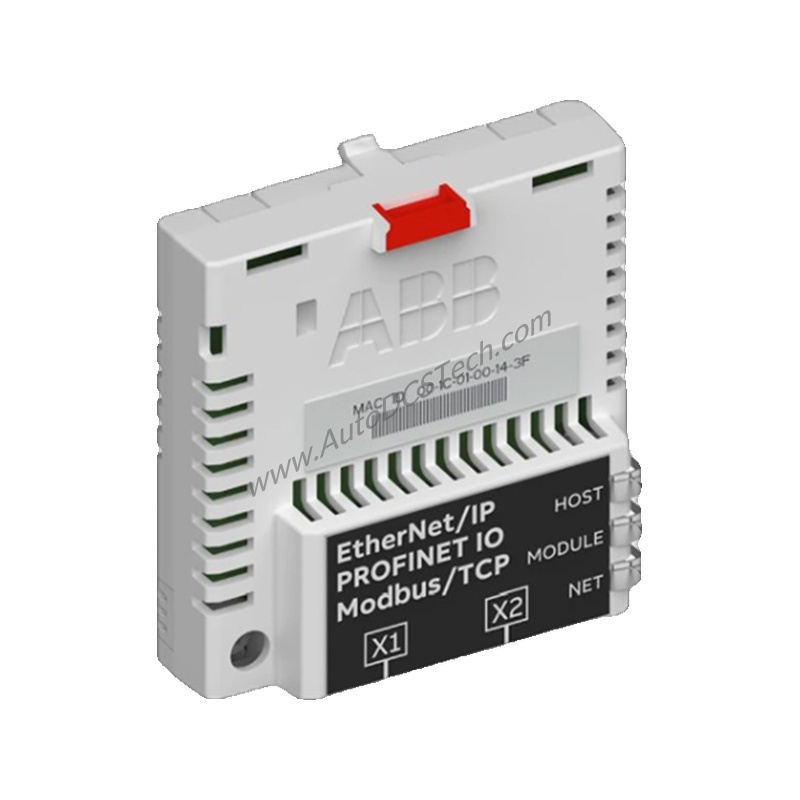

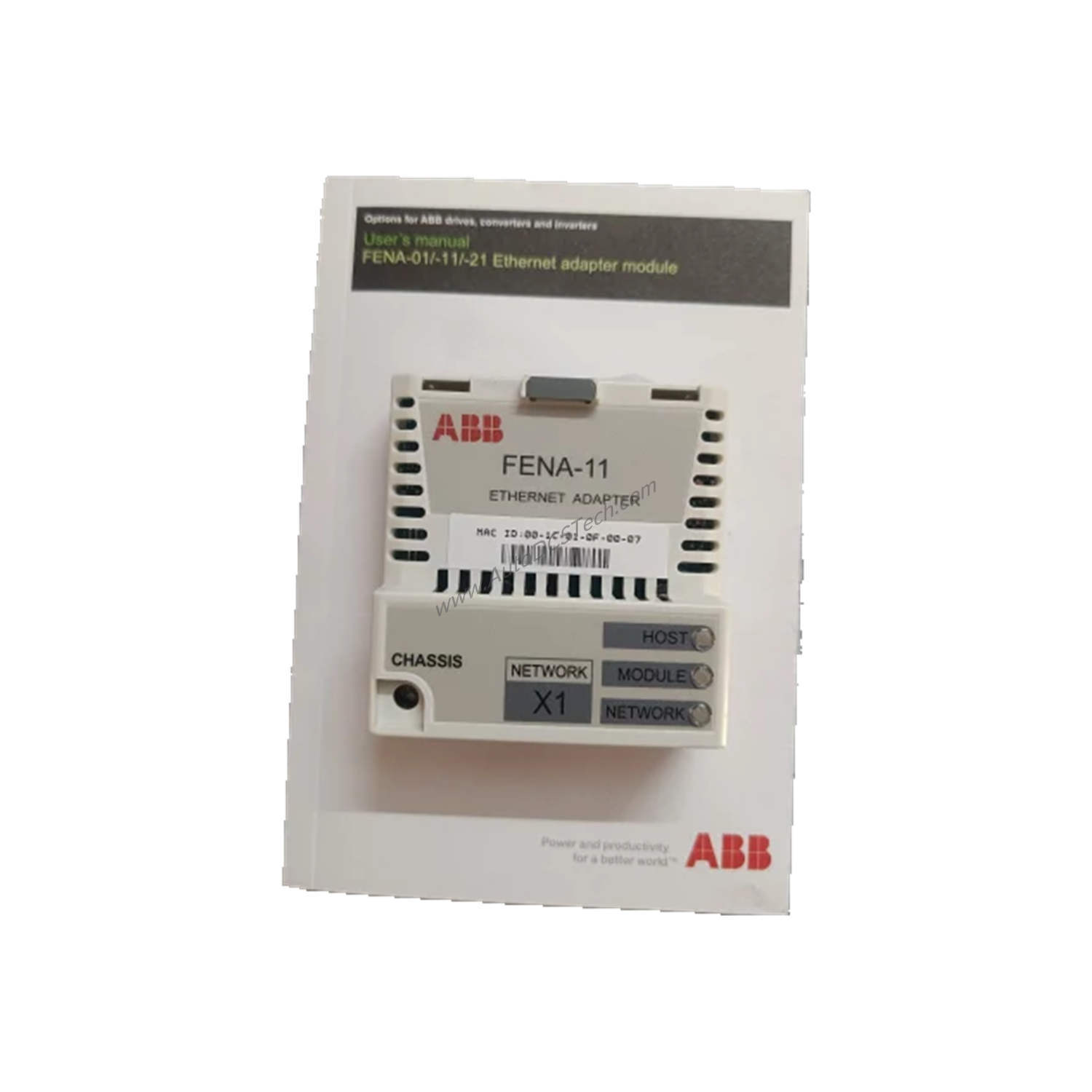

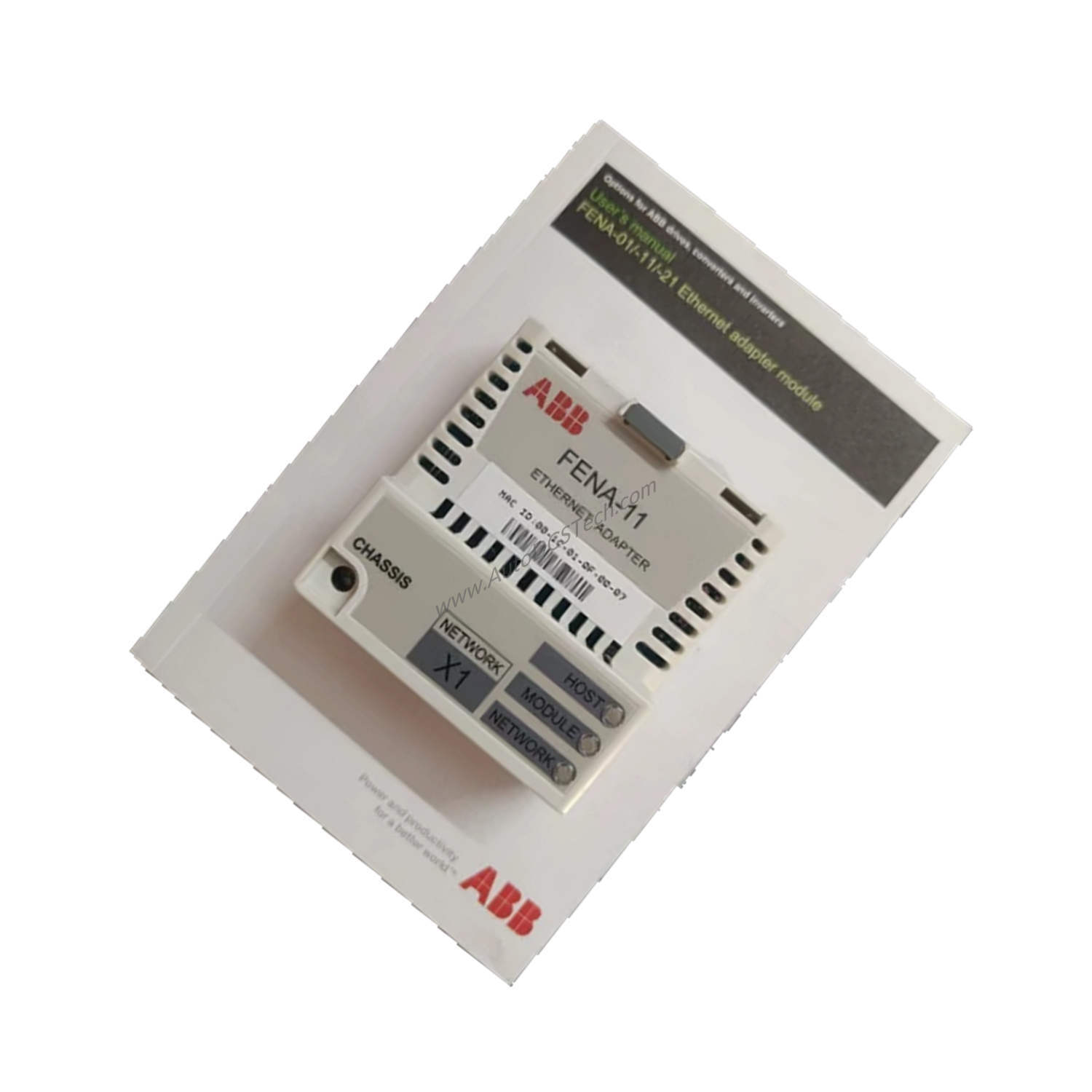

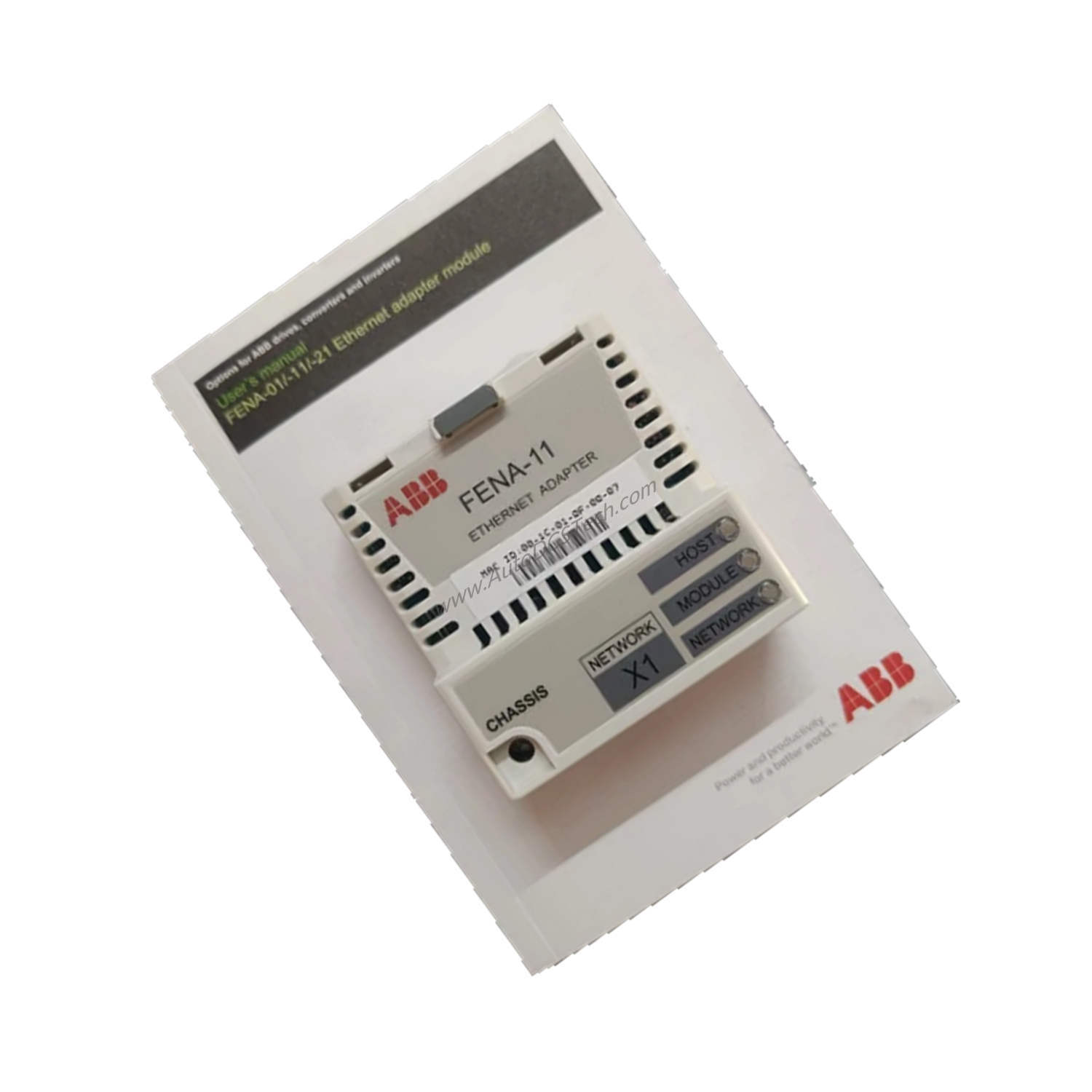

The ABB FENA-11 FieldBus Kit for ACS880 drives provides a reliable solution. This 1-port Ethernet adapter module (part number 3AUA0000089107) supports multiple industrial protocols, ensuring your drive stays connected. Designed for maintenance engineers, the FENA-11 simplifies network integration and reduces troubleshooting time.
Technical Specifications
The FENA-11 is a single-port Ethernet adapter that supports three major communication protocols: PROFINET IO, EtherNet/IP, and Modbus TCP. Protocol selection is performed via a single parameter inside the drive, making field configuration straightforward. The module supports PROFINET IO DP-V1 communication, allowing use of the PROFIdrive profile or the ABB drive profile. For EtherNet/IP, it acts as a server supporting ODVA AC/DC Drive, ABB drive, and Transparent profiles. It handles both explicit messages (per-attribute configuration) and implicit messages using input and output instances. For Modbus TCP, the adapter serves as a server supporting ABB drive and Transparent profiles, with read/write single and multiple register function codes.
Industry Applications
In manufacturing environments, the FENA-11 enables seamless integration of ACS880 drives into existing Ethernet networks. For example, in a conveyor system using PROFINET IO, the adapter allows real-time speed control and status monitoring. In a packaging line using EtherNet/IP, it provides reliable data exchange with PLCs. The transparent modes for 16-bit and 32-bit words simplify migration from older systems.
Installation & Setup Guidance
Mount the FENA-11 module onto the ACS880 drive according to the drive's user manual. Connect the Ethernet cable to the single RJ45 port. After powering up, select the desired protocol (PROFINET IO, EtherNet/IP, or Modbus TCP) via the drive parameter. Verify network settings such as IP address and station name. Use the drive's control panel or software to confirm communication status. For maintenance engineers, keeping a log of parameter settings speeds up future replacements.
Maintenance & Reliability
The FENA-11 requires minimal routine maintenance. Periodically inspect the Ethernet cable and connector for damage or loose connections. Ensure the drive's firmware is up to date to maintain protocol compatibility. The module's design focuses on reliability, reducing unexpected communication failures. From a cost-benefit perspective, investing in the FENA-11 minimizes downtime and extends the service life of your ACS880 drive network.
Compatibility & Integration
The FENA-11 is specifically designed for ABB ACS880 drives. It integrates with PROFINET IO networks using PROFIdrive or ABB drive profiles. For EtherNet/IP systems, it supports ODVA AC/DC Drive, ABB drive, and Transparent profiles. Modbus TCP networks can use ABB drive or Transparent profiles. This flexibility makes the FENA-11 suitable for mixed-protocol environments. Always verify that your controller supports the chosen profile.
Selection Guide & Purchasing Advice
Before purchasing the FENA-11, confirm that your ACS880 drive model is compatible. Check the drive's firmware version to ensure support for the FENA-11 module. For replacement or new installations, order the exact part number 3AUA0000089107. AutoDCSTech offers the ABB FENA-11 FieldBus Kit with reliable availability. Contact AutoDCSTech for current lifecycle status and stock information.
Availability & Condition at AutoDCSTech
| Part Number | FENA-11 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Switzerland |
