Product Overview

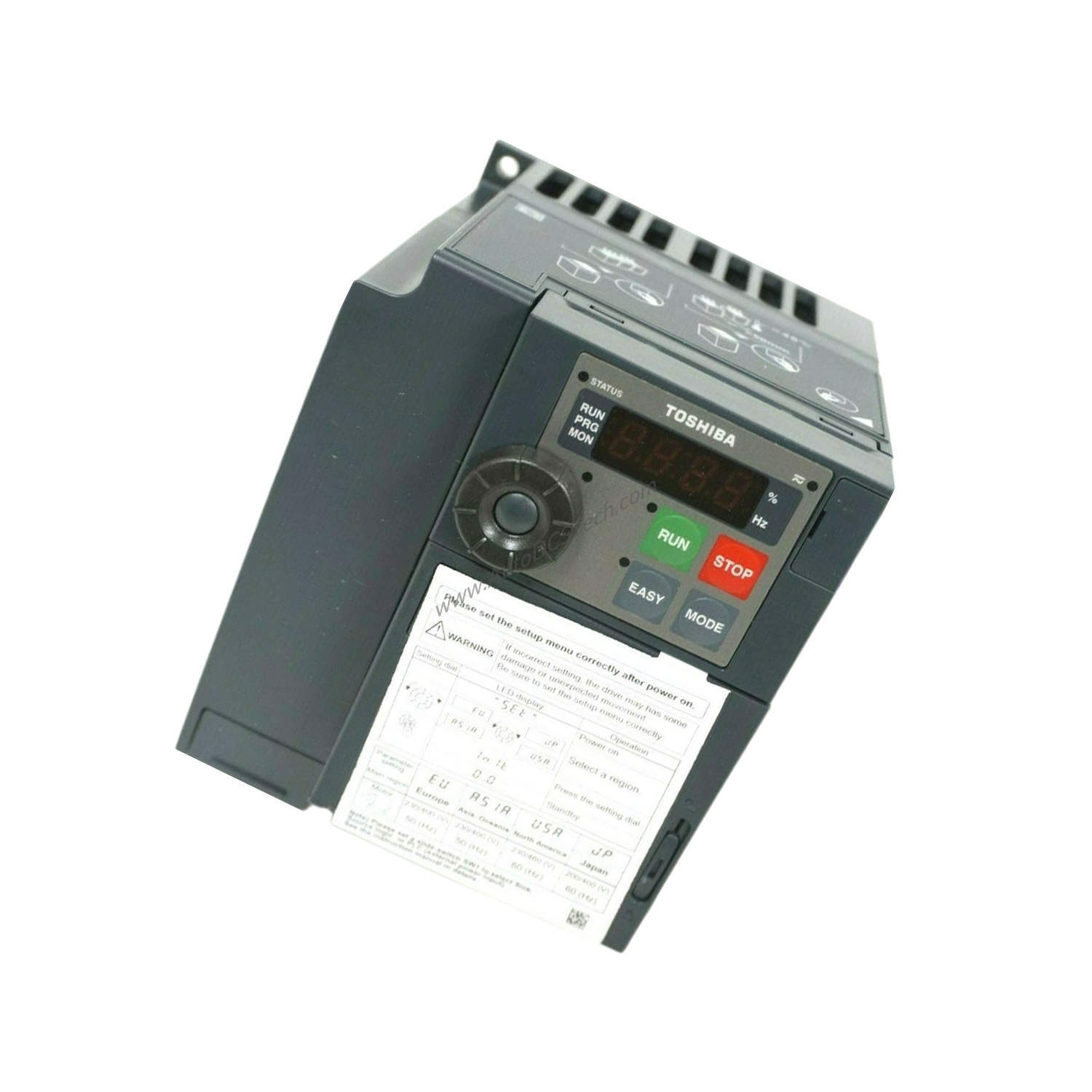

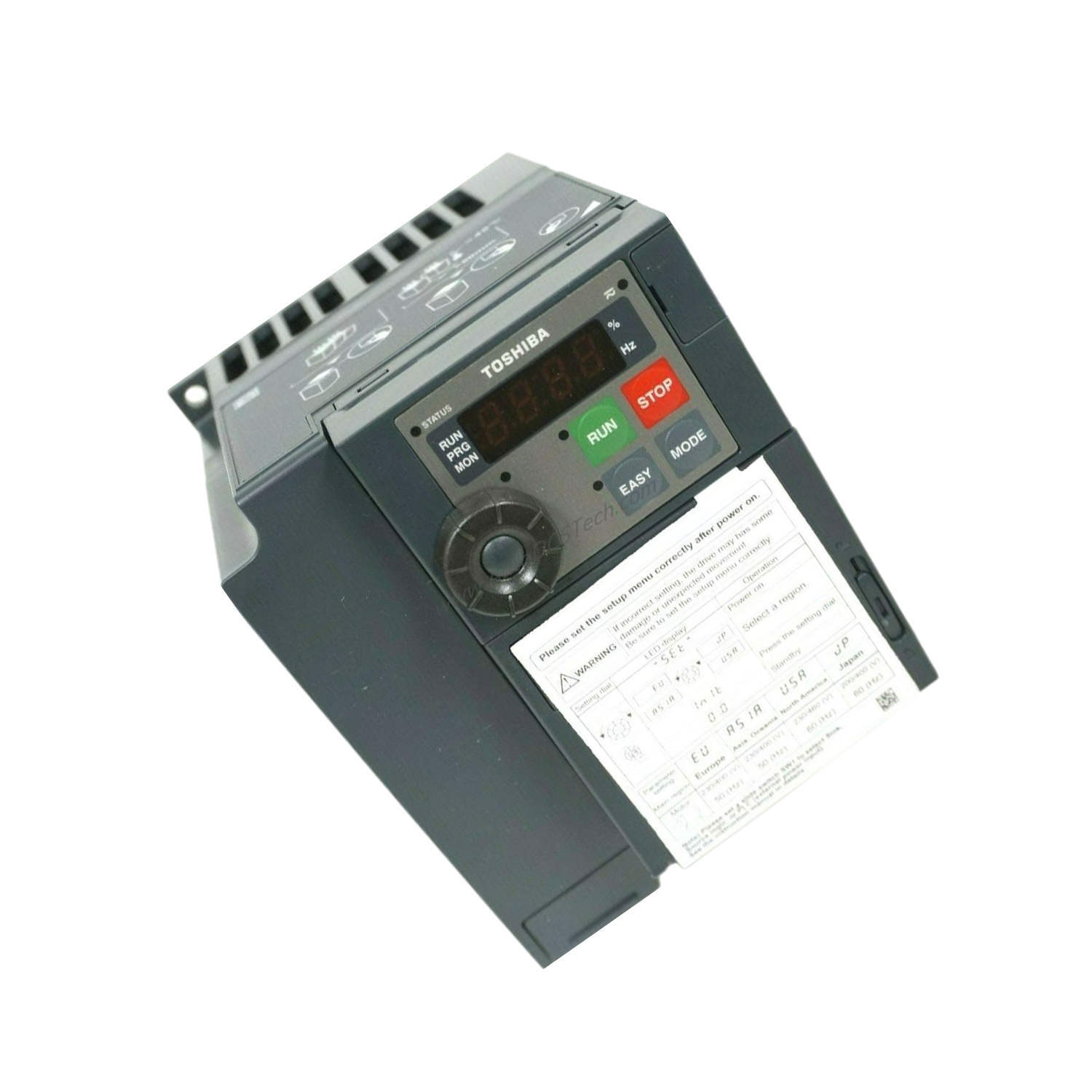

When your industrial process requires precise motor speed control, the FANUC VFS15-2075PM-W1 AC drive delivers reliable performance. This variable frequency drive (VFD) from the Toshiba S15 series is designed for applications needing 10 horsepower at 230 VAC three-phase input. With 33 full load amps and sinusoidal PWM control, it provides smooth and efficient motor operation.
Key Technical Specifications
The VFS15-2075PM-W1 operates on three-phase 230 VAC supply and supports a frequency range from 0.1 to 500.0 Hz, with a default setting of 0.5 to 60 Hz. Maximum frequency can be adjusted between 30 and 500 Hz. This flexibility makes it suitable for a wide variety of speed control tasks. The drive includes a built-in basic filter and an operation panel for easy local control.
Industry Applications
This AC drive excels in applications such as conveyor systems, pumps, and fans where variable speed control improves process efficiency and reduces energy consumption. For example, in a material handling line, the VFS15-2075PM-W1 can adjust motor speed to match load requirements, minimizing wear and extending equipment life. Its compact micro-drive form factor fits easily into control cabinets with limited space.
Installation & Setup Guidance
Mount the drive in a clean, dry location with adequate ventilation. Ensure the input voltage matches the 230 VAC three-phase specification. Connect the motor leads according to the wiring diagram provided in the user manual. The built-in operation panel simplifies initial configuration, allowing you to set frequency limits and acceleration/deceleration times directly.
Maintenance & Reliability
Regular inspection of cooling fans and air filters helps maintain optimal thermal performance. Check all power connections periodically for tightness. The drive's built-in basic filter reduces electrical noise, contributing to long-term reliability. For maximum uptime, follow the manufacturer's recommended maintenance schedule.
Compatibility & Integration
The VFS15-2075PM-W1 integrates seamlessly with standard three-phase induction motors. Its sinusoidal PWM control ensures compatibility with most motor types. The drive accepts analog and digital control signals, making it easy to interface with PLCs or other automation systems.
Selection Guide & Purchasing Advice
Before purchasing, verify that your motor's full load amps do not exceed 33 amps and that your facility provides 230 VAC three-phase power. The VFS15-2075PM-W1 is a world model with built-in basic filter, suitable for global applications. Contact SpareTechPLC to confirm current availability and lifecycle status before ordering.
Frequently Asked Questions
Q: What is the horsepower rating of the VFS15-2075PM-W1?
A: The drive is rated for 10 HP at 230 VAC three-phase input.
Q: What frequency range does this drive support?
A: It supports 0.1 to 500.0 Hz, with a default setting of 0.5 to 60 Hz and maximum frequency adjustable from 30 to 500 Hz.
Q: Does the drive include a built-in filter?
A: Yes, it includes a built-in basic filter for reducing electrical noise.
Q: What is the full load amp rating?
A: The full load amp rating is 33 amps.
Q: Can this drive be used with single-phase input?
A: No, this model requires three-phase 230 VAC input.
