Product Overview

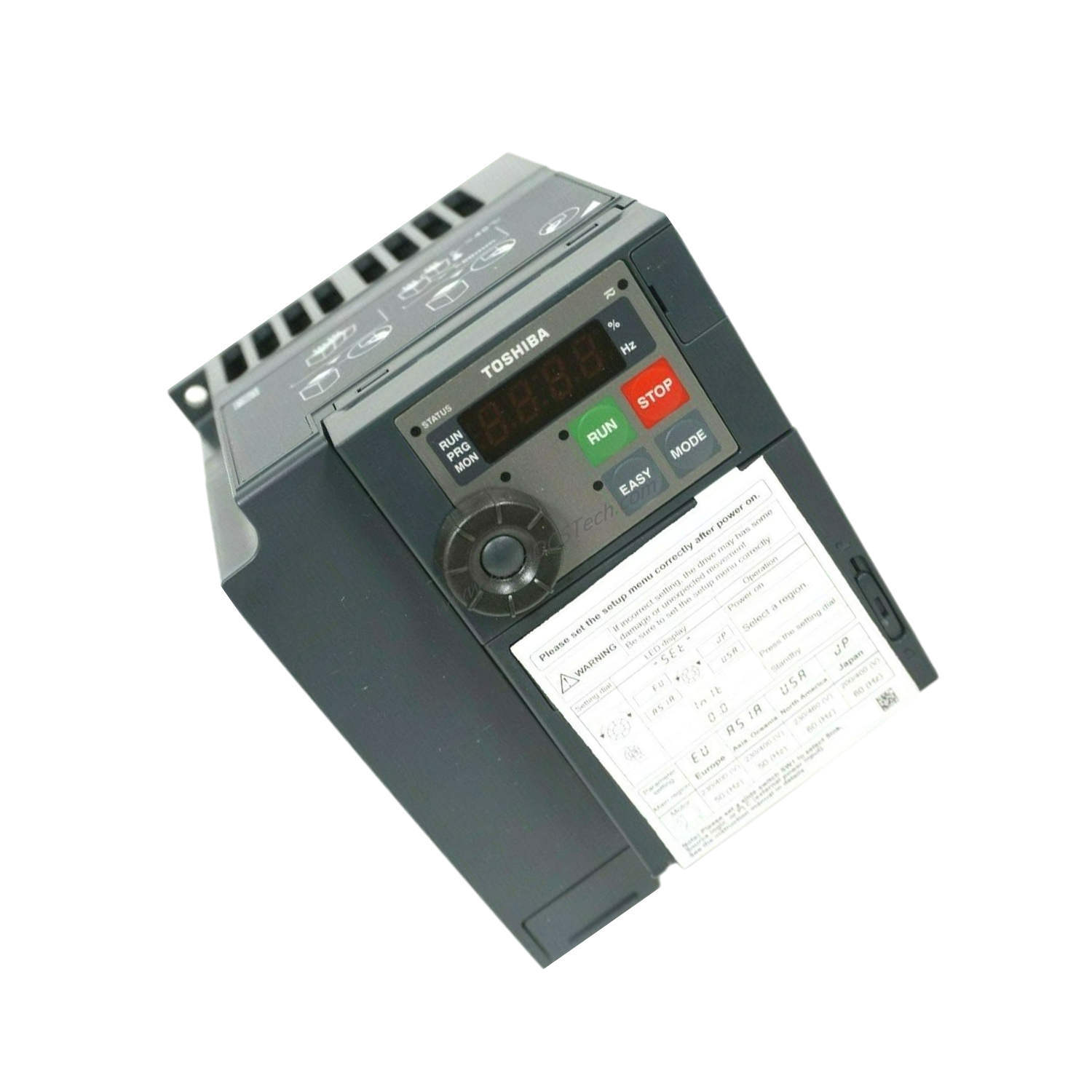

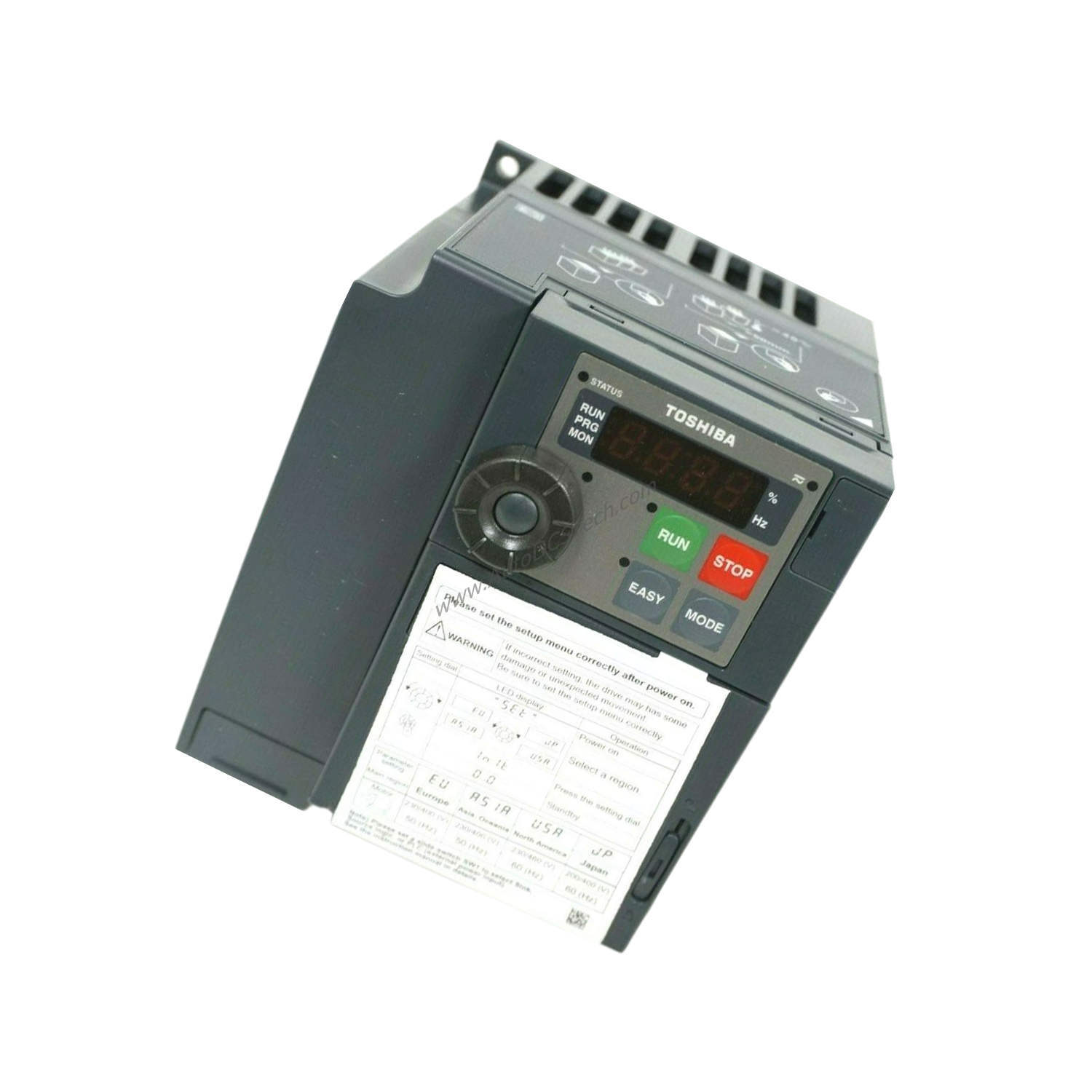

When you need reliable variable frequency drive performance for industrial motor control, the Toshiba VFS15-2015PM-W1 (branded as FANUC) delivers a compact, wall-mountable solution. This inverter is part of the TOSVERT VF-S15 series, engineered for three-phase applications requiring precise speed control and energy efficiency.
Technical Specifications Breakdown
The VFS15-2015PM-W1 offers key specifications that define its capabilities:
- Motor Power: 2 HP (constant torque rating) or 1.5 kW applicable motor capacity.
- Output Current: 8 A (constant torque rating).
- Input Voltage: 200-240 VAC, three-phase (nominal 208 VAC / 240 VAC).
- Protection Rating: IP20, suitable for indoor installation.
- Operator Controls: Built-in operation panel for local configuration.
- Mounting: Wall-mountable design saves panel space.
- Weight: Net 2.725 lbs (1.4 kg); gross 3.475 lbs.
- Dimensions: 13.0 cm x 10.5 cm x 13.0 cm (L x W x H).
- Additional Features: Built-in basic filter (denoted by 'M' in model code) for reduced electromagnetic interference.
This drive does not include closed-loop or AC line regenerative capabilities, making it a straightforward open-loop VFD for standard induction motors.
Industry Applications
This inverter suits applications requiring variable speed control of three-phase motors up to 2 HP. Common uses include:
- Conveyor Systems: Adjust belt speed to match production flow.
- Pumps and Fans: Optimize energy consumption by varying motor speed based on demand.
- Machine Tools: Provide precise spindle speed control for machining operations.
For each application, the built-in operator panel simplifies setup and monitoring without external programming tools.
Installation & Setup Guidance
Mount the VFS15-2015PM-W1 on a flat, vertical surface using the wall-mounting provisions. Ensure adequate ventilation around the IP20 enclosure to prevent overheating. Connect three-phase input power (200-240 VAC) to the designated terminals and the motor to the output terminals. Use the built-in operator panel to configure basic parameters such as acceleration/deceleration time and frequency reference. Always follow local electrical codes and the manufacturer's manual for wiring details.
Maintenance & Reliability
Periodically inspect the inverter for dust accumulation on the cooling fins and fan (if present). Keep the enclosure clean and ensure ambient temperature stays within the rated range. The built-in basic filter helps reduce electrical noise, contributing to longer component life. Regular visual checks of connections and indicator lights can prevent unexpected downtime.
Compatibility & Integration
The VFS15-2015PM-W1 integrates easily with standard three-phase induction motors. It accepts analog or digital input signals via its control terminals (refer to the manual for specific I/O configuration). The drive does not include built-in fieldbus communication; however, optional communication cards may be available from Toshiba for network integration. Verify compatibility with your motor's voltage and current ratings before installation.
Buying Guide
Before purchasing the VFS15-2015PM-W1, confirm that your application requires a 2 HP, 1.5 kW drive with 8 A output and 200-240 VAC three-phase input. Check that the IP20 protection level suits your environment. SpareTechPLC stocks this model and can advise on availability and any required accessories. Please verify current lifecycle status with SpareTechPLC before ordering to ensure supply continuity.
Frequently Asked Questions
Q1: What is the difference between the VFS15-2015PM-W1 and a model without 'P'?
The 'P' in the model code indicates that this unit includes a built-in operation panel for local control. Models without 'P' require an external operator interface.
Q2: Can this drive run a single-phase motor?
No. The VFS15-2015PM-W1 is designed for three-phase motors only. The input power is three-phase, and the output is three-phase.
Q3: Does the built-in basic filter eliminate the need for external EMC filters?
The built-in filter reduces conducted emissions but may not meet all regulatory requirements. Consult local EMC standards to determine if additional filtering is needed.
Q4: What is the maximum cable length from the drive to the motor?
The manufacturer typically recommends keeping motor cable lengths under 50 meters for standard installations. Longer runs may require output reactors. Refer to the manual for specific limits.
Q5: Is this drive suitable for hoisting or lifting applications?
No. This is an open-loop VFD without closed-loop control or regenerative braking. It is not recommended for applications requiring precise torque control or load holding.
