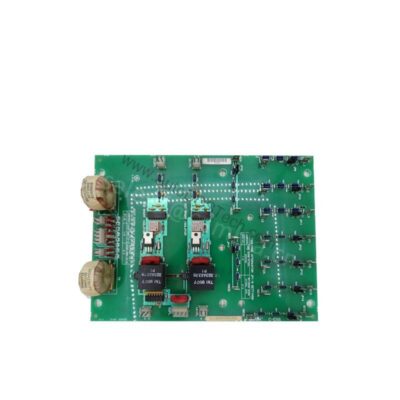

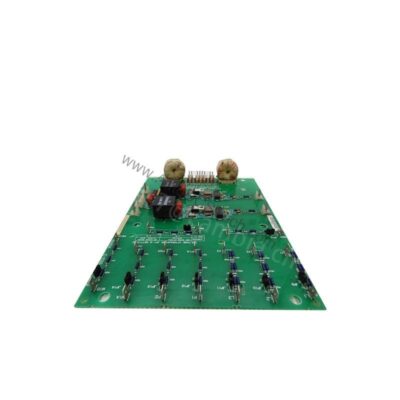

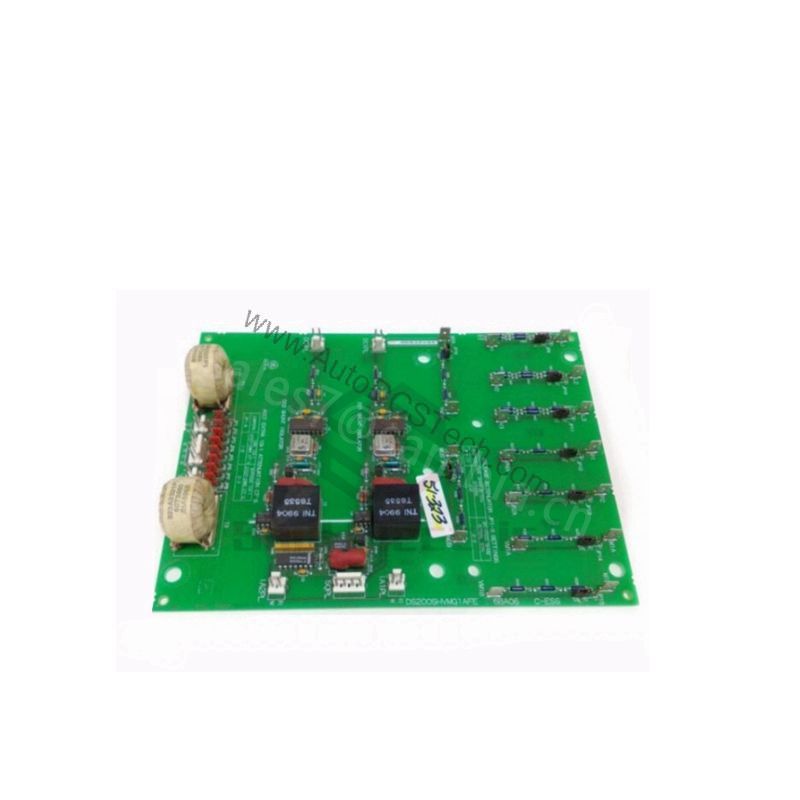

GE 531X121PCRALG1 Power Connection Board for Drive Renewal

531X121PCRALG1: A Power Connection Board for Drive Renewal

The GE 531X121PCRALG1 is a power connection board from the 531x series, designed as a renewal part for multiple original equipment boards. It aids in troubleshooting and improving drive operation.

The 531X121PCRALG1 is a power connection board used as a renewal part across multiple original equipment boards. Renewal parts like this exist because the original board is no longer produced and the alternative is replacing the whole assembly — which on a drive is a considerably larger job than swapping one board.

The "PCRALG1" suffix in this family identifies the board revision. That revision is the part of the part number that has to match: renewal boards are revision-specific because connector positions and the power distribution arrangement differ between revisions.

531X Series Power Connection Boards

All GE parts

Why Renewal Parts Are Revision-Specific

A renewal board replaces an original board inside an existing assembly, so it has to fit that assembly mechanically and connect to it electrically. Connector positions, bus interface and power distribution differ between board revisions, which is why a revision mismatch produces either no fit or a board that powers up but does not talk to the drive.

Verification Before Ordering a Renewal Board

Confirm three things: the part number and revision suffix, the board physical dimensions and mounting, and the connector count and positions. The revision suffix is the one most often overlooked, because the base part number can match while the revision does not.

Supply & terms: Stock status: In Stock · Condition: New · Warranty: One Year · Origin: US. Listed by AutoDCS Tech Parts Team · Last updated 2026-10-07.
