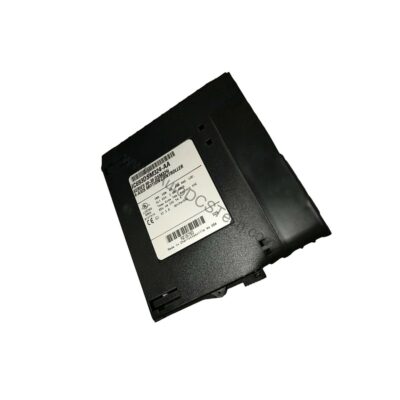

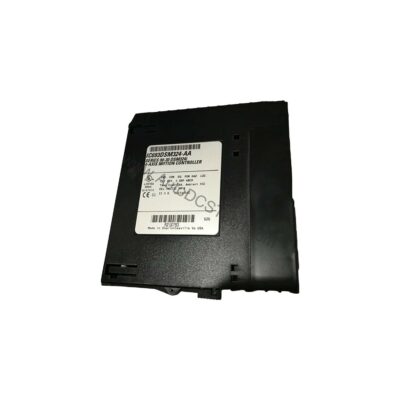

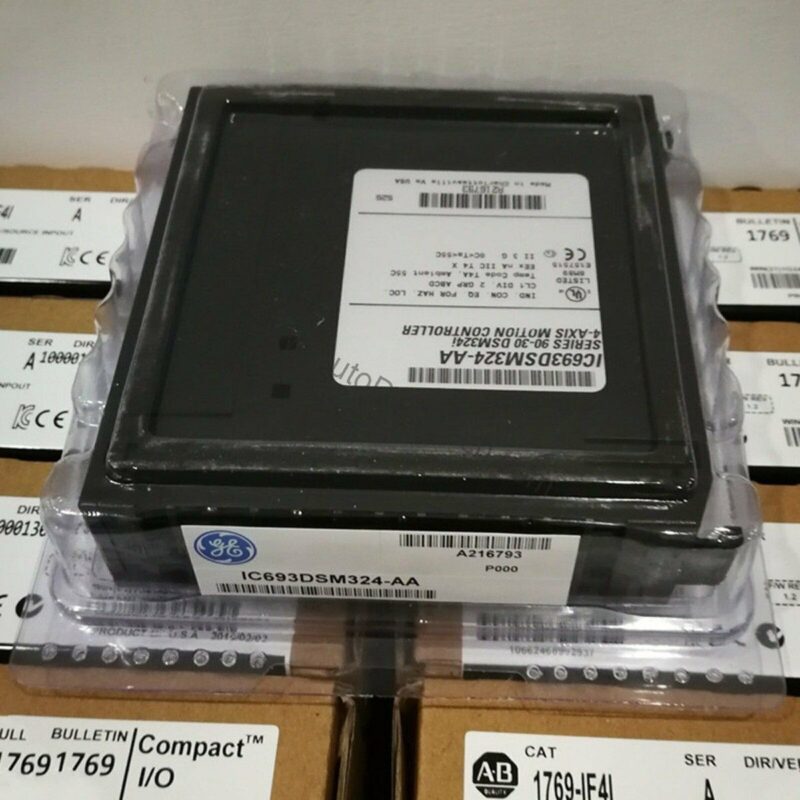

IC693DSM324: Motion Controller Module for Series 90 30
The IC693DSM324 is the Motion Controller Module for Series 90 30 covered on this page. The attribute that decides whether it fits the existing installation without modification is 5 Volts DC.
This configuration's motion controller module for series 90 30 is the attribute that drives the replacement decision. A processor or controller is selected on memory, scan time and platform compatibility before anything else. motion controller module for series 90 30 sets how much programme fits, how fast the logic executes and which I/O and networks the unit can host — the three things that decide whether an existing application migrates without a rewrite. Confirming 5 Volts DC against the installed controller family is the check that prevents a processor that boots but cannot run the existing project.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693DSM324 |
| Series | Series 90-30 |
| Part Number | IC693DSM324 |
| Compatibility | Series 90-30, PACSystems RX3i |
| Product Description | Motion Controller Module |
| Slot Width | Single slot |
| Power requirements | 5 Volts DC |
| No. of motion axes | Four (4) |
| Power consumption | 860 milliAmps without encoder supply current |
| No. of modules per system | up to 20 modules |
| Encoder supply current | 500 milliAmps |
| Compatible CPUs | CPU 364, CPU 374, CPU 350, CPU 352, CPU 360, and CPU 363 |
| PACSystems RX3i main rack | 5 DSM324i modules / CPU baseplate per PWR 040 |
| Compatible Power supply | PWR 321 / 322 / 328 / 330 / 331 |
| PACSystems RX3i expansion/remote racks | 2 to 6 DSM324i modules |
| Backplane Current draw | 860 mA at 5VDC |
| Mounting location | Main Rack, expansion / remote baseplate |
| LED indicators | STATUS |
| Operating temperature | 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) |
| Communication ports | 24 VDC I/O: 36 Pin D-shell port 5VDC I/O: 36 Pin D-shell port COM Port: RJ45 FSSB port |
| Storage temperature | -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit) |
| Operating mode | Standard mode |
| Product Lifecycle | Discontinued |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic693dsm302-series-90-30-motion-controller-for-plcs | confirm the configuration against your installation |
| ge-fanuc-ic693dsm314-4-axis-motion-control-module-for-series-90-30 | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693DSM324 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
