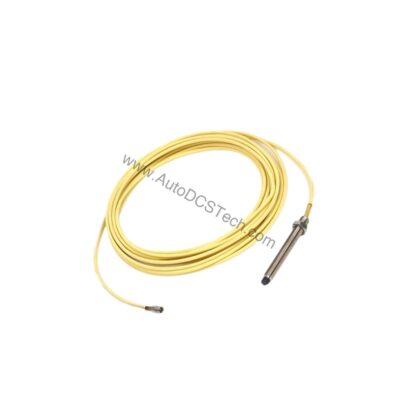

Bently Nevada 330103-00-02-05-02-05 3300 XL 8 mm Proximity Probe, Metric

Failure Mode Analysis & Prevention: The 330103-00-02-05-02-05 in Turbine Protection

Unplanned turbine downtime often originates from undetected shaft vibration or thrust position drift. The Bently Nevada 330103-00-02-05-02-05 3300 XL 8 mm Proximity Probe provides the early warning needed to prevent catastrophic failure. This metric probe, with its M10 x 1 thread and 0.5 meter (1.6 feet) standard cable, is engineered for permanent installation in critical rotating machinery.

Technical Specifications Breakdown

Key parameters for the 330103-00-02-05-02-05 are listed below for quick reference:

Industry Applications

Steam Turbine Radial Vibration MonitoringCentrifugal Compressor Thrust Position – The PPS tip and stainless steel case withstand process gas environments. Hydroelectric Generator Clearance Measurement – The extended temperature range option (probe tip to +218°C) suits high-temperature zones.

Installation & Setup Guidance

Mount the probe with M10 x 1 thread into a drilled and tapped hole, ensuring thread engagement does not exceed 15 mm. Use 3-conductor shielded triad cable (0.2 to 1.5 mm² / 16 to 24 AWG) for field wiring. Maximum cable length between the 3300 XL Proximitor Sensor and monitor is 305 meters (1,000 feet). Set the initial gap to -9 Vdc (approximately 1.27 mm / 50 mils) for radial vibration measurements. For axial thrust, adjust per machine manufacturer specifications.

Maintenance & Reliability

Inspect the probe and cable for physical damage during scheduled outages. The Viton® O-ring provides a differential pressure seal; avoid exposing the probe to temperatures below -34°C (-30°F) to prevent premature seal failure. The probe exhibits less than a 3% change in Average Scale Factor (ASF) after 56 days at 93% humidity per IEC 68-2-3.

Compatibility & Integration

This probe is designed for use with Bently Nevada 3300 XL Proximitor Sensors and monitoring systems. The miniature coaxial ClickLoc connector ensures secure, repeatable connections. For intrinsically safe installations, use with approved zener barriers per drawing 141092 or galvanic isolators for Class I, Zone 0 (AEx/Ex ia IIC T5…T1 Ga). For non-incendive circuits, use per drawing 140979 for Class I, Zone 2 (AEx/Ex nA IIC T5…T1 Gc).

Selection Guide & Purchasing Advice

When selecting a proximity probe, verify the thread size (M10 x 1), total length (0.5 m), and required agency approvals (CSA, ATEX, IECEx) match your application. The 330103-00-02-05-02-05 is in stock at AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
