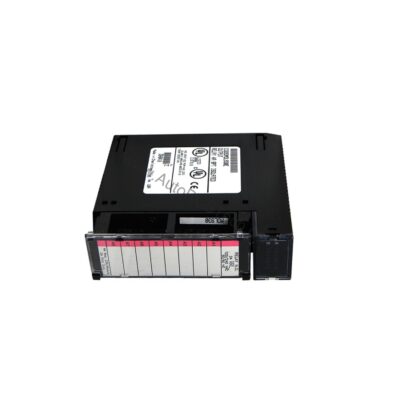

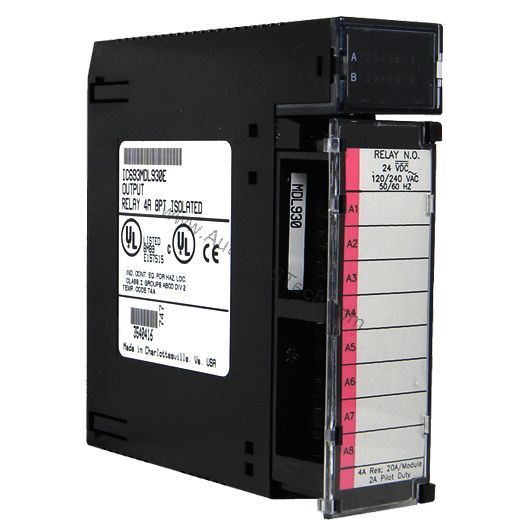

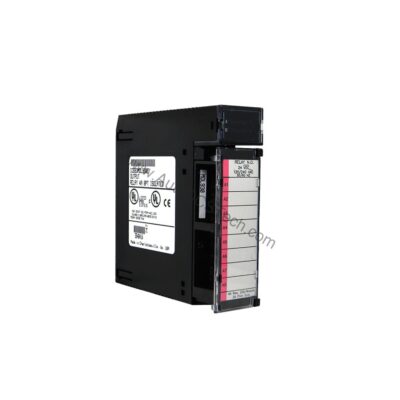

IC693MDL930: Discrete Output Module
The IC693MDL930 is the Discrete Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 0 to 50 degrees Celsius.
On this unit discrete output module is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. discrete output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 0 to 50 degrees Celsius against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693MDL930 |
| Series | Series 90-30 |
| Product Type | Discrete Output Module |
| Number of Channels | Eight (8) |
| Output Type | Relay Outputs |
| Contact Form | Form A (Normally Open) |
| Maximum Load (Resistive) | 4 Amperes per point |
| Maximum Load (Pilot Duty) | 2 Amperes per point |
| Maximum Inrush Current | 5 Amperes |
| Minimum Load | 10 mA |
| Operating Voltage Range | 5-30 VDC / 5-250 VAC |
| Nominal Output Voltage | 24 VDC |
| Frequency | 50/60 Hz |
| Response Time (On/Off) | 15 ms (maximum) |
| Switching Frequency | 20 Cycles per minute |
| Backplane Current Draw (5V bus) | 6 mA |
| Backplane Current Draw (24V bus) | 70 mA |
| Isolation (Field to Logic) | 1500 volts |
| Isolation (Between Channels) | 500 volts |
| Operating Temperature | 0 to 50 degrees Celsius |
| Module Width | Single slot |
| LED Indicators | Yes |
| Fuses | No |
| Product Lifecycle Status | Discontinued/Obsolete |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic693mdl931-series-90-30-isolated-relay-output-module | confirm the configuration against your installation |
