6FX8002-2DC10-1BB0 Siemens DRIVE-CLiQ Signal Cable 75m

Introduction: The Evolution of Motion Control Connectivity

In the world of industrial automation, the drive for higher precision and greater efficiency has transformed how machines communicate. As production lines became more complex, the need for robust, high-speed data and power transmission grew. The Siemens 6FX8002-2DC10-1BB0 signal cable represents a key component in this evolution, designed to meet the rigorous demands of modern servo systems. This pre-assembled DRIVE-CLiQ cable ensures reliable connectivity between control modules and motors, supporting the seamless operation that engineers have come to expect.

Key Features and Technical Specifications

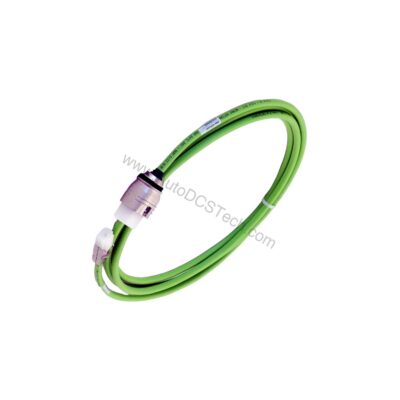

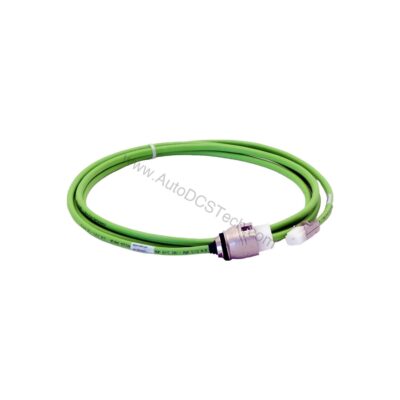

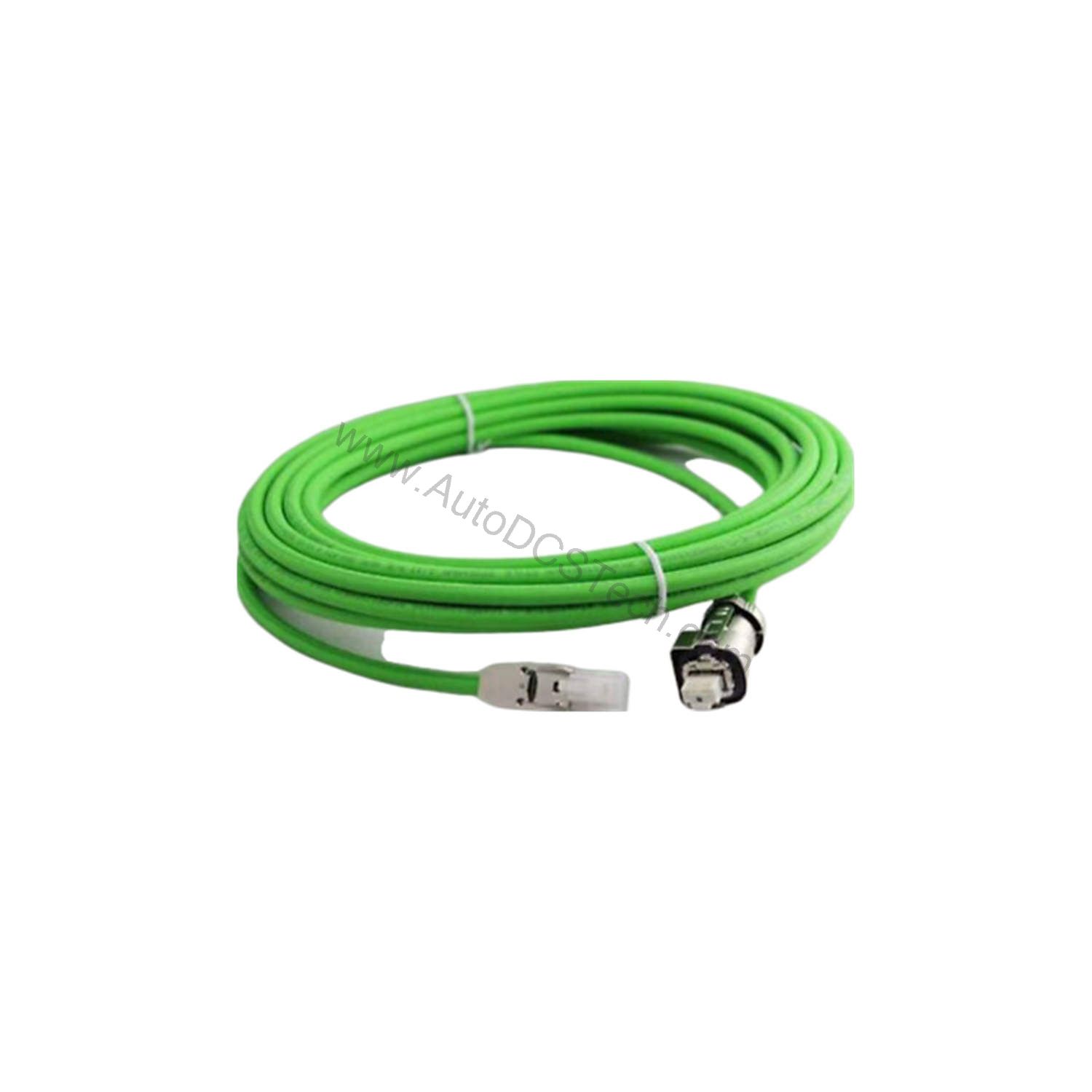

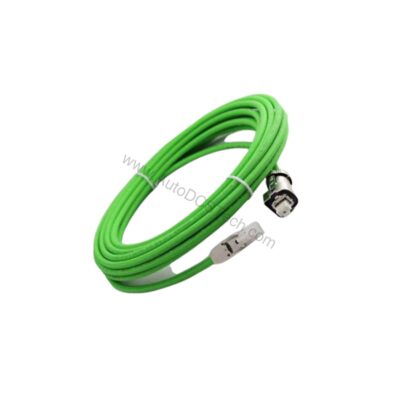

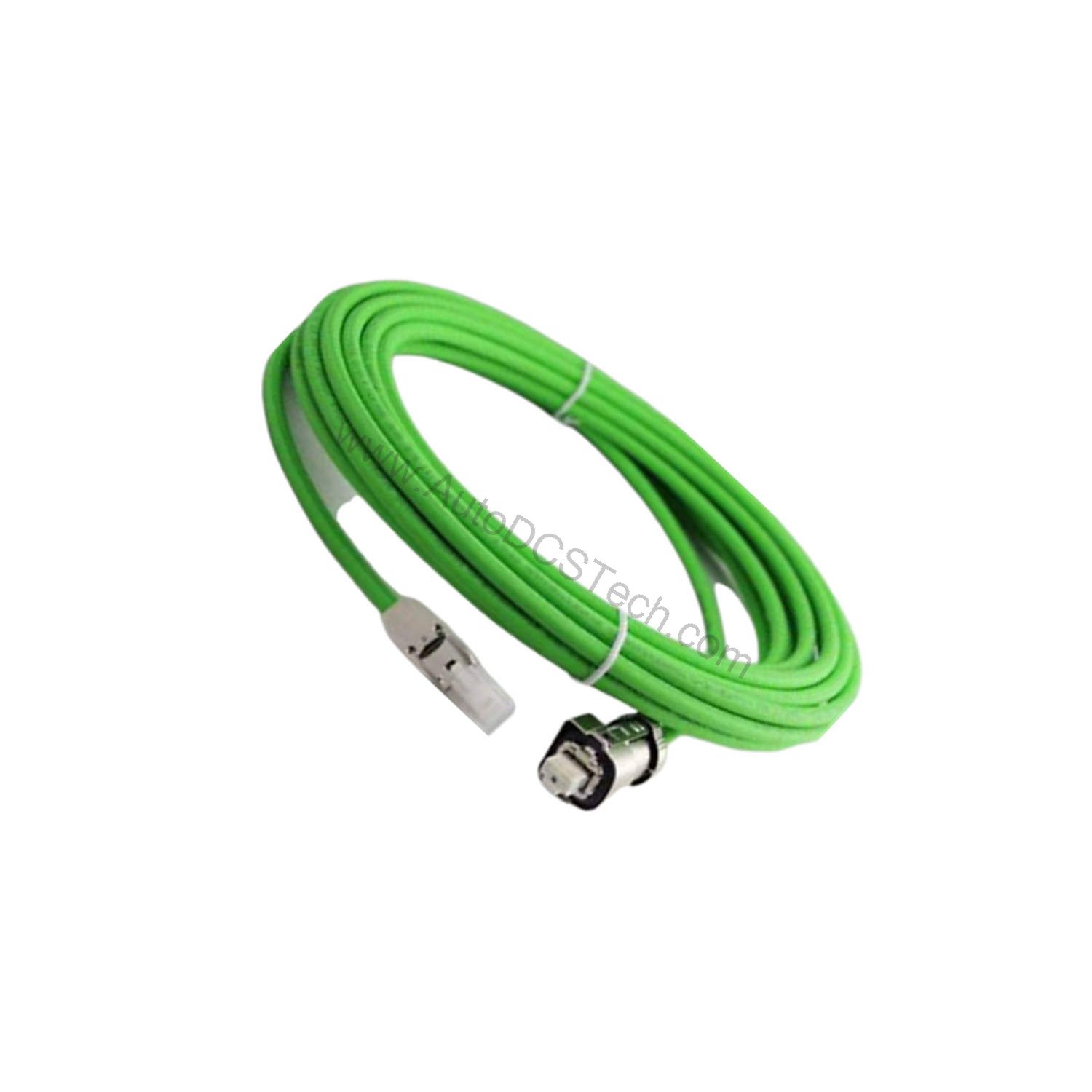

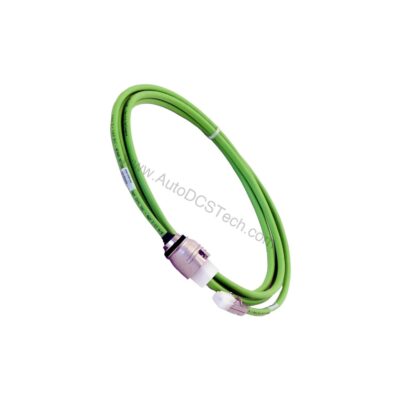

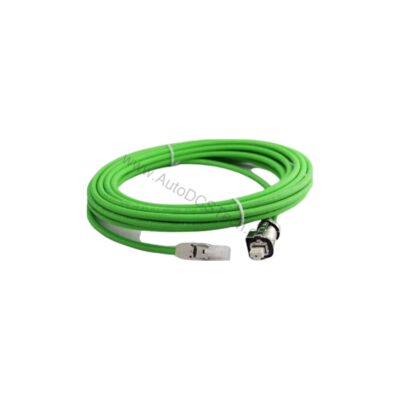

The 6FX8002-2DC10-1BB0 is a signal cable engineered for performance and durability. Its pre-assembled design simplifies installation, reducing setup time and the risk of wiring errors. The cable features a DRIVE-CLiQ interface with a 24V plug, providing both signal and power in a single connection. With an IP20 rating on the module side and IP67 on the motor side, it offers robust protection against dust and water ingress, making it suitable for harsh industrial environments.

• Pre-assembled DRIVE-CLiQ signal cable with 24V plug
• IP20 rating on module side, IP67 on motor side
• MOTION-CONNECT 800PLUS series, released for lengths up to 75 meters
• Cable diameter (Dmax) of 7.1 mm
• Length tolerance: +0 +10 +1 +0 meters
• Part of the SINAMICS S120 and SINUMERIK 840D sl product family
• Net weight: 0.777 kg
• Active product lifecycle (PM300)

One distinctive spec is the cable's 75-meter maximum length, which allows for flexible machine layouts without signal degradation. This is particularly beneficial in large-scale automation systems where drives are located far from control cabinets.

Applications and Use Cases

The 6FX8002-2DC10-1BB0 is designed for use in a variety of industrial applications, particularly those requiring precise motion control. It is commonly found in CNC machines, packaging lines, and material handling systems. In these settings, the cable ensures reliable communication between the SINAMICS S120 motor modules and the SINUMERIK 840D sl controller. Its robust construction minimizes downtime caused by cable failures, which is critical for continuous production processes.

Installation and Setup

Installing the 6FX8002-2DC10-1BB0 is straightforward due to its pre-assembled connectors. The RJ45 connector on the module side and the IP67-rated connector on the motor side are designed for quick and secure mating. When routing the cable, avoid sharp bends and ensure the minimum bend radius is respected to maintain signal integrity. The cable's length tolerance of +0 +10 +1 +0 meters provides some flexibility, but it is advisable to order the exact length required to avoid excess slack.

Maintenance and Reliability

Regular inspection of the cable and its connectors is recommended to ensure long-term reliability. Check for signs of wear, such as cracks or abrasions on the jacket, and verify that the connectors are firmly seated. The IP67 rating on the motor side means it can withstand washdown environments, but periodic checks are still prudent. By following a simple maintenance routine, you can extend the service life of the cable and prevent unexpected failures.

Compatibility and Integration

The 6FX8002-2DC10-1BB0 is specifically designed for Siemens SINAMICS S120 and SINUMERIK 840D sl systems. It is part of the MOTION-CONNECT 800PLUS series, which is known for its high quality and performance. This cable is fully compatible with DRIVE-CLiQ interfaces, ensuring seamless integration with other DRIVE-CLiQ components. For systems requiring longer cable runs, the 75-meter maximum length offers significant design flexibility.

Product Support and Availability

The Siemens 6FX8002-2DC10-1BB0 is an active product, ensuring ongoing availability and support. At AutoDCSTech, we stock this cable and can provide fast shipping to minimize downtime. Contact our team for pricing and delivery options.
