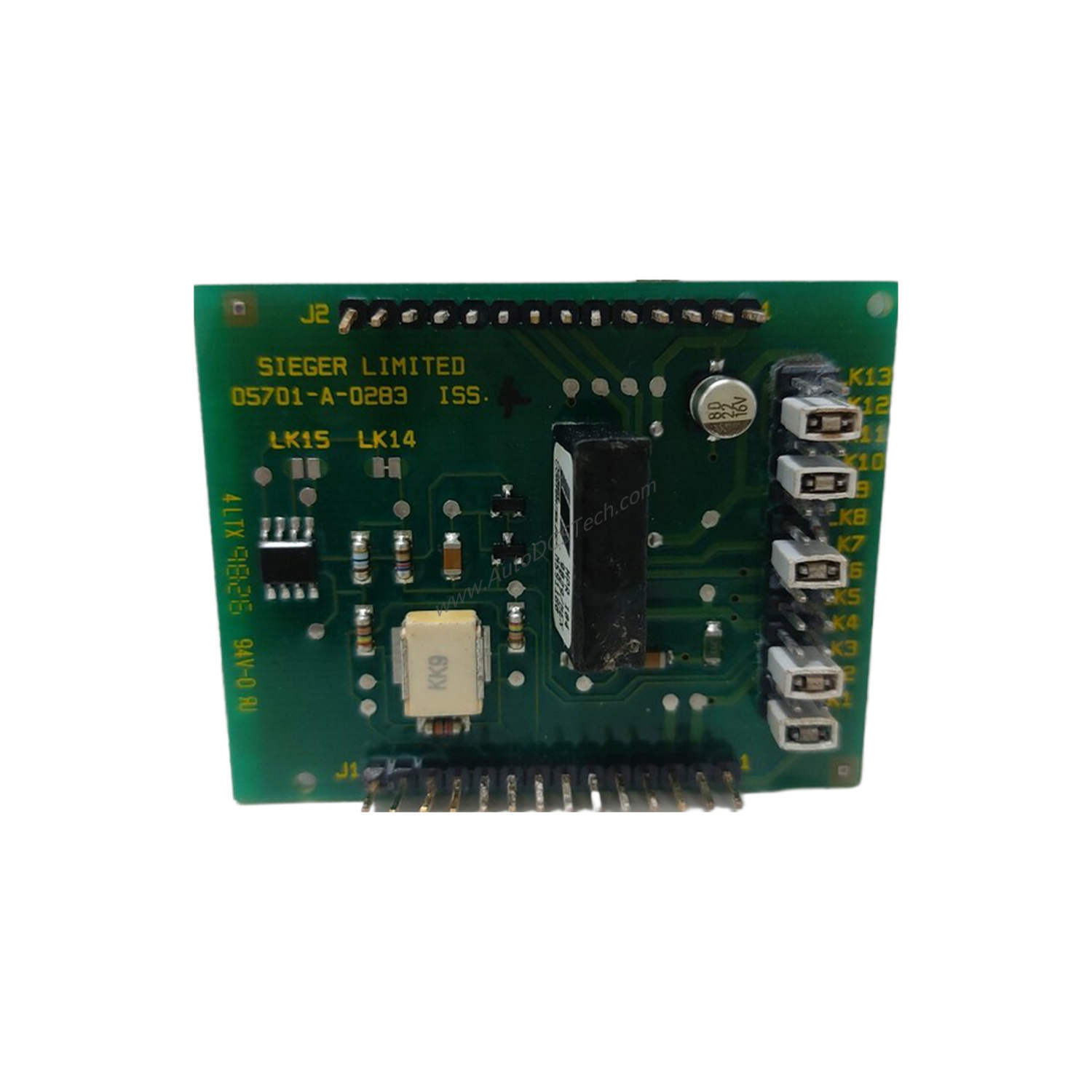

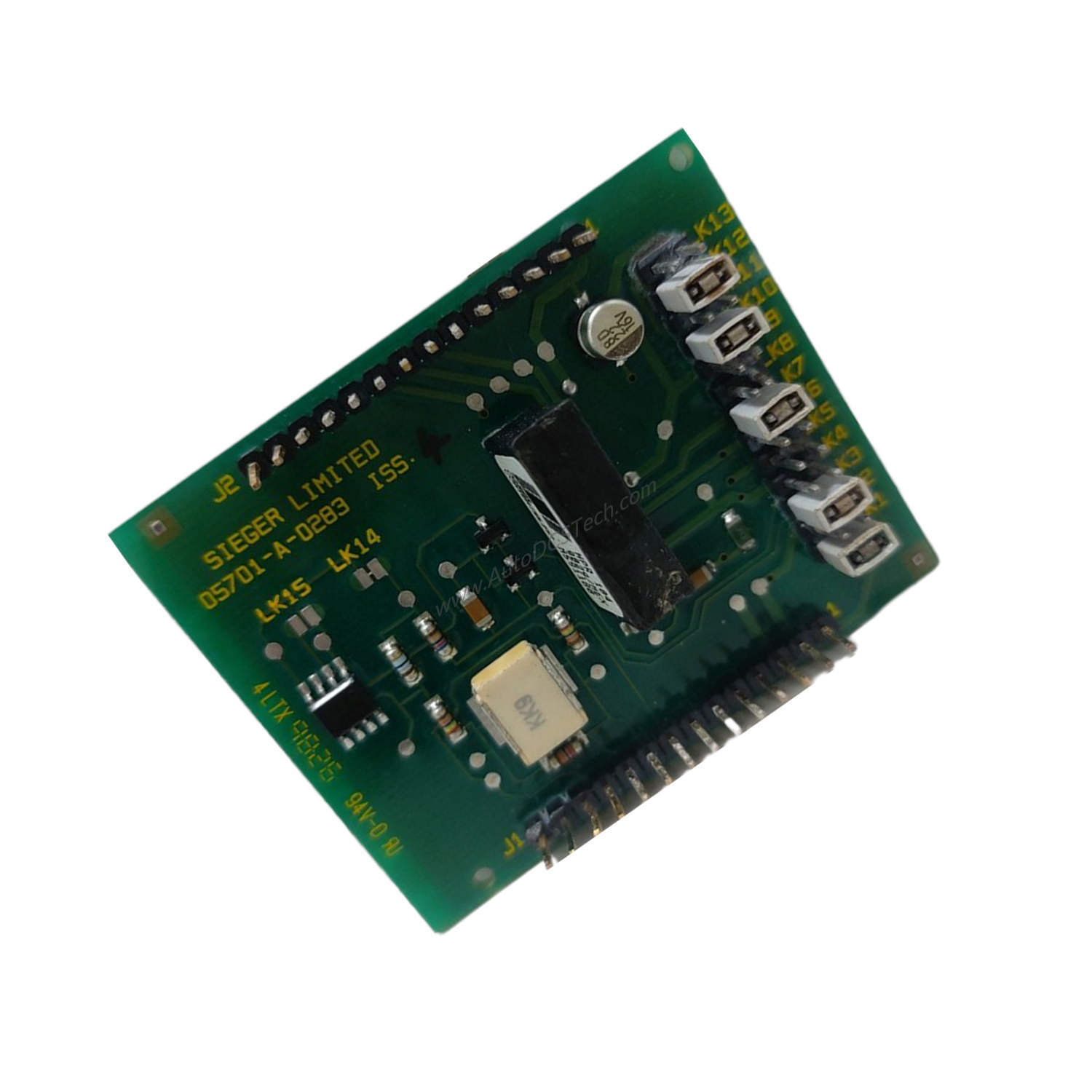

What Is the Honeywell 05701-A-0283?
Struggling with unreliable sensor signal conditioning in harsh industrial environments? The Honeywell 05701-A-0283 Sensor Drive Module offers a robust solution. This module conditions incoming catalytic or 4-20 mA sensor signals while providing the necessary sensor power supply. It contains all circuitry to generate voltages and currents required to drive the sensor, acquire the sensor signal, and scale it to a standard output. Factory-fitted, it plugs directly onto the channel control card, simplifying installation and ensuring consistent performance.
Technical Specifications Breakdown
Understanding key parameters helps you assess compatibility. The 05701-A-0283 operates reliably in temperatures from -5°C to +55°C and stores safely from -25°C to +55°C. It tolerates humidity levels from 0 to 90% RH (non-condensing), making it suitable for many industrial settings. For communication, the module supports Modbus RTU protocol with functions 02, 03, 04, 06, and 16, using asynchronous serial data at speeds of 19200, 9600, 4800, or 2400 baud. It features RS485/422 interfaces with a maximum cable length of 1200 meters (3900 feet) and a data rate up to 19.2k baud. The module consumes only 1.5W maximum and weighs 30g, with field terminals accepting 2.5mm² (14 AWG) wire. These specs ensure efficient integration into existing control systems.
Industry Applications
In process industries like oil and gas, chemical, or power generation, the 05701-A-0283 excels at conditioning catalytic sensor signals for gas detection or combustion monitoring. For example, in a refinery, it conditions 4-20 mA outputs from catalytic bead sensors, scaling them to standard signals for a distributed control system (DCS). This enables accurate flammable gas monitoring, enhancing safety and reducing false alarms. The module's wide operating temperature range supports outdoor or unheated indoor installations, while its Modbus RTU capability allows seamless data integration with PLCs and SCADA systems.
Installation & Setup Guidance
Installing the 05701-A-0283 is straightforward. The module is factory-fitted and plugs directly onto the channel control card, so no field wiring to the module itself is required. Ensure the control card is powered down before insertion. Use screened twisted pair cable with a separate drain wire for RS485/422 connections to minimize electromagnetic interference. Connect field wiring to the 2.5mm² terminals on the DC Input Card. Configure communication parameters—baud rate, parity, stop bits—via the host system to match your network. Verify the module's operating temperature stays within -5°C to +55°C and humidity below 90% RH non-condensing.
Maintenance & Reliability
The 05701-A-0283 requires minimal maintenance due to its solid-state design. Periodically inspect the module and its connections for signs of corrosion or damage, especially in humid or corrosive environments. Ensure the ventilation around the control card remains unobstructed to maintain proper cooling. The module's thermal shutdown protection on the RS485/422 transceivers prevents damage from overcurrent conditions. Regular system checks of the sensor signal integrity and communication link help catch issues early. Following these simple steps extends service life and reduces unplanned downtime.
Compatibility & Integration
This module integrates with Honeywell control systems that accept plug-in sensor drive modules. It communicates via Modbus RTU over RS485 or RS422 networks, supporting multi-drop configurations with up to 31 nodes (RS485) or 10 nodes (RS422). The serial interface uses asynchronous data with 8 data bits, 1 or 2 stop bits, and odd, even, or no parity. The module is powered from the engineering card, consuming only 1.5W maximum. For RS232 connections, a separate module handles data and handshake signals. This flexibility allows the 05701-A-0283 to fit into both new and legacy installations.
Selection Guide & Purchasing Advice
Before ordering the 05701-A-0283, verify your system's channel control card compatibility and confirm the sensor type (catalytic or 4-20 mA). Ensure the operating environment stays within the -5°C to +55°C range and humidity below 90% RH non-condensing. Check that your network uses Modbus RTU and RS485/422 at supported baud rates. SpareTechPLC stocks this module and can help verify compatibility with your existing Honeywell system. Contact our team for current availability and pricing to ensure a smooth procurement process.
Frequently Asked Questions
What sensor types does the 05701-A-0283 support?
It conditions catalytic or 4-20 mA sensor signals, providing the necessary power supply and signal scaling.
What communication protocols does this module use?
It uses Modbus RTU protocol with functions 02, 03, 04, 06, and 16, over RS485 or RS422 interfaces.
What is the maximum cable length for RS485 communication?
The maximum cable length is 1200 meters (3900 feet) at data rates up to 19.2k baud.
Can this module operate in high humidity environments?
Yes, it operates in 0 to 90% RH (non-condensing) conditions, making it suitable for many industrial areas.
Does the module require external power?
No, it is powered from the engineering card, consuming a maximum of 1.5W.
