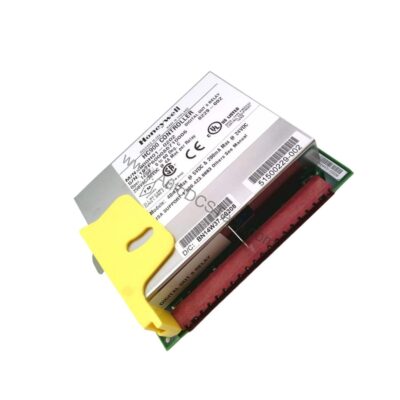

900H32-0302: Digital Output Module 24 VDC 32 Channel
The 900H32-0302 is the Digital Output Module 24 VDC 32 Channel covered on this page. The attribute that decides whether it fits the existing installation without modification is 10.5 to 32 VDC.
On this unit digital output module 24 vdc 32 channel is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. digital output module 24 vdc 32 channel sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 10.5 to 32 VDC against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Honeywell |
| Brand | Honeywell |
| Part Number | 900H32-0302 |
| Outputs per module | 32 (current sourcing, high side) |
| Galvanic isolation | 2 groups of 16 outputs |
| Operating voltage | 10.5 to 32 VDC |
| Output type | High side driver |
| Peak voltage | 32 VDC |
| ON voltage drop | 0.15 VDC @ 0.5 A load |
| Overload protection | Active current limiting in 4 groups of 8 channels |
| Max load current | 0.5 A/point, 6 A/group, 12 A/module |
| Max leakage current | 0.15 mA @ 32 VDC |
| Max inrush current | 2 A for 10 ms |
| Min load | 0.0 mA |
| Response times | 6 ms OFF-to-ON and ON-to-OFF |
| Fail-safe | Hold Last State / Failsafe State |
| Fuses | Electronic limiting |
| Temperature | -40 to 70°C (operating), -40 to 85°C (storage). |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| honeywell-900h32-0102-digital-output-module-24vdc-32-channel | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | 900H32-0302 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
