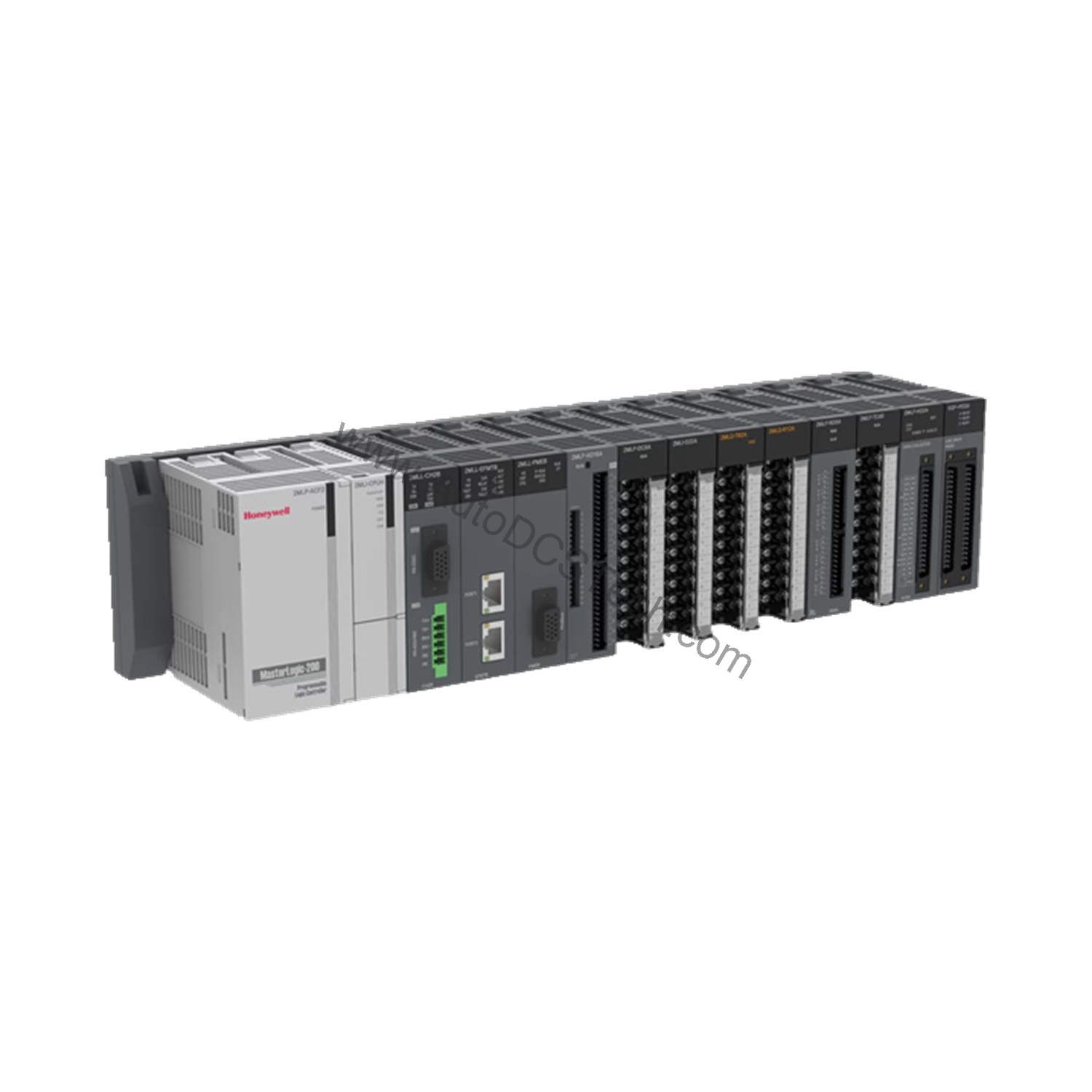

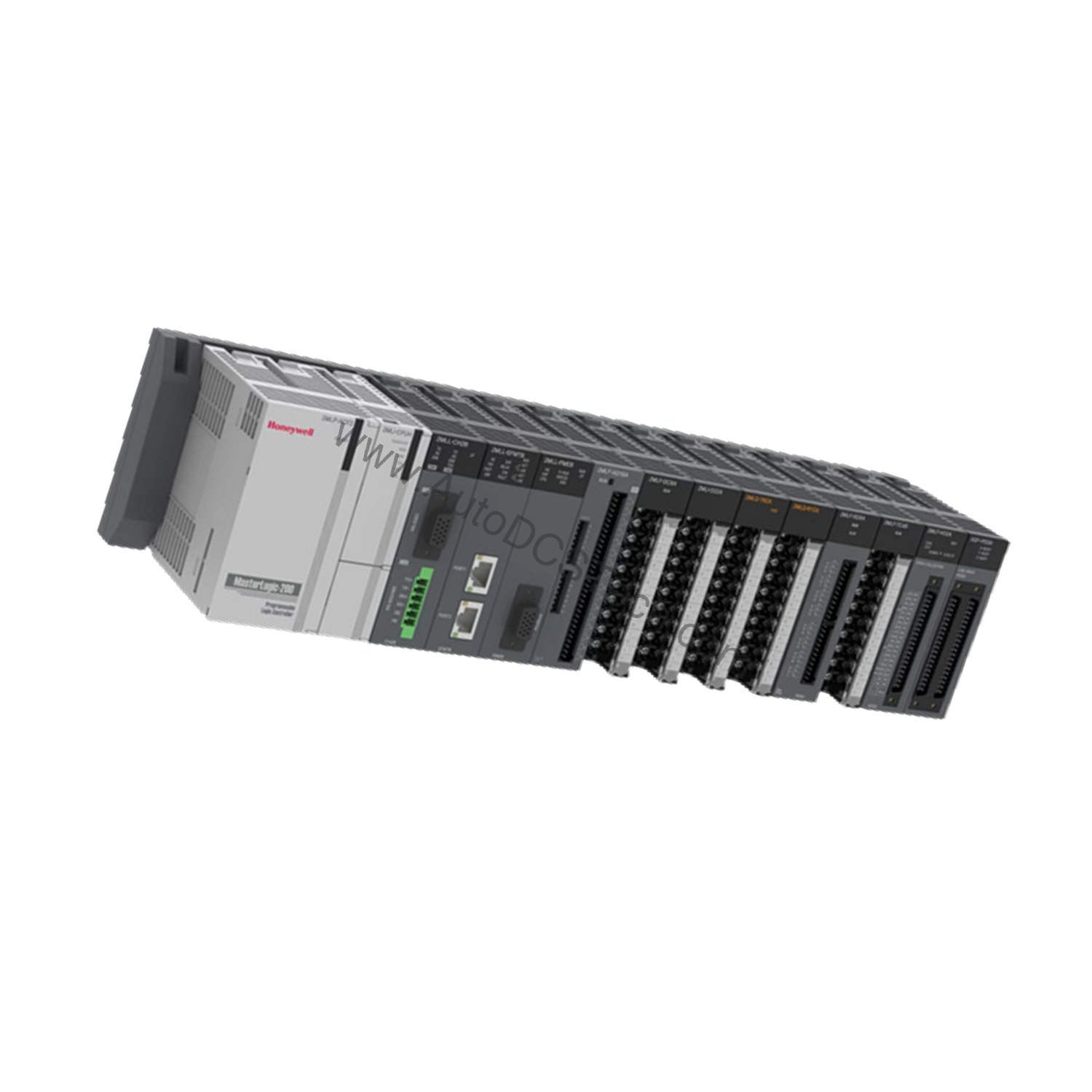

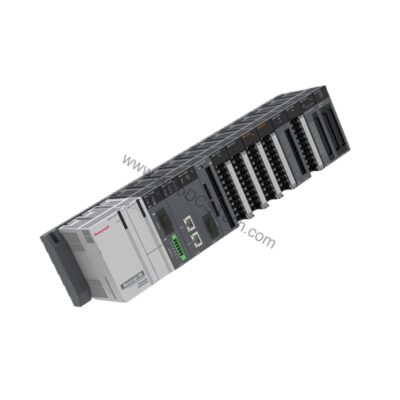

Honeywell MLF-DC04C Analog Output Module 4-Channel Current

Technical Specifications Breakdown

Key parameters for the MLF-DC04C are listed below for quick reference:

Industry Applications

This module fits naturally into continuous processing plants where analog signals drive critical final elements. Use it in:

• Pulp and paper mills – regulate dilution water flow with precise 4-20 mA signals to control consistency.
• Chemical batch reactors – adjust feed pump speed smoothly across the 0-20 mA range for accurate dosing.
• Water treatment facilities – position control valves in filtration loops with the high-voltage current output.

In each case, the MLF-DC04C’s 1.0 ms conversion speed per channel ensures responsive updates, while the ±0.2% accuracy at moderate temperatures keeps your process within tight tolerances.

Installation & Setup Guidance

Before mounting, verify that your base controller supports the fixed 64-point I/O assignment. The module connects via an 11-point terminal block; wire the analog outputs to your actuators using shielded twisted-pair cable to minimize noise pickup.

Ensure the DC 5V and DC 24V supplies are within the specified current consumption limits (75 mA and 170 mA respectively). The photo-coupler insulation isolates the input terminal from the PLC power, but channels are not isolated from each other—so plan your grounding accordingly.

Maintenance & Reliability

Because the MLF-DC04C has no moving parts, its maintenance routine is simple. Periodically inspect the terminal block for loose connections and check for signs of corrosion, especially in humid environments. Keep the module’s ambient temperature within the 0°C to 55°C range to maintain the ±0.3% accuracy specification.

If you notice drift in the output signal, first verify the load resistance and cable integrity. The input resistance of ≤600 MΩ means the module draws negligible current from the signal source, so any drift is likely external.

Analog Output Precision for Demanding Processes

This analog output module provides four independent channels for high-voltage current output, making it a solid choice for valve positioning, variable frequency drives, and other field actuators.

As a maintenance engineer, you value components that are easy to integrate and dependable under load. The MLF-DC04C is designed with that mindset, offering fixed I/O assignment and straightforward installation into your existing Honeywell system.

Compatibility & Integration

The MLF-DC04C is a Honeywell analog output module, designed for use within Honeywell control systems. It occupies 64 I/O points in a fixed assignment, which simplifies configuration—no complex mapping required. The digital data formats (unsigned, signed, precise, percentile) give you flexibility in how you scale the output values in your control logic.

Selection Guide & Purchasing Advice

When selecting a replacement or spare for your Honeywell system, verify the part number MLF-DC04C matches your exact requirement. AutoDCSTech stocks this module and can confirm availability and lifecycle status. Always cross-check the channel count, output range, and I/O assignment with your system’s configuration before ordering.

For maintenance teams, keeping a spare MLF-DC04C on hand minimizes downtime. With its 118 g weight and compact footprint, it is easy to store and quick to swap out when needed.

Troubleshooting & Common Issues

If the output signal is missing or incorrect, start by checking the wiring at the 11-point terminal block. Confirm that the PLC power supplies (DC 5V and DC 24V) are present and within the module’s consumption ratings. If the module is hot to the touch, verify ambient temperature stays below 55°C to avoid accuracy degradation.

Should the module fail to communicate with the controller, inspect the backplane connection and reseat the module. Since there is no channel-to-channel isolation, a fault on one channel may affect others—test each channel individually with a known current source.
