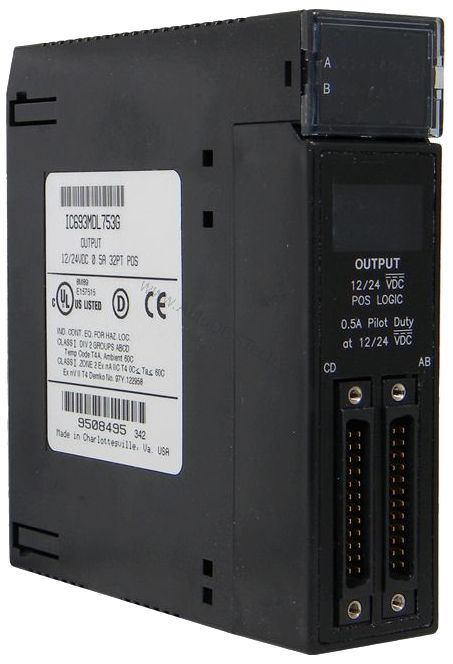

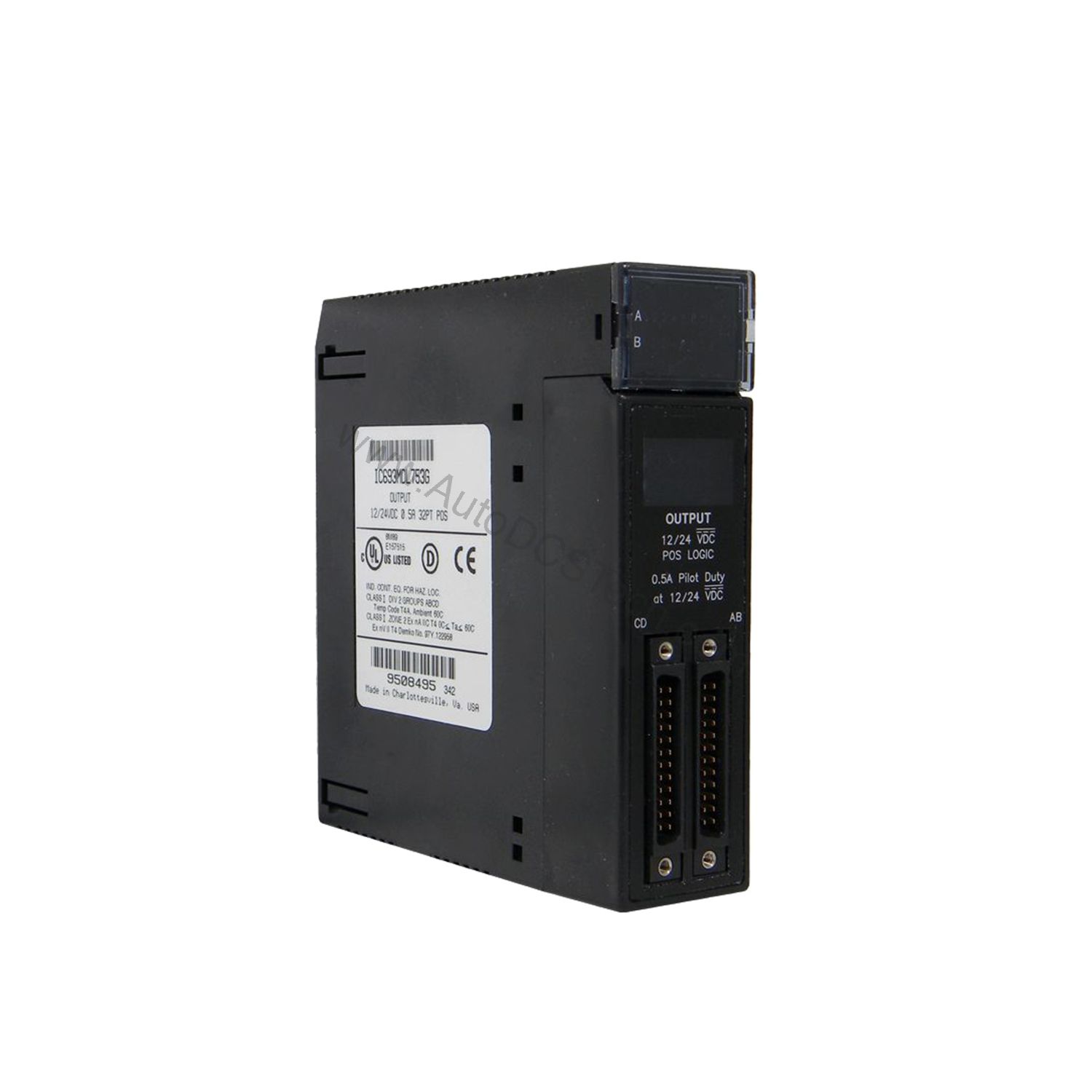

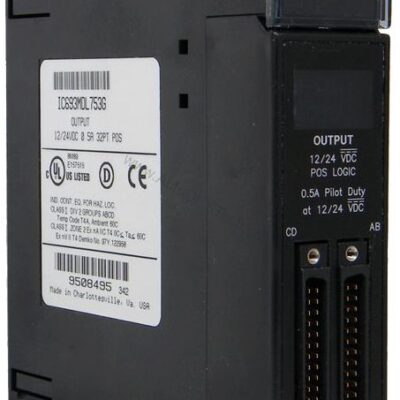

IC693MDL753F GE 32-Point 12/24 VDC Sourcing Output Module

Product Overview: The IC693MDL753F in Context

Industrial control has evolved from relay panels to compact programmable logic controllers. As plants modernized, the demand for dense, reliable discrete output modules grew. The GE Series 90-30 platform answered that call, and the IC693MDL753F became a workhorse for sourcing DC outputs. This module carries 32 output points in a single slot, arranged as four groups of eight. Each point sources 12 to 24 VDC positive logic, so it drives relays, solenoids, and indicator lamps directly. The design reflects engineering-grade precision: 0.5 A per point, 4 A maximum per group, and 1500 V isolation between field and logic sides. For legacy systems still in service, this module remains a precise replacement path.

IC693MDL753F Key Features and Technical Specifications

• Output Points: 32 sourcing outputs, 12 to 24 VDC positive logic, four groups of eight.
• Output Voltage Range: 10.2 to 28.8 VDC, accommodating supply variation.
• Output Current: 0.5 A per point, 4 A maximum per group.
• Isolation: 1500 V between field side and logic side; 250 V between groups.
• Inrush Current: 5.4 A for 10 ms, supporting capacitive loads.
• On-state Voltage Drop: 0.3 VDC, minimizing heat dissipation.
• Response Times: 0.5 ms maximum on and off.
• Backplane Current: 260 mA maximum from 5 V bus, all outputs energized.
• Operating Temperature: 0 to +60°C ambient.
• Protection Rating: IP20.

The 1500 V isolation barrier is a distinctive spec. It separates field wiring faults from sensitive logic circuits, protecting the controller and reducing downtime risk. Meanwhile, the 0.3 VDC on-state drop keeps power loss low across all 32 points.

Installation and Setup for Series 90-30 Systems

Install the IC693MDL753F in any compatible Series 90-30 rack slot. First, verify backplane power budget: the module draws 260 mA maximum from the 5 V bus. Next, wire field devices to the terminal blocks, respecting the four groups of eight. Because the outputs are sourcing (positive logic), connect the load between the output terminal and DC common. Keep field wiring separated from logic wiring to preserve the 1500 V isolation. The IP20 rating requires a clean, dry enclosure. Finally, confirm ambient temperature stays within 0 to +60°C. For exact torque and wiring details, refer to official GE Fanuc documentation.

Maintenance and Reliability

Periodic inspection extends module life. Check terminal connections for looseness or corrosion. Verify that group currents do not exceed 4 A. Monitor enclosure temperature, since heat accelerates semiconductor aging. The 0.5 ms response time and 5.4 A inrush capability suit demanding loads, but repeated inrush events stress output drivers. Therefore, inspect high-cycle outputs more frequently. If a channel fails, the group isolation limits fault propagation. Always follow the manufacturer's safety manual during maintenance.

Product Support and Availability

The IC693MDL753F is in stock and ready to ship from AutoDCSTech. We provide engineering-grade support for legacy Series 90-30 systems. Contact AutoDCSTech with your exact requirements for precise matching.

This part belongs to a discontinued platform (GE Series 90-30), superseded by PACSystems RX3i (IC695 series). We stock remaining new and refurbished units.
