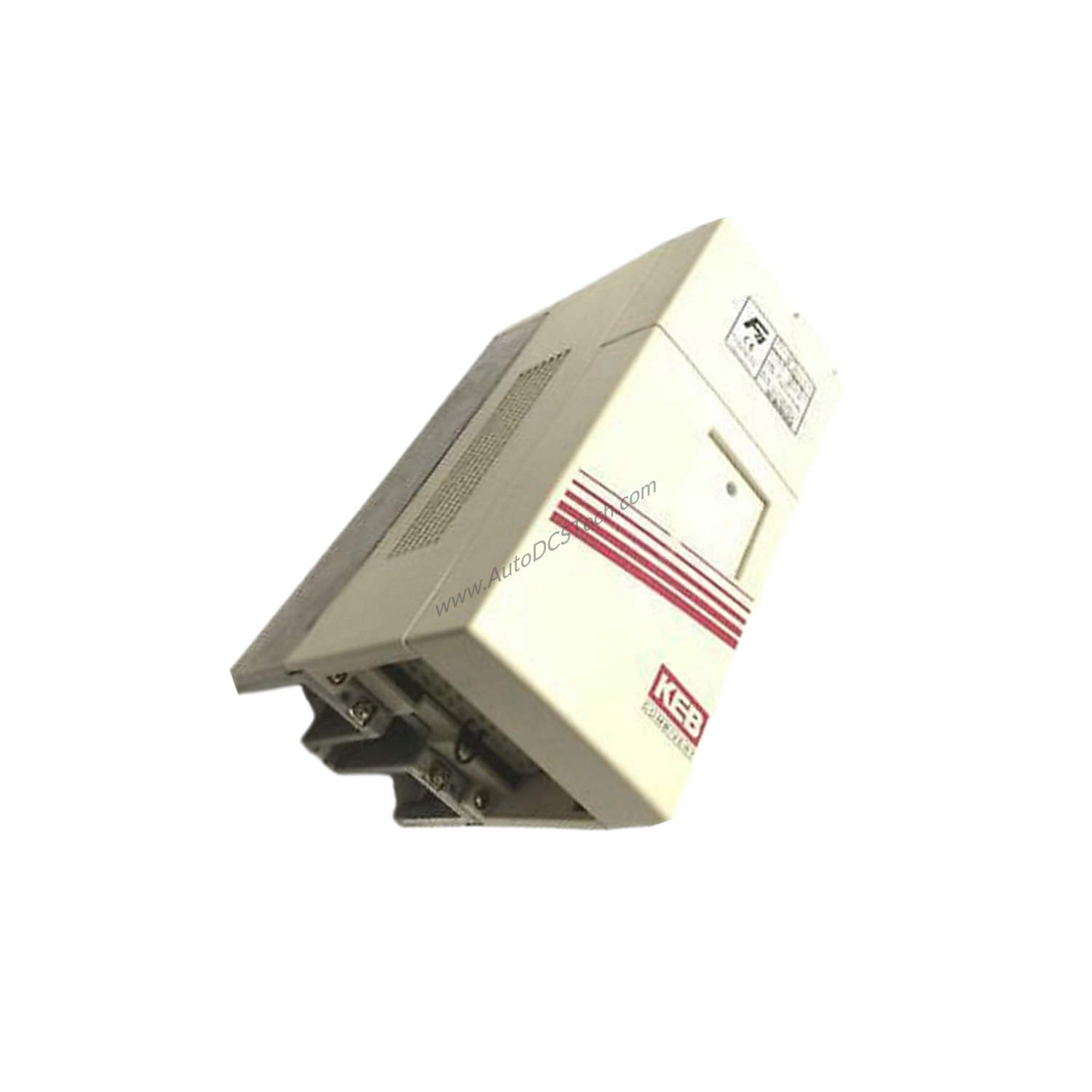

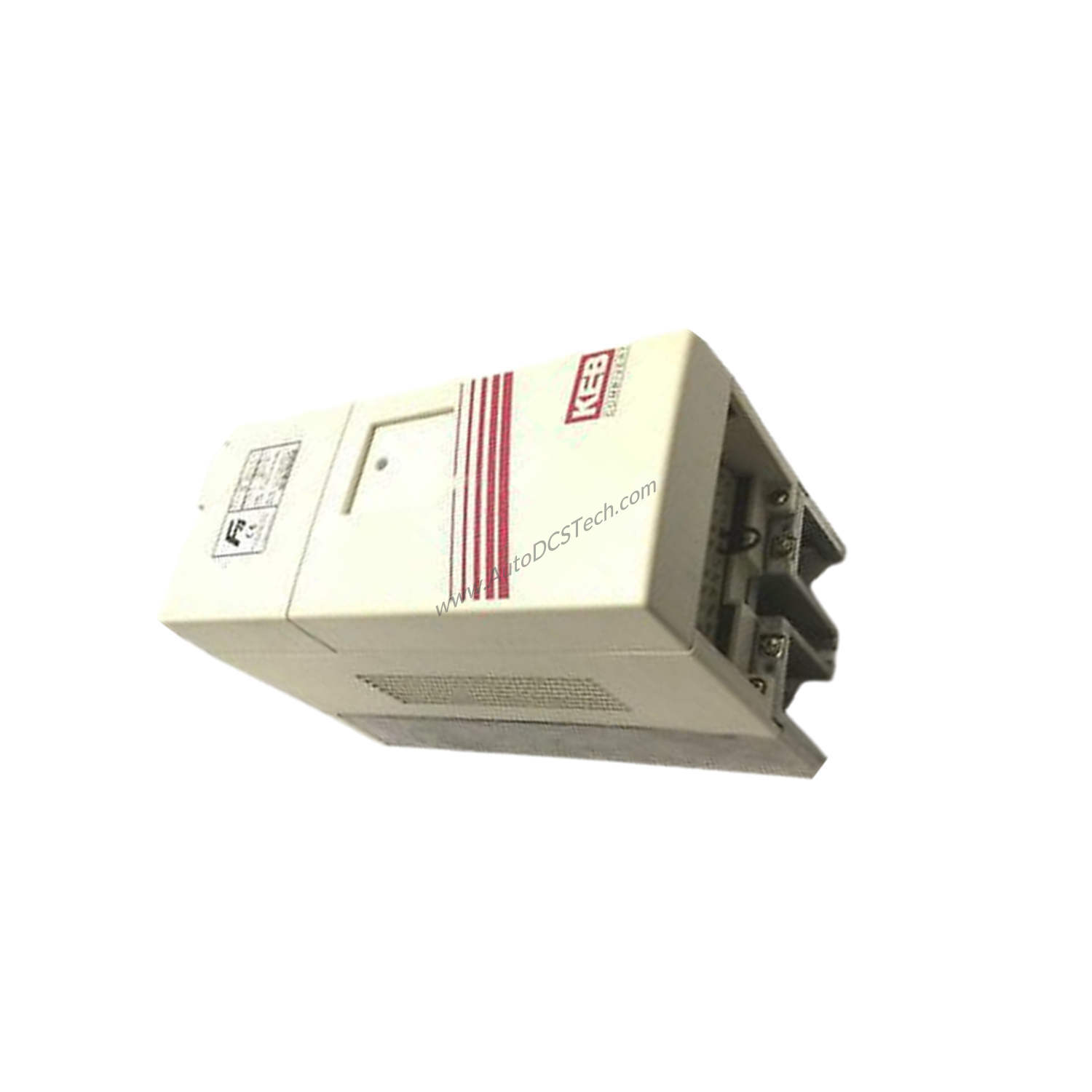

What Is the KEB 09F5B1B-2B0A?
When medium-scale automation processes demand reliable motion control, the KEB 09F5B1B-2B0A delivers precision and efficiency. This axis drive belongs to the F5 Combivert Series, engineered for industrial environments where performance and safety are critical. With a power rating of 1.5 kilowatts, it balances energy economy with dependable operation under normal load conditions.
Technical Specifications Breakdown
The KEB 09F5B1B-2B0A operates with a nominal current of 7 Amps, ensuring steady and consistent performance during routine tasks. It can handle peak demands with a maximum current of 15.1 Amps, accommodating brief overloads without compromising integrity. The 16 kHz switching frequency enables precise motor control, reducing electromagnetic interference in sensitive settings. This drive meets EMC Category C1, complying with strict electromagnetic compatibility regulations. Its IP20-rated enclosure protects against solid objects larger than 12.5 mm, making it suitable for typical industrial environments. The operating temperature range spans -10°C to 45°C, while storage conditions extend from -25°C to 70°C, highlighting its adaptability.
Industry Applications
In conveyor systems and packaging machinery, the KEB 09F5B1B-2B0A provides smooth acceleration and deceleration, reducing wear on mechanical components. Its 16 kHz switching frequency allows for fine-tuned speed control, essential for applications requiring consistent product handling. For material handling equipment, the drive's short-circuit and earth fault monitoring protect both the drive and connected motors, minimizing unplanned downtime. These protective features make it a cost-effective choice for facilities aiming to improve overall equipment effectiveness.
Installation & Setup Guidance
Mount the KEB 09F5B1B-2B0A in a clean, dry location with adequate ventilation to maintain its operating temperature range. Ensure the enclosure remains free from debris that could block airflow. Connect power and motor cables according to the manufacturer's wiring diagram, verifying that the nominal current of 7 Amps matches the motor rating. Use shielded cables for the control wiring to preserve EMC compliance. After installation, perform a functional test to confirm the drive responds to speed commands without tripping the fault monitoring circuits.
Maintenance & Reliability
Regular inspection of the KEB 09F5B1B-2B0A ensures long-term reliability. Check for dust accumulation on the enclosure vents and clean them with a soft brush if needed. Verify that all cable connections remain tight and free from corrosion. Monitor the ambient temperature to keep it within the -10°C to 45°C range, as excessive heat can reduce component life. The integrated short-circuit and earth fault monitoring provide continuous protection, but periodic testing of these functions is recommended to confirm they operate correctly.
Selection Guide & Purchasing Advice
Before ordering the KEB 09F5B1B-2B0A, confirm that your motor's power requirements align with the 1.5 kW rating and that the supply voltage matches the drive's input specifications. Verify that the IP20 rating is adequate for your installation environment. For replacement applications, check the mounting dimensions and connector types to ensure compatibility with existing hardware. SpareTechPLC offers this axis drive with fast shipping and expert support to help you select the right components for your automation system.
Frequently Asked Questions
Q: What is the power rating of the KEB 09F5B1B-2B0A?
A: The KEB 09F5B1B-2B0A has a power rating of 1.5 kilowatts.
Q: What is the nominal current of this axis drive?
A: The nominal current is 7 Amps, with a maximum current of 15.1 Amps for peak demands.
Q: Does the KEB 09F5B1B-2B0A include fault monitoring?
A: Yes, it features short-circuit and earth fault monitoring to protect the drive and system.
Q: What is the enclosure protection rating?
A: The enclosure rating is IP20, protecting against solid objects larger than 12.5 mm.
Q: What temperature range can this drive operate in?
A: It operates between -10°C and 45°C, and can be stored between -25°C and 70°C.
