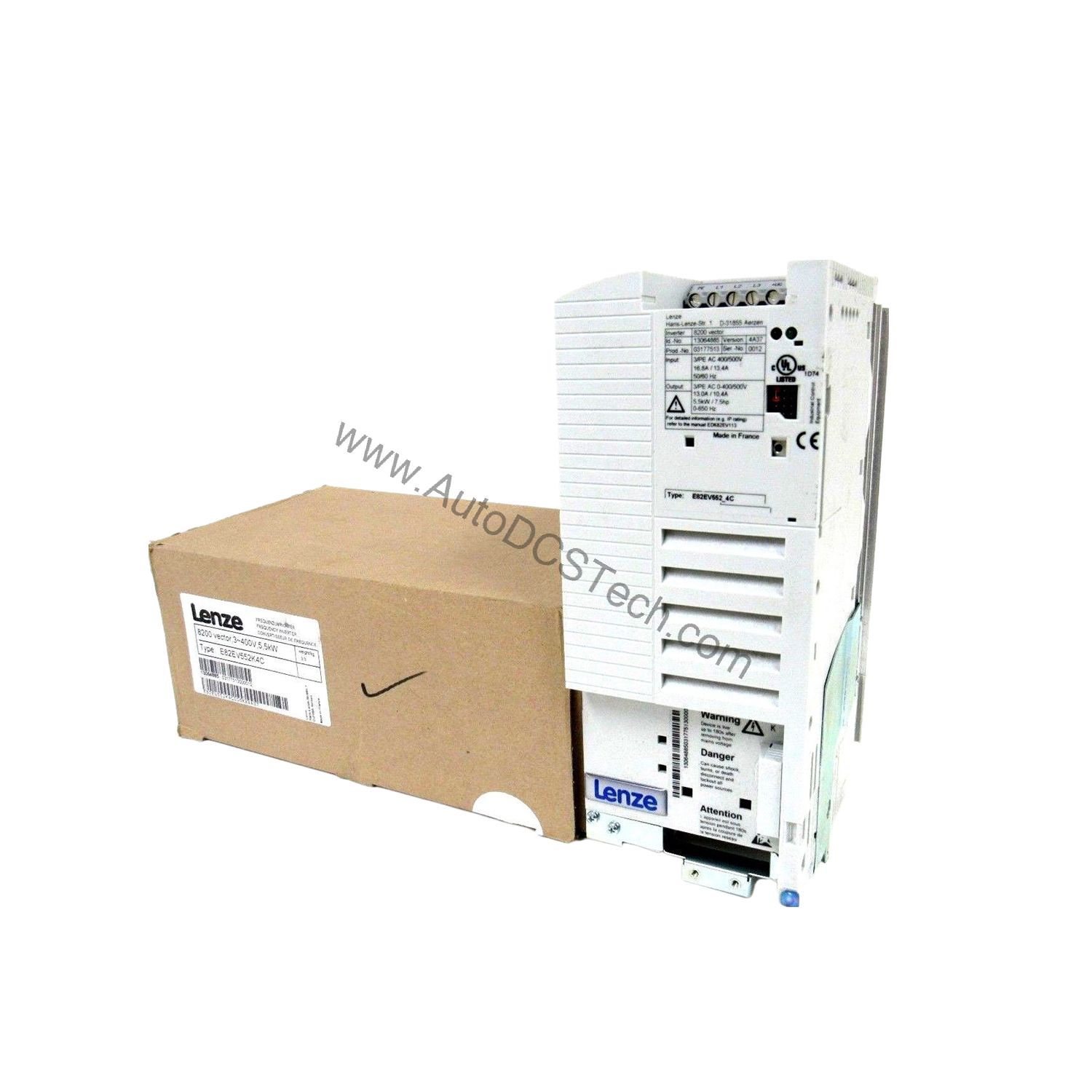

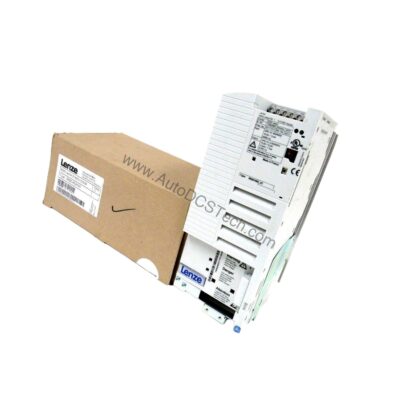

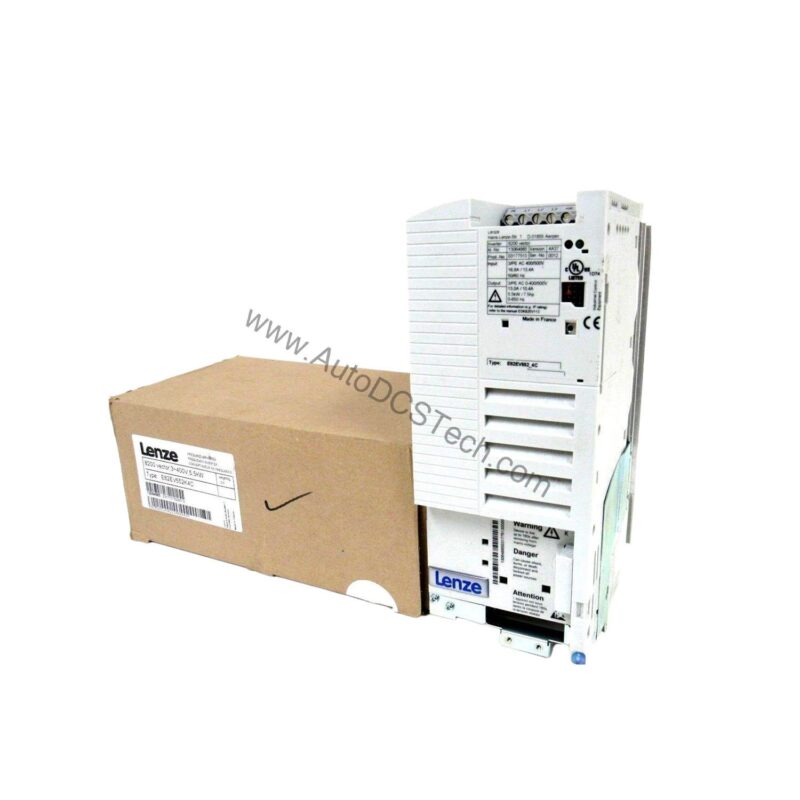

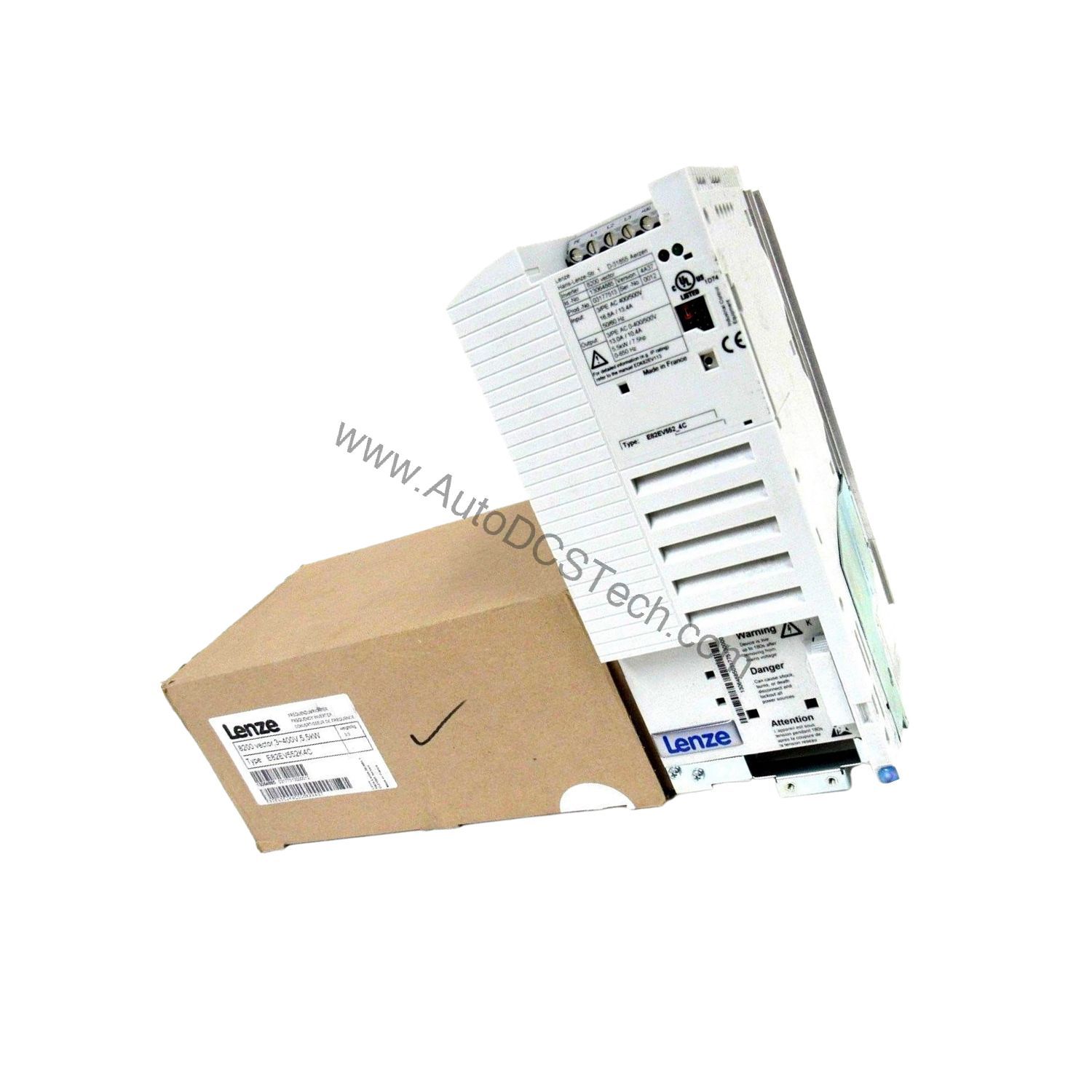

Lenze 8200 Vector Frequency Inverter – E82EV552K4C
This 5.5 kW AC drive from the proven 8200 vector series is engineered for three-phase motors in demanding industrial environments. With a compact footprint and robust construction, it simplifies variable-speed control for conveyors, pumps, fans, and other machinery.
Technical Specifications Breakdown
Key parameters for the E82EV552K4C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Supply Voltage | 3 x 400 ... 500 V +/-10% |
| Rated Power | 5.5 kW |
| Rated Output Current | 13 A |
| Dimensions | 100 x 240 x 140 mm |
| Weight | 2.9 kg |
| Input Frequency | 50/60 Hz |
Industry Applications
The E82EV552K4C is a versatile AC drive suited for a wide range of applications. In material handling, it provides smooth acceleration and deceleration for conveyor belts, reducing mechanical stress. In HVAC systems, it regulates fan and pump speeds to match demand, cutting energy consumption significantly. For machine tools, the vector control ensures high starting torque and precise speed regulation, improving product quality and throughput.
Installation & Setup Guidance
Proper installation is critical for reliable operation. Mount the inverter in a clean, dry enclosure with adequate ventilation to maintain ambient temperature within the rated limits. Follow the manufacturer's wiring diagrams for input and motor connections. Verify that the supply voltage matches the nameplate rating of 3 x 400 ... 500 V +/-10%. Use appropriate cable sizes and ensure proper grounding to minimize electromagnetic interference. After wiring, perform a thorough check before energizing.
Maintenance & Reliability
The Lenze 8200 vector series is built for long service life, but periodic inspection is recommended. Check for dust accumulation on heatsinks and fans, and clean as needed. Inspect terminal connections for tightness and signs of corrosion. Monitor operating temperatures and ensure the enclosure's cooling system is functioning. Following a preventive maintenance schedule helps avoid unplanned downtime.
Compatibility & Integration
The E82EV552K4C is designed as a standalone frequency inverter. It accepts standard three-phase AC input and provides variable-frequency output to control standard AC induction motors. Its compact size (100 x 240 x 140 mm) allows for easy integration into existing control panels. The drive supports 50/60 Hz input, making it suitable for global applications.
Selection Guide & Purchasing Advice
When selecting a frequency inverter, verify that the rated power (5.5 kW) and output current (13 A) match your motor's requirements. Consider the supply voltage available at your facility. The E82EV552K4C is a reliable choice for new installations or as a replacement for existing drives. AutoDCSTech offers this model for immediate purchase. Contact AutoDCSTech to confirm availability and lifecycle status before ordering.
Troubleshooting & Common Issues
If the drive does not start, check the incoming supply voltage and fuses. If the motor runs but at reduced speed, verify the frequency reference signal and parameter settings. Overheating can be caused by blocked ventilation or excessive ambient temperature. Always refer to the Lenze 8200 vector manual for detailed fault codes and corrective actions. For persistent issues, consult a qualified engineer.
Availability & Condition at AutoDCSTech
| Part Number | E82EV552K4C |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
