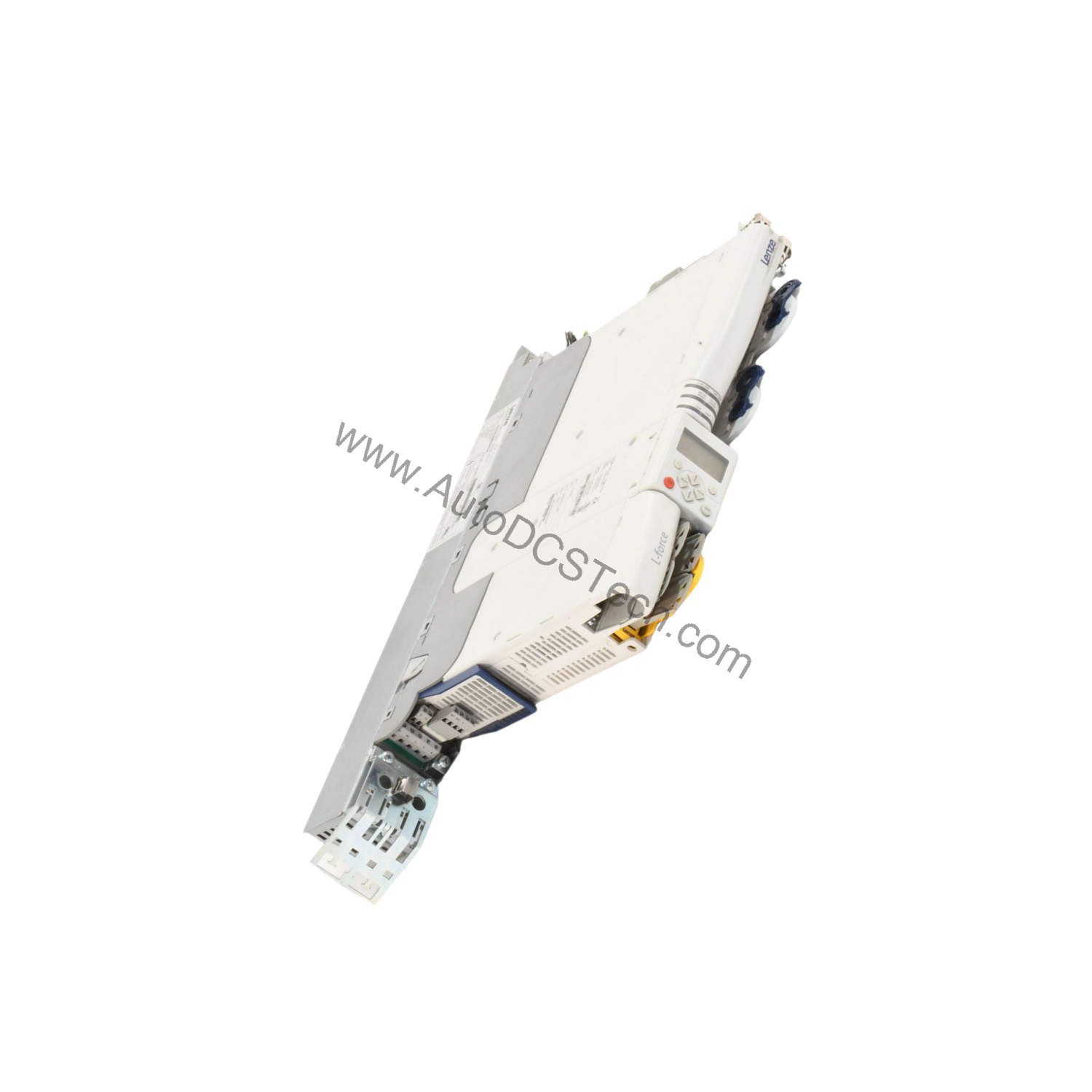

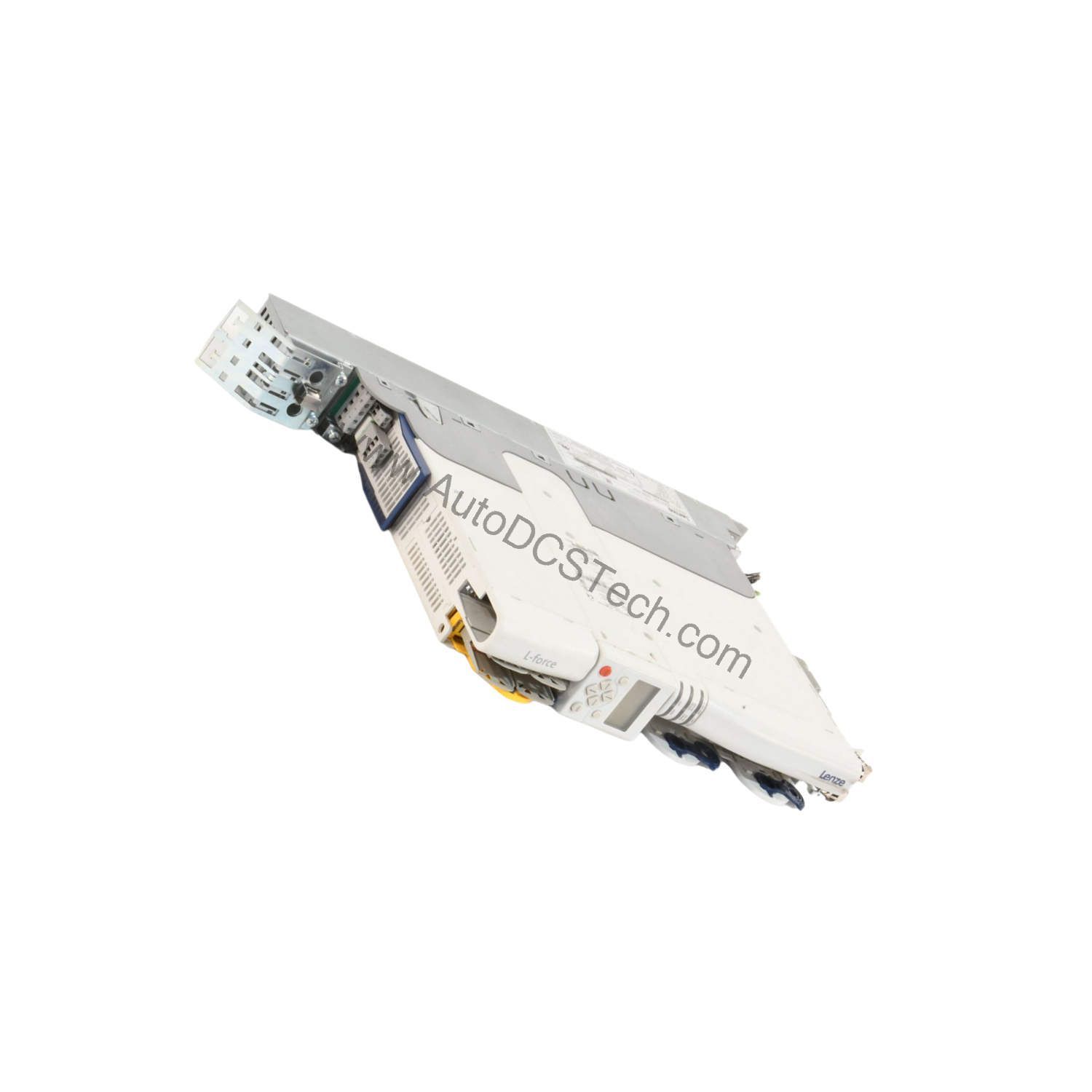

Lenze E94ASHE0034 Series 9400 Drive 0.75 kW

Technical Specifications Breakdown

Key parameters for the E94ASHE0034 are listed below for quick reference:

Real-World Applications for the Series 9400 Drive

The E94ASHE0034 is engineered for applications that require precise speed, torque, or position control. In material handling systems, the drive's 0-480 Hz output frequency range enables smooth acceleration and deceleration of conveyors, reducing mechanical stress. In packaging machinery, the integrated braking chopper improves stopping accuracy, which is critical for registration and cut-to-length operations. The drive's overload capacity of 150% for 60 seconds also supports intermittent load surges, common in mixing and extruding equipment.

Installation and Setup Guidance

When integrating this drive into your control panel, verify that the input voltage matches your plant supply: 230 VAC, 400 VAC, or 500 VAC, three-phase, 50/60 Hz. The IP20 protection class means the drive is suitable for indoor, dry environments where tools are required for access. Ensure adequate clearance around the unit for forced ventilation airflow. The operating temperature range of 0°C to 40°C must be respected; if your enclosure raises ambient temperature, consider derating or additional cooling. Communication interfaces such as CANopen, PROFIBUS, or EtherCAT are available depending on the module configuration, so confirm your network protocol before wiring.

Maintenance and Reliability Tips

Regular inspection is key to long service life. Periodically check that the forced ventilation fan is free of dust and debris, as blocked airflow can cause overheating. Verify that the ambient temperature stays within the 0°C to 40°C range. Because the drive uses forced ventilation, it is more sensitive to particulate contamination than naturally cooled units. Keep the enclosure clean and consider adding filters if the environment is dusty. Also, inspect all power and control connections for tightness, especially after initial commissioning.

Why the Lenze E94ASHE0034 Stands Out in the Series 9400

Industrial automation demands drives that deliver consistent performance across varying power environments. The Lenze E94ASHE0034 from the Series 9400 meets that need with a rated output power of 0.75 kW and a flexible input voltage range of 230/400/500 VAC, three-phase, 50/60 Hz. This adaptability makes it a practical choice for facilities that operate on different regional power standards.

Compatibility and Integration Options

The E94ASHE0034 supports multiple feedback types, including incremental encoders, resolvers, and absolute encoders, giving you flexibility in motor feedback selection. This drive can be integrated into existing automation architectures via CANopen, PROFIBUS, or EtherCAT, depending on the installed module. This versatility simplifies retrofits and new machine builds alike. Always confirm the exact communication module fitted to your unit to ensure compatibility with your PLC or motion controller.

Selection and Purchasing Advice

When selecting a replacement or new drive, verify the exact part number E94ASHE0034 and its configuration. Because communication interfaces vary by module, check your current network requirements. AutoDCSTech offers this Lenze Series 9400 drive and can help you confirm the correct version for your application. Contact our team to check availability and lifecycle status before ordering.

Troubleshooting Common Issues

If the drive fails to start, first verify that the input voltage is within the specified range (230/400/500 VAC, 3-phase) and that the frequency is 50 or 60 Hz. Check the input current values: 3.3 A at 230 VAC, 3.5 A at 400 VAC, and 3.1 A at 500 VAC. If the drive trips on overload, confirm that the motor load does not exceed 150% for more than 60 seconds. For communication issues, ensure the correct protocol module is installed and that network parameters match your controller. If the drive overheats, inspect the forced ventilation fan and clean any blocked air paths. Always follow safe electrical practices and disconnect power before any inspection.
