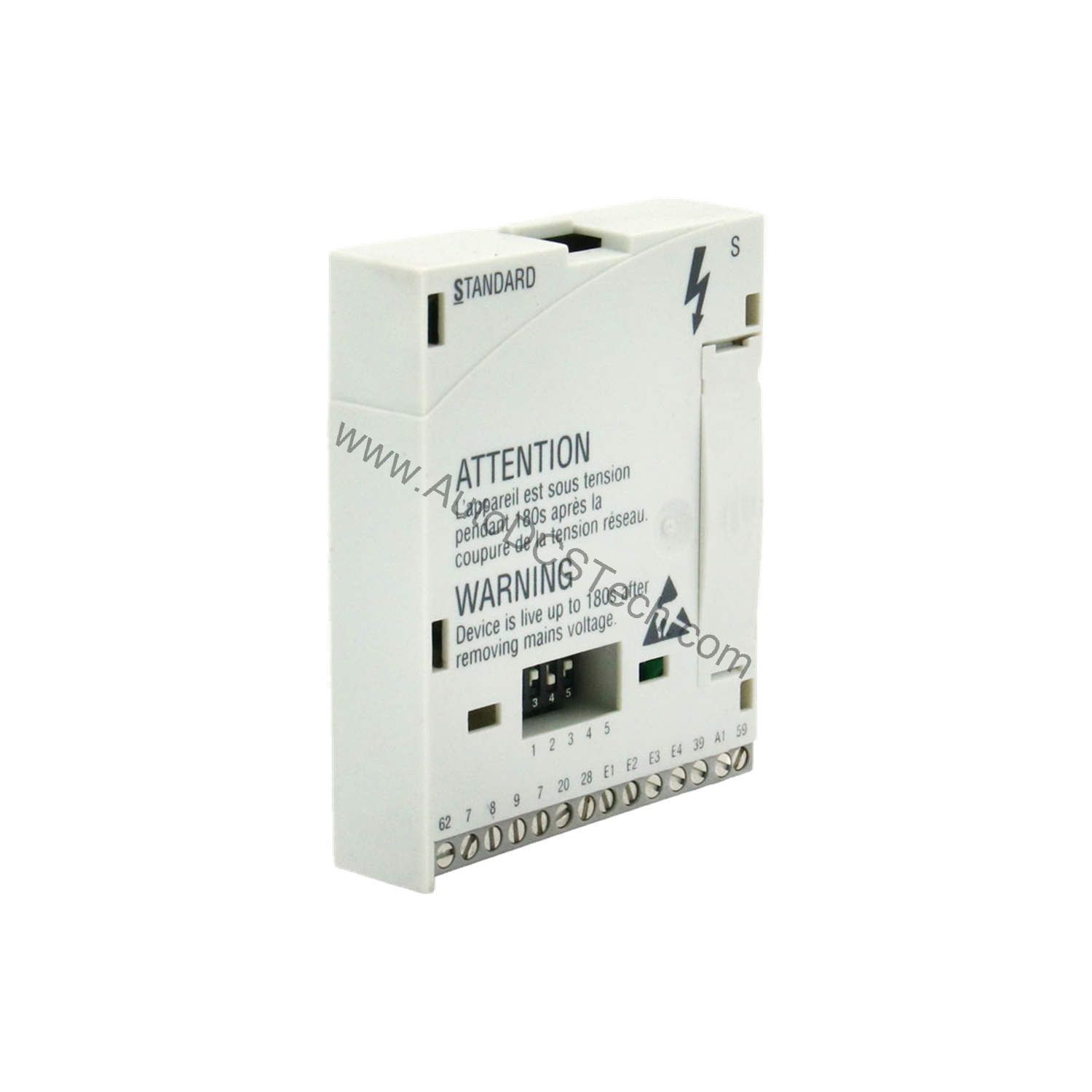

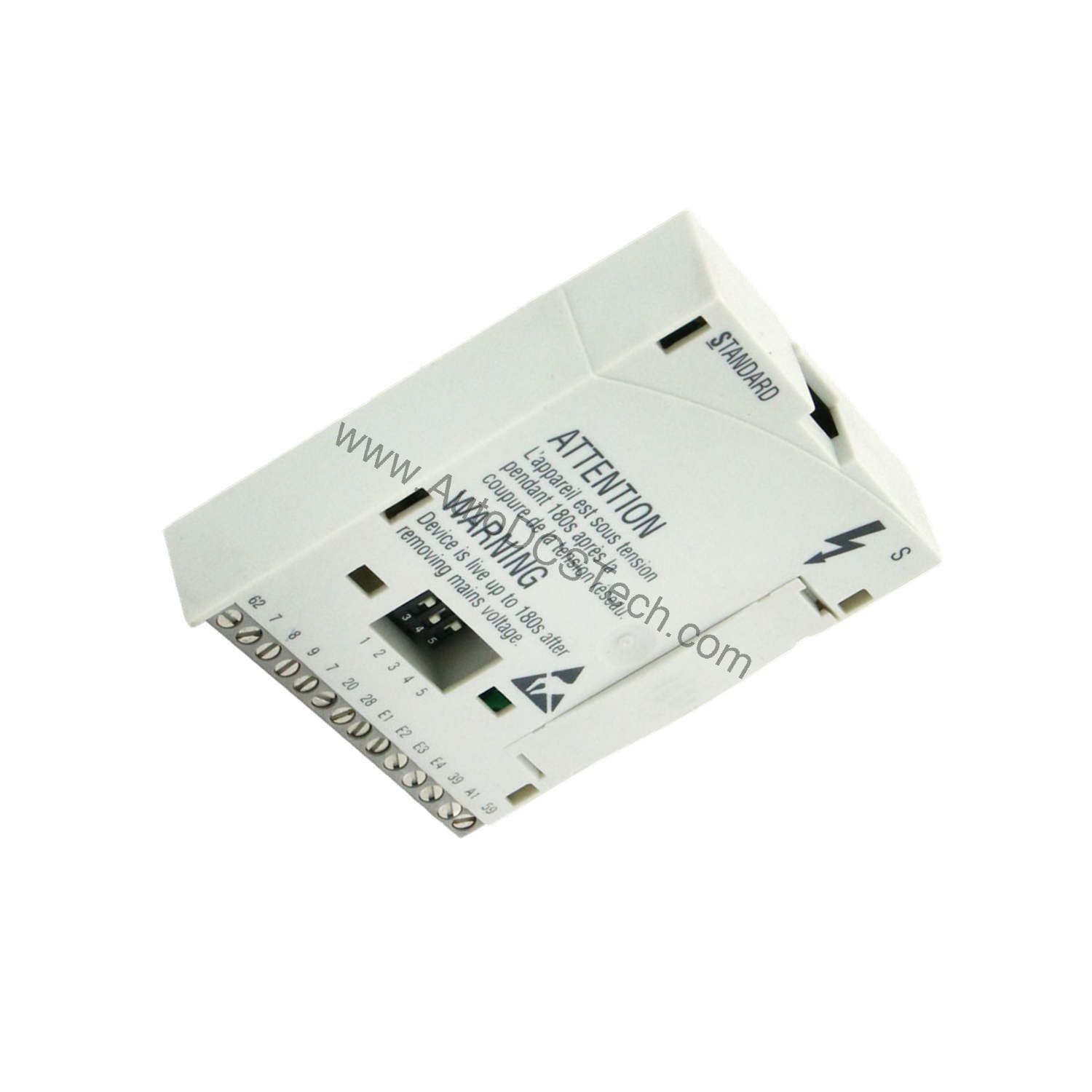

Lenze E82ZAFCC201 8200 Series Function Module

Technical Specifications Breakdown

Key parameters for the E82ZAFCC201 are listed below for quick reference:

Industry Applications

High-Speed Counting and Positioning

In packaging or material handling systems, the E82ZAFCC201 can accept frequency signals from encoders or proximity sensors up to 10 kHz. This allows precise speed monitoring and position feedback, ensuring accurate cut-to-length or fill-level control.

Reliable Drive Enable/Disable Control

With the dedicated inhibit input on X3.3/28, the module provides a clean, isolated signal path for emergency stop or safety interlock circuits. The 20 V supply and 0.6 W load capacity are sufficient for driving small relays or indicator LEDs, simplifying control panel wiring.

Installation & Setup Guidance

• Mount the module securely in the designated slot of the 8200 series drive. Ensure the connector is fully seated.
• For frequency input wiring, use shielded twisted-pair cable to minimize noise. The module supports cable lengths up to 300 m with 0.25–0.34 mm² (AWG22) conductors, and up to 1000 m with 0.5 mm² (AWG20) conductors.
• Configure the frequency input via parameter C0425 to select single-channel (0–10 kHz) or two-channel (0–1 kHz) operation.
• For the inhibit input (X3.3/28), apply a HIGH signal (12–30 V) to enable the drive, and LOW (0–3 V) to inhibit. Reference the signal to GND2 as indicated.
• The 20 V output (X3.3/20) can supply up to 0.6 W. Do not exceed this load.

Maintenance & Reliability

Because the E82ZAFCC201 is in the phase-out stage, it is advisable to keep a spare unit in stock to avoid extended downtime. Periodically inspect the module for dust accumulation and ensure that all connections remain tight. The module's compact design (6.30 x 7.60 x 2.50 cm) and light weight (0.10 kg) make it easy to handle during maintenance.

The E82ZAFCC201: A Precision Signal Interface for 8200 Series Drives

The Lenze E82ZAFCC201 function module addresses this by providing a dedicated frequency input and control interface for the 8200 series. This module ensures that high-frequency signals are accurately captured and that the drive's inhibit function responds reliably, reducing unplanned downtime.

Compatibility & Integration

The E82ZAFCC201 is designed specifically for the Lenze 8200 series. The module's input resistance of 3.3 kΩ is compatible with standard PLC and HTL signals, ensuring straightforward integration with existing control systems.

Selection Guide & Purchasing Advice

When selecting a replacement or spare for the E82ZAFCC201, verify that your drive is an 8200 series model. Since the product is in phase-out, availability may be limited. AutoDCSTech offers this module for immediate shipment. Contact our team to confirm stock and lifecycle status before ordering. We specialize in sourcing hard-to-find industrial automation parts, ensuring you get the right component for your application.

Troubleshooting & Common Issues

• No frequency signal detected: Check the wiring to the frequency input and ensure the cable length and conductor size meet the specified limits. Verify that the input configuration (C0425) matches your sensor type.
• Drive does not enable: Confirm that the inhibit input (X3.3/28) is receiving a HIGH signal (12–30 V). Measure the voltage at the input; if it is below 3 V, the drive will remain inhibited.
• 20 V output overload: If the load exceeds 0.6 W, the output may drop. Reduce the load or use an external relay.
• Intermittent operation: Check for loose connections and ensure that the module is properly seated. Inspect the cable for damage or excessive noise.
