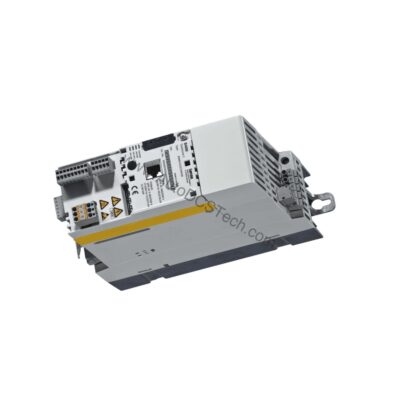

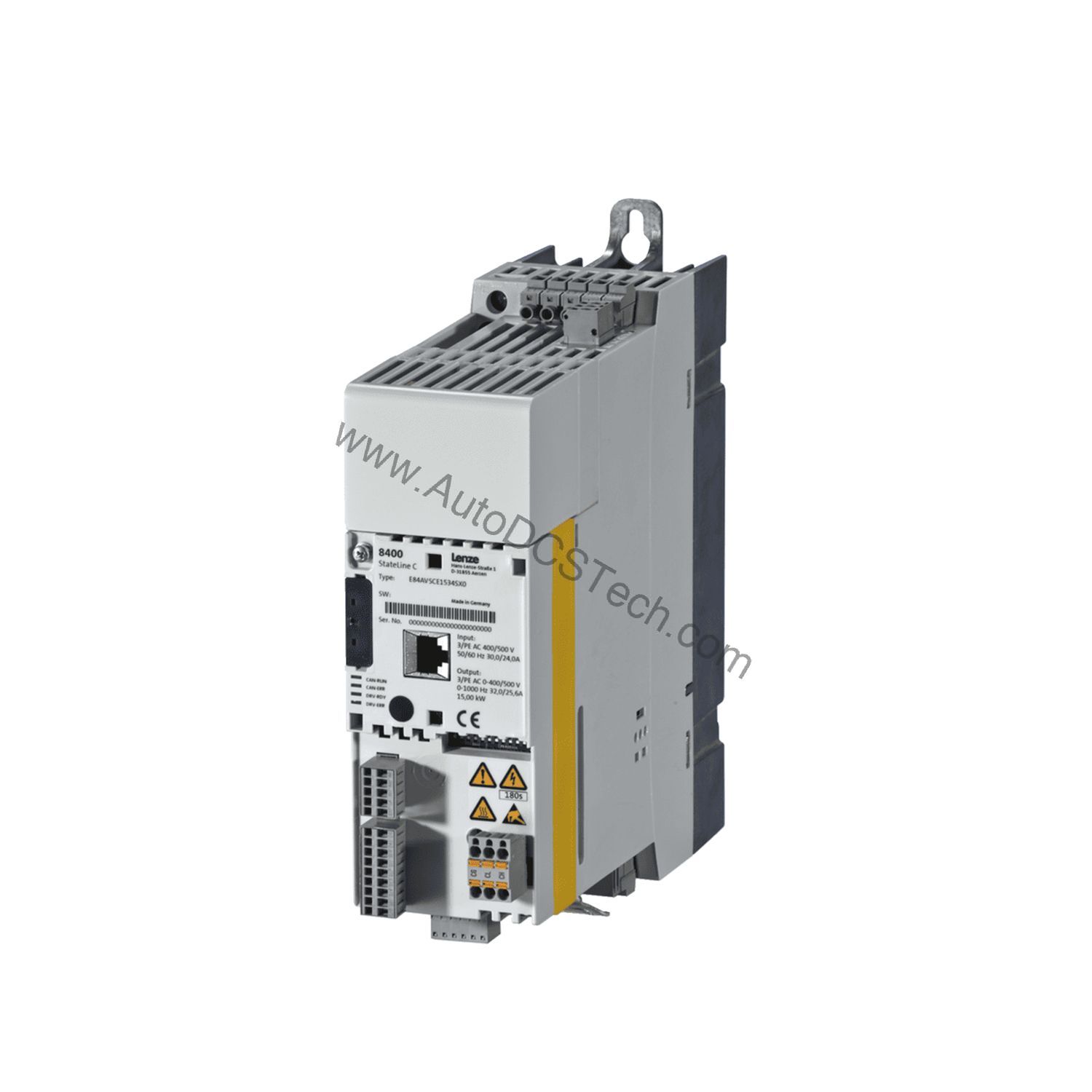

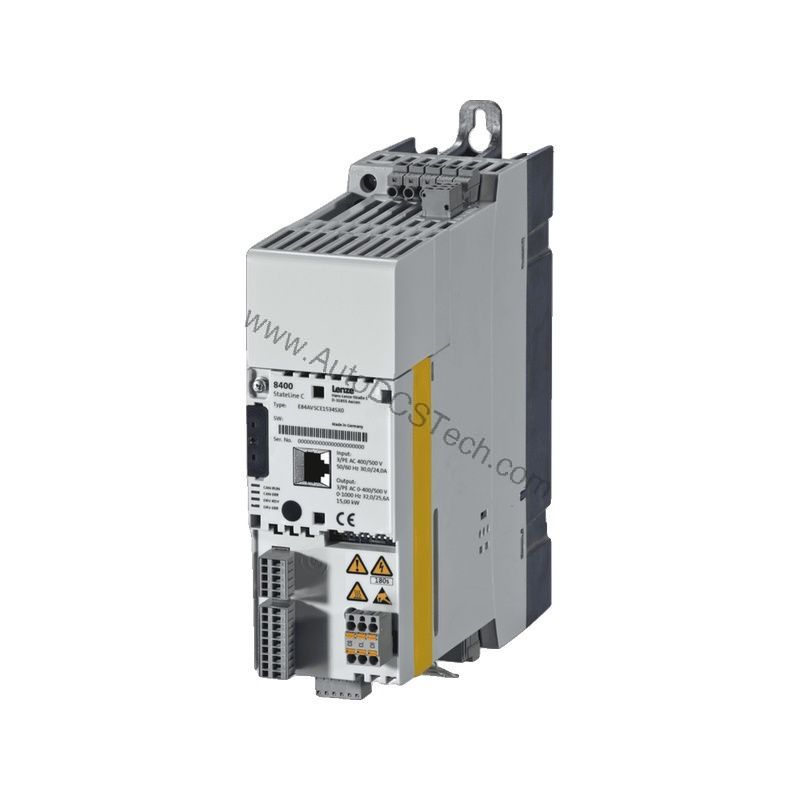

Lenze E84AVHCE5512SX0 8400 Series Frequency Inverter Drive 0.55 kW

Technical Specifications Breakdown

Key parameters for the E84AVHCE5512SX0 are listed below for quick reference:

Industry Applications That Maximize ROI

Pump and Fan Control – In HVAC and water treatment, the drive’s 0-599 Hz output frequency lets you fine-tune flow rates. Matching speed to demand cuts electricity costs by up to 30% compared to throttling valves.

Conveyor Systems – For packaging and material handling, the 3.0 A rated output current provides consistent torque at low speeds, reducing belt wear and product damage. The IP20 enclosure suits indoor control cabinets where dust protection is adequate.

Machine ToolsThe wide frequency range enables rapid acceleration and precise positioning, boosting throughput without oversizing the motor.

Installation & Setup Guidance

Proper installation directly affects long-term reliability and total cost of ownership. Mount the drive on a flat, vertical surface inside a clean, dry cabinet. Ensure adequate clearance around the unit for airflow—IP20 protection does not prevent internal overheating if ventilation is blocked. Connect the mains supply to the 1/N/PE AC 230/240 V terminals, respecting the rated frequency of 50/60 Hz. Use shielded motor cables to minimize electromagnetic interference. Set the motor parameters (voltage, current, frequency) according to the motor nameplate, and verify that the output frequency range (0-599 Hz) matches your application requirements.

Maintenance & Reliability

Regular inspection is key to avoiding unplanned downtime. Check all power and control connections for tightness every six months. Keep the enclosure free of dust and moisture—IP20 offers limited protection, so the surrounding environment must remain clean. Periodically verify that the cooling fan (if present) operates freely. Since the drive is rated for standard ambient conditions, avoid installing it near heat sources or in direct sunlight. These simple steps extend the drive’s service life and protect your investment.

Cost-Efficient Motor Control with the Lenze E84AVHCE5512SX0

When production lines demand precise speed control without inflating capital budgets, the Lenze E84AVHCE5512SX0 from the 8400 series delivers a practical balance of performance and economy. This frequency inverter drive is engineered for high-line installations where reliable operation under standard ambient conditions is essential. By converting fixed-frequency mains power into variable-frequency output, it allows you to match motor speed to actual load requirements, reducing energy consumption and mechanical stress.

Compatibility & Integration

The E84AVHCE5512SX0 is part of the Lenze 8400 series, designed for seamless integration into existing automation systems. It accepts standard 230/240 V single-phase mains (1/N/PE) and provides a variable-frequency output suitable for standard three-phase AC motors up to 0.55 kW. The drive’s compact size and light weight (2.52 kg) simplify panel layout and reduce mounting hardware costs. For advanced control, consult the Lenze 8400 documentation for communication options—though specific protocols are not listed, the drive is engineered to work within typical industrial networks.

Selection Guide & Purchasing Advice

When selecting a frequency inverter, consider both initial price and lifetime operating costs. The Lenze E84AVHCE5512SX0 offers a cost-effective solution for 0.55 kW applications, with a wide output frequency range that adds flexibility. At AutoDCSTech, we stock this model and can advise on availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team ensures you receive genuine, tested components that keep your production running efficiently.

Troubleshooting & Common Issues

Drive does not start – Check that the mains voltage matches the rated 230/240 V range and that the frequency stays at 50 or 60 Hz. Verify the enable signal and control wiring.

Motor runs at wrong speed – Confirm that the output frequency setting is within the 0-599 Hz range and that the motor parameters are correctly entered.

Overheating – Ensure the enclosure is not blocked and that ambient temperature is within standard conditions. Reduce load if the drive trips on overcurrent.

Output current exceeds 3.0 A – This indicates an overload. Check the motor for mechanical jams or excessive load. The drive’s rated output current is 3.0 A; continuous operation above this value may damage the unit.

Always consult the Lenze 8400 manual for detailed fault codes and safety instructions. If problems persist, contact AutoDCSTech for technical support.
