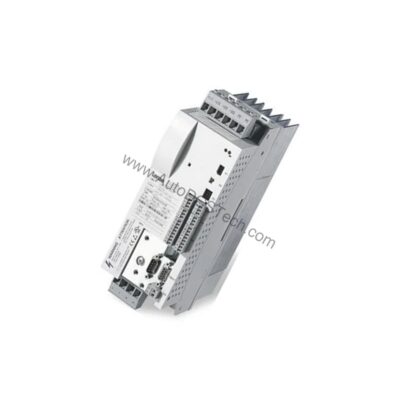

Lenze ECSEE020C4B Servo Drive Unit – 3-Phase, 20A Output

Technical Specifications Breakdown

Key parameters for the ECSEE020C4B are listed below for quick reference:

Servo drives are the heart of modern motion control systems. The ECSEE020C4B is well-suited for applications that require precise speed and position control. Consider these typical use cases:

• Packaging Machinery: In high-speed filling and labeling lines, the drive ensures synchronized motor movements, reducing waste and increasing throughput.
• Material Handling: Conveyor systems benefit from the drive's ability to manage variable loads smoothly, minimizing mechanical stress and extending equipment life.
• Machine Tool Spindles: For CNC routers and milling machines, the drive delivers the torque and speed stability needed for accurate cutting and finishing.

The 3-phase input design makes it a practical choice for industrial facilities where three-phase power is standard. The wide output voltage range (254...680 VDC) provides flexibility for various motor configurations.

Installation and Setup Guidance

Proper installation is critical for the safe and reliable operation of any servo drive. Follow these general guidelines:

• Mounting: The drive is designed for installation in an appropriate enclosure. Ensure adequate ventilation and clearance around the unit to prevent overheating.
• Wiring: Always disconnect power before making any connections. Use properly rated cables and follow the manufacturer's wiring diagram. Verify that the input voltage matches the drive's rating.
• Grounding: A solid earth ground is essential for safety and to reduce electrical noise. Connect the ground terminal securely.
• Initial Power-Up: After wiring, perform a visual inspection of all connections. Power up the drive and check for any error codes or abnormal behavior before connecting the motor.

Maintenance and Reliability

Servo drives are typically low-maintenance devices, but regular inspection helps prevent unexpected downtime. Implement a periodic inspection schedule:

• Visual Checks: Look for signs of dust accumulation, loose connections, or damaged components. Clean the enclosure and drive using dry, low-pressure air if needed.
• Environmental Control: Keep the drive in a clean, dry environment. Avoid exposure to excessive vibration, moisture, or corrosive atmospheres.
• Thermal Management: Ensure cooling fans (if any) are operational and that air filters are clean. Overheating is a common cause of drive failure.

The Lenze ECSEE020C4B Servo Drive Unit: Powering Precision Motion

Industrial motion control demands components that deliver consistent, repeatable performance under continuous load. The Lenze ECSEE020C4B is a servo drive unit engineered for exactly that purpose. As a 3-phase unit with a robust 20 Amp DC output, it provides the power conversion needed for demanding servo motor applications. Whether you are retrofitting an existing machine or building a new production line, this drive offers the reliability and performance that Lenze is known for.

Compatibility and Integration

The ECSEE020C4B is a servo drive unit, meaning it is designed to work with compatible servo motors and control systems. While specific motor models are not listed, the drive's output specifications (20A, 254...680 VDC) indicate it is intended for medium-power servo applications. When integrating this drive, always verify that the motor's voltage and current requirements fall within the drive's output range. Consult the Lenze documentation or contact AutoDCSTech for assistance with compatibility.

Selection Guide and Purchasing Advice

When selecting a servo drive, consider the following:

• Power Requirements: Match the drive's output current and voltage to your motor's nameplate ratings.
• Input Power: Ensure your facility's power supply matches the drive's input requirements (3-phase).
• Environmental Conditions: Choose a drive with appropriate protection for your operating environment.

AutoDCSTech offers the Lenze ECSEE020C4B servo drive unit for your automation needs. Our team can help you verify compatibility and availability. Contact us for a quote or to discuss your application.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
