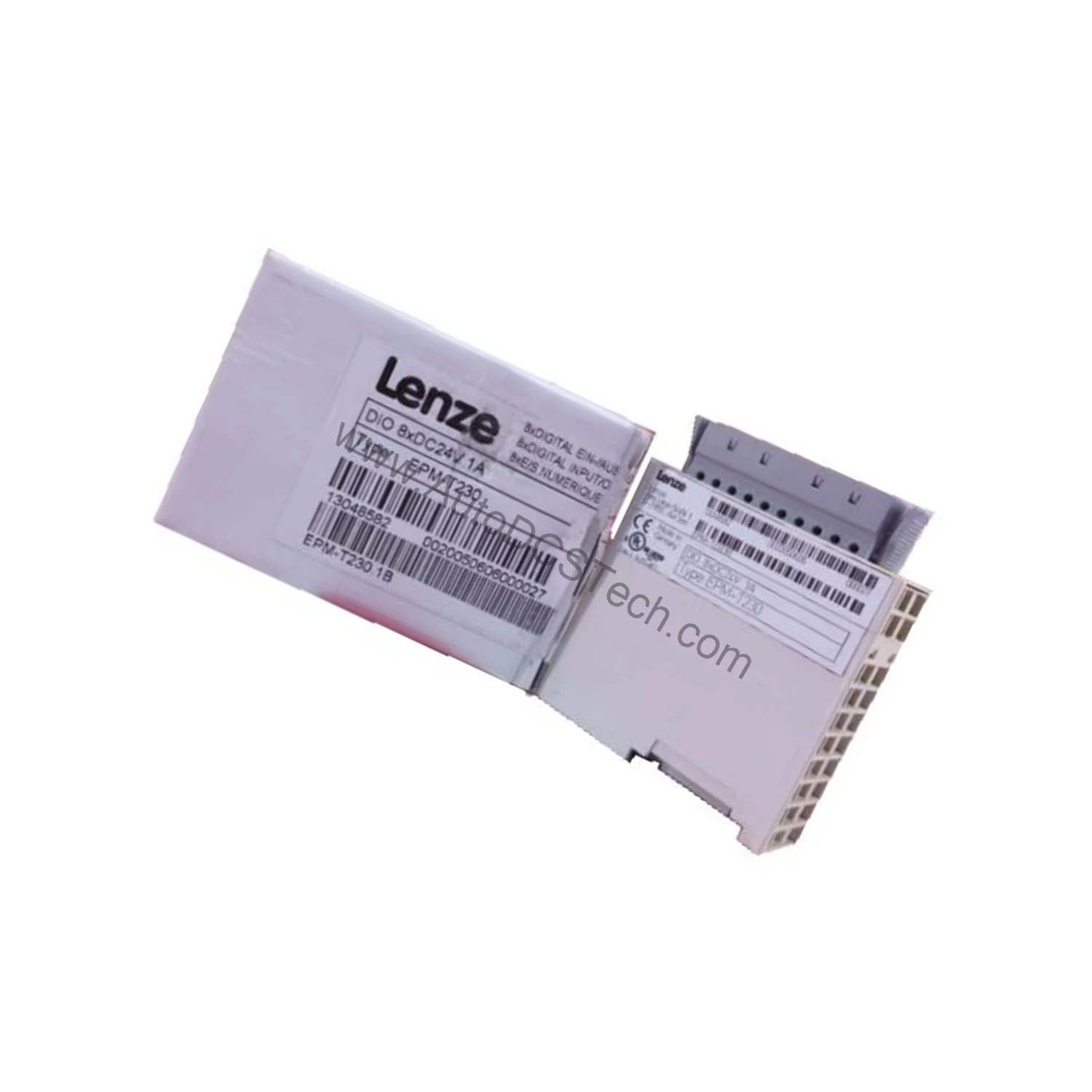

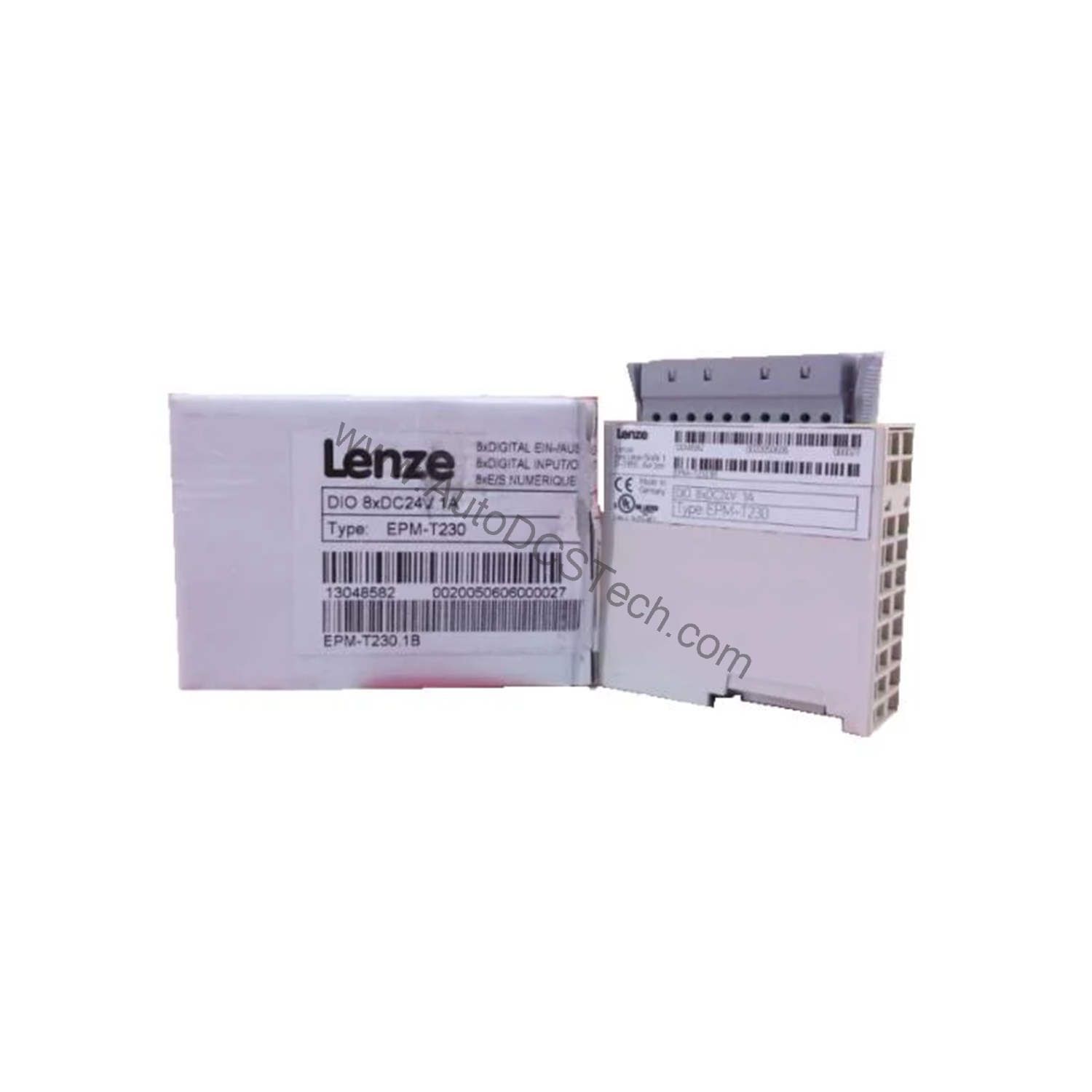

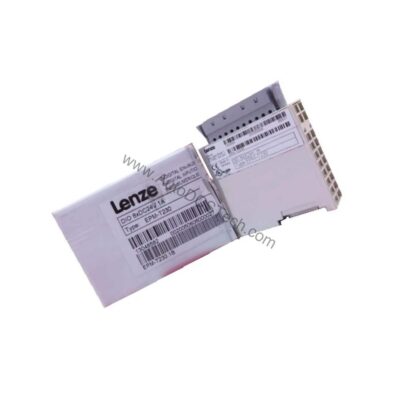

Lenze EPM-T230 I/O Module for PLC and Machine Control Applications

Technical Specifications Breakdown

Key parameters for the EPM-T230 are listed below for quick reference:

Industry Applications

Packaging Machinery: The EPM-T230's fast response time—less than 1 ms—ensures precise timing for sensor feedback and actuator control in high-speed packaging lines. This minimizes product waste and improves throughput.

Material Handling: With 8 digital I/O points, the module can manage conveyor photo-eyes, limit switches, and solenoid valves. Its IP20 rating makes it suitable for control cabinets in dry, indoor environments.

Machine Tool Control: The module's ability to operate in temperatures up to 55°C when mounted horizontally is beneficial in machine tools where heat accumulation is common. This reduces the risk of thermal-related failures.

Installation & Setup Guidance

When installing the EPM-T230, always verify that the 24 VDC supply is within the specified range and properly isolated. For DIN rail mounting, snap the module securely onto the rail, ensuring the locking mechanism engages. For panel mounting, use the provided mounting holes and appropriate fasteners. Choose the mounting orientation based on your ambient temperature: vertical for cooler environments (0–45°C), horizontal for warmer ones (0–55°C). Ensure adequate airflow around the module to maintain reliable operation.

Maintenance & Reliability

Routine inspection of the module and its connections is recommended. Check that all wiring terminals are tight and free from corrosion. Periodically clean the enclosure with a dry cloth to prevent dust accumulation, which could impair heat dissipation. Given the IP20 rating, the module is not designed for washdown or dusty environments; keep it inside a sealed cabinet. No special tools are required for maintenance, and the lightweight design simplifies handling.

Robust I/O Module for Machine Control

For maintenance engineers and system integrators, the Lenze EPM-T230 delivers reliable digital I/O expansion in a compact, lightweight package. Weighing only 0.05 kg, this module simplifies panel layouts and reduces mechanical stress on DIN rails. Its 24 VDC power supply requirement aligns with standard industrial control cabinets, simplifying integration into existing systems.

Compatibility & Integration

The EPM-T230 is designed for use with PLCs and machine control systems. Its 8 digital I/O channels can be wired directly to sensors and actuators, making it a straightforward addition to existing control loops. The module's fast response time supports real-time control requirements. Always consult the controller's documentation to confirm compatibility and proper I/O mapping.

Selection Guide & Purchasing Advice

When selecting an I/O module, consider the number of I/O points, response time, and environmental ratings. The EPM-T230 meets these needs with 8 digital I/O, sub-millisecond response, and flexible mounting. As a maintenance engineer, you need a reliable source for replacement parts. AutoDCSTech offers the Lenze EPM-T230 and a wide range of industrial automation components. Contact AutoDCSTech to verify availability and current lifecycle status before ordering. Our team can assist with technical questions and ensure you receive the correct part for your application.

Troubleshooting & Common Issues

If the module fails to communicate, first check the 24 VDC supply voltage and polarity. Verify that the I/O wiring is correct and that no short circuits exist. If inputs are not reading, inspect sensor power and signal wiring. For output issues, confirm that the load is within the module's ratings. If the module overheats, check that the ambient temperature is within the specified range and that ventilation is not blocked. For persistent problems, consult the manufacturer's documentation or contact AutoDCSTech for support.
