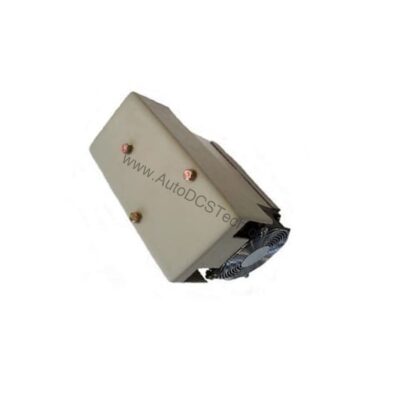

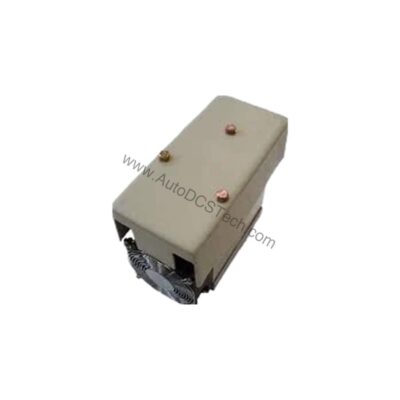

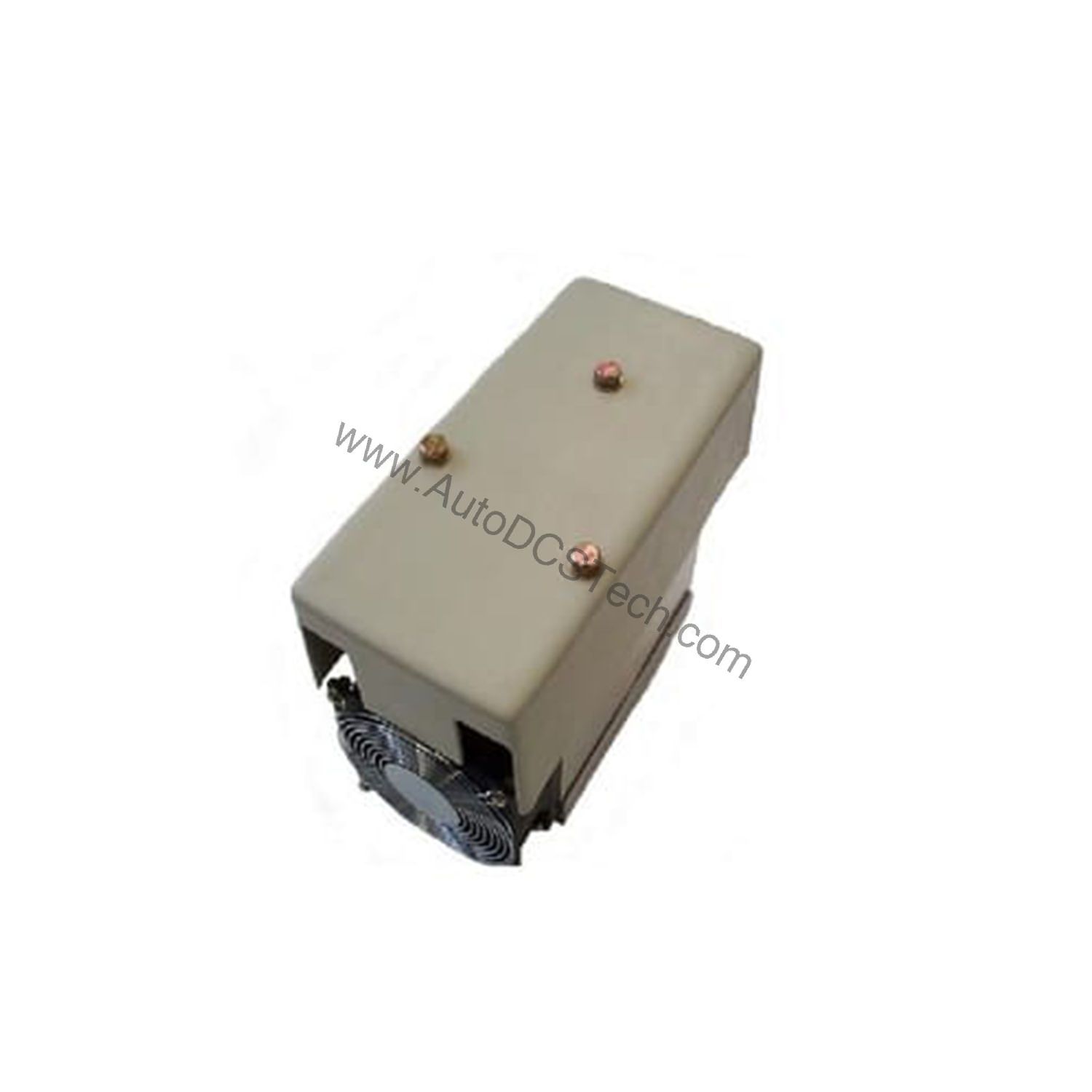

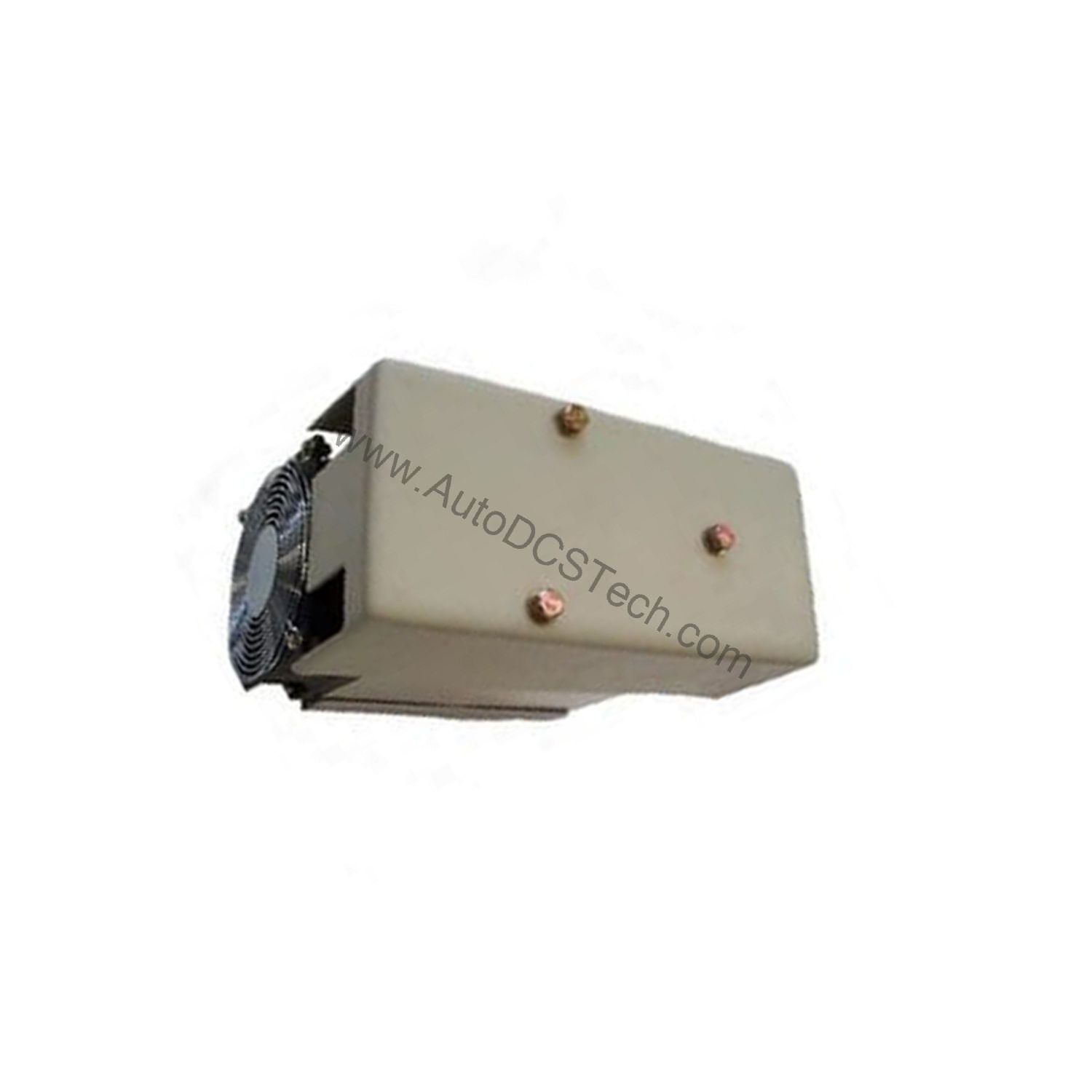

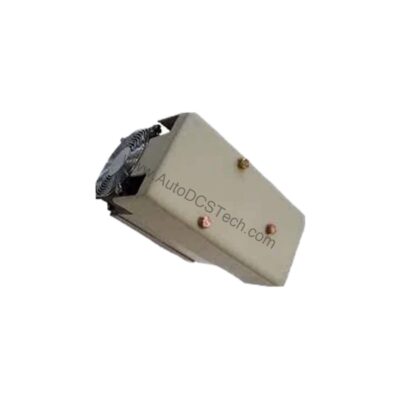

Lenze EME9365-E Power Supply Module | Series 9300

Power Supply Module Overview

The Lenze EME9365-E is a robust power supply module from the Series 9300 product line. It delivers a rated output of 100 kilowatts and can reach a maximum output of 150 kilowatts, making it suitable for high-demand industrial environments. With a current rating of 148 Amperes, this module ensures stable power delivery for connected drives and systems.

Technical Specifications Breakdown

Key parameters for the EME9365-E are listed below for quick reference:

Industry Applications

This power supply module is engineered for heavy-duty applications such as conveyor systems, machine tools, and process lines. Its high output capacity and wide voltage range allow integration into various electrical networks across different regions. The module's ability to handle peak currents up to 222 Amperes ensures reliable operation during sudden load changes, reducing downtime and improving productivity.

Installation & Setup Guidance

When installing the EME9365-E, ensure adequate ventilation and cooling, as the module dissipates up to 389 Watts of power loss. The IP00 protection class means the unit has no built-in enclosure, so it must be installed in a clean, dry, and dust-free cabinet. Verify that the supply voltage and frequency match the module's ratings (100-550 VAC, 48-62 Hz) before energizing. Proper grounding and short-circuit protection are essential for safe operation.

Maintenance & Reliability

Regular inspections are recommended to maintain optimal performance. Check for dust accumulation, loose connections, and signs of overheating. The operating temperature range of -10 to 40°C should be respected; ambient temperatures above this may require derating or additional cooling. Store the module within -25 to 75°C when not in use. Periodic cleaning of the surrounding area and ensuring proper airflow will extend the module's lifespan.

Compatibility & Integration

As part of the Lenze Series 9300, this power supply module is designed to work with other Series 9300 components. It provides a DC bus current of 180 Amperes (maximum 270 Amperes) to power multiple drives. The wide input voltage range and frequency tolerance make it compatible with global power grids, simplifying international machine builds.

Selection Guide & Purchasing Advice

When selecting a power supply module, verify the required output power, current, and voltage range for your specific application. The EME9365-E offers a balance of high output and flexibility. For availability and lifecycle status, contact AutoDCSTech. Our team can confirm current stock and provide expert guidance on alternative options if needed.

Troubleshooting & Common Issues

If the module fails to start, check the input voltage and frequency against the rated values. Overheating can occur if the ambient temperature exceeds 40°C or if airflow is restricted. Unusual noise or tripping may indicate a DC bus fault; inspect the connected drives for short circuits. Always consult the manual and follow safety procedures when troubleshooting.
