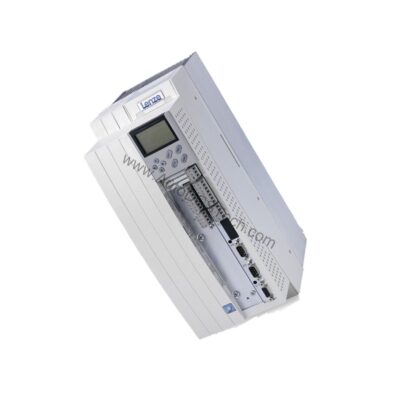

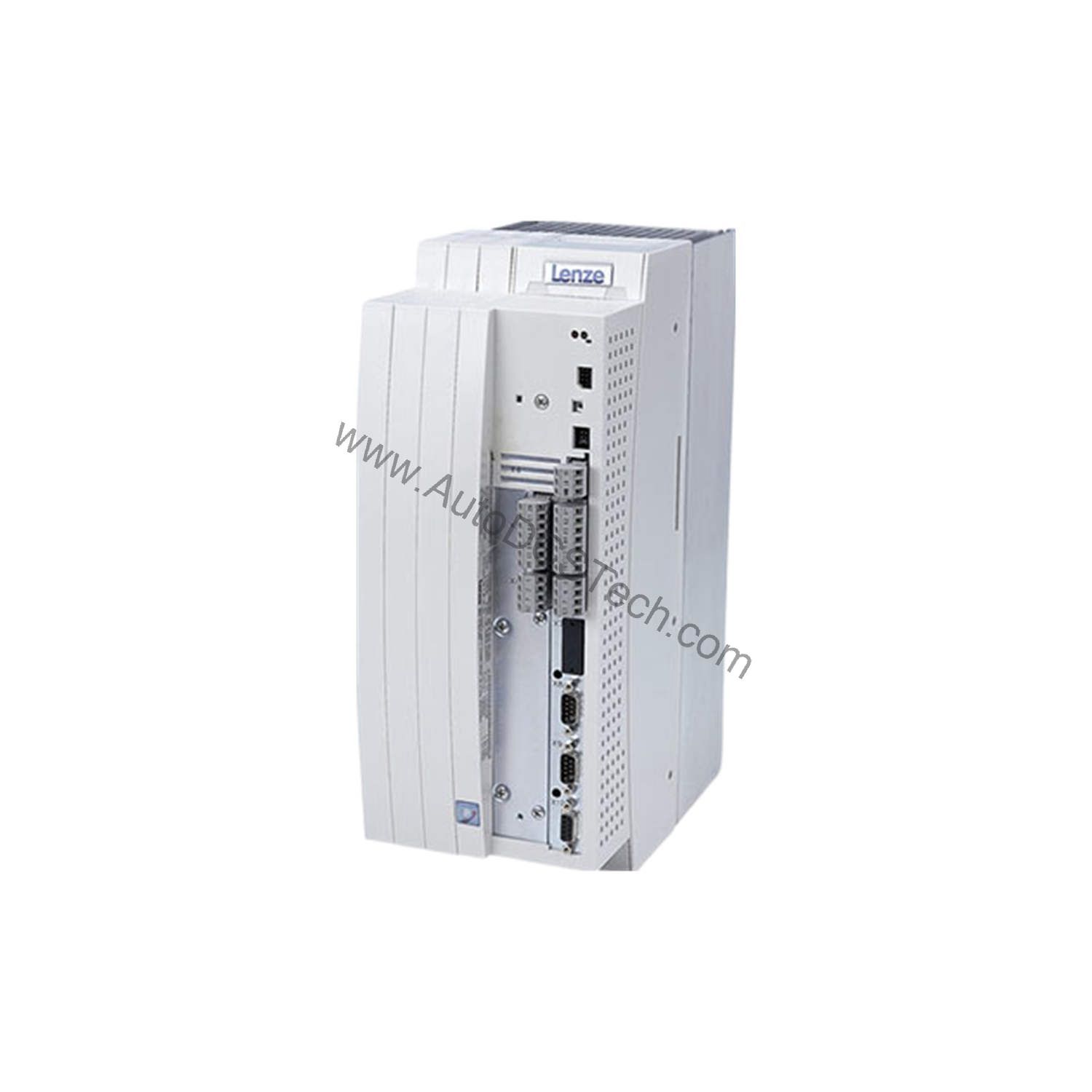

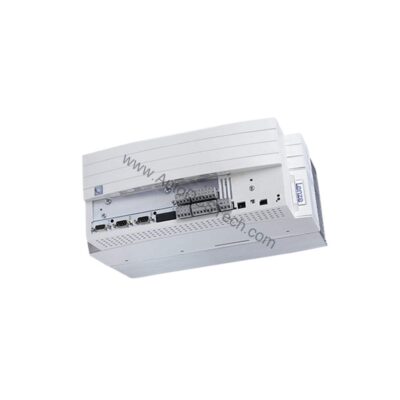

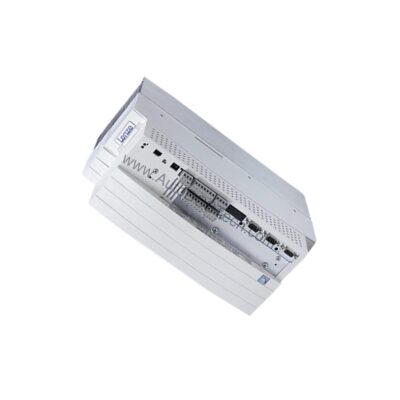

Lenze EVF9332-EV Frequency Inverter 120HP 320-440VAC

Technical Specifications Breakdown

Key parameters for the EVF9332-EV are listed below for quick reference:

Cost-Efficient Operation in High-Power Applications

The EVF9332-EV is designed to handle heavy loads while keeping energy waste in check. With a power loss of just 2100W, this inverter converts electrical input into motor drive with minimal heat generation. Over a year of continuous operation, that efficiency translates into measurable savings on cooling and electricity. The output power ratings—110 kVA at 2/4 kHz and 103.9 kVA at 8 kHz—allow you to match drive performance to your load requirements, avoiding oversizing and unnecessary capital expenditure.

• Pumping Systems: In water treatment and irrigation, the 120 HP motor capacity and 320-440V AC input range make the EVF9332-EV a reliable choice for large centrifugal pumps. The wide mains frequency tolerance (45-65 Hz) ensures stable operation even where grid quality fluctuates.
• Conveyor Lines: For bulk material handling, the inverter's robust current rating (144 Amps with choke/filter) supports heavy start-up loads, reducing mechanical stress and extending belt life. This directly lowers maintenance costs.
• HVAC and Compressors: In commercial buildings, the ability to run at 8 kHz with 103.9 kVA output provides quieter operation and smoother torque, which can reduce wear on compressor components and cut repair bills.

Installation and Setup Guidance

The EVF9332-EV is designed for back-panel mounting inside a control cabinet. This space-saving arrangement simplifies integration into existing electrical enclosures. When installing, ensure adequate airflow around the unit to maintain the operating temperature range of 0 °C to +40 °C. Verify that the incoming mains voltage matches the drive's input specifications (320-440V AC, 45-65 Hz) before energizing. For installations using DC supply, the alternative DC input range is 460-620V DC. Always follow local electrical codes and use appropriate fusing and disconnects.

Maintenance and Reliability

Regular inspection is key to maximizing the lifespan of this frequency inverter. Periodically check for dust accumulation on heatsinks and fans, as blocked airflow can cause overheating. Confirm that all power terminals remain tight and free of corrosion. Because the unit operates at up to +40 °C ambient, ensure the control cabinet ventilation is unobstructed. These simple steps help prevent unexpected failures and reduce total cost of ownership.

High-Power Motor Control: The Lenze EVF9332-EV Frequency Inverter

Industrial operations that depend on high-horsepower motors face a constant challenge: balancing performance with energy costs. The Lenze EVF9332-EV frequency inverter, part of the Series 9300 line, addresses this by delivering robust power conversion with efficiency in mind. Rated at 120 HP, this unit is engineered for demanding applications where downtime is not an option.

Compatibility and Integration

As a Series 9300 product, the EVF9332-EV is designed to work within the Lenze ecosystem, but its standard AC input and output make it compatible with a wide range of three-phase induction motors. The inverter's ability to accept both AC and DC supply voltages provides flexibility for facilities with backup DC power systems. This dual-supply capability can be a cost-saving feature in plants that already have DC bus infrastructure.

Selection Guide and Purchasing Advice

When selecting a frequency inverter, verify that the rated motor power (120 HP) and voltage range (320-440V AC) match your motor nameplate. Consider the output kVA at your required switching frequency—if you need 8 kHz operation, the 103.9 kVA rating will support most loads. For availability and lifecycle support, contact AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
