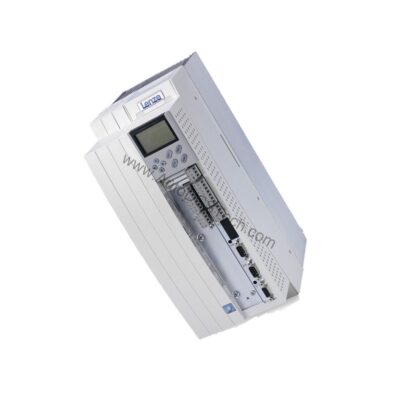

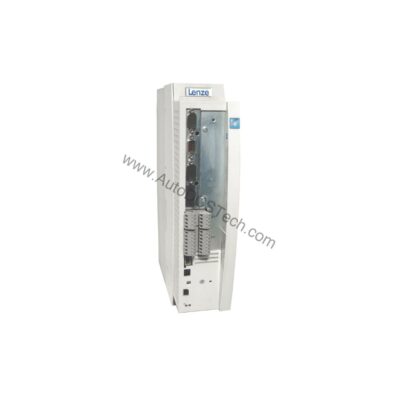

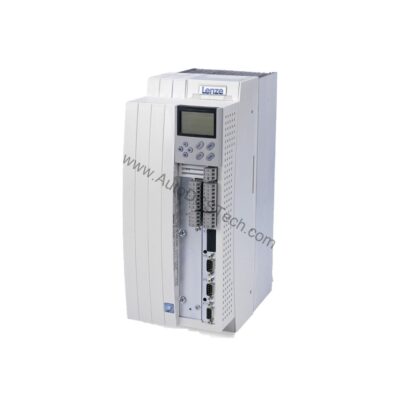

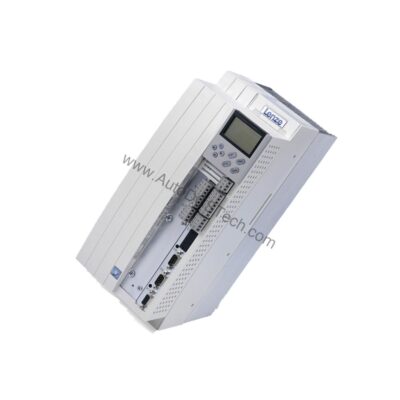

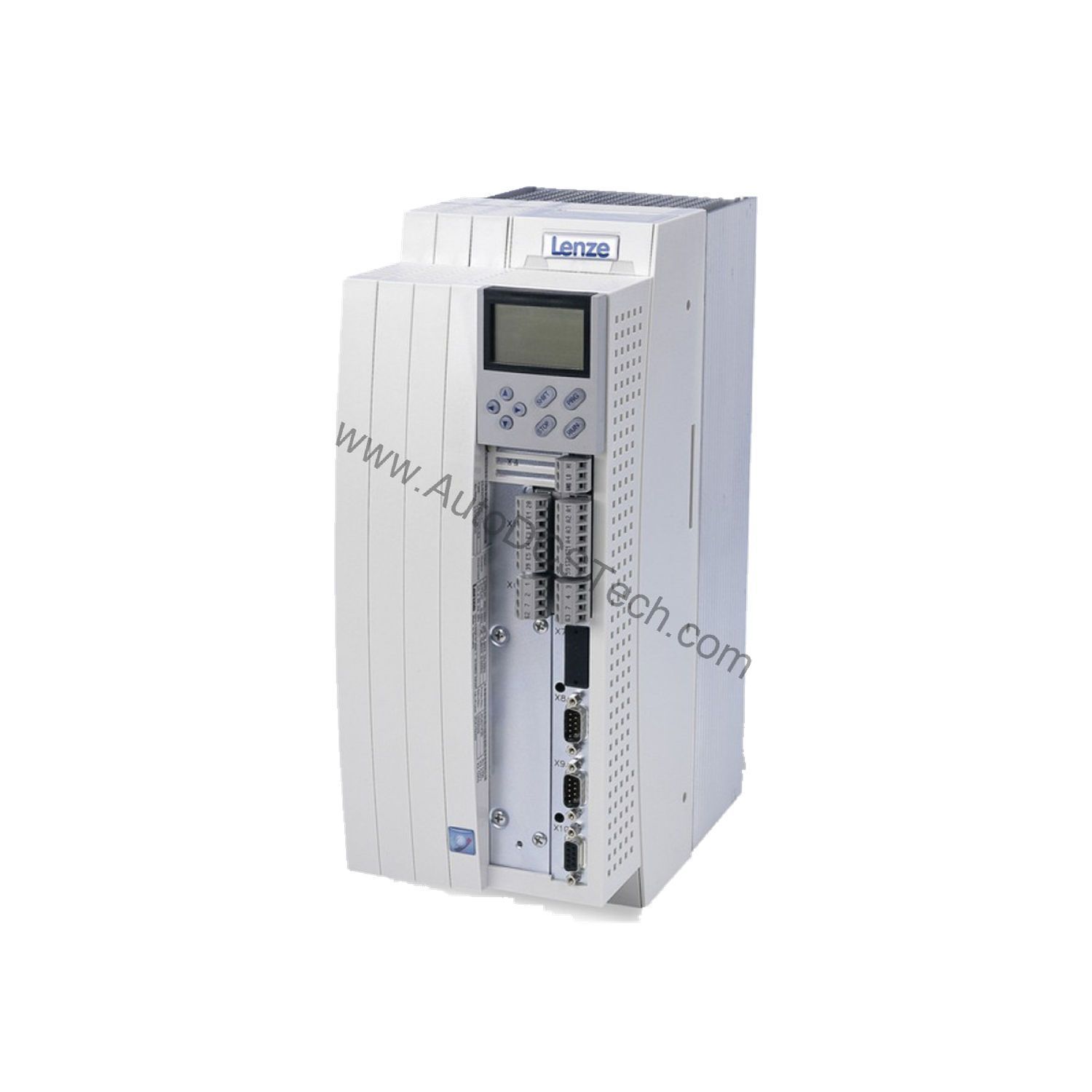

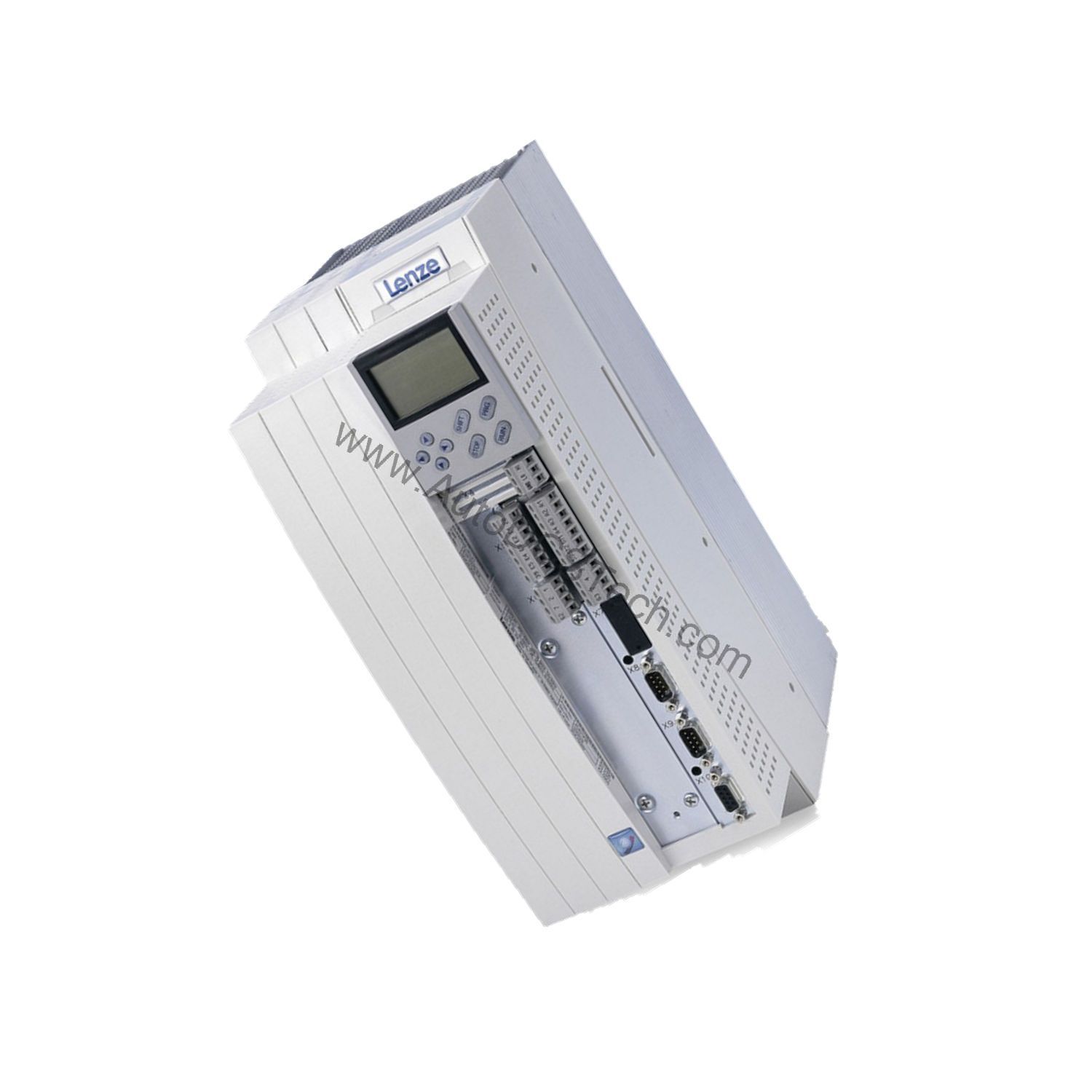

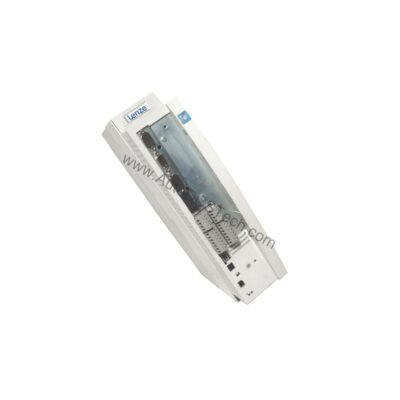

Lenze EVF9330-EV Frequency Inverter 74 HP 320-440V AC

Technical Specifications Breakdown

Key parameters for the EVF9330-EV are listed below for quick reference:

Real-World Applications That Demand Reliability

In industries such as water treatment, material handling, and HVAC, motor failures can halt production. The 74 HP output of this inverter supports heavy loads, while the wide mains frequency range (45-65 Hz) ensures compatibility with different regional power grids. The alternative DC supply voltage (460-620V DC) offers flexibility for facilities with DC bus systems, enabling seamless integration into existing power architectures.

For example, in a wastewater pumping station, the inverter's ability to handle fluctuating mains voltage (320-440V AC) prevents nuisance trips and extends motor life. Similarly, in a conveyor system, the precise frequency control reduces mechanical stress and improves energy efficiency.

Installation and Setup Guidance

Mount the EVF9330-EV on the back panel of a control cabinet for secure and accessible installation. Ensure adequate ventilation to maintain the operating temperature range of 0 °C to +40 °C. When connecting the mains supply, verify that the voltage and frequency match the inverter's ratings. Use a mains choke or filter to achieve the rated mains current of 97 Amps and to protect against harmonics. For DC supply applications, adhere to the specified DC voltage range (460-620V DC) and observe correct polarity.

Maintenance and Reliability

Regular inspection is essential for long-term reliability. Check for dust accumulation on heatsinks and fans, as this can impair cooling. Verify that all electrical connections remain tight and free from corrosion. Operate the inverter within its specified ambient temperature range to prevent overheating. Since the power loss is 1350W, ensure the control cabinet has adequate cooling capacity to dissipate heat effectively.

Why the EVF9330-EV Stands Out in High-Demand Motor Control

This unit delivers 74 horsepower, making it suitable for high-demand applications. It operates at mains voltage levels between 320 and 440 volts AC, ensuring stable performance across varied industrial power systems.

The EVF9330-EV is part of the Lenze Series 9300, a trusted line known for reliability and precision. Its primary function is to precisely manage motor operations, offering the control needed for pumps, fans, conveyors, and other heavy machinery.

Compatibility and Integration

The EVF9330-EV is designed for direct connection to standard AC mains and optional DC supplies. Its broad voltage and frequency ranges make it a versatile choice for retrofitting existing motor control systems. The output power ratings (74.8 kVA at 2/4 kHz and 61.7 kVA at 8 kHz) allow matching to various motor sizes and performance requirements.

Selection Guide and Purchasing Advice

When selecting a frequency inverter, consider the motor's horsepower, the mains voltage available, and the required output frequency. The EVF9330-EV meets these needs with its 74 HP rating and 320-440V AC input. For a reliable supply, AutoDCSTech offers genuine Lenze components. Contact AutoDCSTech to confirm availability and lifecycle status before ordering. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting and Common Issues

If the inverter fails to start, check the mains voltage and frequency against the specifications. Verify that the DC supply (if used) is within 460-620V DC. Overheating may occur if the ambient temperature exceeds +40 °C; improve cabinet ventilation. If the output power seems insufficient, confirm that the switching frequency is set correctly (2/4 kHz or 8 kHz) and that the motor is properly matched. For persistent issues, consult the Lenze documentation or contact AutoDCSTech for technical support.
