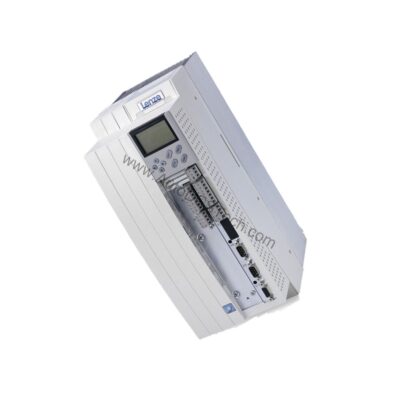

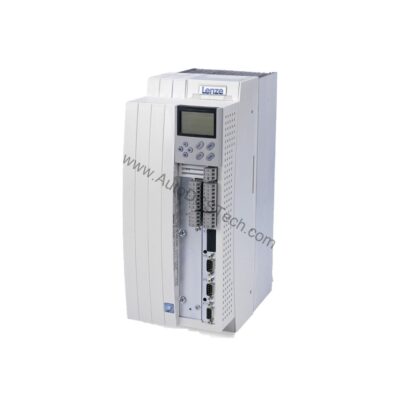

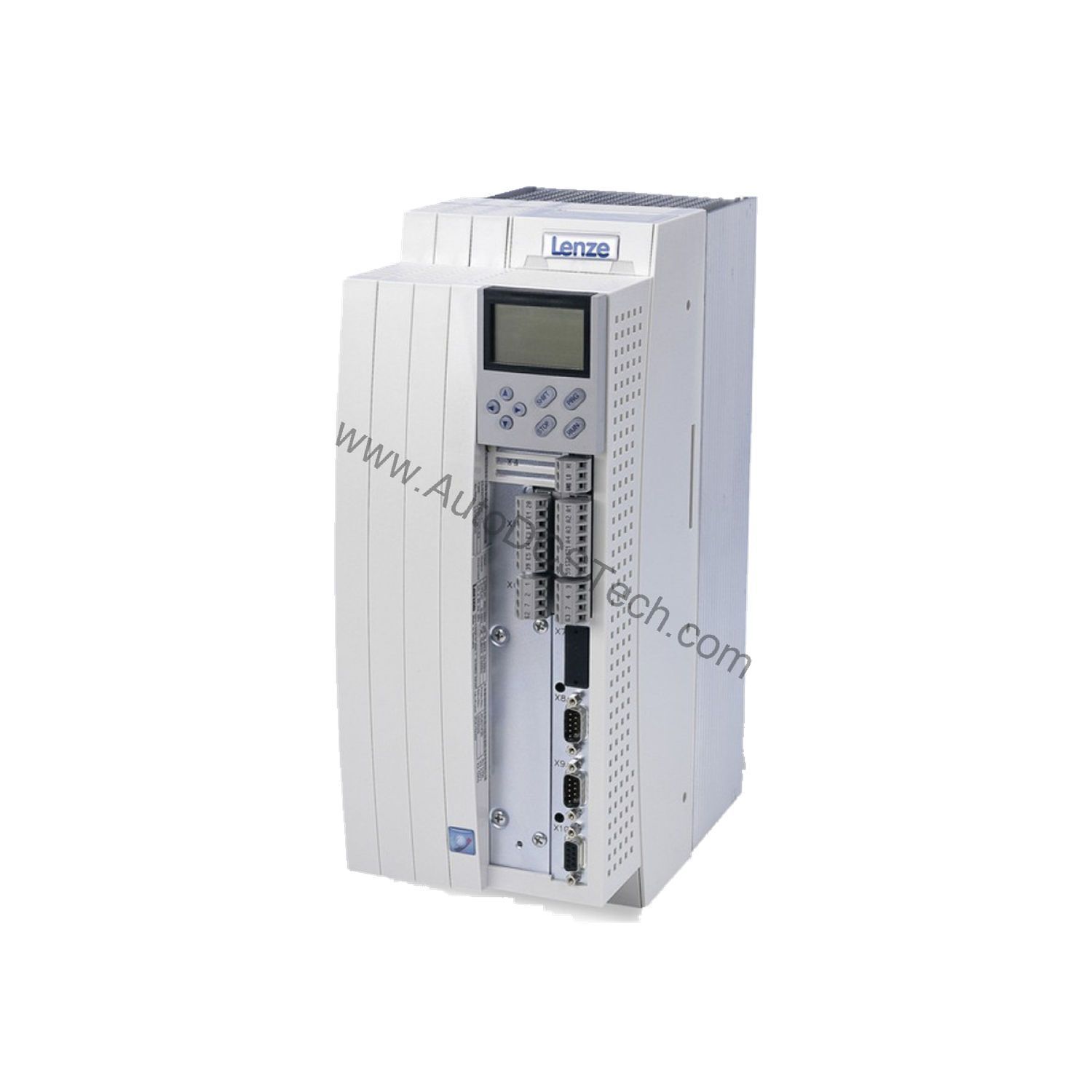

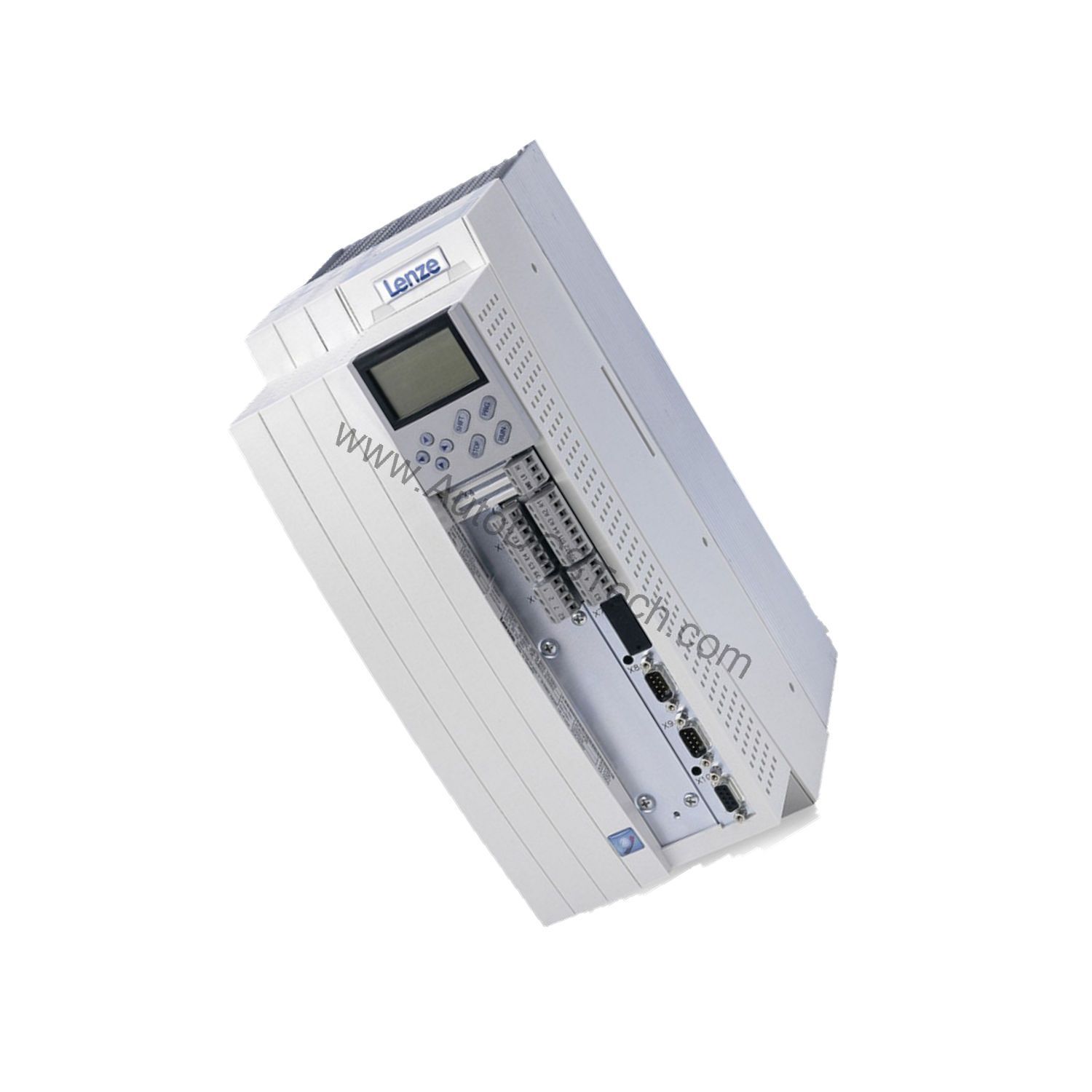

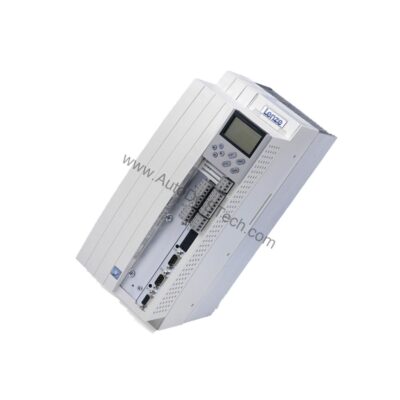

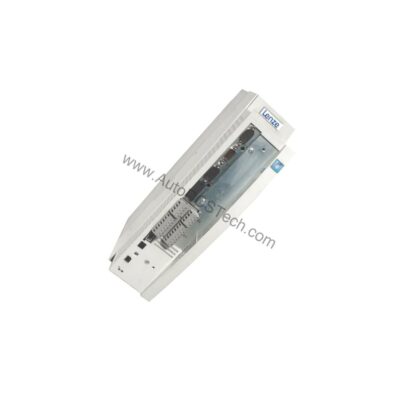

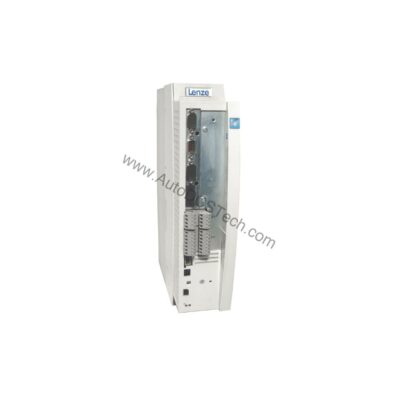

Lenze EVF9337-EVV110 Frequency Inverter Module 250 HP

Technical Specifications Breakdown

Key parameters for the EVF9337-EVV110 are listed below for quick reference:

This frequency inverter module is well-suited for a variety of industrial settings. In manufacturing plants, it can drive conveyor systems that require consistent torque and speed control. The wide supply voltage range (340-456V AC) ensures compatibility with different regional power grids, while the 45-65 Hz supply frequency allows operation in both 50 Hz and 60 Hz environments.

Installation & Setup Guidance

The EVF9337-EVV110 is designed for back panel mounting in a control cabinet, which simplifies integration into existing systems. When installing, ensure the cabinet provides adequate ventilation to maintain the operating temperature within the specified 0 °C to +50 °C range. The IP20 rating means the module should be protected from excessive dust and moisture; install it in a clean, dry environment. Always follow standard safety procedures when connecting power and motor cables.

Maintenance & Reliability

To ensure long-term reliability, periodic inspections are recommended. Check for dust accumulation on the heatsink and ensure that all connections remain tight. The module's substantial build quality, indicated by its weight of 175 kilograms including the RFI filter, contributes to its durability. Regular maintenance will help prevent unexpected downtime and extend the life of the unit.

Compatibility & Integration

As part of the Lenze Series 9300, this module is designed to work with other components in the series. However, always verify compatibility with your existing motor and control system before ordering. The standard design ensures straightforward integration into most industrial setups.

Selection Guide & Purchasing Advice

When selecting a frequency inverter, consider the motor's power rating, supply voltage, and environmental conditions. The EVF9337-EVV110 meets these criteria with its 250 HP rating and 340-456V AC input. At AutoDCSTech, we stock this module and can provide expert advice on compatibility and availability. Contact us to confirm the current lifecycle status and ensure this part meets your requirements.

Troubleshooting & Common Issues

If the module fails to start, check the supply voltage and frequency to ensure they are within the specified ranges (340-456V AC, 45-65 Hz). Verify that the mains current does not exceed 285A. Overheating can occur if the ambient temperature rises above +50 °C; improve ventilation or reduce load. For any persistent issues, consult the Lenze documentation or contact AutoDCSTech for technical support.
