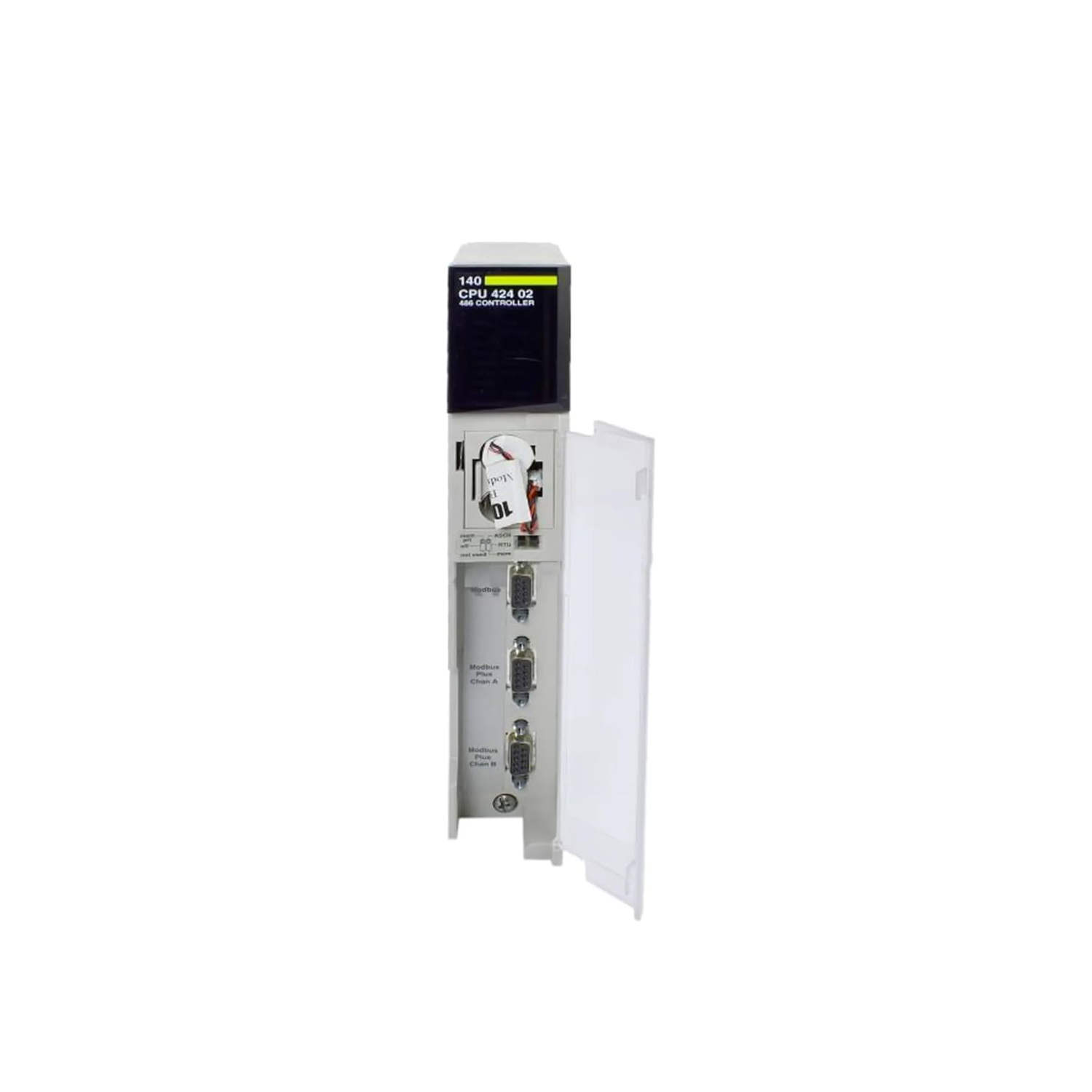

Product Overview
Schneider Electric's Modicon Quantum series delivers the 140CPU42402C, a CPU module engineered for demanding industrial automation tasks. This component integrates a 486 controller CPU, providing reliable compute performance for both local and remote I/O configurations. It is designed to streamline control in manufacturing, process, and infrastructure environments where uptime and precision are critical.
Technical Specifications Breakdown
Key parameters for the 140CPU42402C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | CPU Module |
| Product Line | Modicon Quantum |
| Part Number | 140CPU42402C |
| Processor | 486 Controller CPU |
| I/O Compatibility | Local & Remote I/O |
| Communication Ports | 2 x Modbus Plus (MB+) |
| Instruction Set | IEC 61131-3 |
| Voltage Supply | 5 V DC |
| Built-in Flash Memory | Yes |
| Operating Temperature | 0…60°C |
| Memory | 2 MB RAM |
| Execution Time (Boolean) | ~0.3 µs |
| Communication Protocols | Modbus, Modbus Plus |
| Coating | Conformal Coated (CC) |
| Watchdog Timer | Integrated |
| Mounting | Rack-mounted |
Industry Applications
This controller excels in applications requiring robust networking and deterministic control. In water treatment facilities, the dual Modbus Plus ports enable redundant communication with remote I/O racks, ensuring continuous monitoring. For packaging lines, the 0.3 µs Boolean execution time supports high-speed logic sequences. The conformal coating protects against humidity in food processing environments, reducing failure rates.

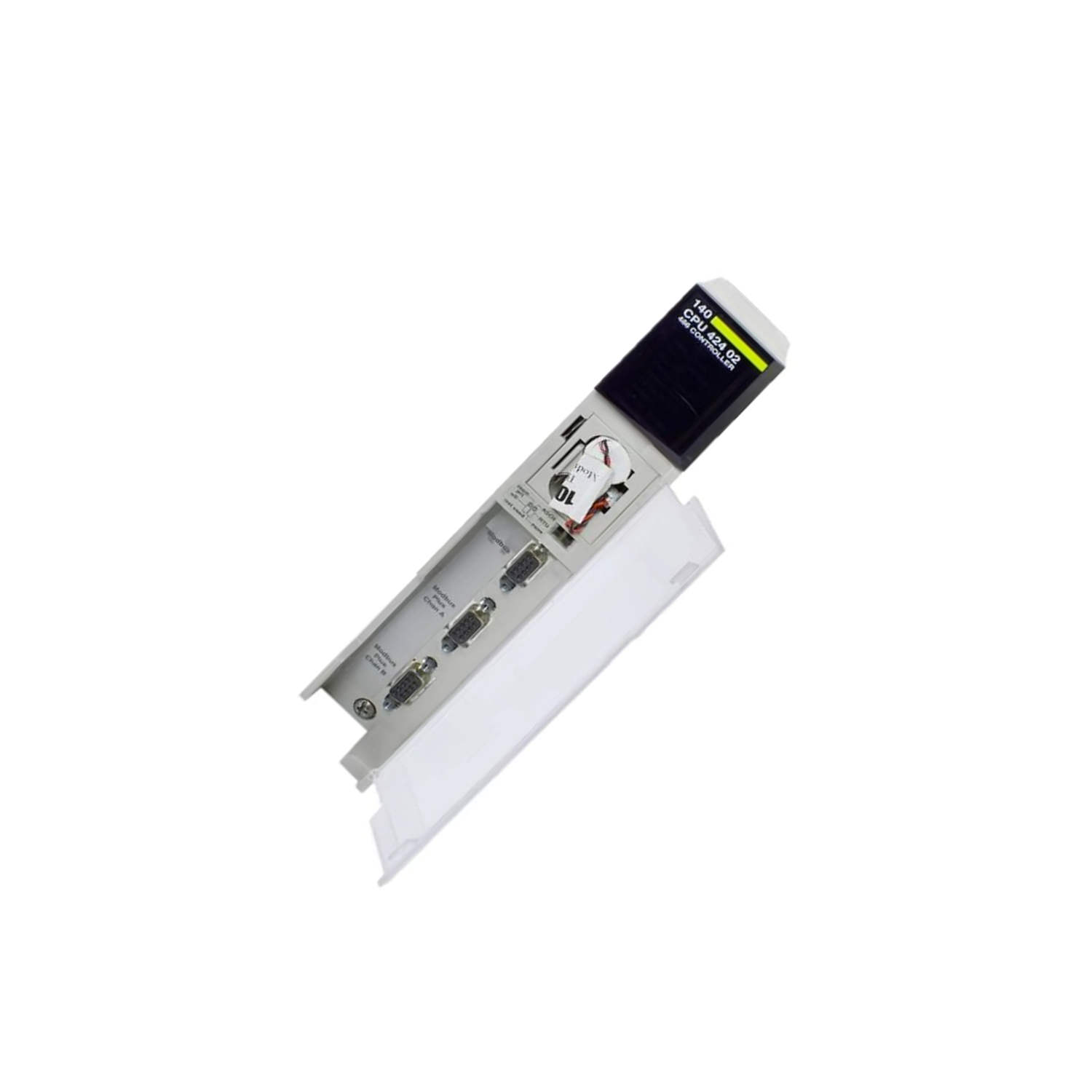

Installation & Setup Guidance
Mount the module in a Quantum series rack, ensuring proper alignment with the backplane. Connect the 5 V DC supply from the rack power supply. Use shielded twisted-pair cables for Modbus Plus connections to minimize noise. Configure the node address via the programming software (Unity Pro or Concept). Verify the watchdog timer settings during commissioning to match system safety requirements.
Maintenance & Reliability
The integrated watchdog timer enhances system reliability by monitoring CPU operation. Inspect the conformal coating periodically for damage, especially in harsh environments. Keep the operating temperature within 0…60°C. Replace the module if the watchdog triggers frequently, indicating potential hardware degradation.
Compatibility & Integration
The 140CPU42402C supports Modbus and Modbus Plus protocols, enabling integration with Schneider Electric drives, HMIs, and third-party devices. It is compatible with local and remote I/O modules in the Quantum series. Use Unity Pro or Concept software for programming, leveraging the IEC 61131-3 instruction set.
Selection Guide & Purchasing Advice
When selecting a CPU module, consider the I/O count and network topology. The 140CPU42402C is ideal for systems requiring dual Modbus Plus ports and moderate memory (2 MB RAM). Contact SpareTechPLC for current lifecycle status and availability before ordering. Our team can help match this module to your application.
Troubleshooting & Common Issues
If the module fails to communicate, verify Modbus Plus cable connections and node addresses. A watchdog timeout may indicate a program fault or power supply issue. Check the 5 V DC supply voltage. For memory errors, reload the application from backup. If problems persist, replace the module.
