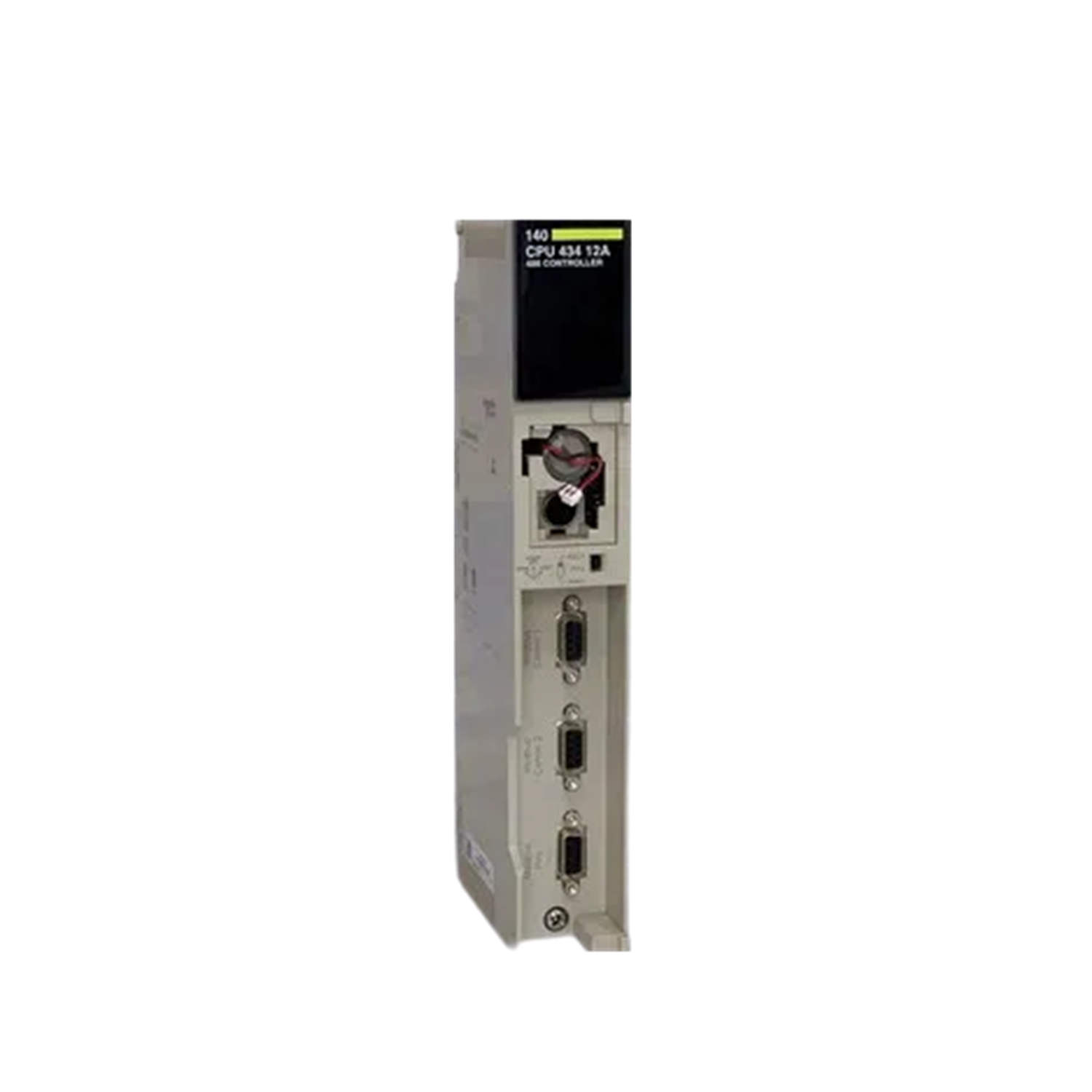

Product Overview
The 140CPU43412UC is a CPU module from Schneider Electric's Modicon Quantum series, designed for high-performance control systems. With a clock frequency of 66 MHz, it handles complex automation tasks efficiently. This module supports two racks, providing flexibility for system expansion.
Technical Specifications Breakdown
Key parameters for the 140CPU43412UC are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | CPU Module |
| Product Line | Modicon Quantum |
| Part Number | 140CPU43412UC |
| Clock Frequency | 66 MHz |
| Racks | 2 |
| Remote I/O | 31.7K in / 31.7K out |
| Exec Time (Boolean) | 0.12–0.59 µs |
| RAM | 1056 KB |
| Remote I/O Stations | 31 |
| I/O Interrupts | High-speed, counters |
| Instr. per ms | 2.49 Kinst/ms |
| Distributed I/O | 8K in / 8K out |
| Comm Ports | 1 Modbus Plus, 2 Modbus |
| Power | 1800 mA @ 5 V |
| Optional Modules | 6 |
| LEDs | 7 |
| Max Ethernet Connections | 6 |
Industry Applications
This CPU module excels in manufacturing lines requiring high-speed interrupt handling and precise counting. Its 31 remote I/O stations and 31.7K I/O capacity make it ideal for large-scale distributed control systems. The 0.12–0.59 µs Boolean execution time ensures rapid response in critical processes.

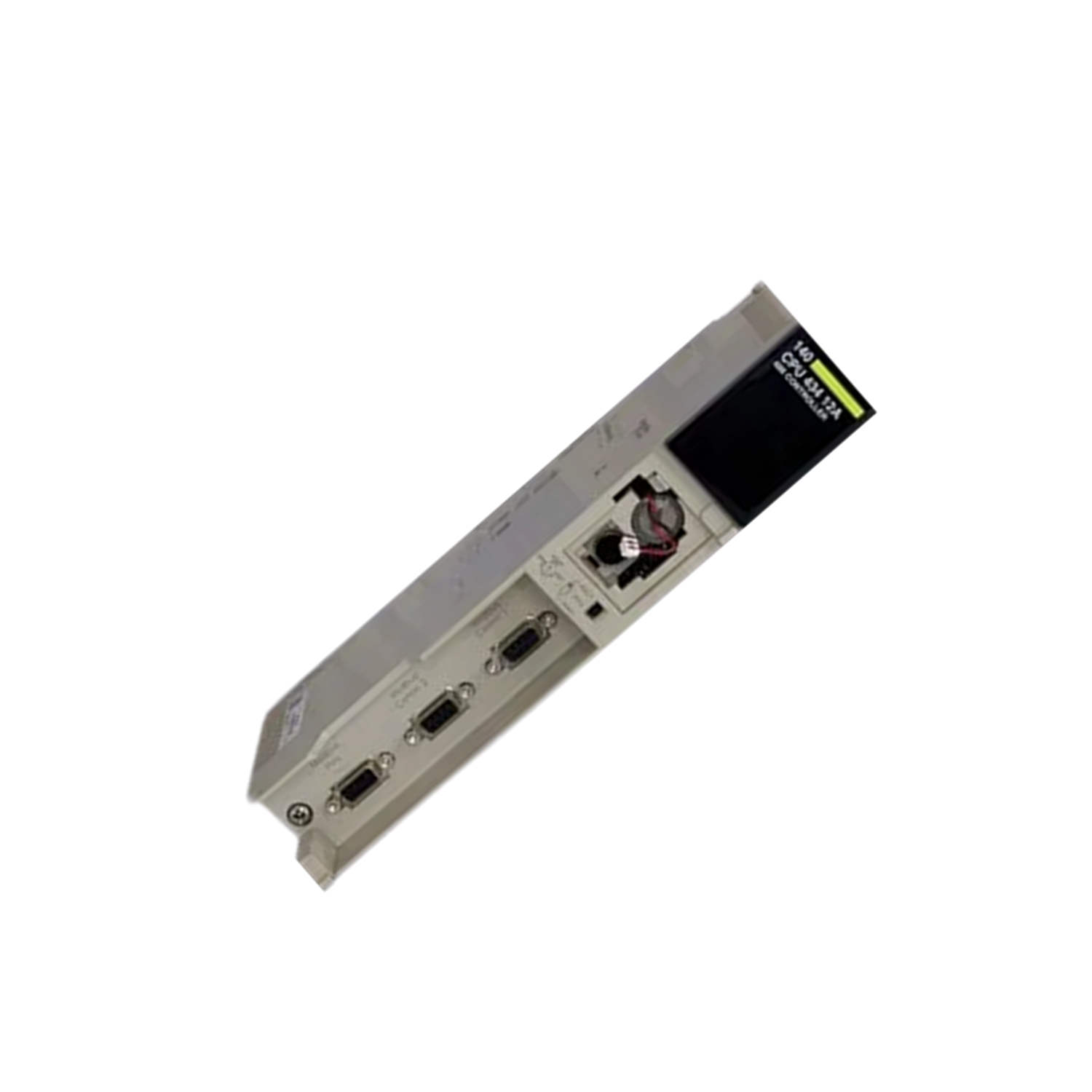

Installation & Setup Guidance
Mount the module in a Quantum rack with proper backplane connection. Ensure the power supply delivers 1800 mA at 5 V. Configure the Modbus Plus and Modbus ports using the slide switch for ASCII/RTU/Memory mode. Use the key switch for memory start/stop and protection.
Maintenance & Reliability
Inspect the seven LEDs regularly: RUN, READY, BAT LOW, ERROR A, and communication status indicators. The conformal coating (Humiseal 1A33) protects against moisture and contaminants. Periodically check battery status via the BAT LOW LED.
Compatibility & Integration
The module integrates via 1 Modbus Plus and 2 Modbus ports. It supports up to 6 Ethernet TCP/IP connections and 6 optional modules (Ethernet, Modbus, Profibus DP, etc.). Remote I/O uses S908 remote I/O; distributed I/O uses Modbus Plus.
Selection Guide & Purchasing Advice
When selecting a replacement or upgrade, verify that your system requires 1056 KB RAM and 66 MHz clock speed. The 140CPU43412UC is available from SpareTechPLC. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
If the ERROR A LED is red, check the Modbus Plus network for faults. A red BAT LOW LED indicates the battery needs replacement. If the module fails to start, verify the key switch position and power supply current.
