Product Introduction

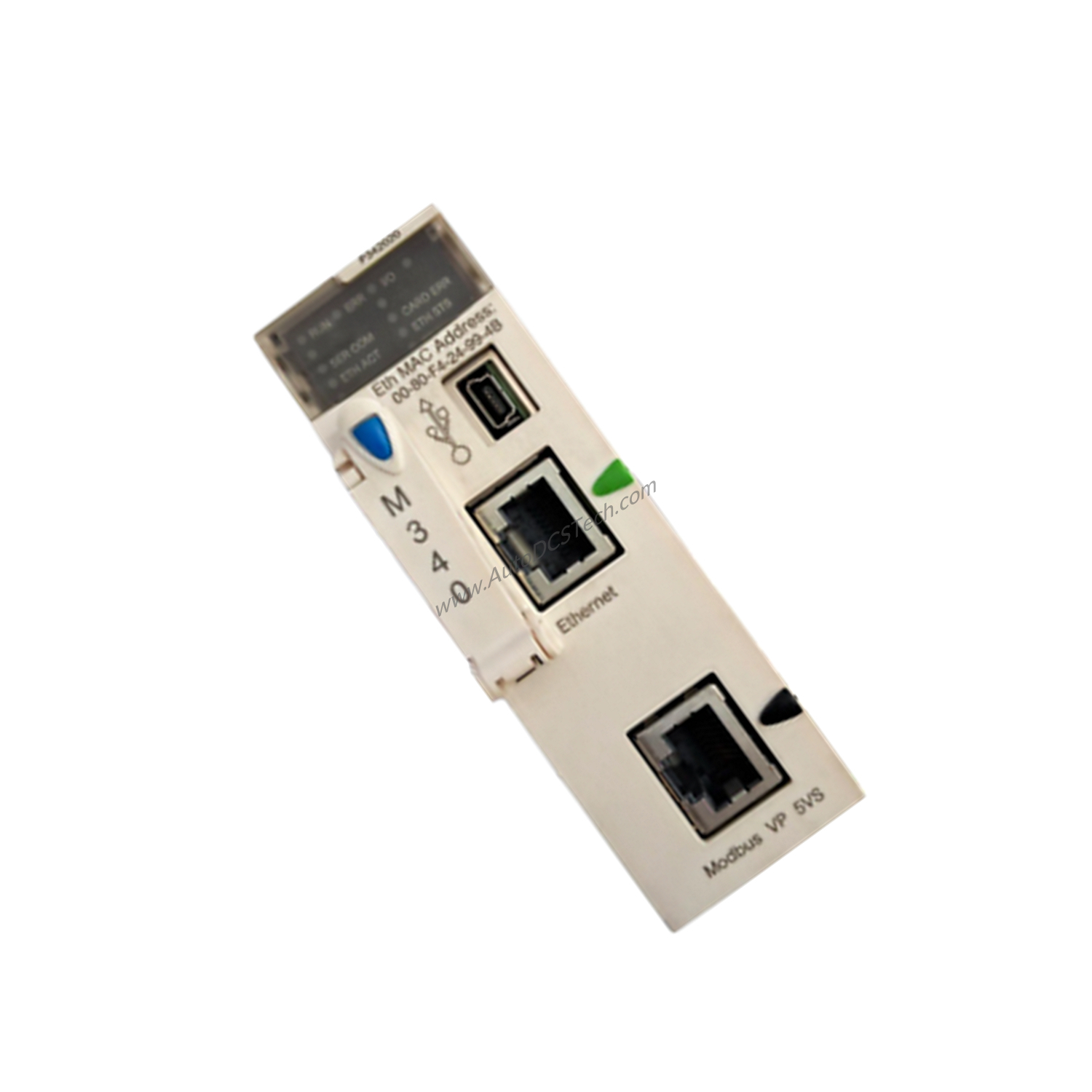

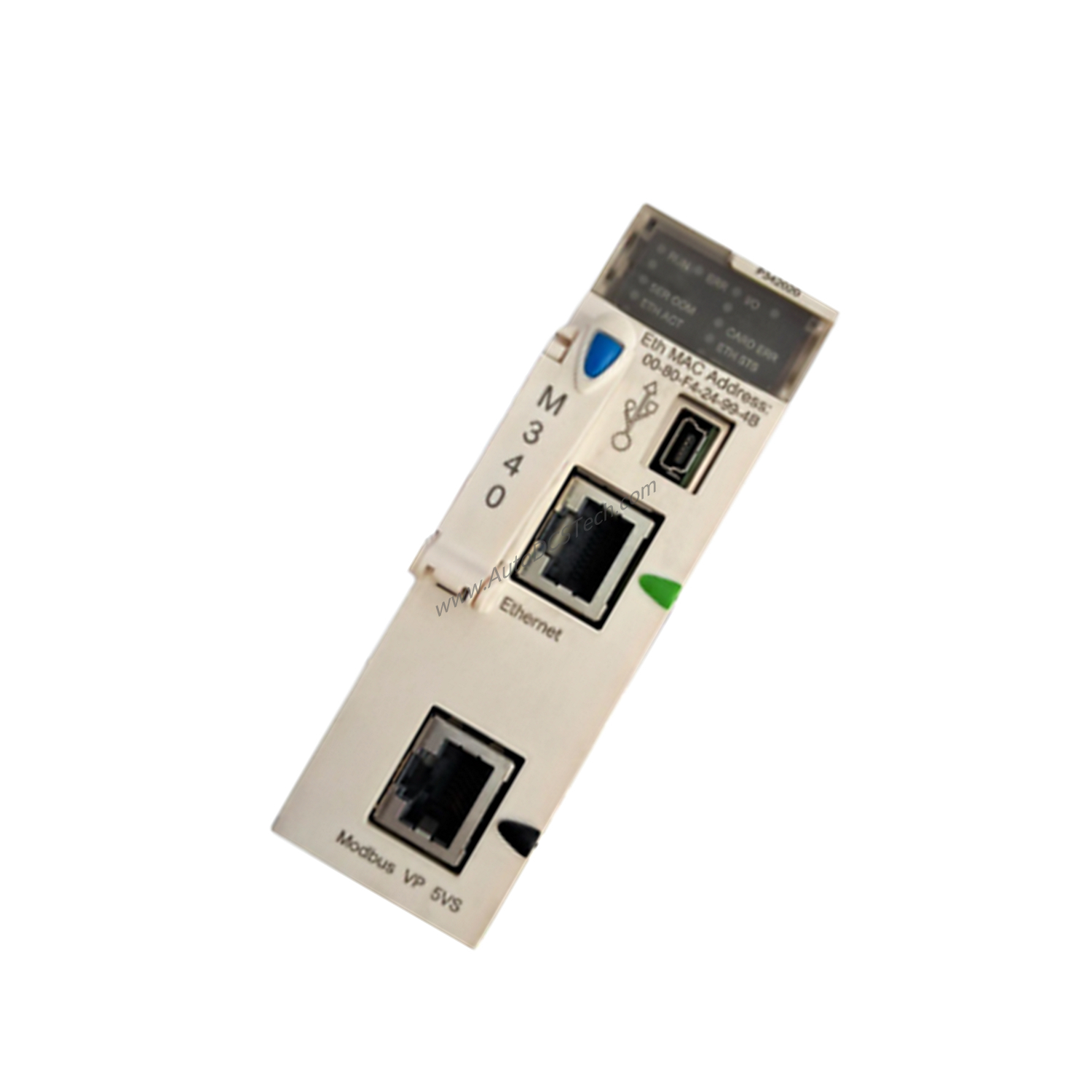

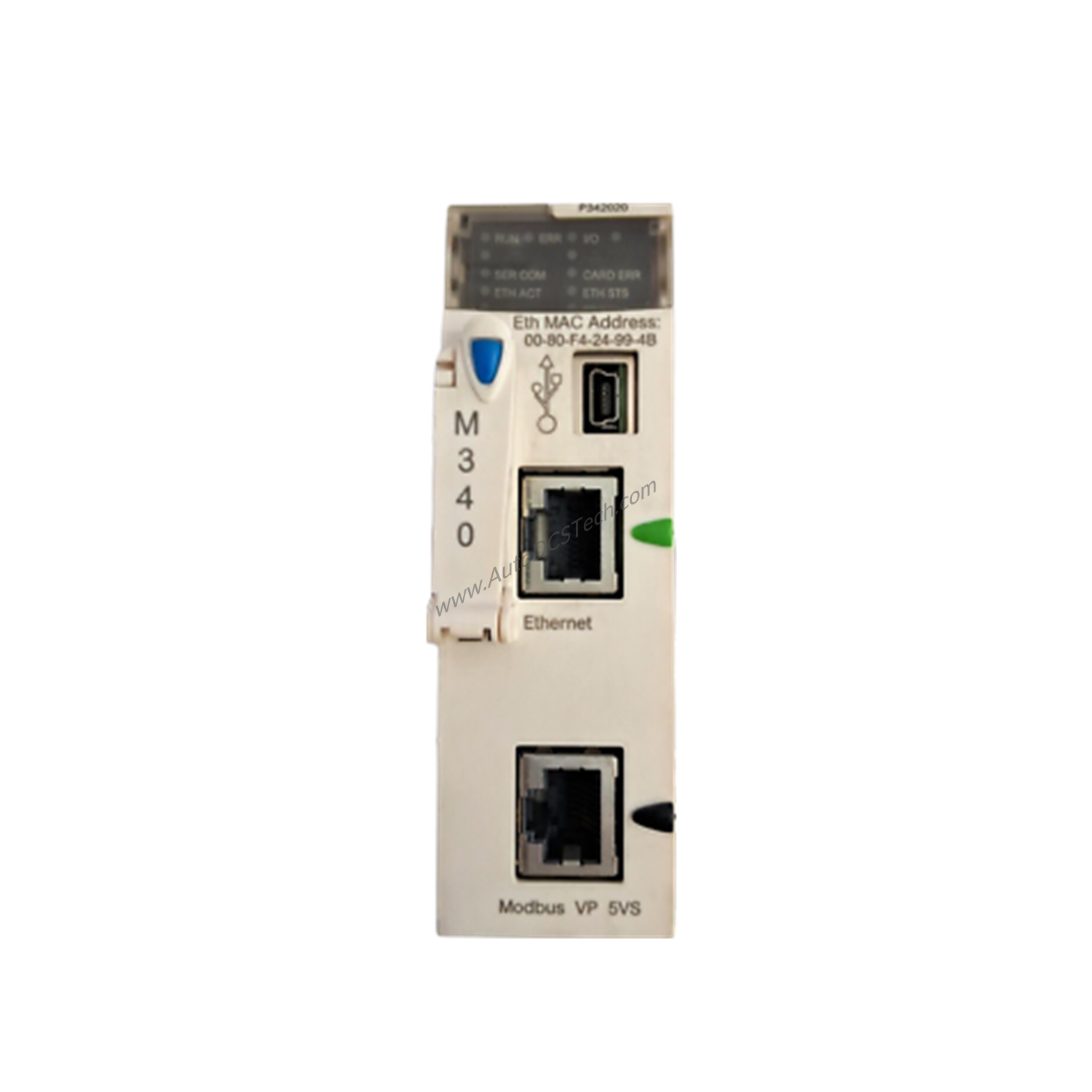

When rising operational costs demand smarter automation, the Schneider BMXP342020 processor module delivers a cost-effective solution. Part of the Modicon M340 automation platform, this processor module handles up to 1024 discrete and 256 analog I/O in multi-rack configurations, reducing the need for additional controllers. With integrated Modbus and Ethernet TCP/IP, it streamlines communication and cuts wiring expenses. The BMXP342020 is designed to optimize your control system investment.
Technical Specifications Breakdown
The BMXP342020 offers key specs that directly impact cost savings. Its execution time of 0.12 µs for Boolean instructions ensures fast processing, minimizing cycle times and boosting machine throughput. The 4096 kB internal RAM (with 3584 kB for program, constants, and symbols) supports complex applications without expensive memory upgrades. Current consumption is only 95 mA at 24 V DC, reducing power costs over the system's life. The module supports up to 4 racks and 11 slots, allowing scalable I/O expansion without replacing the processor.
Industry Applications
In manufacturing lines, the BMXP342020 controls up to 1024 discrete I/O across multiple racks, reducing the number of controllers needed and lowering hardware costs. For process industries, its 256 analog I/O capacity handles precise measurements, reducing waste and improving yield. The embedded Ethernet TCP/IP enables remote monitoring, cutting travel expenses for maintenance. In water treatment plants, the module's Modbus connectivity integrates with existing SCADA systems, avoiding costly retrofits.
Installation & Setup Guidance
Mount the BMXP342020 on a Modicon M340 rack using the internal power supply via rack. Connect the Ethernet TCP/IP RJ45 port (10/100 Mbit/s) to your network for programming and data exchange. Use the USB port (12 Mbit/s) for local configuration. For serial links, select RS232C or RS485 based on distance: up to 10 m for non-isolated segments, or up to 1000 m with isolated links. Ensure ambient air temperature stays between 32 and 140 °F (0 to 60 °C) for reliable operation.
Maintenance & Reliability
To maximize ROI, inspect the BMXP342020 periodically for dust accumulation, as its IP20 rating requires clean environments. The module's diagnostic counters for Modbus help identify communication issues early, preventing costly downtime. With an operating temperature range of 0 to 60 °C and relative humidity of 10 to 95% (non-condensing), it suits most industrial settings. The CE marking and UL certification ensure compliance, reducing liability risks. Regular firmware updates via Ethernet maintain performance.
Compatibility & Integration
The BMXP342020 integrates seamlessly with Modicon M340 racks and supports up to 2 Ethernet communication modules and 4 AS-Interface modules. It communicates via Modbus TCP messaging, SNMP network administrator, and bandwidth management over Ethernet TCP/IP. The module works with character mode and Modbus protocols, supporting up to 248 addresses per segment. This compatibility reduces integration costs by using existing network infrastructure.
Selection Guide & Purchasing Advice
Before purchasing the BMXP342020, verify your I/O requirements: it supports up to 1024 discrete and 256 analog I/O in multi-rack setups, or 704 discrete and 66 analog I/O in single-rack configurations. Confirm your rack size (up to 4 racks, 11 slots) and communication needs (Ethernet, Modbus, USB). The supplied memory card (BMXRMS008MP) backs up programs and activates the web server. For current availability and lifecycle status, contact SpareTechPLC — a trusted supplier of industrial automation parts.
Troubleshooting & Common Issues
If the BMXP342020 shows a red ERR LED, check for processor or system faults. A red I/O LED indicates an I/O module fault; verify connections and module seating. The CARD ERR LED signals a memory card issue — ensure the BMXRMS008MP is properly inserted. Slow communication may stem from incorrect baud rates (0.3 to 19.2 kbit/s) or cable lengths exceeding limits. Use the diagnostic counters to pinpoint Modbus errors, reducing troubleshooting time and costs.
