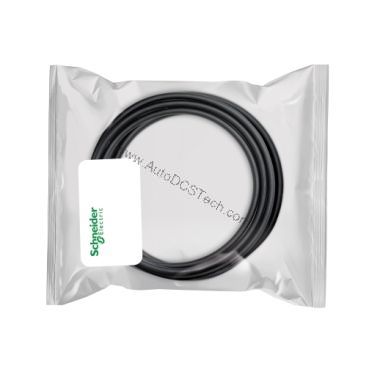

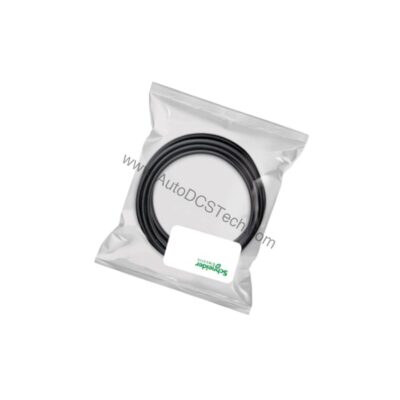

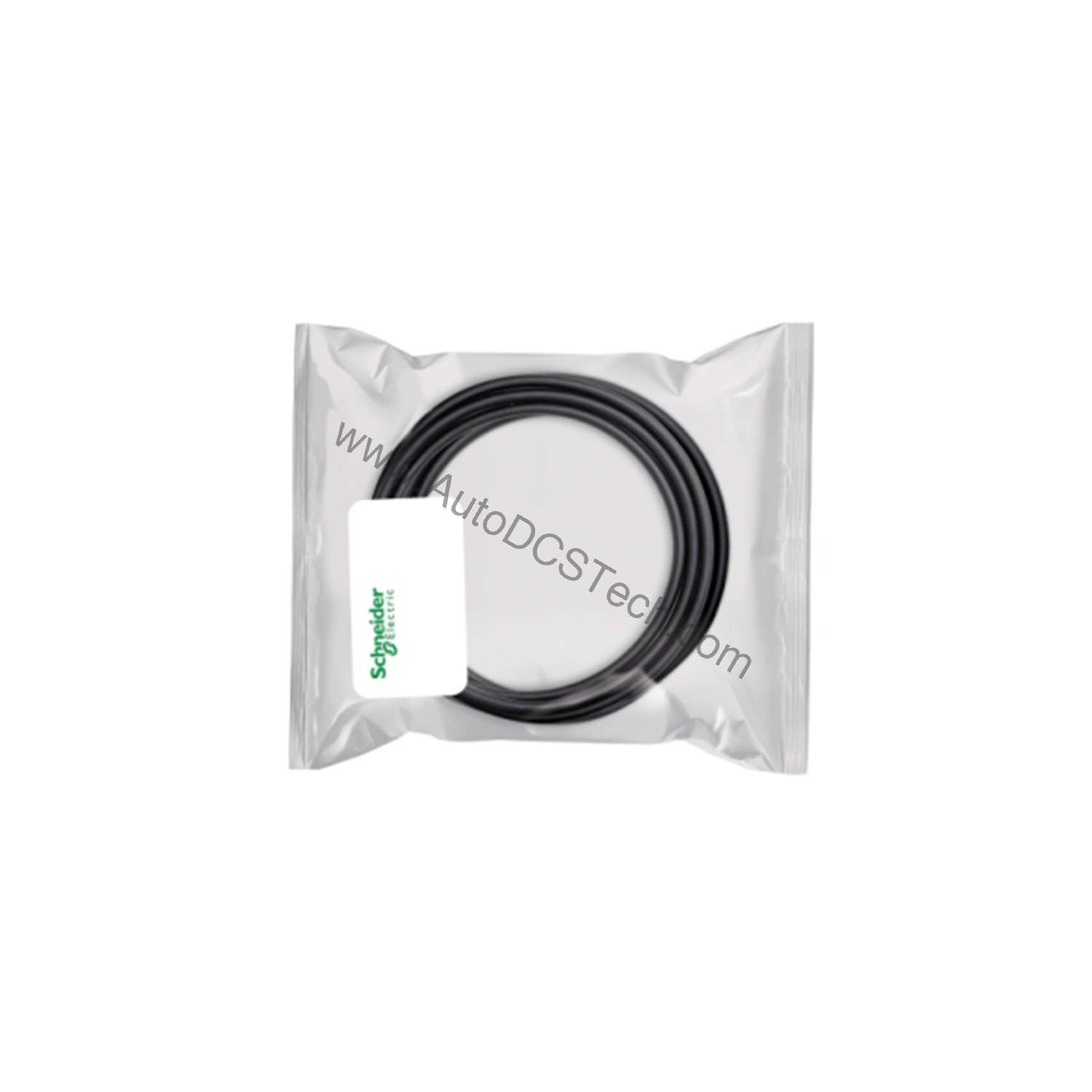

Schneider ABFM08S202 Modicon Quantum Cabled Connector, 8-Channel Analog Input

Technical Specifications Breakdown

Key parameters for the ABFM08S202 are listed below for quick reference:

Industry Applications

Process Control and Monitoring

In chemical plants or refineries, the ABFM08S202 reliably transmits 4-20 mA analog current signals from field transmitters to the Modicon Quantum controller. The shielded cable minimizes noise pickup, preserving signal accuracy over the 2-meter distance.

Manufacturing Automation

For production lines requiring precise current monitoring (e.g., motor current sensors), this connector provides a dedicated 8-channel interface. The robust PVC insulation withstands the temperature variations typical of factory floors.

Water and Wastewater Treatment

Analog current inputs from flow meters and pressure transducers are common in treatment plants. The ABFM08S202 ensures a secure, weather-resistant connection within control cabinets, even in non-condensing environments.

Installation and Setup Guidance

When integrating the ABFM08S202, ensure the SUB-D connector is firmly seated and the locking screws are tightened to prevent vibration loosening. Route the shielded cable away from high-voltage power lines to maintain signal integrity. The AWG 24 wire section is suitable for standard terminal blocks; verify compatibility with your specific I/O module (e.g., 140AC013000).

Maintenance and Reliability

The PVC insulation and shielded construction provide reliable operation from -20 °C to +60 °C. Periodically inspect the connector for physical damage or corrosion, especially in humid environments. No special cleaning agents are required; a dry cloth is sufficient for routine maintenance.

Reliable Analog Input Connection for Modicon Quantum Systems

The Schneider Electric ABFM08S202 is a purpose-built cabled connector designed for Modicon Quantum programmable logic controllers. This component provides a robust interface for analog current input signals across eight channels, ensuring accurate data acquisition in demanding industrial environments. Its pre-wired, shielded cable simplifies installation and reduces signal interference.

This connector is engineered for engineers who demand reliable signal integrity. The 6.6-foot (2-meter) multi-conductor shielded cable offers flexibility in cabinet layouts while protecting against electromagnetic interference. The SUB-D connector with 25 ways provides a secure and standardized connection to the PLC.

Compatibility and Integration

This accessory is designed for the Modicon Quantum PLC platform. It is compatible with the 140AC013000 analog input module. The 25-way SUB-D connector matches standard Quantum I/O backplane connections, ensuring straightforward integration.

Selection Guide and Purchasing Advice

For new installations or replacements requiring a pre-cabled 8-channel analog input connector, the ABFM08S202 is a direct fit. Verify your PLC rack and module compatibility before ordering. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
