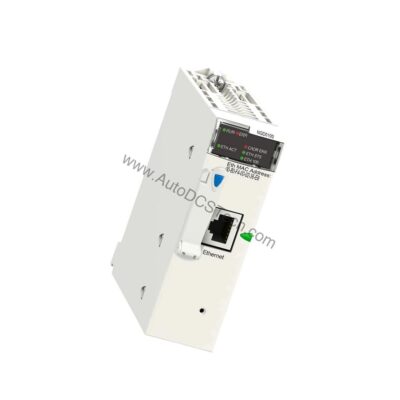

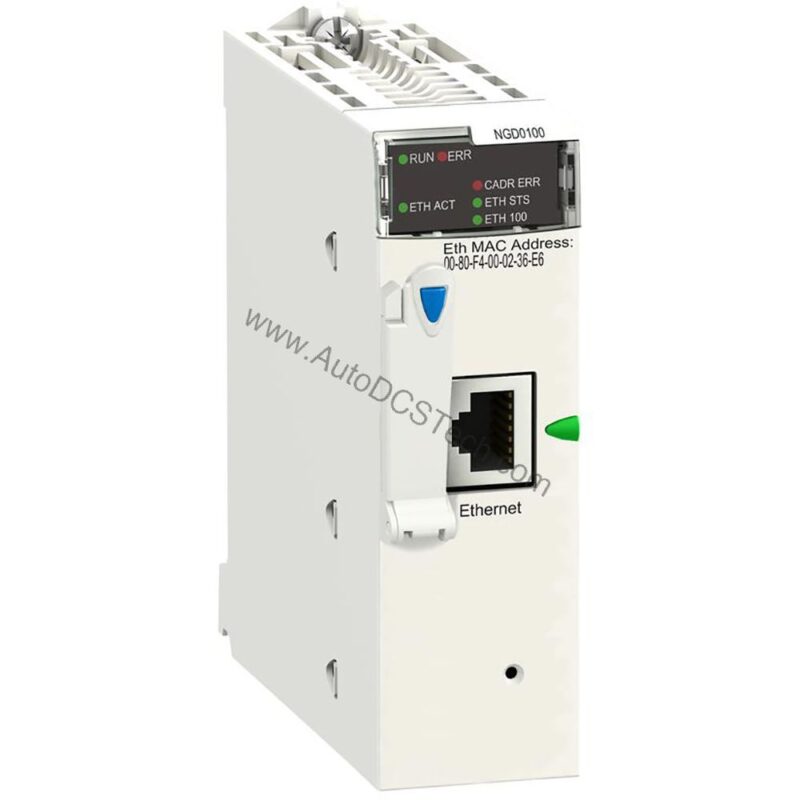

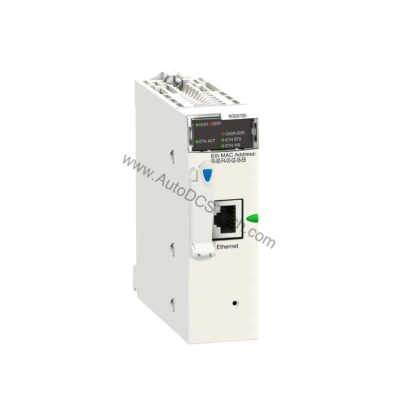

BMXNGD0100: Modicon M580 Global Data Communication Module
The BMXNGD0100 is the Modicon M580 Global Data Communication Module covered on this page. The attribute that decides whether it fits the existing installation without modification is Supplied Flash memory card (BMXRWSC016M).
What separates this variant from its siblings is modicon m580 global data communication module. A communication or network module is judged by the protocol it carries and the bus it joins, not by its catalogue headline. modicon m580 global data communication module sets which controllers and field devices it can bridge, and the isolation and termination it provides. Matching Supplied Flash memory card (BMXRWSC016M) against the existing network topology avoids a module that fits the rack but cannot talk to the rest of the system.
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Brand | Schneider |
| Part Number | BMXNGD0100 |
| Integrated connection | Ethernet RJ45 10/100 Mbit/s 1 twisted pair |
| Communication service | Global Data, Modbus TCP messaging |
| Supply | Internal power supply via rack |
| Current consumption | 90 mA 24 V DC |
| Memory | Supplied Flash memory card (BMXRWSC016M) |
| Protective treatment | TC |
| Marking | CE |
| Net weight | 0.4 lb(US) (0.2 kg) |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| schneider-bmxnoc0401-modicon-m340-ethernet-tcp-ip-network-module | confirm the configuration against your installation |
| schneider-bmxnoe0100-modicon-m340-tcp-ip-ethernet-network-module | confirm the configuration against your installation |
| schneider-bmxnoe0100h-ethernet-tcp-ip-network-module-for-modicon-m340 | confirm the configuration against your installation |
| schneider-bmxnoe0110-ethernet-tcp-ip-network-module-for-modicon-m340 | confirm the configuration against your installation |
| schneider-bmxnoe0110h-ethernet-tcp-ip-network-module-for-modicon-m340 | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | BMXNGD0100 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
