Technical Specifications Breakdown
Key parameters for the BMENOS0300 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Product Range | Modicon X80 |
| Supply Voltage | 24 V back plane |
| Power Consumption (25 °C) | 3.3 W (135 mA) |
| Power Consumption (60 °C) | 4.5 W (185 mA) |
| Number of Ports | 3 |
| Communication Protocol | EtherNet/IP |
| IP Degree of Protection | IP20 |
| Operating Temperature | 32…140 °F (0…60 °C) |
| Storage Temperature | -40…185 °F (-40…85 °C) |
| Module Format | Standard |
Industry Applications for the Switch Module
In manufacturing cells, the three ports allow daisy-chaining or star topologies without external switches, reducing cabling complexity. For material handling systems, the module's 24V backplane power and low heat dissipation (3.3W at 25°C) enable installation in compact enclosures without active cooling. The IP20 rating suits clean, indoor control cabinets where dust and moisture are controlled.
Installation and Setup Guidance

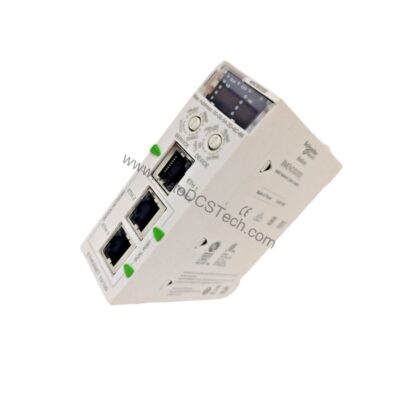

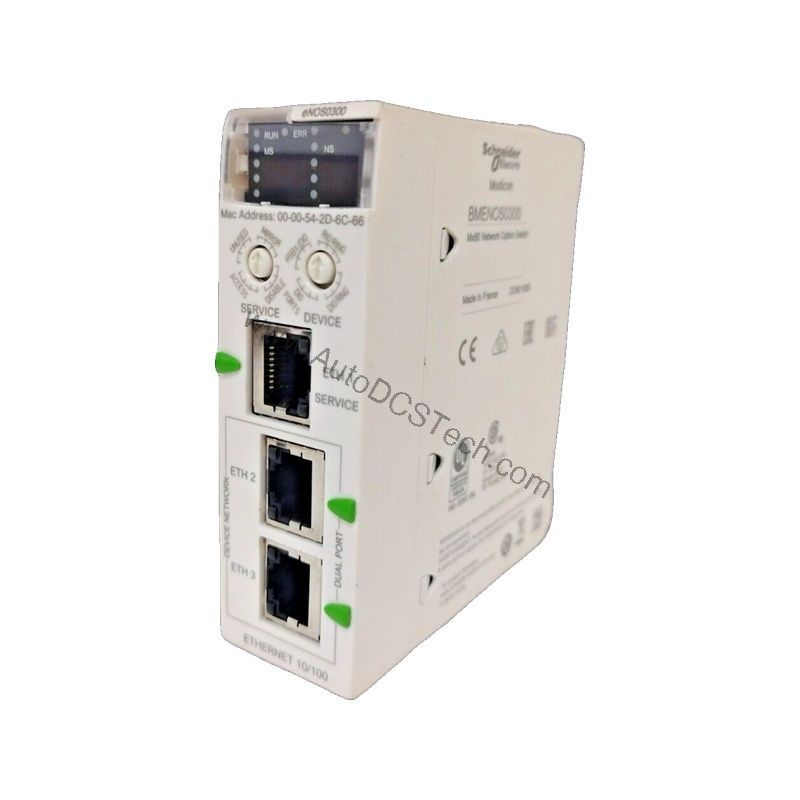

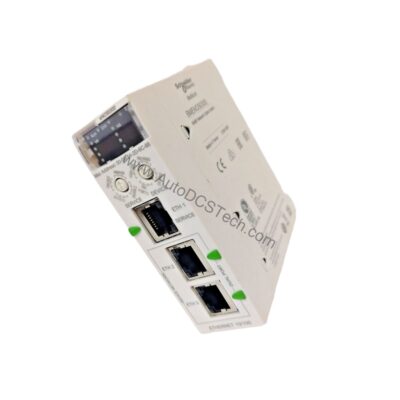

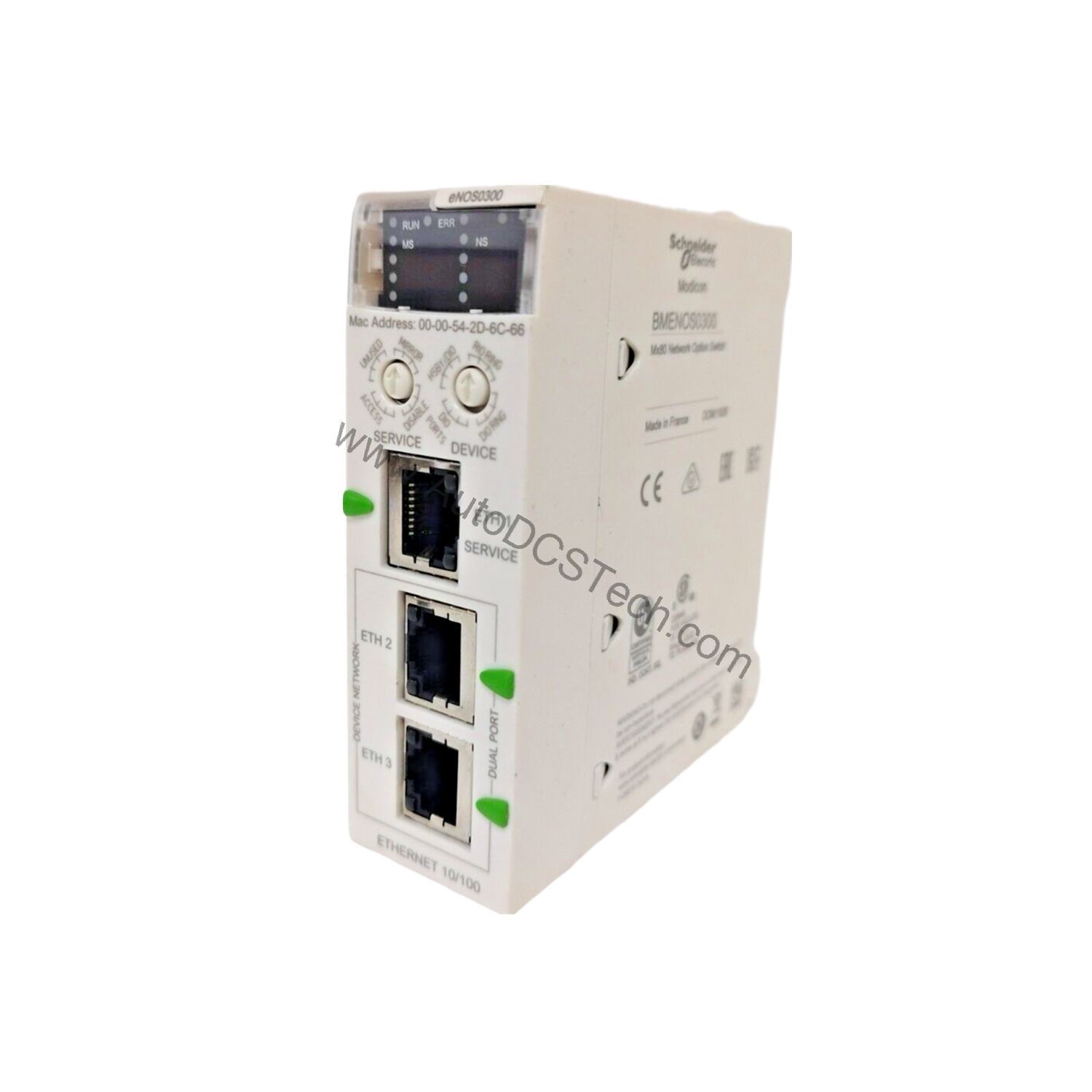

Mount the BMENOS0300 directly onto a compatible BMEXBP... backplane within the Modicon X80 rack. Ensure the backplane supplies stable 24V power. Connect Ethernet/IP cables to the integrated ports labeled for device network and service port. Observe the local signaling LEDs: green RUN for module active, red ERR for module error, and bi-color LEDs for Mod Status and Net Status. These indicators simplify initial commissioning and ongoing diagnostics.
Maintenance and Reliability
Given the module's solid-state design, routine maintenance is minimal. Periodically inspect the IP20 enclosure for dust accumulation, especially in environments with particulate. Verify that ambient temperature stays within 0…60 °C and relative humidity below 95% without condensation. The module's compliance with CE directives (2014/35/EU and 2014/30/EU) ensures electromagnetic compatibility in industrial settings.
Reliable Network Switching for Modicon X80 Systems
Industrial Ethernet networks demand robust, dedicated switching components to maintain communication integrity. The Schneider BMENOS0300 switch module, part of the Modicon X80 range, provides three dedicated Ethernet/IP ports for device and service connectivity. Designed for integration with BMEXBP... backplanes, this module simplifies network architecture while ensuring reliable data exchange in demanding environments.
Compatibility and Integration
The BMENOS0300 is purpose-built for the Modicon X80 ecosystem, using EtherNet/IP as its native protocol. The three ports provide flexibility for device-level ring or linear topologies without additional hardware. For systems requiring redundant network paths, this module supports standard EtherNet/IP redundancy mechanisms.
Selection Guide and Purchasing Advice
When selecting a switch module for your Modicon X80 system, verify backplane compatibility and port count requirements. The BMENOS0300 offers three ports, sufficient for many distributed I/O and drive networks. AutoDCSTech stocks this module and can assist with lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Troubleshooting and Common Issues
If the ERR LED illuminates, check backplane power and module seating. A steady red ERR may indicate a hardware fault; power cycle the rack. If Net Status LED is off, verify Ethernet cable integrity and switch configuration. For Mod Status LED flashing green/red, consult the Modicon X80 system manual for specific diagnostic codes. Always power down the rack before reseating the module.
Availability & Condition at AutoDCSTech
| Part Number | BMENOS0300 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
