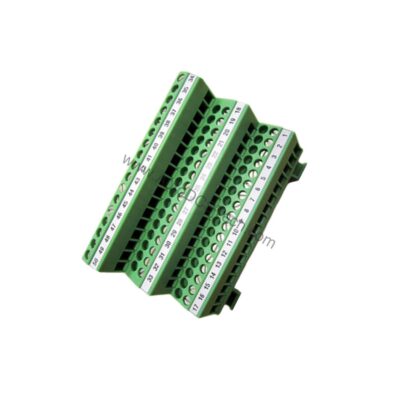

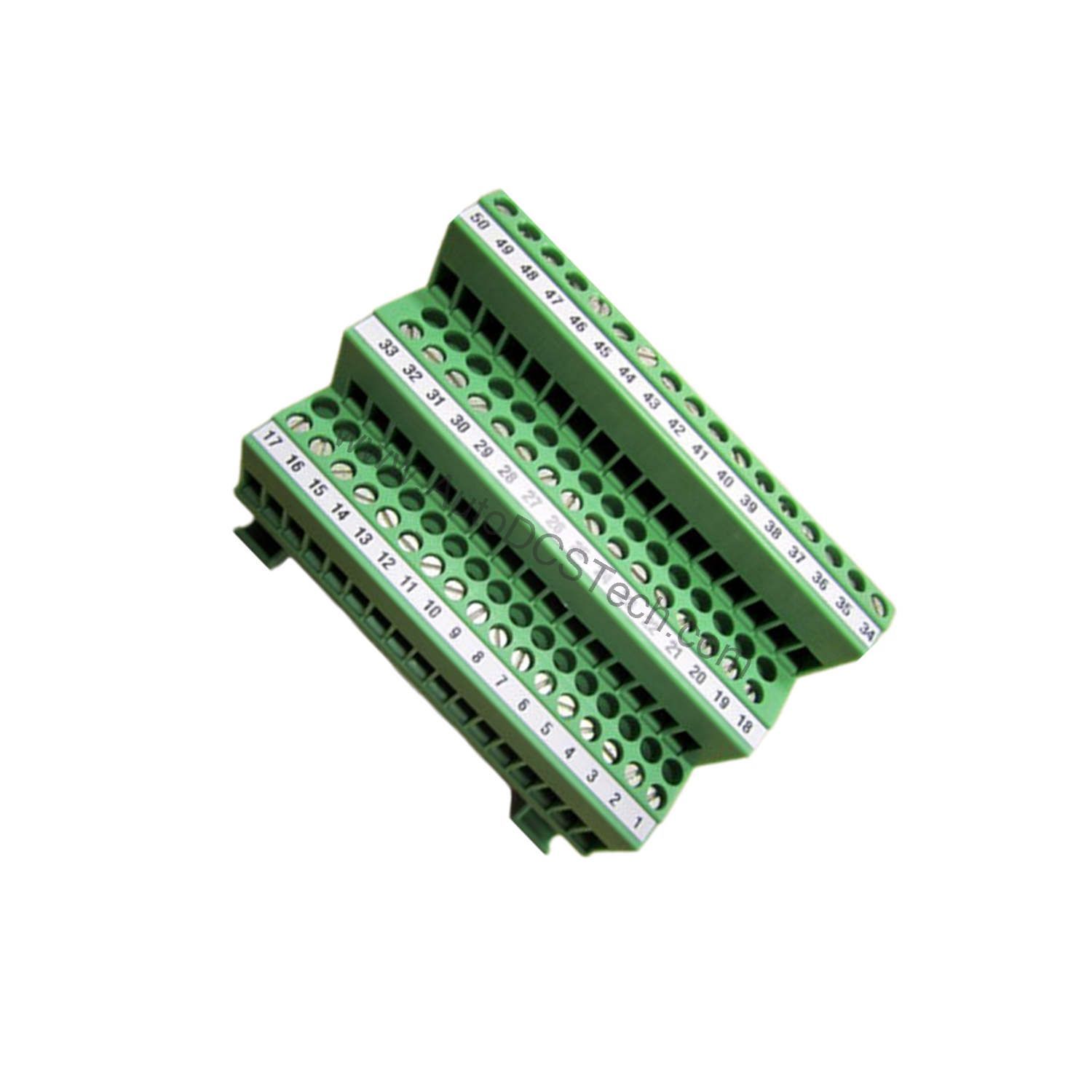

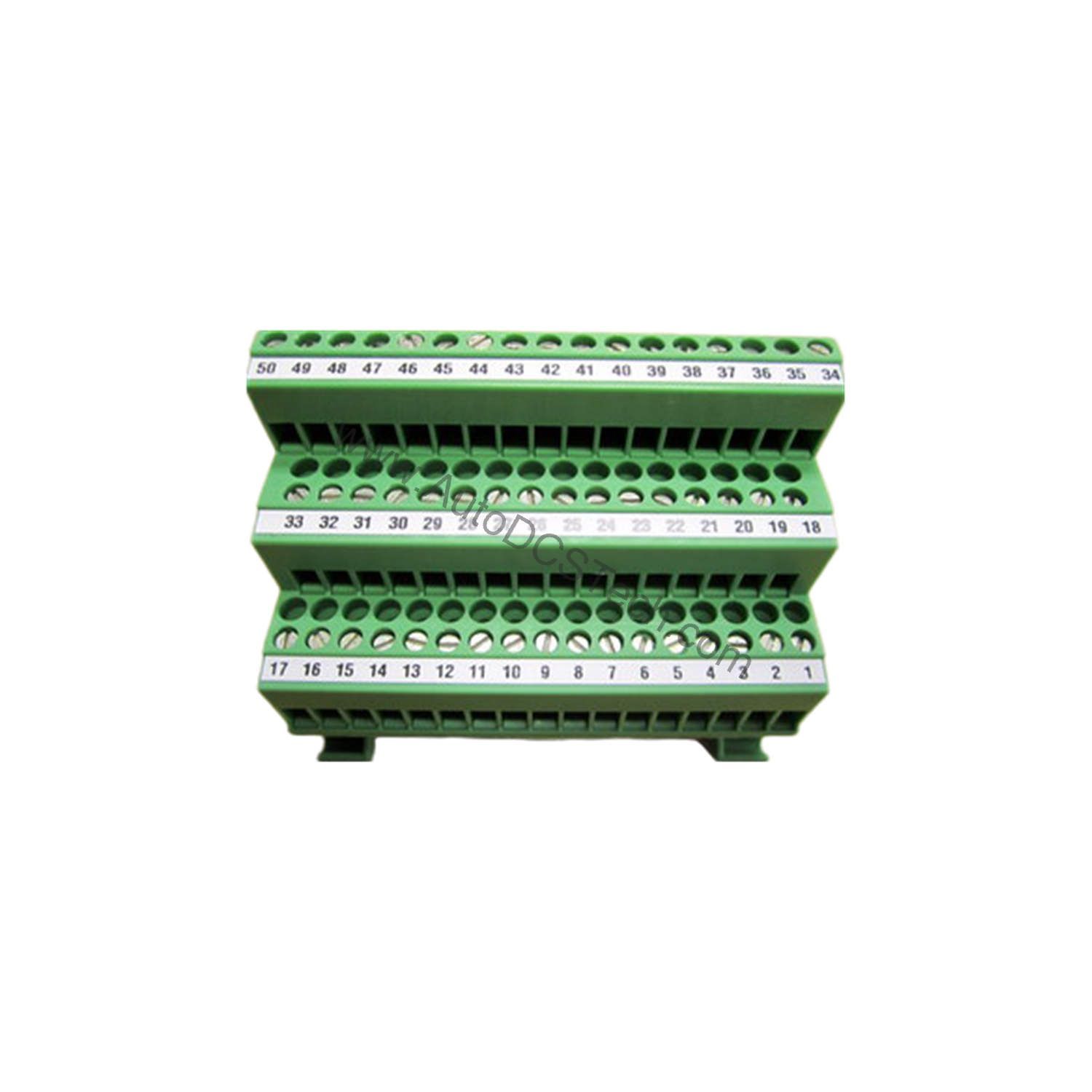

Schneider Modicon Quantum 690MCB00000 Field Wiring Block for Motion Control

Streamlining Motion Control Wiring: The 690MCB00000 Field Wiring Block

This breakout module provides a centralized, organized interface for up to 50 signal lines, reducing installation time and potential wiring errors.

Technical Specifications Breakdown

Key parameters for the 690MCB00000 are listed below for quick reference:

Industry Applications

Motion Control System Integration – In packaging or material handling lines, the 690MCB00000 connects servo drives and encoders to a Modicon Quantum controller. Its 50 screw terminals accommodate multiple feedback and command signals, ensuring reliable data transfer.

Factory Automation Retrofits – When upgrading legacy machinery, this field wiring block simplifies rewiring. The panel-mount design allows quick installation in existing cabinets, reducing downtime.

Cost-Benefit & Operational ROI – By centralizing wiring, the module cuts labor costs during installation and maintenance. Fewer loose connections mean less troubleshooting, improving overall equipment effectiveness (OEE).

Installation & Setup Guidance

Mount the 690MCB00000 securely on a panel using the provided mounting holes. Ensure the 50-pin male connector aligns correctly with the mating cable from the motion controller. Tighten screw terminals to the recommended torque for your wire gauge. Label each terminal clearly for future maintenance.

Maintenance & Reliability

Inspect screw terminals periodically for tightness, especially in high-vibration environments. Keep the connector contacts clean and free from debris. The robust design of this field wiring block supports long-term operation under typical industrial conditions.

Compatibility & Integration

This breakout module is designed for Modicon Quantum systems. It works with compatible motion control modules and cables. Verify cable pinout and connector type before integration to ensure proper signal mapping.

Selection Guide & Purchasing Advice

When ordering the 690MCB00000, confirm compatibility with your existing Modicon Quantum motion control setup. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If signals are intermittent, check that the 50-pin male connector is fully seated and latched. Loose screw terminals can cause open circuits; retighten as needed. For persistent issues, verify the cable continuity between the module and the controller.
