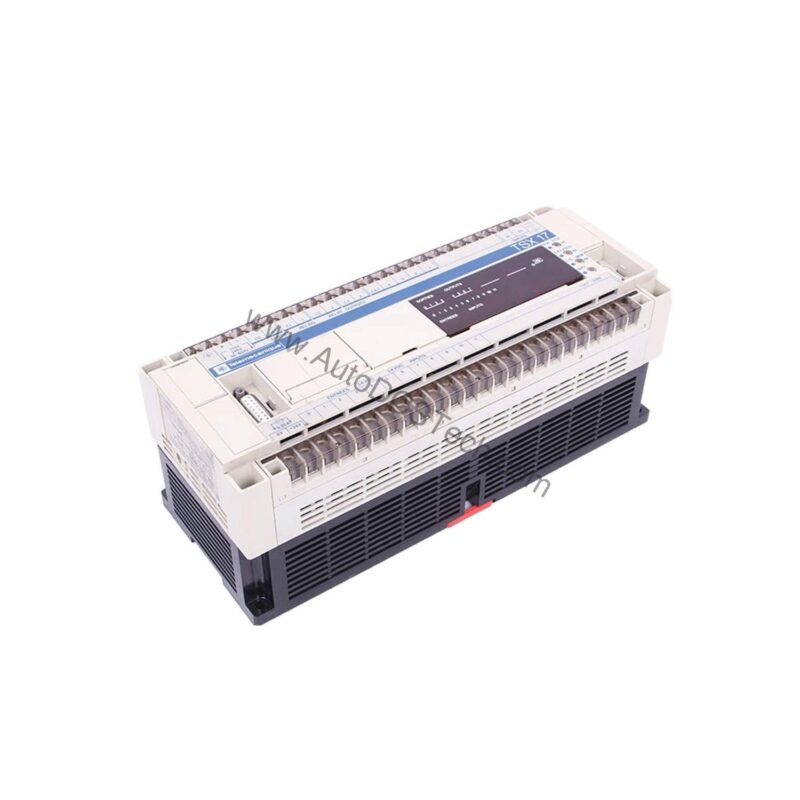

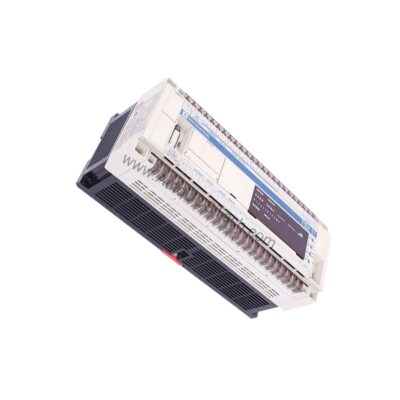

TSX1722028: PLC Module
The TSX1722028 is the PLC Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 120/240 VAC.
What separates this variant from its siblings is plc module. A processor or controller is selected on memory, scan time and platform compatibility before anything else. plc module sets how much programme fits, how fast the logic executes and which I/O and networks the unit can host — the three things that decide whether an existing application migrates without a rewrite. Confirming 120/240 VAC against the installed controller family is the check that prevents a processor that boots but cannot run the existing project.
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Brand | Schneider |
| Part Number | TSX1722028 |
| Product Type | PLC Module |
| Product Line | Modicon |
| Part Number | TSX1722028 |
| Input Voltage | 120/240 VAC |
| Current Rating (Input) | 0.5/0.25 AMP |
| Output Type | Digital (Discrete) |
| I/O Type | 10 Inputs / 10 Outputs |
| Relay Type | Relays |
| Signal Voltage | 24V DC for I/O |
| Communication Interface | No Communication Interface (Standalone) |
| Mounting Type | Panel Mount |
| Temperature Range | -10°C to +60°C |
| Weight | 3.44 lbs (1.56 kg) |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| schneider-tsx17-acc1-backup-power-module-for-tsx-micro-plcs | confirm the configuration against your installation |
| schneider-modicon-tsx1702028-programmable-controller-24-i-o-relay-output | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | TSX1722028 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
