Introduction

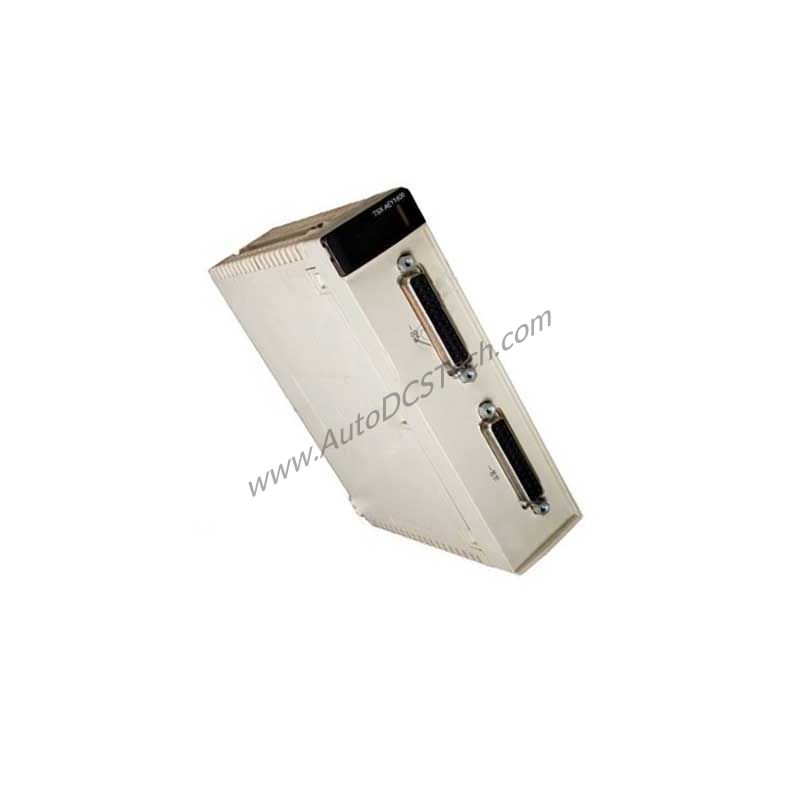

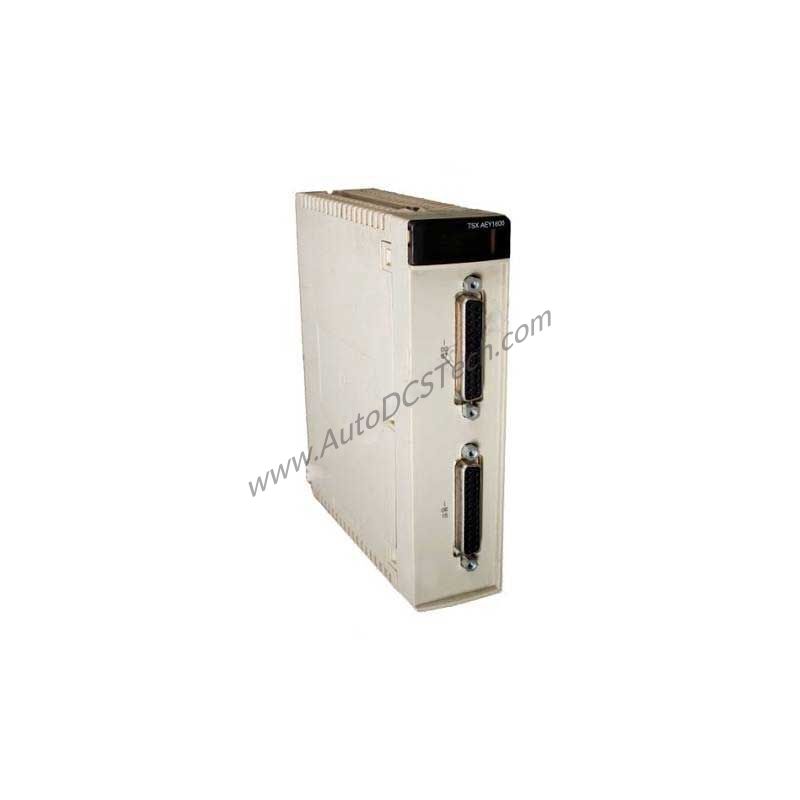

When your industrial process demands precise analog signal acquisition, the Schneider Electric TSXAEY1600 delivers reliable performance. This standard analog input module, part of the TSX Micro PLCs series, provides 16 high-level inputs with 12-bit analog-to-digital conversion. It supports multiple input types including current (0-20 mA, 4-20 mA) and voltage (±10 V, 0-10 V, 0-5 V, 1-5 V), making it versatile for various automation tasks.
Technical Specifications Breakdown
The TSXAEY1600 offers robust specifications that ensure accurate and stable operation:
- Analog Input Channels: 16 high-level inputs
- Analog/Digital Conversion: 12 bits
- Input Types: Current (0-20 mA, 4-20 mA) and Voltage (±10 V, 0-10 V, 0-5 V, 1-5 V)
- Measurement Error: 0.1% of full scale at 25°C for voltage ranges (e.g., ±10 V, 0-10 V, 0-5 V, 1-5 V)
- Fast Read Cycle Time: 3 ms + 3 ms per channel used
- Nominal Read Cycle Time: 51 ms
- Isolation: 1000 Vrms between channels and bus, and 1000 Vrms between channels and ground
- Input Overvoltage Protection: -15 to 15 V at state 0, -30 to 30 V at state 1
- Current Consumption: 270 mA at 5 V DC
- Electrical Connection: 2 connectors SUB-D 25
These parameters ensure high accuracy and noise immunity, critical for applications like process control, monitoring, and data acquisition.
Industry Applications
The TSXAEY1600 excels in environments where precise analog measurement is essential. Common applications include:
- Process Control: Monitoring temperature, pressure, or flow transmitters using 4-20 mA current loops. The module's 0.1% measurement error at 25°C ensures reliable data for closed-loop control.
- Machine Monitoring: Reading voltage signals from sensors in manufacturing lines. The fast read cycle time (3 ms + 3 ms per channel) allows quick scanning of multiple points.
- Building Automation: Integrating with HVAC systems to measure analog inputs from sensors. The wide operating temperature range (0 to 60°C) suits indoor environments.
Installation & Setup Guidance
When installing the TSXAEY1600, follow these practical steps:
- Mounting: Insert the module into a standard TSX Micro PLC rack. Ensure proper alignment with the backplane connector.
- Wiring: Use the two SUB-D 25 connectors for signal connections. Refer to the wiring diagram for correct pin assignments.
- Configuration: Set the input type (current or voltage) via software or DIP switches as per your application. Verify the input range matches your sensor output.
- Power: The module draws 270 mA at 5 V DC from the backplane. Ensure the power supply can handle the total load.
- Grounding: Maintain proper grounding to achieve the specified 1000 Vrms isolation between channels and ground.
Maintenance & Reliability
The TSXAEY1600 is designed for long-term reliability. To ensure consistent performance:
- Inspect Connectors: Periodically check the SUB-D 25 connectors for corrosion or loose pins.
- Environmental Control: Operate within 10% to 95% relative humidity (non-condensing) and 0 to 60°C ambient temperature. Store between -25 to 70°C.
- Avoid Overvoltage: The module includes input overvoltage protection (-15 to 15 V at state 0, -30 to 30 V at state 1), but avoid sustained overvoltage conditions.
- Regular Calibration: Although the measurement error is low (0.1% of full scale at 25°C), periodic verification against a known standard is recommended for critical applications.
Compatibility & Integration
The TSXAEY1600 integrates seamlessly with the TSX Micro PLC platform. It is compatible with:
- TSX Micro PLCs: All models in the series that support analog input modules.
- Programming Software: PL7 Pro or Unity Pro (depending on PLC version).
- Communication: The module communicates via the backplane bus; no additional protocols are required.
For systems requiring multiple analog inputs, up to 16 channels per module can be used. The module's fast read cycle time (3 ms + 3 ms per channel) enables efficient scanning in multi-channel applications.
Selection Guide & Purchasing Advice
Before purchasing the TSXAEY1600, verify:
- PLC Compatibility: Ensure your TSX Micro PLC base supports this module.
- Input Type: Confirm the required input type (current or voltage) matches your sensors.
- Channel Count: The module provides 16 high-level inputs; if fewer are needed, unused channels can be left unconnected.
- Environmental Conditions: Check that your operating environment falls within the specified temperature and humidity ranges.
SpareTechPLC offers the TSXAEY1600 with fast shipping and expert support. Contact us for current availability and pricing.
Frequently Asked Questions
Q1: What is the measurement error of the TSXAEY1600 for voltage inputs at 25°C?
A1: The measurement error is 0.1% of full scale for voltage ranges including ±10 V, 0-10 V, 0-5 V, and 1-5 V at 25°C.
Q2: Can the TSXAEY1600 handle both current and voltage inputs simultaneously?
A2: Yes, the module supports both current (0-20 mA, 4-20 mA) and voltage (±10 V, 0-10 V, 0-5 V, 1-5 V) inputs, but each channel must be configured for one type.
Q3: What is the isolation rating between channels?
A3: The TSXAEY1600 provides 1000 Vrms isolation between channels and the bus, and 1000 Vrms between channels and ground. However, there is no isolation between individual channels (common point).
Q4: How many channels does the TSXAEY1600 have?
A4: It has 16 high-level analog input channels.
Q5: What is the current consumption of the module?
A5: The module consumes 270 mA at 5 V DC from the backplane.
