Precision Analog Measurement for Challenging Industrial Environments

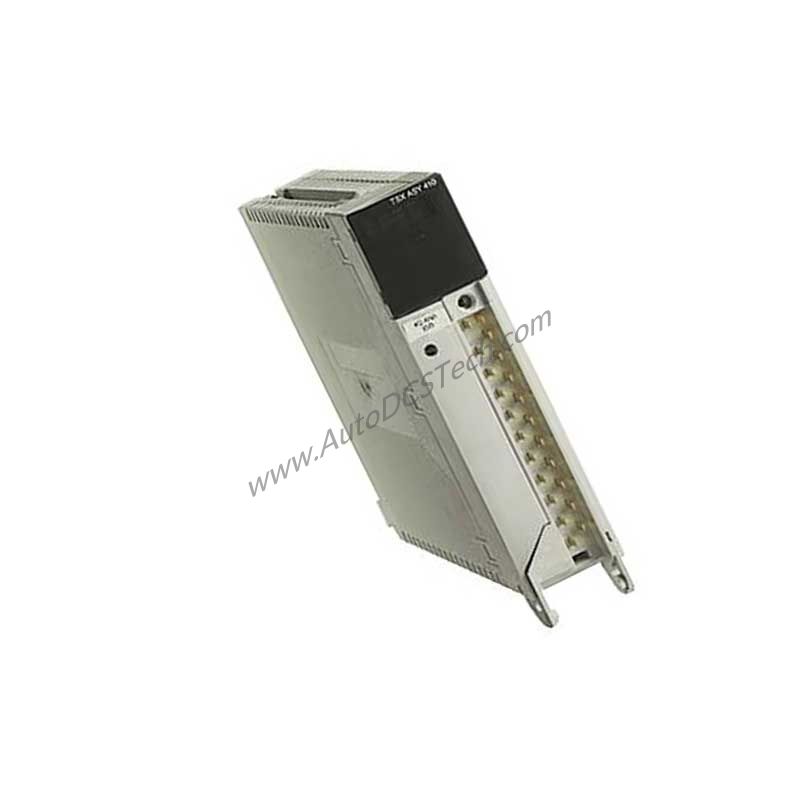

When a manufacturing line requires accurate temperature, pressure, or flow monitoring across multiple sensor types, the Schneider Electric TSXAEY414 analog input module delivers reliable performance. This module, part of the TSX Micro PLCs series, is engineered to handle a wide variety of input signals while maintaining high electrical isolation, ensuring data integrity even in electrically noisy environments.
Technical Specifications Breakdown
The TSXAEY414 offers four high-level analog input channels with a 16-bit analog-to-digital conversion for precise measurement. Its nominal read cycle time of 550 ms provides stable, repeatable readings. The module supports a broad range of input types:
- Current: 4...20 mA
- Voltage: +/- 10 V, 0...10 V, 0...5 V, 1...5 V, +/- 5 V, and -13...63 mV
- Thermocouples: Types B, E, J, K, L, N, R, S, T, U
- Resistance: 0...400 Ohm and 0...3850 Ohm
- Temperature probes: Pt 100, Pt 1000, Ni 1000 (2 or 4 wires)
Measurement error varies by input type and temperature. For example, at 25 °C, the error is 0.13% of full scale for 0...400 Ohm, and 0.45% of full scale for 4...20 mA. For thermocouples, error is specified in degrees Celsius, such as 1.5 °C for type B with external compensation at 25 °C.
Electrical isolation is a key feature: 2830 Vrms between channels and bus, and 1780 Vrms between channels and ground. Common mode voltage ratings are 415 V AC or 200 V DC between channels, and 240 V AC or 110 V DC between channels and earth. Input overvoltage protection is provided: -30…30 V at state 1 and -15…15 V at state 0 (with 250 Ohm).
Real-World Applications
Consider a chemical processing plant that must monitor reactor temperatures using thermocouples and pressure using 4-20 mA transmitters. The TSXAEY414 can handle both signal types on a single module, simplifying wiring and reducing spare parts inventory. Its high isolation prevents ground loops that could corrupt sensitive temperature readings.
In a water treatment facility, the module can accept signals from Pt 100 RTDs for tank temperature and 0-10 V sensors for flow rate. The 16-bit conversion ensures fine resolution for precise control.
Installation and Setup Guidance
The TSXAEY414 uses a standard module format and connects via a screw terminal block for secure wiring. Ensure the module is mounted in a suitable enclosure with an IP20 degree of protection. Operating temperature range is 0 to 60 °C, with storage from -25 to 70 °C. Relative humidity must be kept between 10% and 95% without condensation. The module consumes 660 mA at 5 V DC from the backplane.
Maintenance and Reliability
Regular inspection of terminal connections and environmental conditions is recommended. The module is built to operate in pollution degree 2 environments. With no moving parts, the primary wear point is the connector; ensure screws are tightened to the manufacturer's specification during installation. The module carries CE marking and certifications from DNV, BV, ABS, RMRS, RINA, GL, and LR.
Compatibility and Integration
The TSXAEY414 is designed for the Schneider TSX Micro PLCs platform. It integrates seamlessly with the Modicon Premium automation platform. The module adheres to standards including DIN 43760, IEC 584, IEC 751, DIN 43710, NFC 42-330, and IEC 1131.
Selection Guide and Purchasing Advice
Before purchasing the TSXAEY414, verify that your PLC backplane supports this module format and that the power supply can provide the required 660 mA at 5 V DC. SpareTechPLC offers this module with fast shipping and expert support to help you select the right analog input solution for your application.
Please verify current lifecycle status and availability with SpareTechPLC before ordering.
