Product Overview

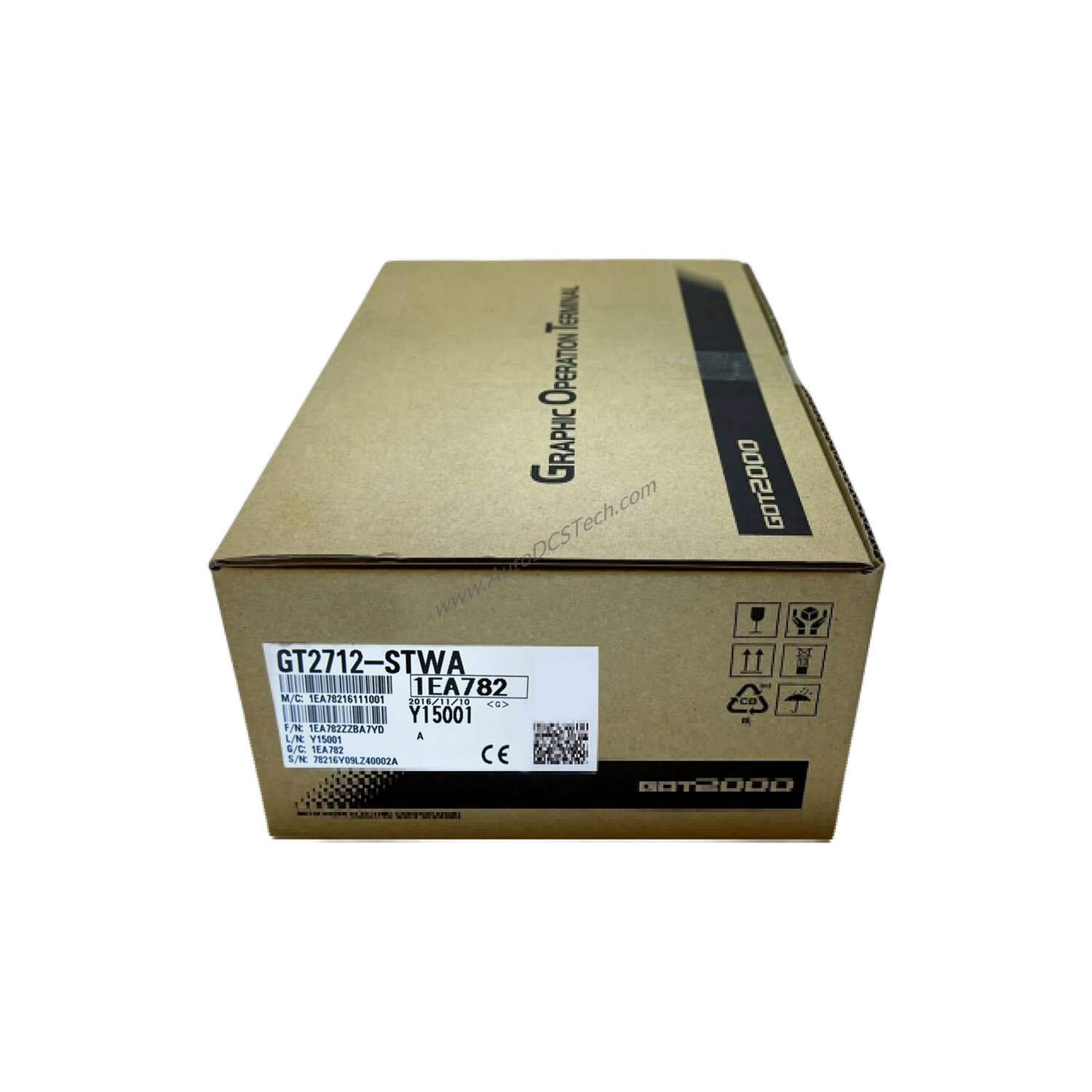

When industrial environments demand reliable operator control and clear data visualization, the Mitsubishi GT2712-STWA programmable touchscreen HMI device delivers. Part of the GOT2000 series, this unit combines a vivid 12.1-inch TFT LCD display with 800 x 600 pixel resolution and support for 65,536 colors. The resistive analog touch interface ensures precise input even when operators wear gloves, making it ideal for factory floor applications.
Technical Specifications Breakdown
The GT2712-STWA operates within a functional temperature range from 0°C to 55°C, suitable for typical industrial settings. Its front panel carries an IP67F rating, providing robust protection against dust and water ingress, while the rear is rated IP2X. The LED backlight has a lifespan of approximately 60,000 hours at 25°C and is non-replaceable, offering long-term reliability without maintenance.
Memory allocation includes 57 MB of ROM and 128 MB of RAM, enabling efficient handling of screen data and application logic. Power input ranges from 100 V AC to 240 V AC with +10%/-15% variation, and maximum power consumption is 44 W under full load. The device weighs 20.00 lbs (9.07 kg) and has installation dimensions of 316 x 246 x 52 mm with a cut-out of 302 x 228 mm.
Connectivity and Integration
The GT2712-STWA supports flexible communication options. It includes one Ethernet channel (100BASE-TX/10BASE-T, RJ45) for network integration, two USB host ports for connecting peripherals like keyboards or barcode scanners, and one USB device port for programming or data transfer. This connectivity allows seamless integration with Mitsubishi PLCs and other automation systems.
Industry Applications
In manufacturing lines, the GT2712-STWA serves as a central operator interface for monitoring production metrics, controlling machine sequences, and displaying alarm status. Its resistive touchscreen works reliably in dusty or wet conditions, thanks to the IP67F front protection. For packaging or material handling systems, the clear 65,536-color display helps operators quickly identify process states and respond to changes.
Installation Guidance
Mount the GT2712-STWA into a panel cut-out of 302 x 228 mm using the provided gasket to maintain the IP67F seal. Ensure the ambient temperature stays within 0°C to 55°C and that ventilation around the unit is adequate. Connect power via a dedicated circuit supplying 100-240 V AC. Use shielded Ethernet cables for reliable communication and standard USB cables for peripheral connections.
Maintenance and Reliability
The non-replaceable LED backlight offers approximately 60,000 hours of service life at 25°C, reducing the need for periodic replacements. Regularly inspect the front seal and gasket for damage to preserve the IP67F protection. Clean the touchscreen with a soft, damp cloth; avoid abrasive cleaners that could damage the resistive surface. Verify that the rear IP2X enclosure remains intact to prevent dust entry.
Selection Guide and Purchasing Advice
Before ordering the GT2712-STWA, confirm that your application requires a 12.1-inch SVGA display with resistive touch and that the operating environment stays within the 0°C to 55°C range. Verify that your power supply can deliver 100-240 V AC with the specified tolerance. SpareTechPLC stocks this Mitsubishi HMI and can advise on availability and compatible accessories. Contact our team to ensure the GT2712-STWA meets your specific needs.
Frequently Asked Questions
Q1: What is the screen resolution of the GT2712-STWA?
A1: The GT2712-STWA features an SVGA resolution of 800 x 600 pixels.
Q2: Can the GT2712-STWA be used in washdown environments?
A2: Yes, the front panel is rated IP67F, offering protection against dust and water ingress, suitable for washdown areas.
Q3: How much memory does the GT2712-STWA have?
A3: It has 57 MB of ROM and 128 MB of RAM for storing screen data and application logic.
Q4: What communication ports are available on the GT2712-STWA?
A4: It includes one Ethernet port (100BASE-TX/10BASE-T, RJ45), two USB host ports, and one USB device port.
Q5: Is the backlight replaceable on the GT2712-STWA?
A5: No, the LED backlight is non-replaceable and has a lifespan of approximately 60,000 hours at 25°C.
